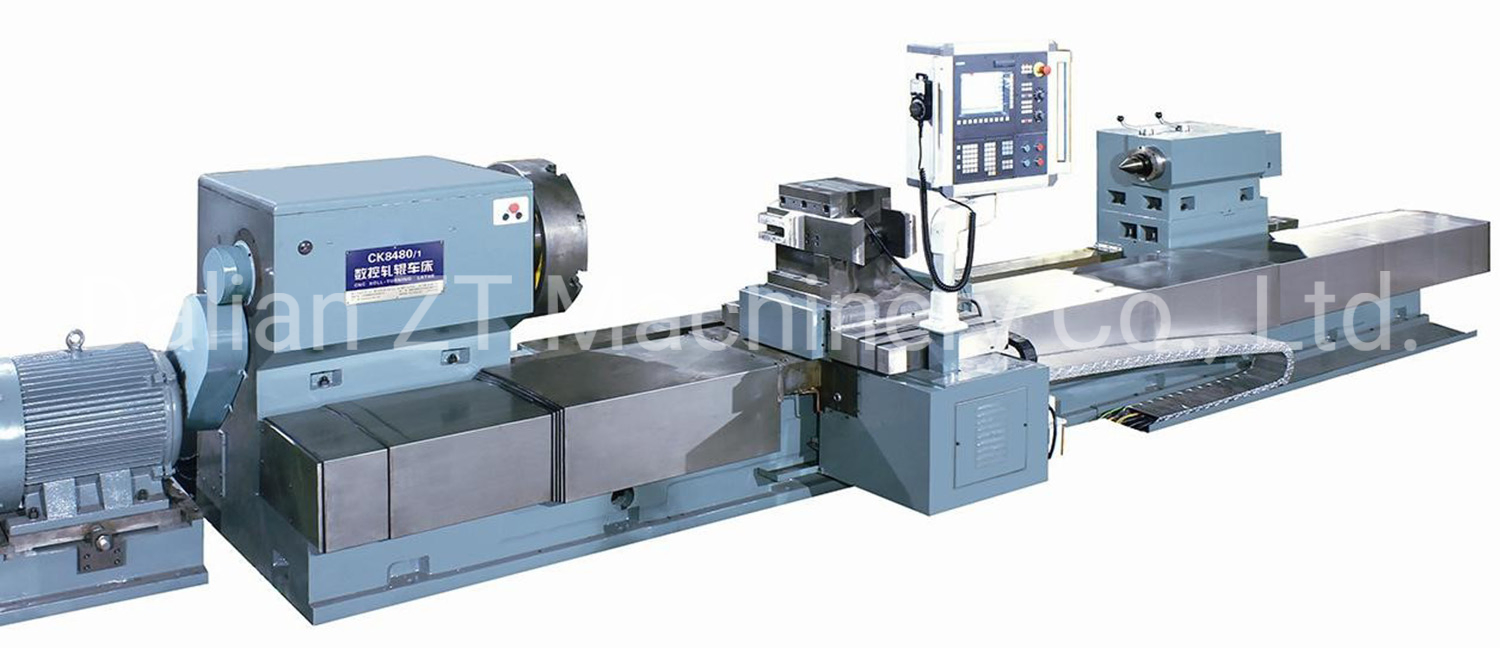

Heavy-Duty CNC Rolling Roller Lather Machine
Features: This series of heavy-duty CNC rolling lathe is suitable for rough & finish machining of the roller part. The machine bed is with 4 guideways and the chuck is enlarged, which makes the machine stronger and causes longer service life. The main motor is driven by AC motor, spindle speed c......
Send Inquiry
Product Description
Features:

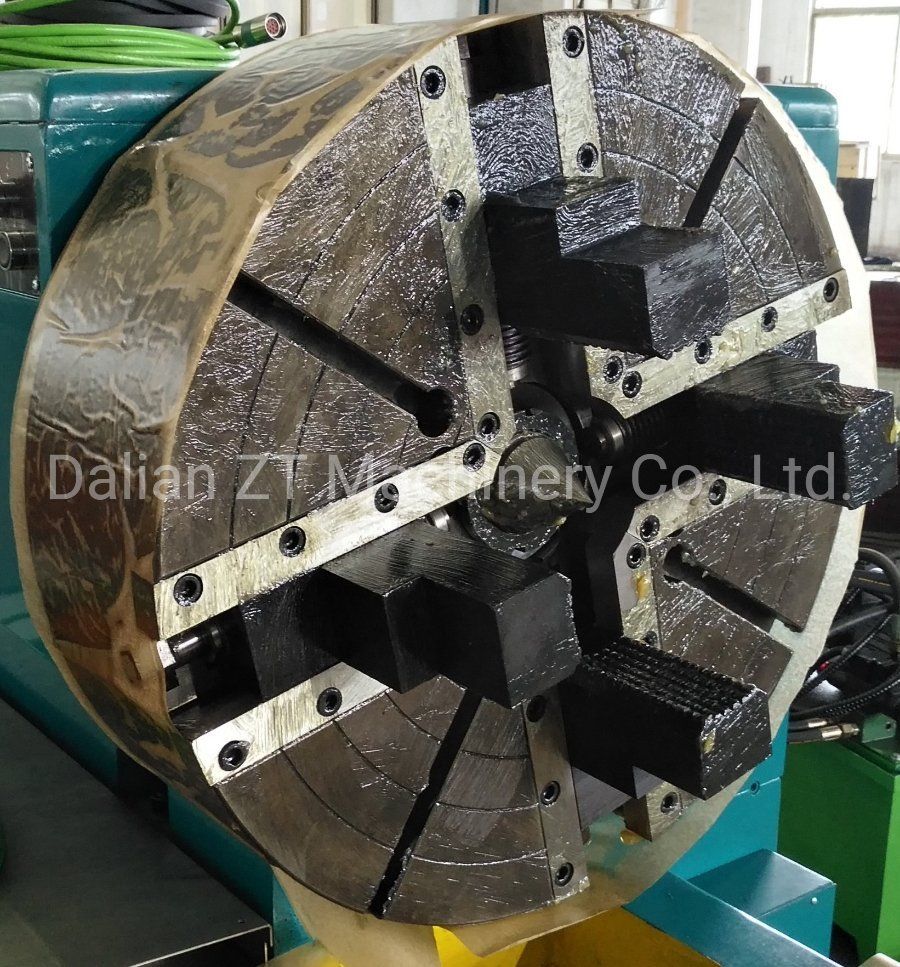

This series of heavy-duty CNC rolling lathe is suitable for rough & finish machining of the roller part. The machine bed is with 4 guideways and the chuck is enlarged, which makes the machine stronger and causes longer service life. The main motor is driven by AC motor, spindle speed can be reached with mechanical speed varying device.
.
Standard accessories:
FAQ
1. How can I choose the most suitable machines?
A: You can choose the exact model by yourself. Or you can tell us your specifications, to let us choose the best model for you, too.
You can also send us the product drawing, and we will choose the most suitable machines for you.
.
2. When do you deliver?
A: It depends on the machine and model you choose. Mostly 1.5 months - 3 months. All machines are brand new, made according to your order. Occasionally there will be a few machines available from stock. You can send us a message or mail to check exact delivery time.
3. Is machine tested?
A: The accuracy, noisy will be tested according to China GB standard.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5. What's the Payment Terms?
A : T/T 30% down payment when order ,70% balance payment before shipment ;
Irrevocable L/C at sight also acceptable but it will subject additional bank fee.
6. Do you accept cash or L/C?
A: We accept T/T or L/C, all through banking system. We do not accept cash, 'cause we are an official registered company that all payment must go through official bank account.
7. What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set)
8. How is the warranty?
A: 12 months after shipment date
9. If I have a problem setting up/ getting it running problem, will you be available by email to assist in solving the problem.
A: Video technical support, online service, we can answer you in 24 hours.
This series of heavy-duty CNC rolling lathe is suitable for rough & finish machining of the roller part. The machine bed is with 4 guideways and the chuck is enlarged, which makes the machine stronger and causes longer service life. The main motor is driven by AC motor, spindle speed can be reached with mechanical speed varying device.
| Item | Specifications |
| Max. workpiece diameter | 800mm |
| Distance between centers | 3500mm |
| Center height | 470mm |
| Max. load between centers | 6000kg |
| Max. cutting capacity | 40KN |
| Max. work holding chuck torque | 12000N.m |
| Spindle speed | 1.25-300r/min |
| Spindle speed grade | stepless |
| Work holding chuck diameter | 650mm |
| Spindle taper | Φ100mm 1:7 |
| Feed movement grade | Stepless |
| Longitudinal (Z-axis) movement speed | 0.1-1000mm/r |
| Rapid longitudinal movement speed | 4000mm/min |
| Cross (X-axis) movement speed | 0.1-1000mm/r |
| Rapid cross movement speed | 2000mm/min |
| Tailstock quill movement | 150mm |
| Rapid speed of tailstock | 3000mm/min |
| Tailstock movement mode | Motor drive |
| Tailstock quill taper | Φ60mm 1:7 |
| Tailstock quill diameter | Φ200mm |
| Bed guideway guarding | Stainless steel guarding |
| Overall dimensions (approx..) | 7600x1720x1700mm |
| Weight of machine (approx..) | 15000kg |
.
Standard accessories:
| No. | Item | Q'ty | Installation position |
| 1 | Insert Φ9.525 | 2 | Tool holder |
| 2 | Tool holder | 1 | Knife |
| 3 | Insert Φ12.7 | 2 | Tool holder |
| 4 | Tool holder | 1 | Knife |
| 5 | Insert Φ15.875 | 2 | Tool holder |
| 6 | Tool holder | 1 | Knife |
FAQ
1. How can I choose the most suitable machines?
A: You can choose the exact model by yourself. Or you can tell us your specifications, to let us choose the best model for you, too.
You can also send us the product drawing, and we will choose the most suitable machines for you.
.
2. When do you deliver?
A: It depends on the machine and model you choose. Mostly 1.5 months - 3 months. All machines are brand new, made according to your order. Occasionally there will be a few machines available from stock. You can send us a message or mail to check exact delivery time.
3. Is machine tested?
A: The accuracy, noisy will be tested according to China GB standard.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5. What's the Payment Terms?
A : T/T 30% down payment when order ,70% balance payment before shipment ;
Irrevocable L/C at sight also acceptable but it will subject additional bank fee.
6. Do you accept cash or L/C?
A: We accept T/T or L/C, all through banking system. We do not accept cash, 'cause we are an official registered company that all payment must go through official bank account.
7. What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set)
8. How is the warranty?
A: 12 months after shipment date
9. If I have a problem setting up/ getting it running problem, will you be available by email to assist in solving the problem.
A: Video technical support, online service, we can answer you in 24 hours.
