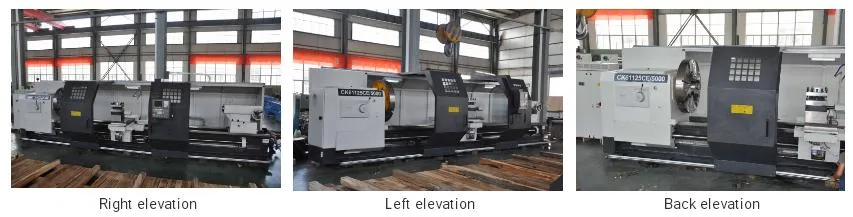

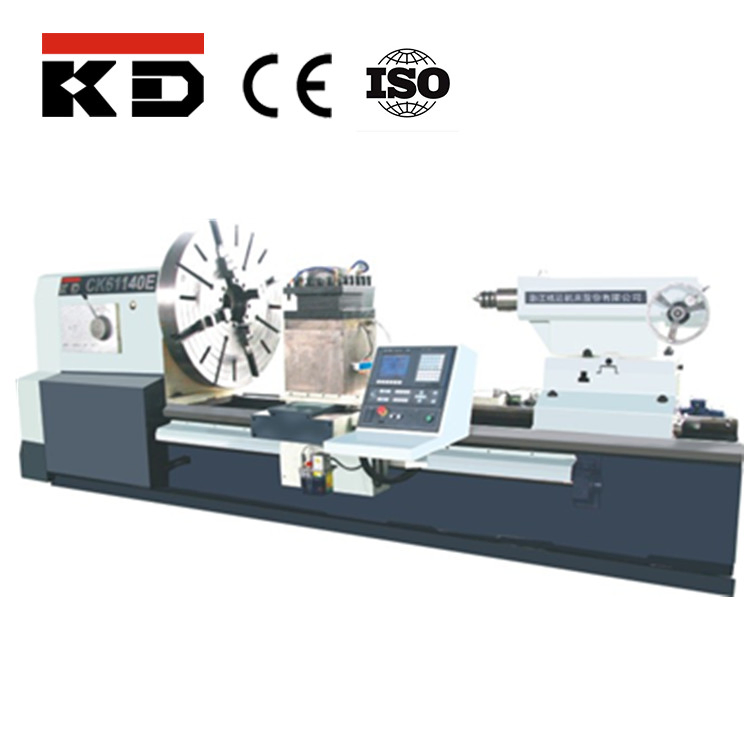

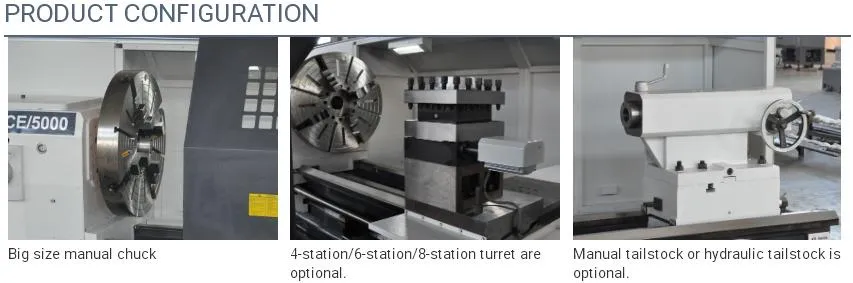

Heavy Duty Flat Bed CNC Lathe Ck61140/ 1500
FEATURES AT A GLANCEPRODUCT SPECIFICATIONS ITEMSCK61140CK61160Max. swing over bedΦ 1400 mmΦ 1600 mmMax. swing over carriageΦ 990 mmΦ 1190 mmWidth of bed970 mmMaximum length of workpiece1.5 /2 /3/4 /5/6/8/10mMax. turning length1.3 /1.8 /2.8 /3.8/4.8/5.8/7.8/9.8 mMax. w......
Send Inquiry
Product Description

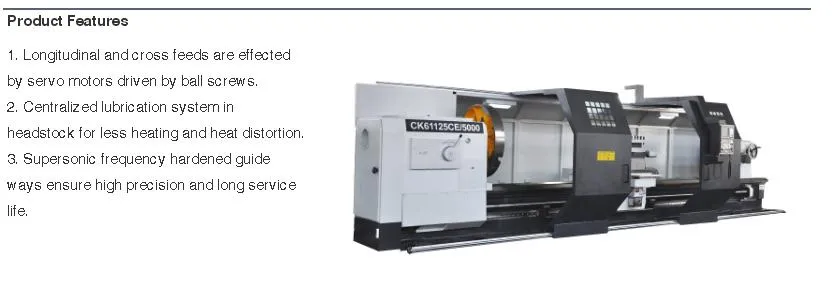

FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
PRODUCT SPECIFICATIONS
ITEMS | CK61140 | CK61160 |
Max. swing over bed | Φ 1400 mm | Φ 1600 mm |
Max. swing over carriage | Φ 990 mm | Φ 1190 mm |
Width of bed | 970 mm | |
Maximum length of workpiece | 1.5 /2 /3/4 /5/6/8/10m | |
Max. turning length | 1.3 /1.8 /2.8 /3.8/4.8/5.8/7.8/9.8 m | |
Max. weight between centers | 6000Kg | |
Spindle nose | A2-15 | |
Spindle bore | Φ 130 mm | |
Cone hole diameter and taper of spindle hole | Metric Φ 140 1: 20 | |
Steps of spindle speed(Manual) | 24 | |
Range of spindle spec | 2.5~250 r/min | |
Rapid feed for Z axis | 8m/min | |
Rapid feed for X axis | 5 m/min | |
Max. travel of Axis X | 820 mm | 920 mm |
Max. Input | 0.001 mm | |

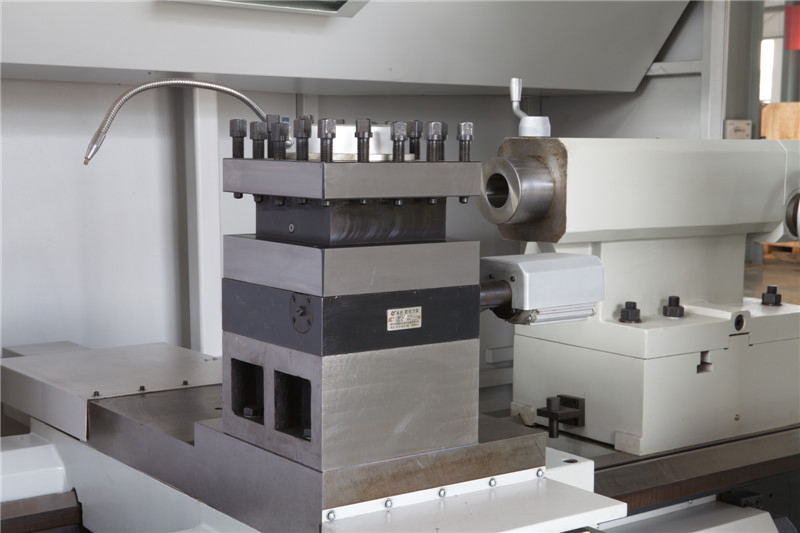

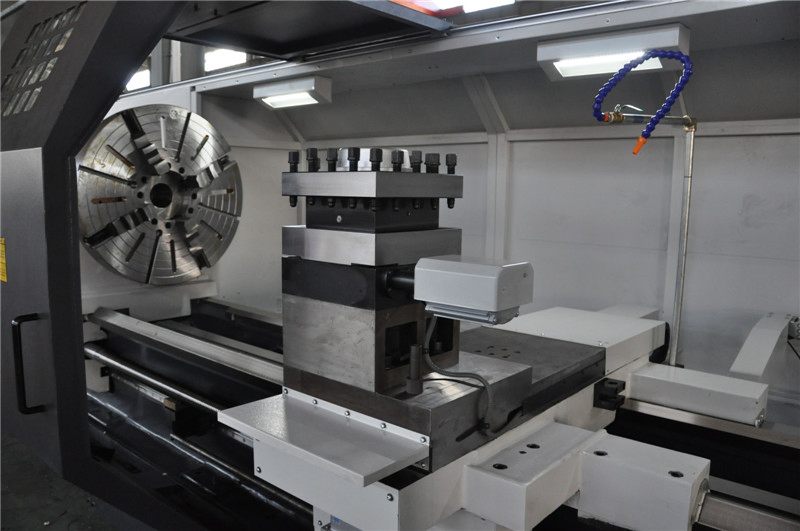

Tool post stations | 4station | |
Tool cross section | 50× 50mm | |
External diameter of tailstock sleeve | Φ 160mm | |
Taper of bore of tailstock sleeve | Metric 80 | |
Max. traverse of tailstock sleeve | 300mm | |
Spindle motor power | 22KW | |
Power of cooling pump | 370W | |
3m Overall dimensions(L× W× H) | 6200× 2280× 2130 mm | 6200× 2280× 2300 mm |
Net weight(3m) | 12700 | 13500 |
