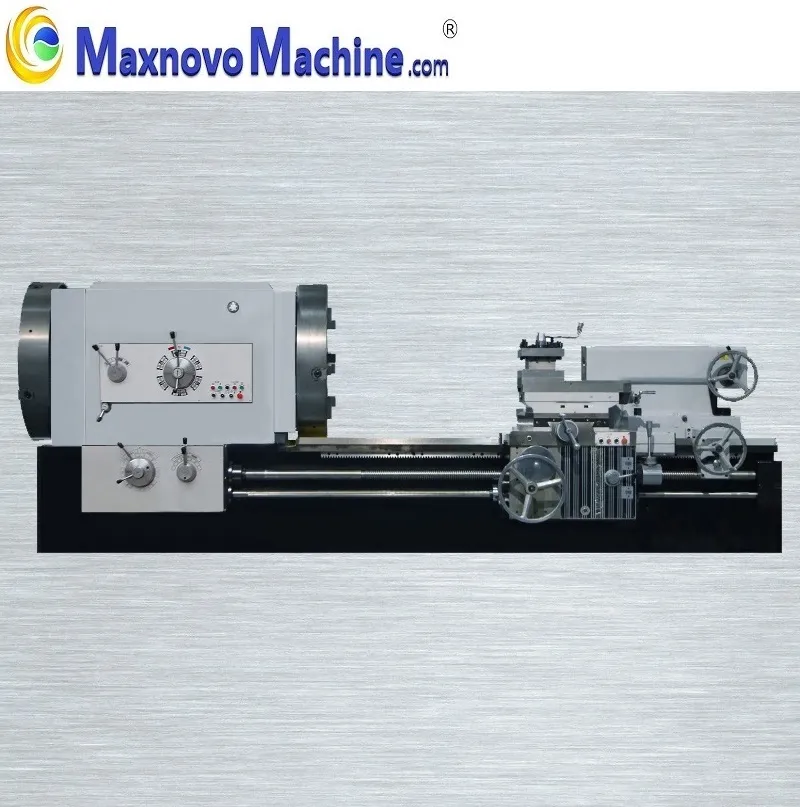

Heavy Duty Universal Oil Country Lathe with 330mm Spindle Bore (mm-Tube Turn 330)
Heavy Duty Universal Oil Country Lathe with 330mm Spindle Bore (MM-Tube Turn 330)This kind of MM-TubeTurn330 is Heavy-duty Conventional Pipe Threading Lathe with Dual Lathe Chuck which is been made in ISO9001 factory from MAXNOVO MACHINE with CE Safety Certification. The high precision Oil Country L......
Send Inquiry
Product Description
Heavy Duty Universal Oil Country Lathe with 330mm Spindle Bore (MM-Tube Turn 330)
This kind of MM-TubeTurn330 is Heavy-duty Conventional Pipe Threading Lathe with Dual Lathe Chuck which is been made in ISO9001 factory from MAXNOVO MACHINE with CE Safety Certification. The high precision Oil Country Lathe Machine is a special machine for machining long metal work-pieces such as segments of drill strings. Universal Oil Country Lathe is a famous product line for oil and gas fielding and metal industry. It could be big bore lathe of double chucks mounted at both sides of headstock, or it could have large swing for big work-pieces. It could be applied to oil pipes, big steel rollers, large diameter flanges, long shafts of ships and etc. Besides, for better work-piece clamping. Such Pipe Threading Lathe mainly used for turning internal and external threads include metric and inch thread, as well as process many universal functions.
Heavy-duty Conventional Oil Country Lathe Machine with 280mm Large Spindle Bore and Dual Lathe Chuck For Long Tube Pipe Threading
Main Feature :
Convincing Arguments: Quality, Efficiency and PriceTechnical Data :
We are Recognized OEM / ODM manufacturer cooperation with world Famous Germany Machinery Companies for more than 25 years, As a result, Our Team has Prodessional Experience and Innovation Technology to support customers in worldwide. If you want to buy Machine Tools, Welcome to visit our company website to send your enquiry to us, Our team is willing to cooperate with you together.
FAQ :
1.Question:Are you a factory or trading company ?
Answer:We are an SGS recognized OEM/ODM manufacturer factory with export license.We have an outstanding and experienced team made up of "A" player who have a passion for doing something great to create more value for customers world-wide.
2.Question:Why choose cooperate with us ?
Answer: Right people, Right product, Right price;
--Company-wide customer awareness;
--Reliable Quality and All components from world leading suppliers;
--Cost-effective export infrastructure and total supply chain management;
3.Question:Where is your factory located ? How can I visit there ?
Answer:With an ISO90001 certified factory located in Yangzhou city, Jiangsu Province, P.R.China.It takes about 2 hours from Shanghai by train.It is very pleasure for clients to visit us .
4.Question:Can you do OEM ?
Answer : Yes, we have the ability to do OEM / ODM to meet clients' requirements.
5.Question:How does your factory do regarding quality control ?
Answer : Assuring Quality is our dignity and quality control engineers specially be responsible for quality checking in each process such as Incoming Quality Control, In Process Quality Control, Outgoing Quality Control, Environment Control, Product Traceability System, Internal Audits & Calibration, Equipment Control & Maintenance, Control of Non-Conforming Materials and etc .
This kind of MM-TubeTurn330 is Heavy-duty Conventional Pipe Threading Lathe with Dual Lathe Chuck which is been made in ISO9001 factory from MAXNOVO MACHINE with CE Safety Certification. The high precision Oil Country Lathe Machine is a special machine for machining long metal work-pieces such as segments of drill strings. Universal Oil Country Lathe is a famous product line for oil and gas fielding and metal industry. It could be big bore lathe of double chucks mounted at both sides of headstock, or it could have large swing for big work-pieces. It could be applied to oil pipes, big steel rollers, large diameter flanges, long shafts of ships and etc. Besides, for better work-piece clamping. Such Pipe Threading Lathe mainly used for turning internal and external threads include metric and inch thread, as well as process many universal functions.
Heavy-duty Conventional Oil Country Lathe Machine with 280mm Large Spindle Bore and Dual Lathe Chuck For Long Tube Pipe Threading
Main Feature :
Convincing Arguments: Quality, Efficiency and Price
- Heavy Duty Universal Oil Country Lathe for Tube Pipe Threading
-Large Spindle Bore (Ø 330 mm diameter)
-Max. Swing Over Bed Ø 1000 mm and Maximum Load Capacity of Work-piece 6000 KGS
-Two Units of Lathe Chuck Mounts on Both Sides
-Larger Rigid Machine Bed Width 755 mm
-Integral Machine Bed for High Rigidity and High Precision
-Conventional Oil Country Lathe for Long Tube Pipe Threading
-Heavy machine bed made of premium cast-iron with hardened and ground guide-ways
-Massive headstock with high-precision spindle running in tapered roller bearings
-Gears are hardened and ground
-Ultrasonic Frequency Quenched Guide-ways are Enough Rigid for Good Wear-resistance
-High torque at the working spindle ensures high chip removal rates when machining parts
-Central, practical controls for feeds and thread leads
-22 KW powerful main drive motor ensures high cutting power
-Wide spectrum of inch and metric threads
-Heavy-duty 4-station tool holder
-Coolant System is standard included
-Big Spindle Bore and Double Lathe Chuck Allows Clamp and Process Big Diameter Tube Pipes
-Taper guide bar device as standard included ensures capacity process taper threads
-2-axis digital position indicator is optional
-Certificate of Original (CO, FORM A, FORM E, FORM F)
| Product Name : | Heavy Duty Universal Pipe Threading Lathe Machine |
| Product Item : | MM-Tube Turn 330 |
| Spindle Bore : | Ø 330 mm |
| Max Swing over Bed : | Ø 1000 mm |
| Max. Swing over Cross Slide : | Ø 610 mm |
| Distance Between Centers : | 1500 / 3000 / 5000 / 6000 / 8000 mm (optional) |
| Pipe Threading Range : | Ø 190 - 320 mm |
| Max. Load of Work-piece : | 6000 KGS |
| Bed Width : | 755 mm |
| Headstock | |
| Spindle Speed Range : | 8 - 280 RPM |
| Lathe Chuck Diameter : | Ø 780 mm |
| Lathe Chuck Type : | 4-Jaw (Electrical) |
| Pitch-Metric in range of : | 1 - 15 mm |
| P itch-Inch in range of : | 2 - 28 TPI |
| Travels | |
| X-axis Travel : | 520 mm |
| Z-axis Travel : | 1350 / 2850 / 4850 / 5850 / 7850 mm |
| Rapid Feed X-axis : | 1900 mm / min |
| Rapid Feed Z-axis : | 3800 mm / min |
| Tooling | |
| Tool Post Type : | 4-station (Manual) |
| Tool Shank Dimensions : | 45 X 45 mm |
| Tailstock | |
| Tailstock Taper : | MT 6 |
| Tailstock Quill Diameter : | Ø 160 mm |
| Tailstock Sleeve Travel : | 300 mm |
| Drive Capacity | |
| Main Motor : | 22 KW |
| Connecting Voltage : | Three Phase 400V |
| Gross Weight : | 13560 KGS |
| Packing Size : | 6750 X 2100 X 2000 mm (for MM-Tube Turn 330 X 3000) |
| Standard Accessory : | Lathe Chuck (two units), Taper Guide-bar Attachment, Coolant System, Machine Light, 4-station Tool Post, Tools and Tool box |
We are Recognized OEM / ODM manufacturer cooperation with world Famous Germany Machinery Companies for more than 25 years, As a result, Our Team has Prodessional Experience and Innovation Technology to support customers in worldwide. If you want to buy Machine Tools, Welcome to visit our company website to send your enquiry to us, Our team is willing to cooperate with you together.
FAQ :
1.Question:Are you a factory or trading company ?
Answer:We are an SGS recognized OEM/ODM manufacturer factory with export license.We have an outstanding and experienced team made up of "A" player who have a passion for doing something great to create more value for customers world-wide.
2.Question:Why choose cooperate with us ?
Answer: Right people, Right product, Right price;
--Company-wide customer awareness;
--Reliable Quality and All components from world leading suppliers;
--Cost-effective export infrastructure and total supply chain management;
3.Question:Where is your factory located ? How can I visit there ?
Answer:With an ISO90001 certified factory located in Yangzhou city, Jiangsu Province, P.R.China.It takes about 2 hours from Shanghai by train.It is very pleasure for clients to visit us .
4.Question:Can you do OEM ?
Answer : Yes, we have the ability to do OEM / ODM to meet clients' requirements.
5.Question:How does your factory do regarding quality control ?
Answer : Assuring Quality is our dignity and quality control engineers specially be responsible for quality checking in each process such as Incoming Quality Control, In Process Quality Control, Outgoing Quality Control, Environment Control, Product Traceability System, Internal Audits & Calibration, Equipment Control & Maintenance, Control of Non-Conforming Materials and etc .
