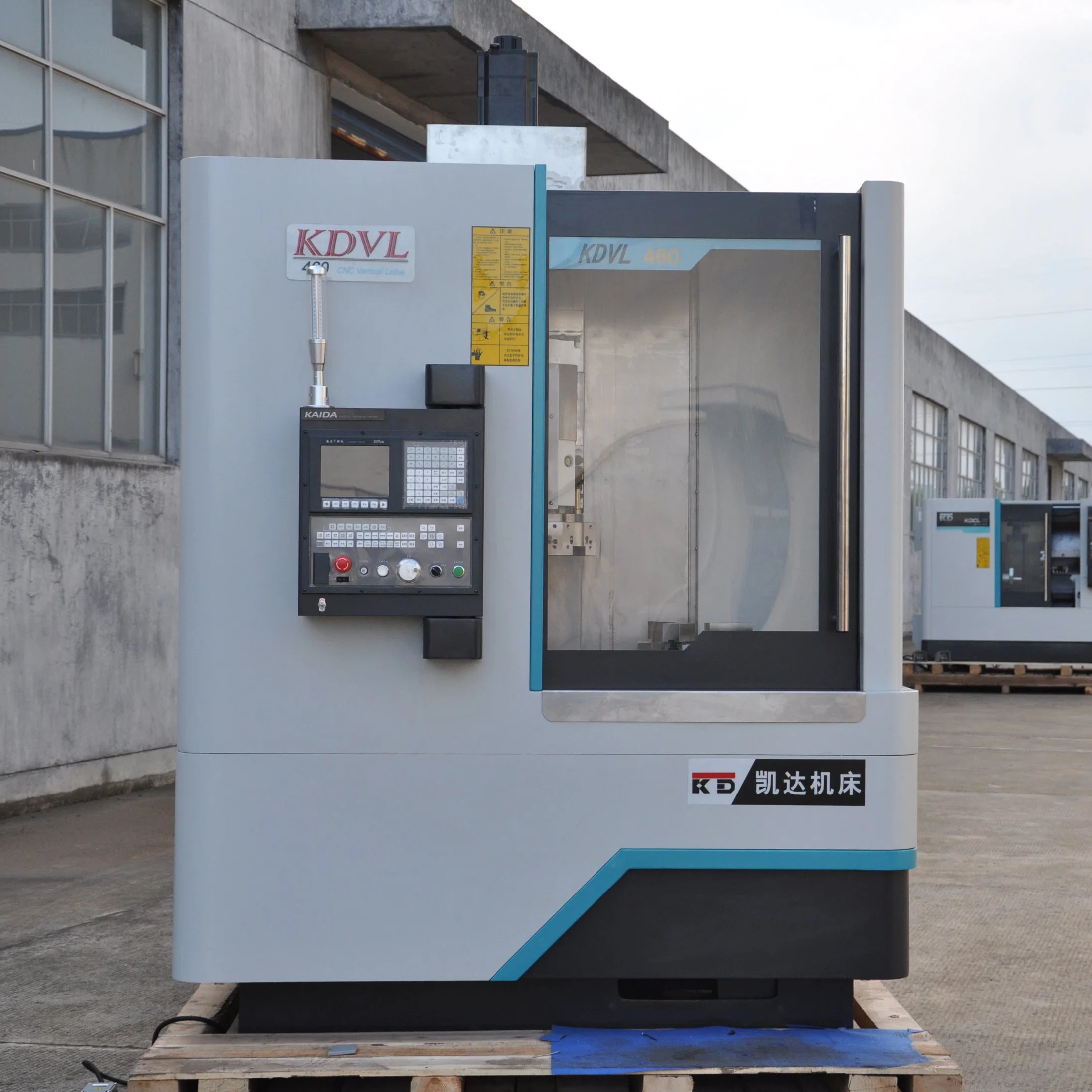

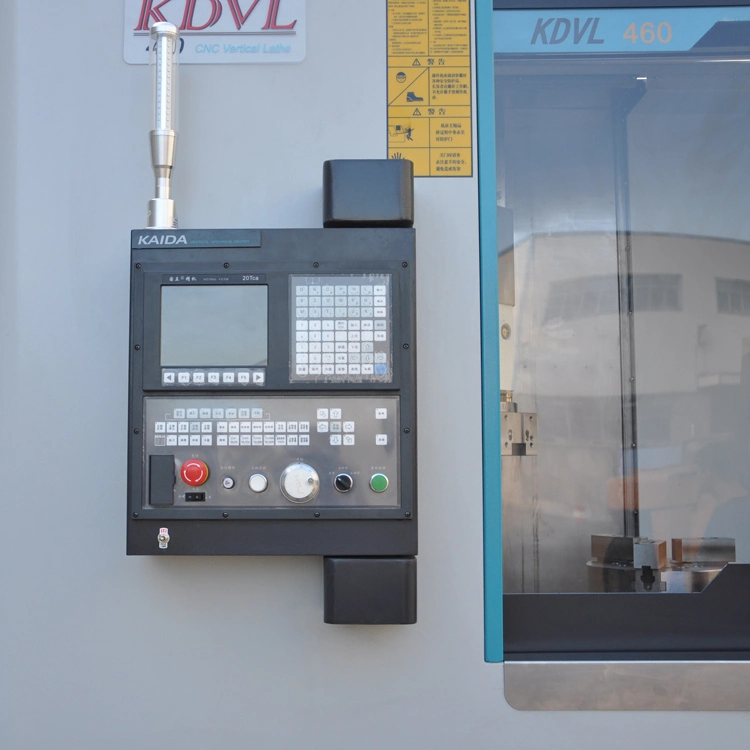

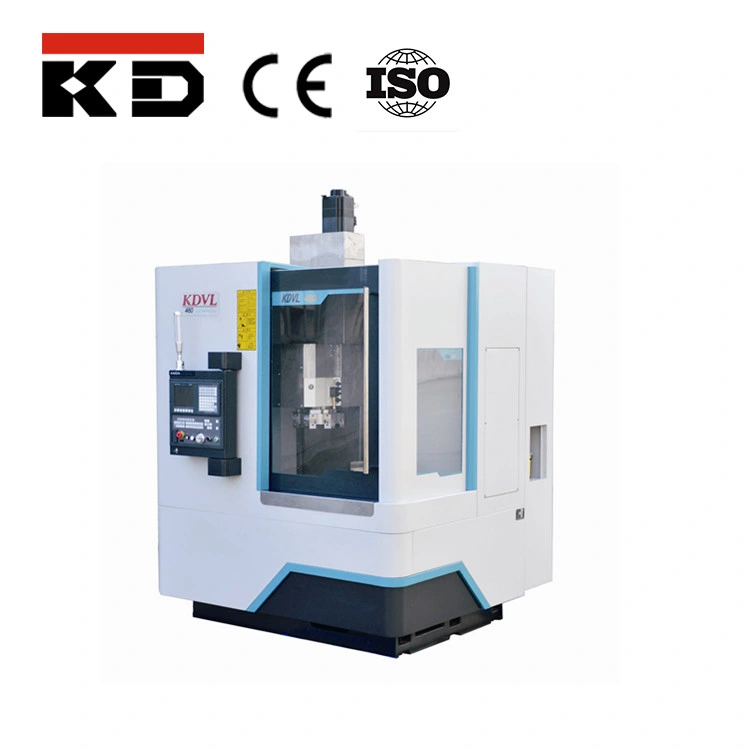

High Precision CNC Vertical Lathe (KDVL- 460L )
PRODUCT SPECIFICATIONSMODELSKDVL320KDVL460KDVL600CAPACITY Max. cutting diameter for disc parts320 mm500 mm600 mmMax. cutting diameter for axle parts320 mm460 mm600 mmMax. height of turning420 mm430 mm600 mmSPINDLE Spindle noseA2-6A2-8A2-8Front spindle bearing inner diameter100 mm120 mm140 mmSpin......
Send Inquiry

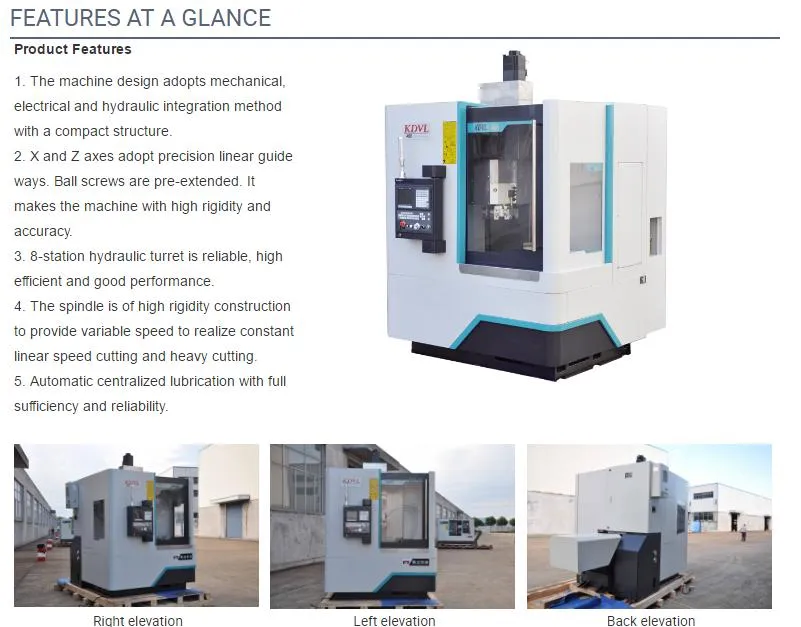

Product Description

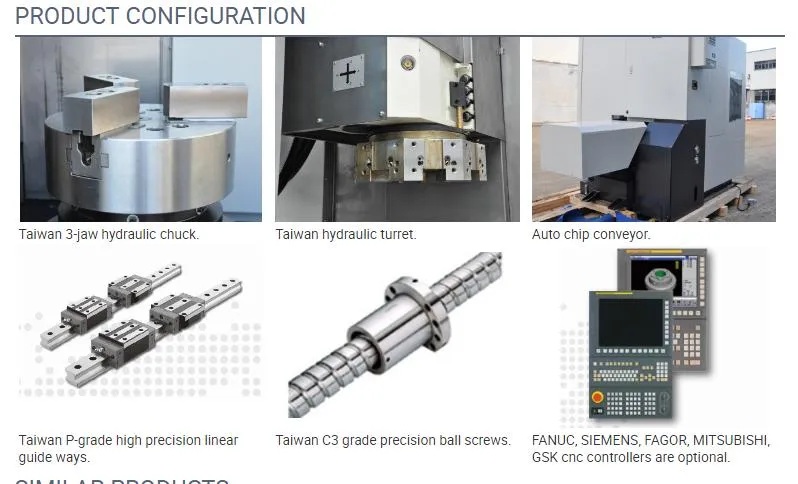

PRODUCT SPECIFICATIONS

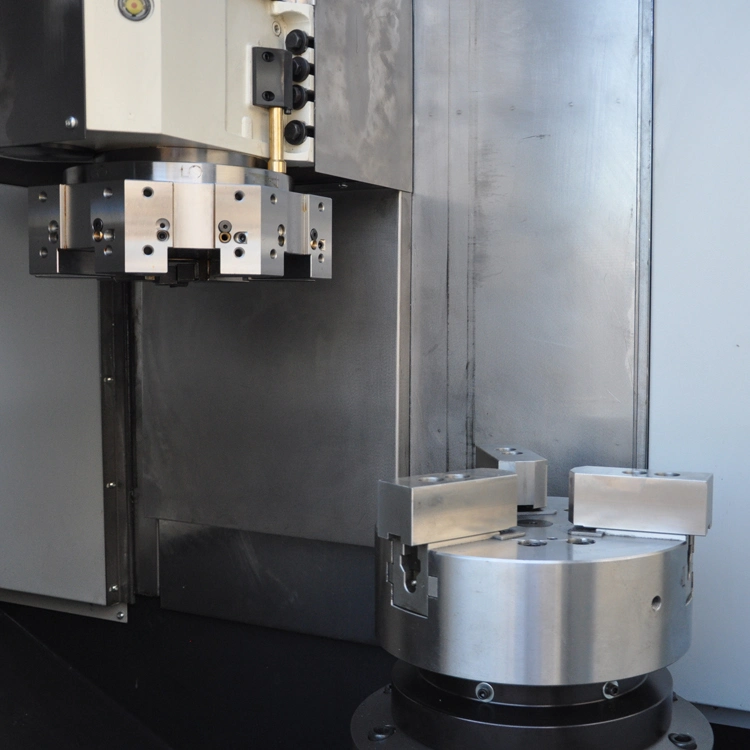

MODELS | KDVL320 | KDVL460 | KDVL600 |
CAPACITY | |||
Max. cutting diameter for disc parts | Ф320 mm | Ф500 mm | Ф600 mm |
Max. cutting diameter for axle parts | Ф320 mm | Ф460 mm | Ф600 mm |
Max. height of turning | 420 mm | 430 mm | 600 mm |
SPINDLE | |||
Spindle nose | A2-6 | A2-8 | A2-8 |
Front spindle bearing inner diameter | Ф100 mm | Ф120 mm | Ф140 mm |
Spindle speed range | 100-2800 rpm | 100-2000 rpm | 100-2000 rpm |
Steps of spindle speed | Variable | Variable | Variable |
Chuck diameter | 10″ | 12″ | 18″ |
TRAVEL | |||
X axis | X: -50; +170mm | X: -50; +250mm | X: -30; +300mm |
Z axis | 450 mm | 450 mm | 600 mm |
FEED | |||
Rapid feed of X axis | 20 m/min | 12 m/min | 10 m/min |
Rapid feed of Z axis | 20 m/min | 16 m/min | 12 m/min |
TOOL POST | |||
Type of tool stations | Hydraulic | Hydraulic | Hydraulic |
Tool number | 8-T | 8-T | 8-T |
Tool shank size(square) | 25×25 mm | 25×25 mm | 25×25 mm |
Tool shank size(round) | Ф32 mm | Ф40 mm | Ф40 mm |
MOTOR | |||
Main motor | 7.5/11 kW | 15/18.5 kW | 18.5/22 kW |
Hydraulic pump motor | 1.5 kW | 1.5 kW | 1.5 kW |
Coolant pump motor | 200 w | 200 w | 370 w |
OTHERS | |||
Overall dimensions(L×W×H) | 1430×2340×2360 mm | 1590×2670×2545 mm | 2365×2700×3200 mm |
Net weight | 3500 kg | 4500 kg | 8000 kg |
