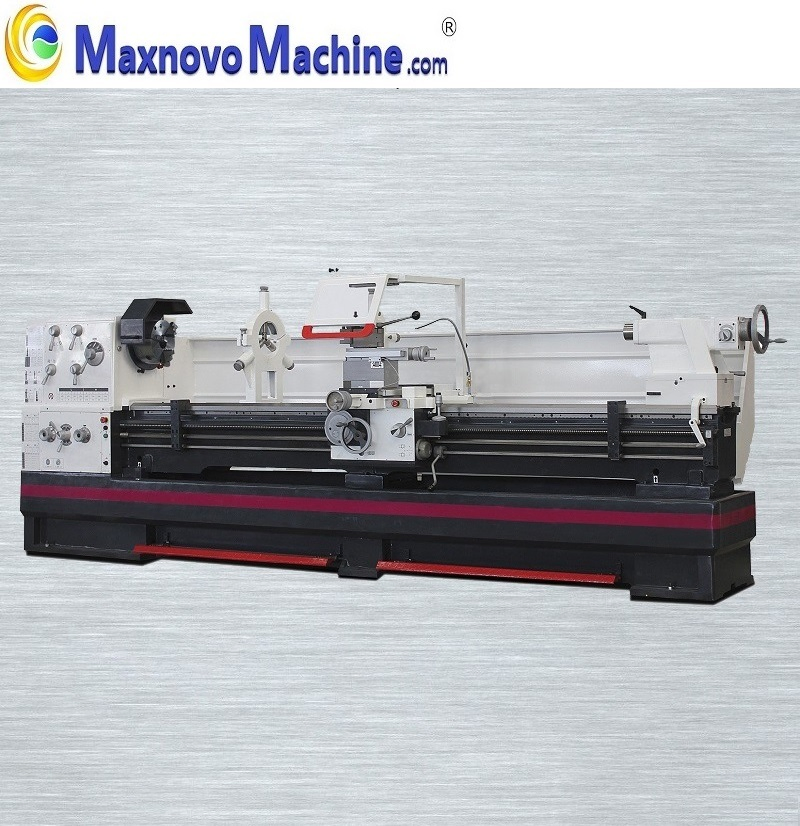

High Precision Universal Metal Turning Lathe Machine (mm-TH8020D)
MM-TH8020D / MAXNOVO MACHINE / High Precision Machine For Demanding Users / Metal Lathe / Engine Lathe / Manual Lathe / Gap-bed Lathe / Conventional Lathe / Universal Lathe / Precision Lathe / Turning Lathe / Heavy-Duty Lathe / Horizontal Lathes / Lathe Machine / Mechanics LatheThis MM-TH8020D is th......
Send Inquiry
Product Description
MM-TH8020D / MAXNOVO MACHINE / High Precision Machine For Demanding Users / Metal Lathe / Engine Lathe / Manual Lathe / Gap-bed Lathe / Conventional Lathe / Universal Lathe / Precision Lathe / Turning Lathe / Heavy-Duty Lathe / Horizontal Lathes / Lathe Machine / Mechanics Lathe
This MM-TH8020D is the 32 X 80 inch Heavy Duty Engine Lathe / Lathe / Metal Lathe / Lathe Machine / Manual Lathe / Gap-bed Lathe / Precision Lathe / Turning Lathe / Horizontal Lathes with THREE PHASE INDUSTRY Powerful MOTOR has many main Features for demanding users.
Heavy Duty Centre lathes which are outstanding due to the high flexibility, Precision and economy
Main Feature :
Convincing Arguments: Quality, Efficiency and Price
- Max.Swing Over Bed is 800 mm and Distance Between Centers is 2000 mm
- Large Spindle Capacity 105 mm for machining of long parts
- High Accuracy and Low-noise Operation even at high cutting power
- Tempered and polished Z-axis guide-way
- Spindle Collect Seat Camlock DIN ISO 702-2 No. 8
- Precision Slide
- All guides adjustable using cleats
- Adjustment range of Top Slide 90 degree
- Guaranteed concentricity of spindle nose better than 0.015 mm
- Shafts, Gears and Main Spindle Run in oil bath
- Gearwheels smooth running, tempered and ground borne on 2-readjustable precision taper rollers
- Clear-cut Selector lever for switching the feed speeds
- Closed design of the quick shift feed gear
- Gears and shafts tempered and ground, running in oil batch on precision bearings
- Hand wheels decoupled and approved in line with EN23125
- Two-channel CW/CCW switch approved in line with EN23125
- Switch with Lifecycle calculation, approved in line with EN ISO 13849
- Right-handed / Left-handed rotation switchable on bed slide, switch via switching spindle
- Central Lubrication in bed slide
- Leading Spindle Cover
- Emergency Stop Device with Foot Pedal
- Emergency Stop Button, motor circuit breaker, lockable main switch
- LED Machine Lamp
- Electrical system with Siemens components
- Energy Chain for material-friendly cable and hose guiding
- Safety hand wheels with release function in the X-axis
- Powerful 11KW main motor is optional
- 2-Axis Digital Position Indicator is optional
- Quick Change Tool Post is optional
- Connecting voltage is Three Phase 400V
- Certificate of Original (CO, FORM A, FORM E, FORM F )
Technical Data :
We are Recognized OEM / ODM manufacturer cooperation with world Famous Germany Machinery Companies for more than 25 years, As a result, Our Team has Prodessional Experience and Innovation Technology to support customers in worldwide. If you want to buy Machine Tools, Welcome to visit our company website to send your enquiry to us, Our team is willing to cooperate with you together.
FAQ:
1. Question: Are you a factory or trading company?
Answer: We are an SGS recognized OEM/ODM manufacturer factory with export license. We have an outstanding and experienced team made up of "A" player who have a passion for doing something great to create more value for customers world-wide.
2. Question: Why choose cooperate with us?
Answer: Right people, Right product, Right price;
Company-wide customer awareness;
Reliable Quality and All components from world leading suppliers;
Cost-effective export infrastructure and total supply chain management;
3. Question: Where is your factory located? How can I visit there?
Answer: With an ISO90001 certified factory located in Yangzhou city, Jiangsu Province, P. R. China. It takes about 2 hours from Shanghai by train. It is very pleasure for clients to visit us.
4. Question: Can you do OEM?
Answer: Yes, we have the ability to do OEM / ODM to meet clients' requirements.
5. Question: How does your factory do regarding quality control?
Answer: Assuring Quality is our dignity and quality control engineers specially be responsible for quality checking in each process such as Incoming Quality Control, In Process Quality Control, Outgoing Quality Control, Environment Control, Product Traceability System, Internal Audits & Calibration, Equipment Control & Maintenance, Control of Non-Conforming Materials and etc.
This MM-TH8020D is the 32 X 80 inch Heavy Duty Engine Lathe / Lathe / Metal Lathe / Lathe Machine / Manual Lathe / Gap-bed Lathe / Precision Lathe / Turning Lathe / Horizontal Lathes with THREE PHASE INDUSTRY Powerful MOTOR has many main Features for demanding users.
Heavy Duty Centre lathes which are outstanding due to the high flexibility, Precision and economy
Main Feature :
Convincing Arguments: Quality, Efficiency and Price
- Max.Swing Over Bed is 800 mm and Distance Between Centers is 2000 mm
- Large Spindle Capacity 105 mm for machining of long parts
- High Accuracy and Low-noise Operation even at high cutting power
- Tempered and polished Z-axis guide-way
- Spindle Collect Seat Camlock DIN ISO 702-2 No. 8
- Precision Slide
- All guides adjustable using cleats
- Adjustment range of Top Slide 90 degree
- Guaranteed concentricity of spindle nose better than 0.015 mm
- Shafts, Gears and Main Spindle Run in oil bath
- Gearwheels smooth running, tempered and ground borne on 2-readjustable precision taper rollers
- Clear-cut Selector lever for switching the feed speeds
- Closed design of the quick shift feed gear
- Gears and shafts tempered and ground, running in oil batch on precision bearings
- Hand wheels decoupled and approved in line with EN23125
- Two-channel CW/CCW switch approved in line with EN23125
- Switch with Lifecycle calculation, approved in line with EN ISO 13849
- Right-handed / Left-handed rotation switchable on bed slide, switch via switching spindle
- Central Lubrication in bed slide
- Leading Spindle Cover
- Emergency Stop Device with Foot Pedal
- Emergency Stop Button, motor circuit breaker, lockable main switch
- LED Machine Lamp
- Electrical system with Siemens components
- Energy Chain for material-friendly cable and hose guiding
- Safety hand wheels with release function in the X-axis
- Powerful 11KW main motor is optional
- 2-Axis Digital Position Indicator is optional
- Quick Change Tool Post is optional
- Connecting voltage is Three Phase 400V
- Certificate of Original (CO, FORM A, FORM E, FORM F )
Technical Data :
| Product Name : | Heavy Duty Universal Lathe Machine |
| Product Item : | MM-TH8020D |
| Machine Data | |
| Max Swing over Bed : | Ø 800 mm |
| Distance between Centers : | 2000 mm |
| Turning over Cross Slide : | Ø 570 mm |
| Turning Diameter in Bed Bridge : | Ø 1035 mm |
| Centre Height : | 400 mm |
| Length of Bed Bridge : | 250 mm |
| Bed Width : | 400 mm |
| Spindle Speed : | 25-1600 RPM |
| Number of Steps : | 16 Steps |
| Headstock | |
| Spindle Taper : | MT 7 (Ø113 mm Taper 1:20) |
| Spindle Seat : | Camlock DIN ISO702-2 NO.8 |
| Spindle Hole, rod passage : | Ø 105 mm |
| Slide | |
| Travel Top slide : | 230 mm |
| Travel Cross slide : | 420 mm |
| Longitudinal feed in range of : | 0.044-1.48 mm/rev (25 feeds) |
| Cross feed in range of : | 0.022-0.74 mm/rev (25 feeds) |
| Pitch-Metric in the range of : | 0.45-120 mm / rev (54 thread pitches) |
| Pitch-Inch in the range of : | 80-7/16 turn / inch (60 thread pitches) |
| Trapezoid thread in range of : | 7/8-160 D.P (42 trapezoid thread) |
| Modular Thread in range of : | 0.25-60 M.P (46 modular thread) |
| Height of quadruple tool holder : | Max. 32 mm |
| Tailstock Taper : | MT 5 |
| Tailstock - Sleeve Travel : | 235 mm |
| Drive Capacity | |
| Main Motor : | 7500W (powerful 11KW drive motor is optional ) |
| Coolant Pump Motor : | 100W |
| Connecting Voltage : | Three Phase 400V |
| Gross Weight : | 3880 KGS |
| Packing Size : | 4287 X 1525 X 1750 mm |
| Standard Accessory : | 3-Jaw Chuck Ø 325mm, 4-Jaw Chuck Ø 400mm, Face clamping disc Ø 500mm, Machine Substructure, Coolant Equipment, Change Gear Kit, Machine Lamp, Tools and Toolbox |
We are Recognized OEM / ODM manufacturer cooperation with world Famous Germany Machinery Companies for more than 25 years, As a result, Our Team has Prodessional Experience and Innovation Technology to support customers in worldwide. If you want to buy Machine Tools, Welcome to visit our company website to send your enquiry to us, Our team is willing to cooperate with you together.
FAQ:
1. Question: Are you a factory or trading company?
Answer: We are an SGS recognized OEM/ODM manufacturer factory with export license. We have an outstanding and experienced team made up of "A" player who have a passion for doing something great to create more value for customers world-wide.
2. Question: Why choose cooperate with us?
Answer: Right people, Right product, Right price;
Company-wide customer awareness;
Reliable Quality and All components from world leading suppliers;
Cost-effective export infrastructure and total supply chain management;
3. Question: Where is your factory located? How can I visit there?
Answer: With an ISO90001 certified factory located in Yangzhou city, Jiangsu Province, P. R. China. It takes about 2 hours from Shanghai by train. It is very pleasure for clients to visit us.
4. Question: Can you do OEM?
Answer: Yes, we have the ability to do OEM / ODM to meet clients' requirements.
5. Question: How does your factory do regarding quality control?
Answer: Assuring Quality is our dignity and quality control engineers specially be responsible for quality checking in each process such as Incoming Quality Control, In Process Quality Control, Outgoing Quality Control, Environment Control, Product Traceability System, Internal Audits & Calibration, Equipment Control & Maintenance, Control of Non-Conforming Materials and etc.
