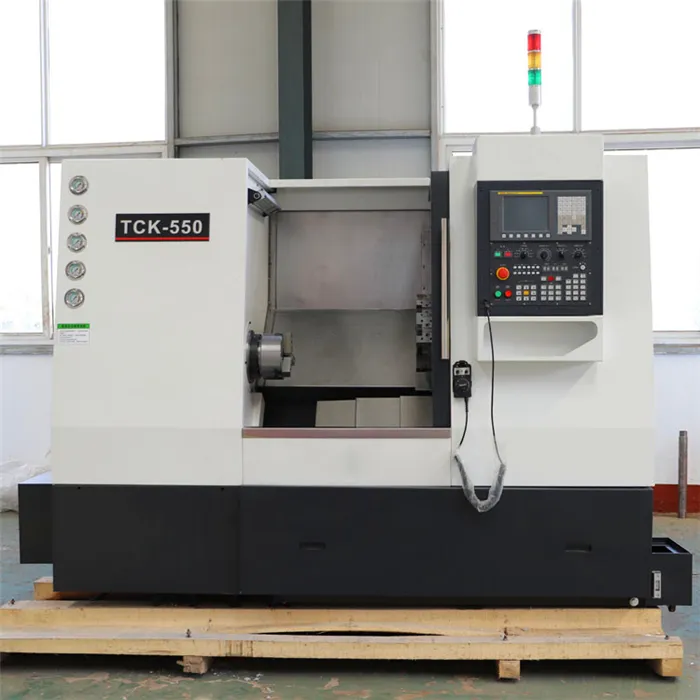

High Quality Turret Type Slant Bed CNC Lathe Machine TCK series CNC Turning Lathe Metal Lathe
1.Product description

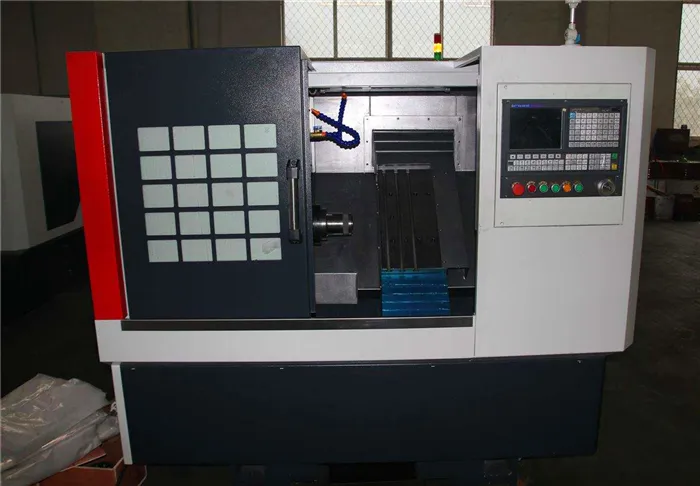

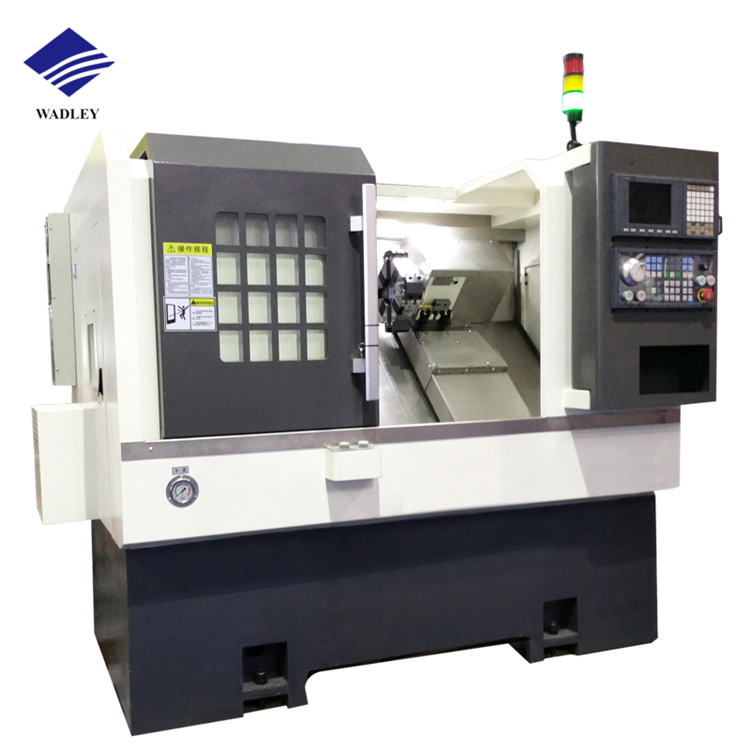

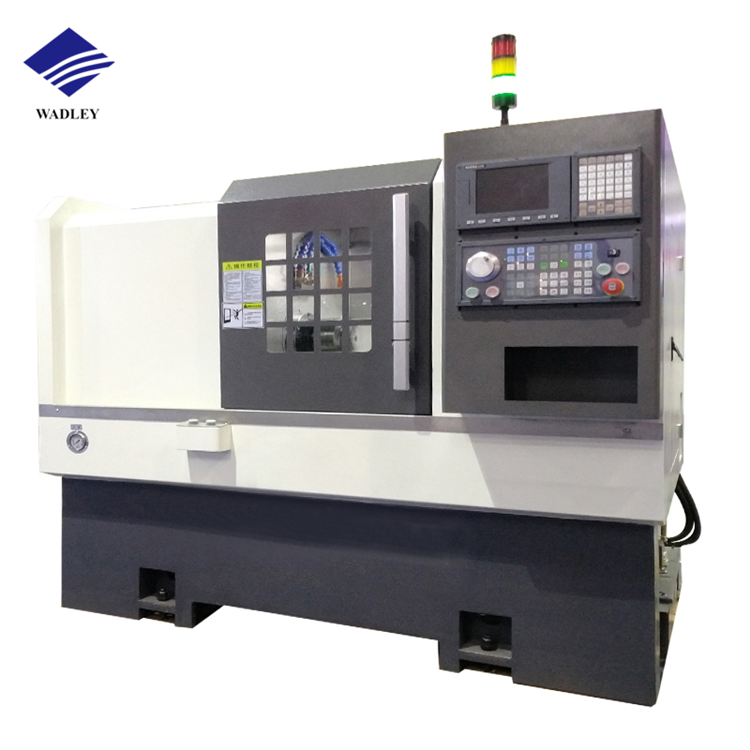

The machine are the slant bed cnc machine tools of higher speed ,higher precision and higher reliability.The spindle is in unit structure ,servo main motor for high speed.The hydraulic chuck is employed for clamping the workpiece ,which makes the clamping by 5 angular ,3 of which are placed in the front and 2 in the back.It makes the higher speed and higher rigidity .Machine adopts 30 degree oblique slide saddle and liner guide rail ,stronger in rigidity,faster in feeding speed and easier in chip removal .The X and Z axis screws are in the middle of the carriage ,well-distributed in force,smooth in movement ,higher in speed .

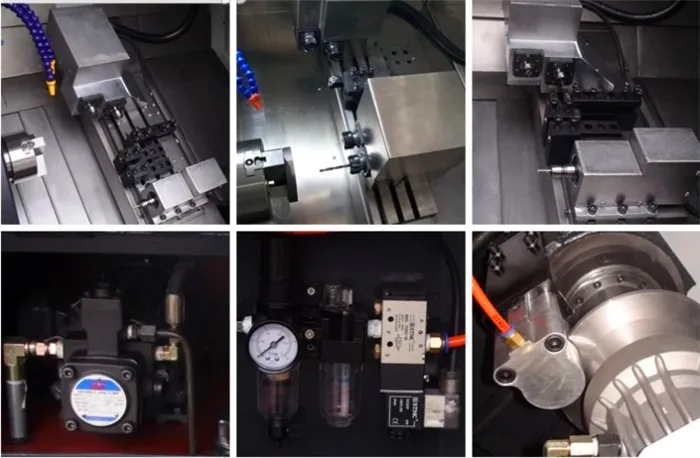

2.Machine details
3.Product feature
a. High processing precision and stable processing quality;
b. Multi-coordinate linkage can be performed to process parts with complex shapes;
c. When the machining parts are changed, generally only the NC program needs to be changed, which can save production preparation time;
d. The machine tool itself has high precision and rigidity, and can choose favorable processing amount and high productivity (usually 3~5 times of ordinary machine tools);
e. The degree of automation of the machine tool is high, which can reduce the labor intensity;
4.Company information
Henan Wadley Import & Export Trading Co., Ltd. Located in Zhengzhou.the central place of China. With long time exporting machines experience, we can not only supplying our customers stable quality products ,but also more excellent service.we supply all kinds of Machine tool to international market, like Lathe machine, CNC Lathe Machine, Milling Machine, CNC Milling Machine, CNC Machining Center, Grinding Machine, Hydraulic Press, Bending Machine, Drilling Machine, Press brake, Shearing Machine, and Machine tool accessories. We have our own engineer who has more than years of working experience and is professionally trained. Our trained engineers can help customers on behalf of company not only inspect goods before shipping but also track all links of production process.
5.Packing & Shipping
6.FAQ
a:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
b: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
c. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
d: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
e: What's the MOQ?
A: 1 set .
We want to know:
a.What's your Industrial Voltage?
b.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
c.If need CIF Price, please kindly tell us the port of destination.
1.Product description
The machine are the slant bed cnc machine tools of higher speed ,higher precision and higher reliability.The spindle is in unit structure ,servo main motor for high speed.The hydraulic chuck is employed for clamping the workpiece ,which makes the clamping by 5 angular ,3 of which are placed in the front and 2 in the back.It makes the higher speed and higher rigidity .Machine adopts 30 degree oblique slide saddle and liner guide rail ,stronger in rigidity,faster in feeding speed and easier in chip removal .The X and Z axis screws are in the middle of the carriage ,well-distributed in force,smooth in movement ,higher in speed .
| Specification | Unit | TCK420 | TCK500 | TCK520 |
| Max.swing over bed | mm | 420 | 500 | 520 |
| Max.swing over cross slide | mm | 200 | 220 | 320 |
| Max.processing length | mm | 400 | 500 | 500 |
| X/Z axis max.travel | mm | 160/400 | 220/500 | 220/500 |
| Spindle nose | A2-6 | A2-6 | A2-8 | |
| Spindle bore | mm | 66 | 66 | 80 |
| Bar capacity | mm | 50 | 50 | 60 |
| Max.spindle speed | rpm | 3000 | 3000 | 2500 |
| Chuck | in | 8 | 8 | 10 |
| Spindle motor power | kw | 5.5 | 7.5 | 7.5 |
| X/Z axis repeatability | mm | +/-0.003 | 0.003 | 0.003 |
| X/Z axis feed motor torque | N.M | 5/7.5 | 7.5/7.5 | 7.5/7.5 |
| X/Z rapid traverse | M/min | 12 | 10 | 10 |
| Tailstock travel | mm | 350 | 350 | 350 |
| Quill travel | mm | 90 | 90 | 100 |
| Tailstock taper | MT4 | MT5 | MT5 | |
| Tool post type | mm | 8 station hydraulic turret | 8 station hydraulic turret | 8 station hydraulic turret |
| Tool post size | mm | 20x20 | 25x25 | 25x25 |
| Guide form | 30° degree | 30° degree | 30° degree | |
| Guide rail movement way | Linear guide rail | Linear guide rail | Linear guide rail | |
| Total power capacity | KVA | 11 | 15 | 15 |
| Machine dimensions(L*W*H) | mm | 2300*1500*1650 | 2450*1600*1700 | 2450*1600*1700 |
| Weight | kg | 3000 | 4000 | 4200 |
