Product Description

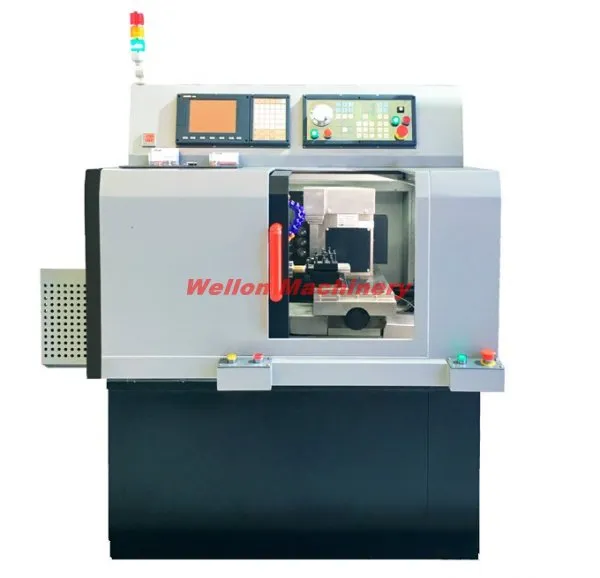

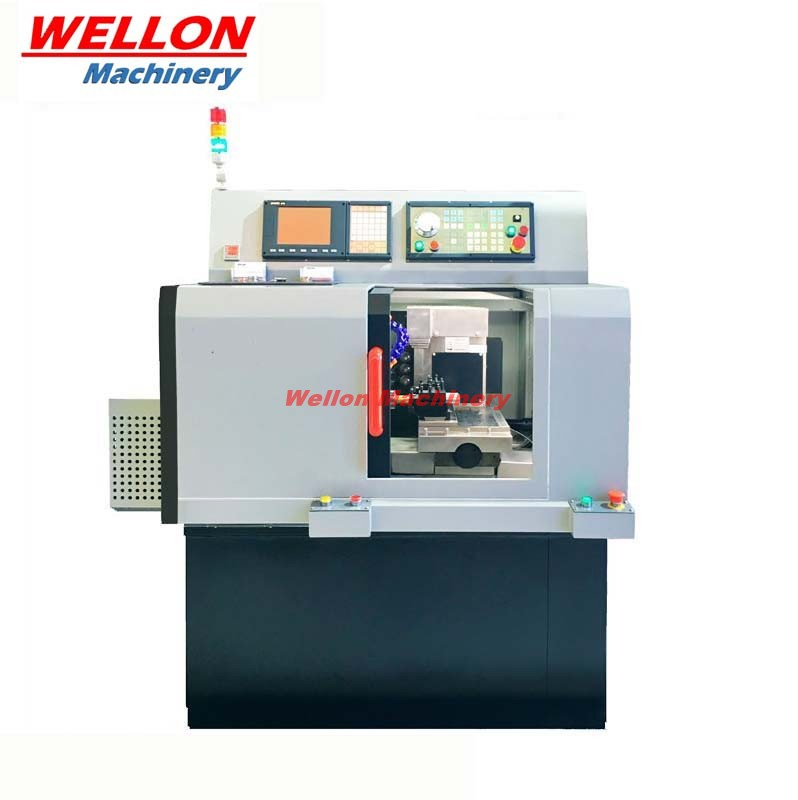

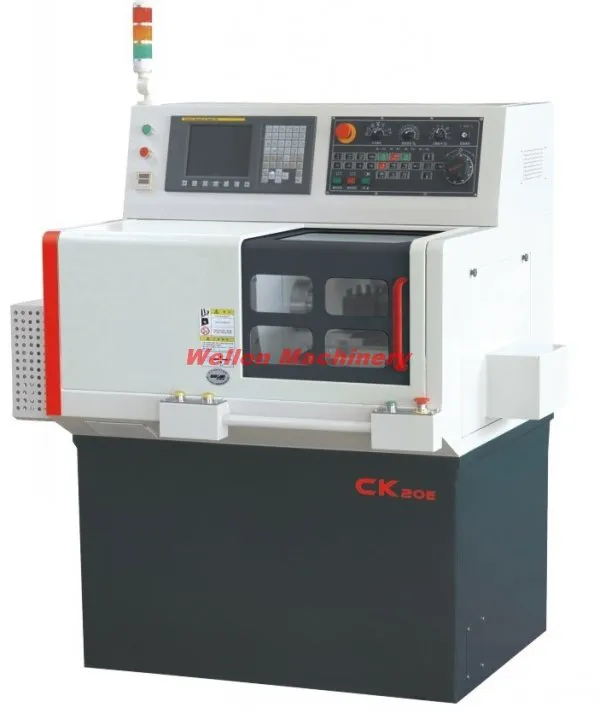

Hobby CNC Lathe (CK20 Hobby CNC Turning Lathe Machine)

Performence Features:
1. The integrated base and bed casting has undergone a strict aging treatment, so high accuracy and rigidity is ensured.
2. High precision cartridge type spindle is equipped with a linear cylinder and collet chuck; the spindle rotates smoothly at high speed and Max. Speed is 500 rpm/min turning roughness is up to Ra0.8~0.4.
3. Precision hardened dovetail guideways improve the total rigidity of lathe so that the lathe has high precision and runs smoothly.
4. Precision pretensioned ball screw is located between guideways; side torque is eliminated. Imported bearings especially for screws are used and smooth transmission is ensured.
5. Feed screws in longitudinal and cross direction are directly connected with AC servo motors through zero clearance shaft couplings. High accuracy is ensured in transmission.
6. The unique dovetail comb type tool block ensures easy setting, quick and precise tool change and maximum repeatability.
7. The high performance intermittent centralized lubrication system lubricates the machine bed guideways and X/Z-axis screws in time.
8. The NC controller has color display and USB port, so data transfer is simple.
9. The external electric cabinet is easy to service. The separate rear mounted coolant tank and chip box ensure fluent chip disposal and easy chip removal.
10. The machine is jointly driven mechanically, electrically and pneumatically. Famous brand pneumatic and electric elements used on the lathe operate reliably.
11. Full enclosed stainless steel guard ensures safe and friendly operation.
Technical parameter:

Item		Unit	CK20
Capacity	Max swing over bed	mm	φ240
	Max swing over slide	mm	φ120
	Max turning dia.over tool block	mm	φ70
	Max bar dia.	mm	φ20
	Max machining length	mm	150
Spindle	Type of spindle nose		/
	Size of spindle nose	mm	φ45
	Spindle thru-hole	mm	φ26
	Thru-hole of spindle draw bar	mm	φ21
	Max speed of spindle	rpm	5000
	Work chucking mode		Std. pneum. Collet chuck Opt.: hyd. collet chuck/ 3-jaw chuck
Feed	travel X/Z	mm	200/180
Feed	Repaid traverse X/Z	m/min	15/15
Tool block	Type of tool post		Dovetail comb tool block
	Tool section: turning/boring	mm	12x12/φ25
	Tooling height of tool	mm	35
Motor	Power of spindle motor	kW	2.2/3.7
	Torque of spindle motor	Nm	14/23
	Power of motor X/Z	kW	0.75/0.75
	Torque of motor X/Z	Nm	3.5/3.5
	Power of coolant pump motor	W	150

Standard equipment
FANUC 0i mate-TD
High precision angular contact ball bearing imported from Japan (front: 3; rear: 2)
Bearings especially for screw imported from Japan
Medium frequency hardened and plastic-coated ways(dovetail type)
precision pretensioned ball screw
pneumatic draw down collet chuck
Linear cylinder
Servo spindle
Automatic lubrication system
Coolant system
pneumatic system
Standard tool post
Automatic pull feeder
Standard chuck
Machine tool adjustment
Tricolored light of machine
Full enclosed protection
Optional equipment
GSK/SIEMENS/KND controller
4" solid hydraulic 3-jaw chuck from Taiwan(CK20/30)
5" solid hydraulic 3-jaw chuck from Taiwan( CK30)
Automatic chuck
Domestic ball screw
5" hollow rotating air cylinder
Pneumatic
Spindle disc brake unit
Pneumatic/electric drilling/milling unit
Front/rear air blowing
Special tool post
Special chuck
Feeder equipment
Automatic feeding bar machine
Linear guide way Hiwin
