Hot Sale Low Price Bench Engine Lathe Metal Lathe Machine (KY1340A / KY1440A)
Features1.Widely useful, heary duty bench lathe.2.V-way bed is hardened and precision ground.3.D1-4 spindle is supported by high quality tapered roller bearing.4.Hardened, precision ground gears in headstock.5.Gap bed section provided for larger diameter work.6.Gearbox has large feed and threading f......
Send Inquiry
Product Description
Features
1.Widely useful, heary duty bench lathe.
2.V-way bed is hardened and precision ground.
3.D1-4 spindle is supported by high quality tapered roller bearing.
4.Hardened, precision ground gears in headstock.
5.Gap bed section provided for larger diameter work.
6.Gearbox has large feed and threading functions.
7.Carriage mounted spindle control lever.

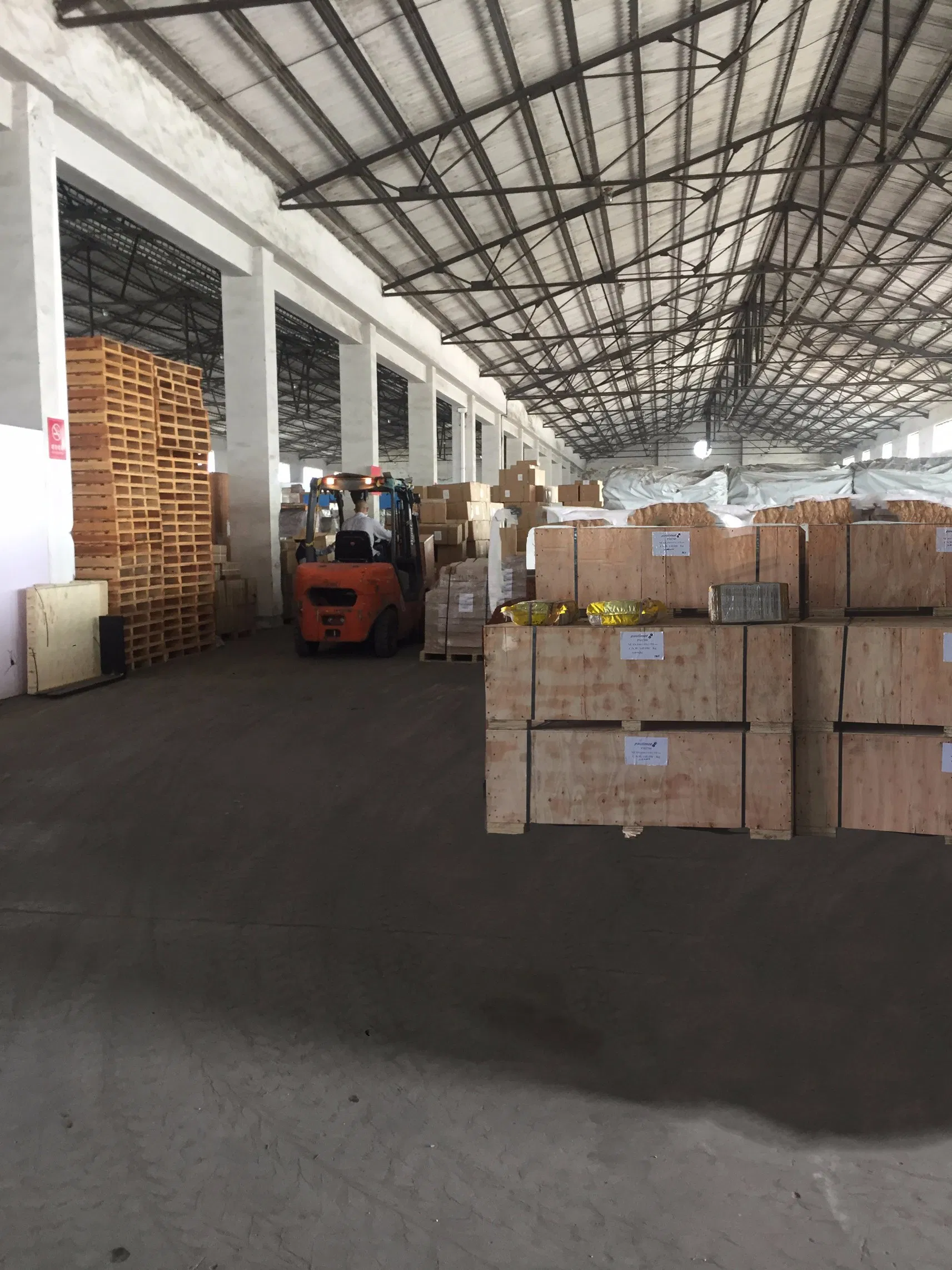

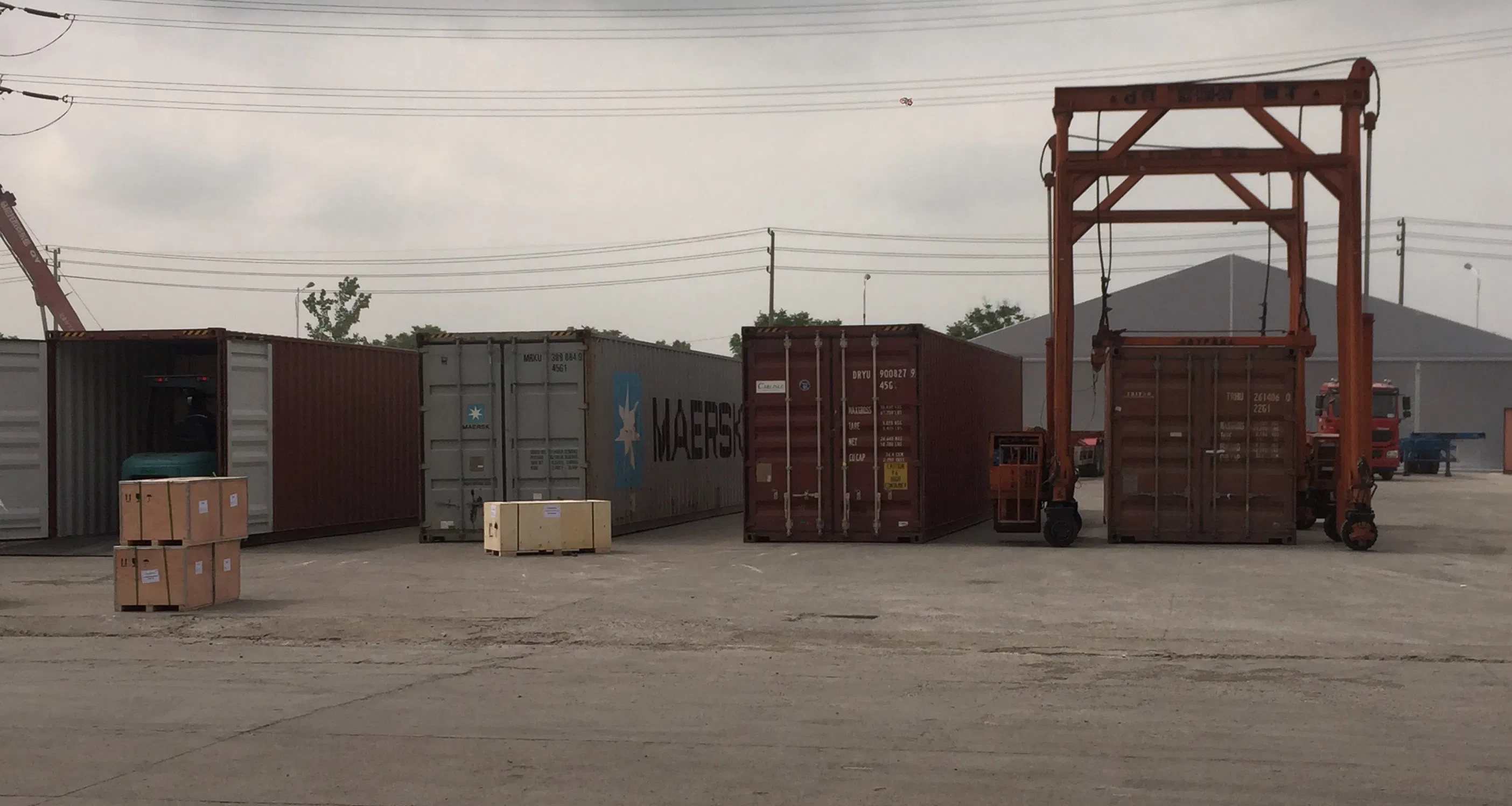

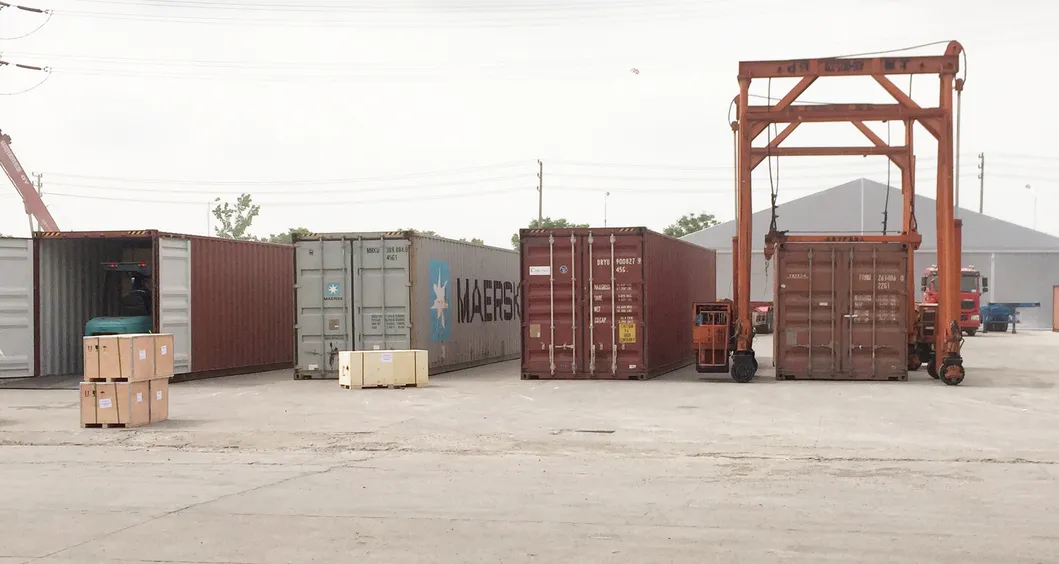

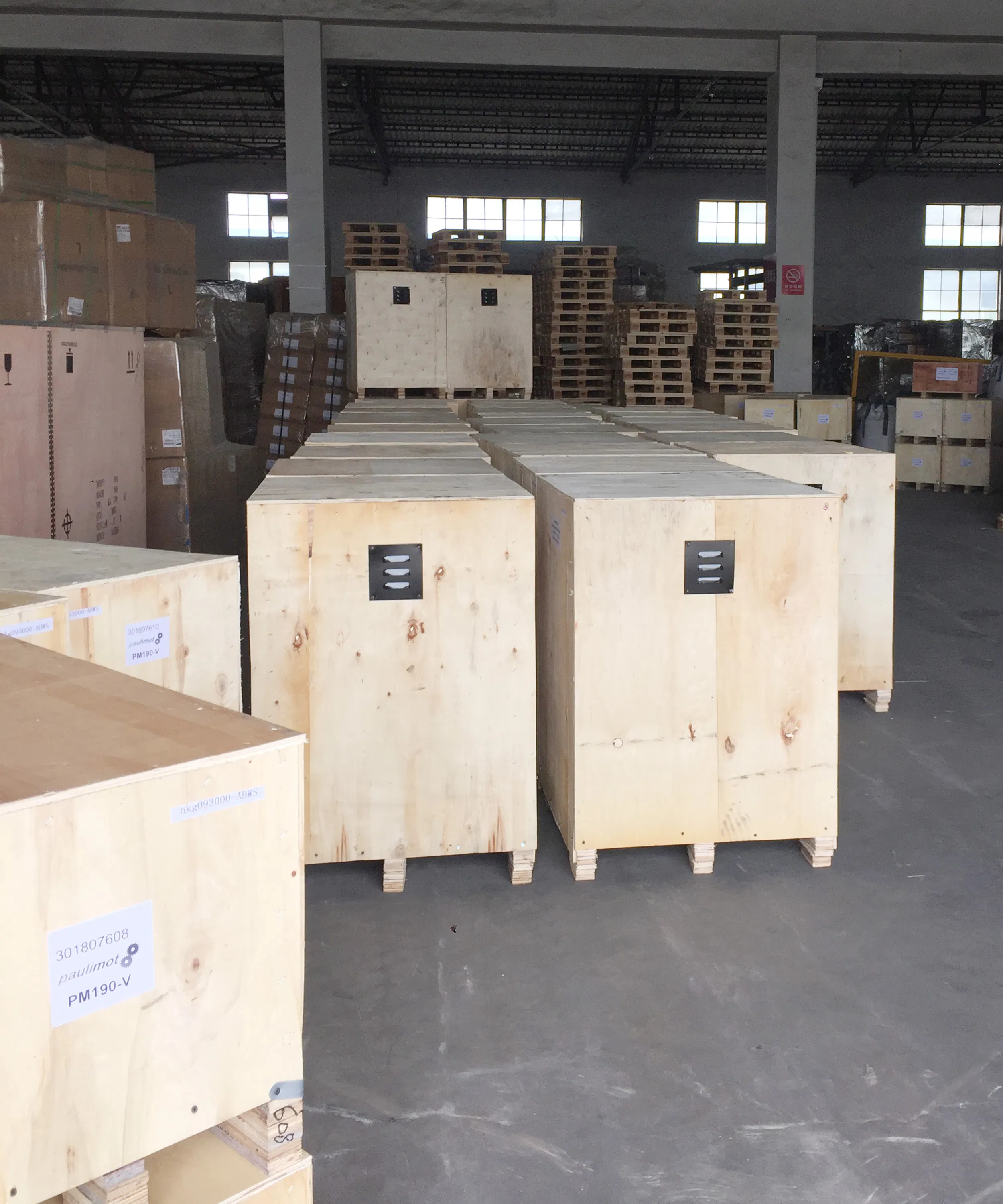

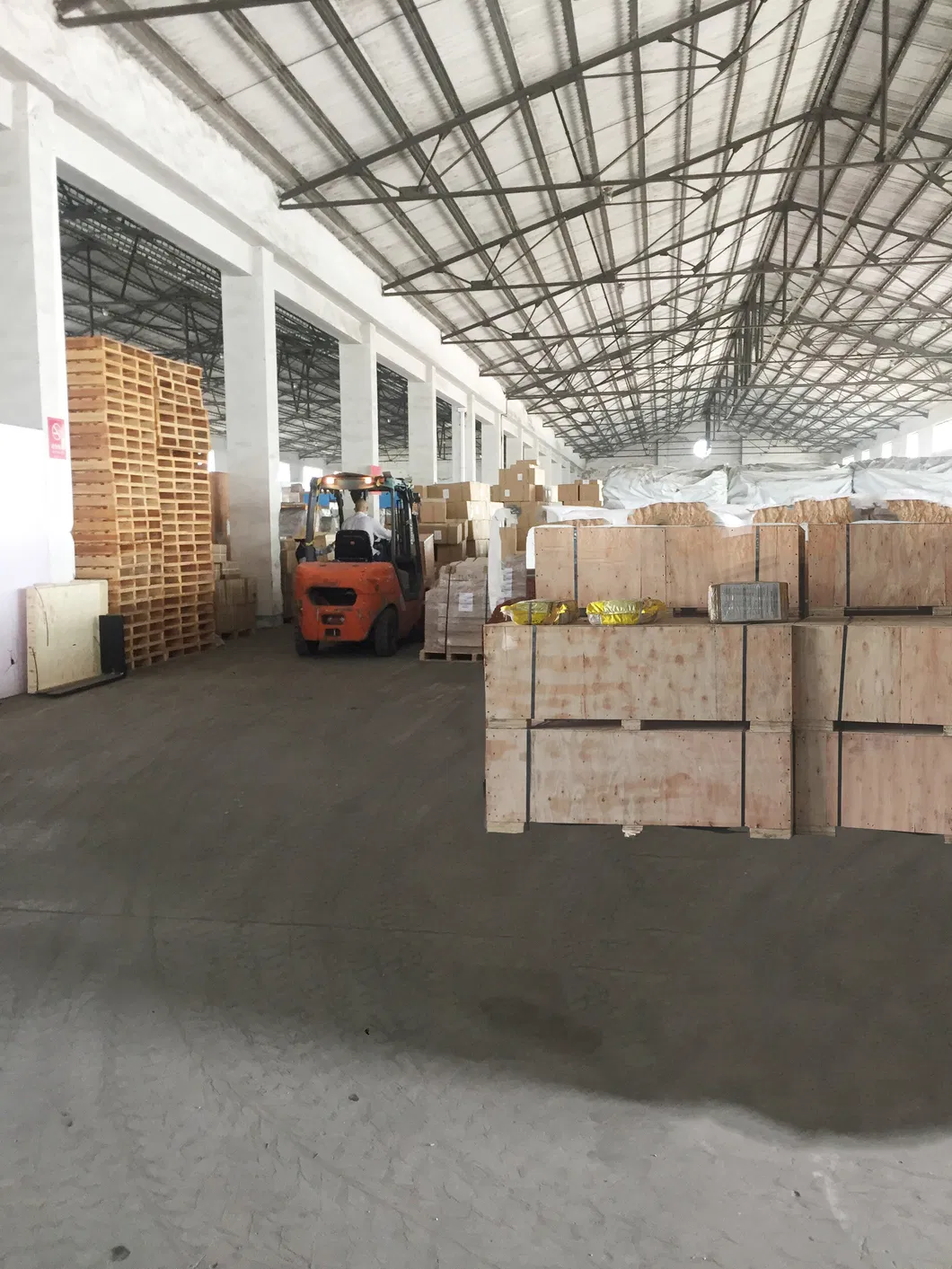

Packing & Delivery
Warehouse to film
1.Widely useful, heary duty bench lathe.
2.V-way bed is hardened and precision ground.
3.D1-4 spindle is supported by high quality tapered roller bearing.
4.Hardened, precision ground gears in headstock.
5.Gap bed section provided for larger diameter work.
6.Gearbox has large feed and threading functions.
7.Carriage mounted spindle control lever.
| Specification | |
| Model No. | KY1340A KY1440A |
| Max. swing over bed | 330mm 360mm |
| Max. swing in gap | 476mm 506mm |
| Max. swing over cross slide | 185mm 215mm |
| Bed width | 187mm |
| Max. Length of workpiece | 1000mm |
| Spindle nose | D1-4 |
| Spindle bore | φ38mm |
| Taper of spindle bore | MT5 |
| Spindle speed steps | 8 |
| Spindle speed scope | 70 - 2000r/min |
| Inch thread | 4 - 56T.P.I/32 |
| Metric thread | 0.4 - 7mm/32 |
| Diametral thread | 8 -120D.P./33 |
| Module thread | 0.2 - 3.5MP/27 |
| Longitudinal feed range | 0.082 - 2.71mm/r |
| Cross feed range | 0.022 - 0.933mm/r |
| Max. travel of tailstock quill | 95mm |
| Taper hole of tailstock | MT3 |
| Electric motor | 2HP(1.5KW)110v or 220v(1ph) |
| 220v or 380v(3ph) | |
| Net weight/Gross weight(1000mm) | 495/595kg |
| Standard Accessories | |
| 4-jaw chuck & backplate | 1 pc |
| Face plate | 1 pc |
| Steady rest | 1 set |
| Follow rest | 1 set |
| Stand | 1 set |
| Toolbox&tools | 1 pc |
| Micro carriage stop | 1 set |
| Working lamp | 1 set |
| Coolant system | 1 set |
| Foot brake system | 1 set |
| Optional accessories | |
| Quick change tool post | 1 set |
| Turning tools | 1 set |
| Taper turning attachment | 1 set |
| Digital readout | 1 set |
| Lead screw cover | 1 set |
