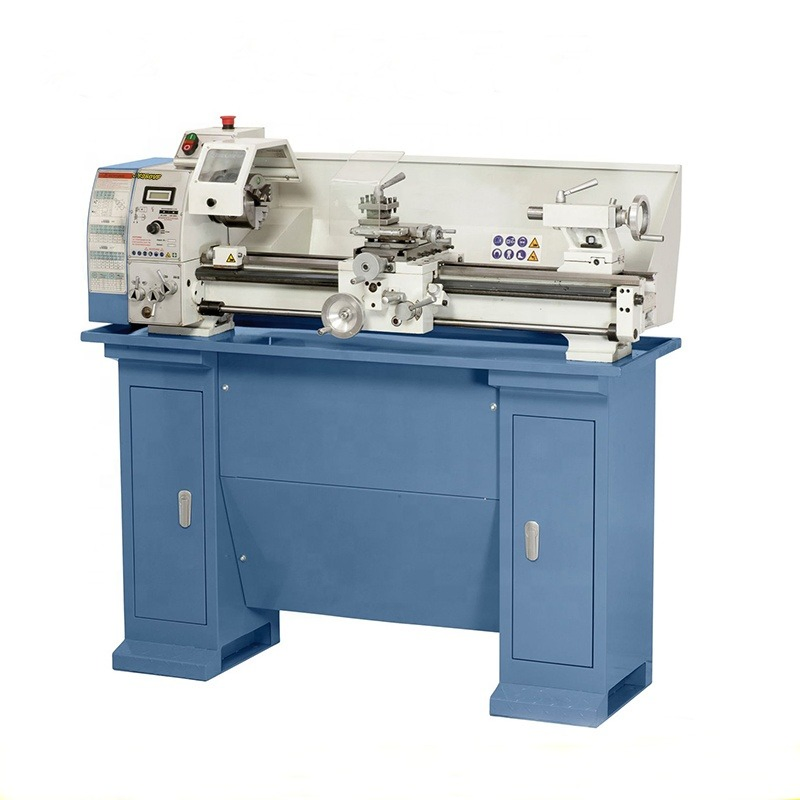

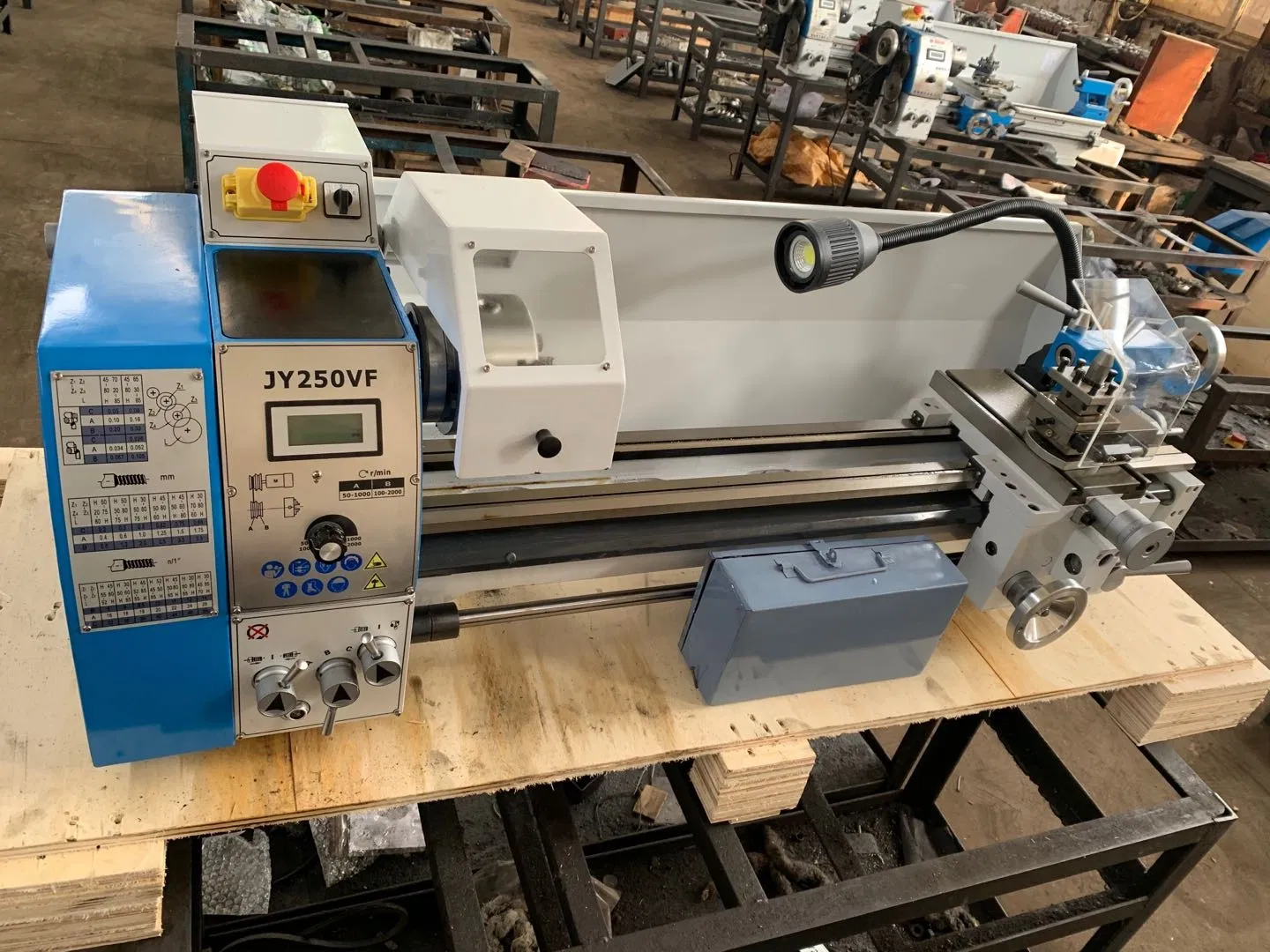

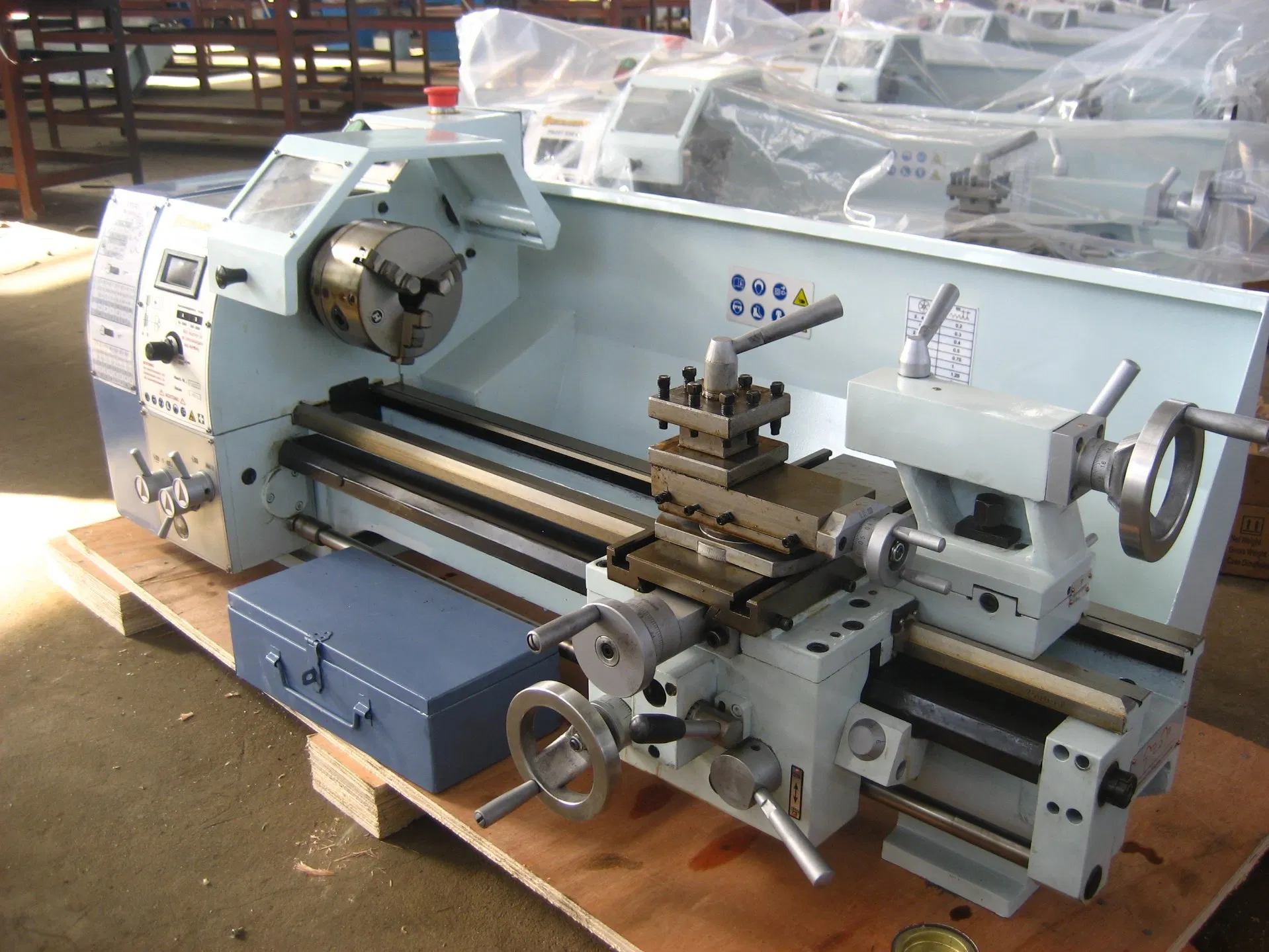

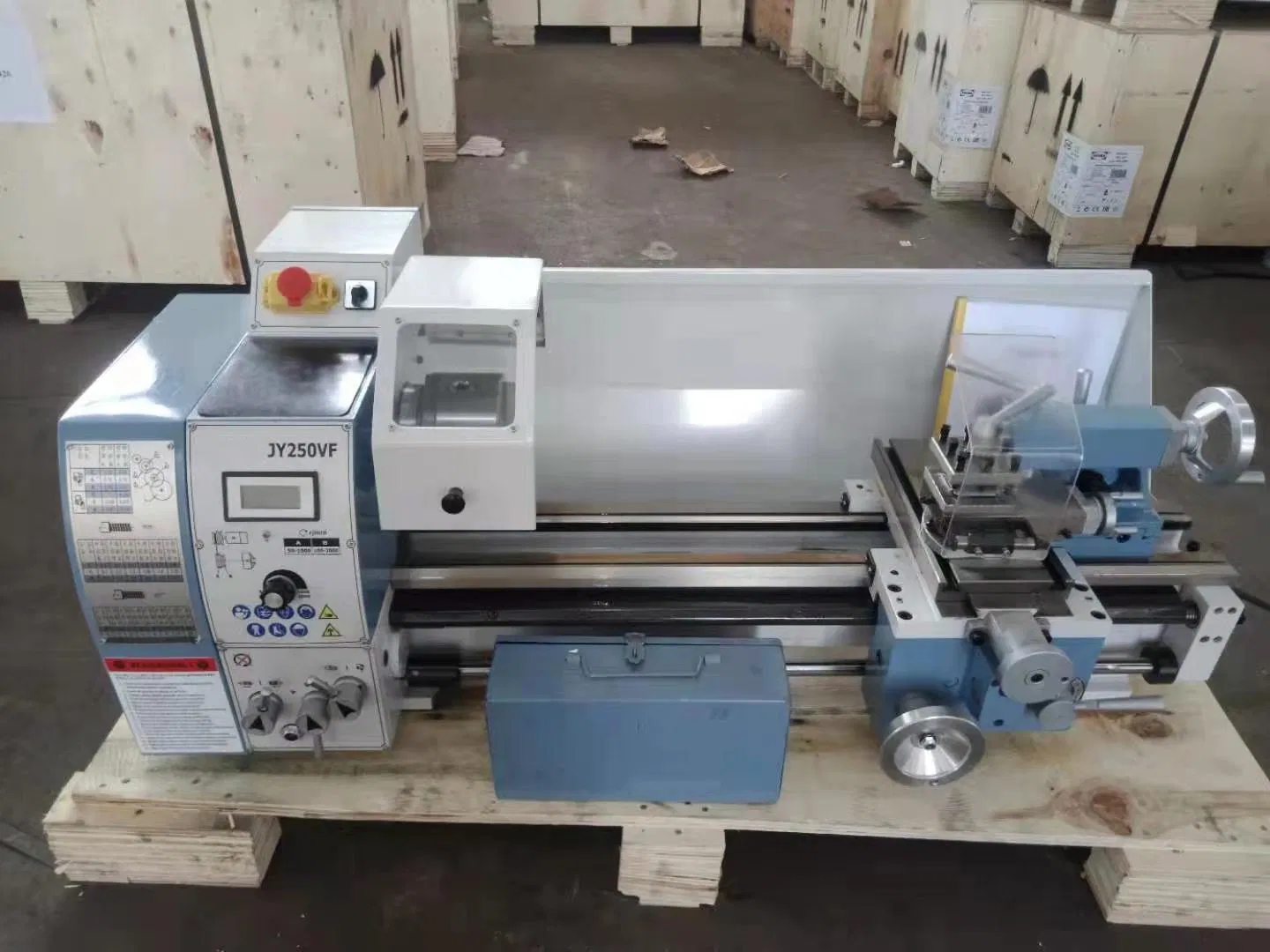

Jy250vfl 750mm Cheap Bench Manual Mini Lathe Machine
Bench Lathe JY250VF Feature·The spindle is variable speed, easily operating.·The spindle speed can be adjusted variably during its range of 50-2000rpm, easily read.·Supersonic frequency hardened bed way.·Precision roller bearing for spindle.·Hig......
Send Inquiry
Product Description
| Bench Lathe JY250VF Feature |
| ·The spindle is variable speed, easily operating. |
| ·The spindle speed can be adjusted variably during its range of 50-2000rpm, easily read. |
| ·Supersonic frequency hardened bed way. |
| ·Precision roller bearing for spindle. |
| ·High quality steel, ground and hardened gear inside headstock. |
| ·Various threads cutting function available. |
| Specifications | JY250VF |
| Max. swing over bed | 250mm |
| Distance between centers | 550mm (optional 750mm) |
| Max. swing over cross slide | 150mm |
| Spindle bore | 26mm |
| Spindle taper | MT4 |
| Range of spindle speed | 50-2000rpm |
| Step of spindle speed | variable |
| Range of metric threads | 18kinds (0.2-3.5rpm) |
| Range of imperial threads | 18kinds (8-56TPI) |
| Top slide travel | 70mm |
| Cross slide travel | 115mm |
| Tailstock quill travel | 70mm |
| Taper in tailstock spindle | MT2 |
| Motor power | 750W |
| Packing size | 1320*570*610mm |
| N.W/G.W | 120/140kg |
| Standard Accessories | Optional Accessories |
| ·3 jaw chuck | ·Steady rest |
| ·4-way tool post | ·Follow rest |
| ·Dead center | ·Face plate |
| ·Chip tray | ·Live center |
| ·Toolpost guard | ·Turning holder |
| ·Chuck guard | ·4 jaw chuck |
| ·Splash guard | |
| ·Tailstock side brake | |
| ·Toolbox & tools |
