Product Description

L26" Precision Lathe

· The surface of the bedways is supersonic frequency hardened
· The spindle bore size is 105mm.the spindle system is high rigid and accuracy
· There is no need for change gears,the machine can turn about 89 kinds of metric,Inch,Module,and D.P.threads.
· An automatic stopping device is used to realize automatic stop for the machining of a workpiece of certain length.
· One-piece iron casting base allows heavier cuts.

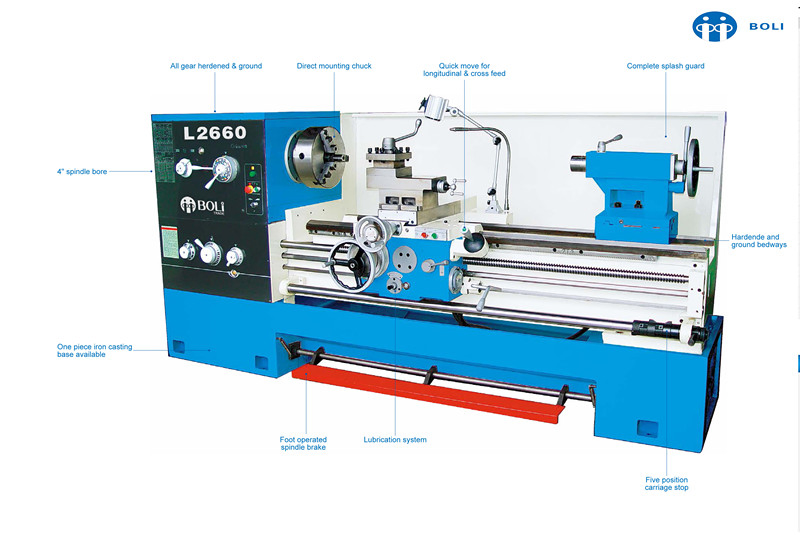

L26" Precision Lathe Machine

Standard Accessories
3 jaw chuck and adapter
4 jaw chuck and adapter
Face plate
Steady rest
Follow rest
Oil gun
Thread chasing dial
Operation manual
One set of wrenches
2 dead centers
Sleeve
Foot brake
Coolant pump
Halogen lamp
Splash guard
Micro carriage stop

Optional Accessories
Quick change tool post
Driving plate
Taper turning attachment
Digital readout
Nr 12 standard for Brazil
One piece iron casting stand

Technical Parameters

Model No.	Unit	L26"
distance between centers	mm	1000/1500/2000/3000(39.37"/59.06"/78.74"118.11")
swing over bed	mm	660(25.98")
swing over carriage	mm	420(16.54")
swing over gap	mm	870(34.25")
spindle bore	mm	Ø105(4.13")
taper of spindle bore	mm	Ø113(4.45") 1:20
spindle nose		D1-8
step of spindle speeds	steps	12
range of spindle speeds	rpm	36-1600
range of cross feeds	mm/r	0.027-1.07
range of longitudinal feeds	mm/r	0.063-2.52
range of inch threads/No.		28-2T.P.I/26
range of metric threads/No.	mm	1-14/22
range of D.P. threads/No.		4-56D.P./24
range of mould threads/No.		0.5-7/18
rapid feed of cross traverse	m/min	1.9
rapid feed of longitudinal traverse	m/min	4.5
top slide travel	mm 60(2.36") 75(2.95")	145(5.71")
cross slide travel	mm	360(14.17")
max. size of tool(W×H)	mm	25×25(0.98"×0.98")
tailstock quill travel	mm	150(5.91")
tailstock quill diameter	mm	75(2.95")
taper of tailstock quill		MT5
motor	kW	7.5/11 available
packing size	mm	2500/3000/3500/4500×1100×1650
N.W.	kg	3200/3500/4000/4500
