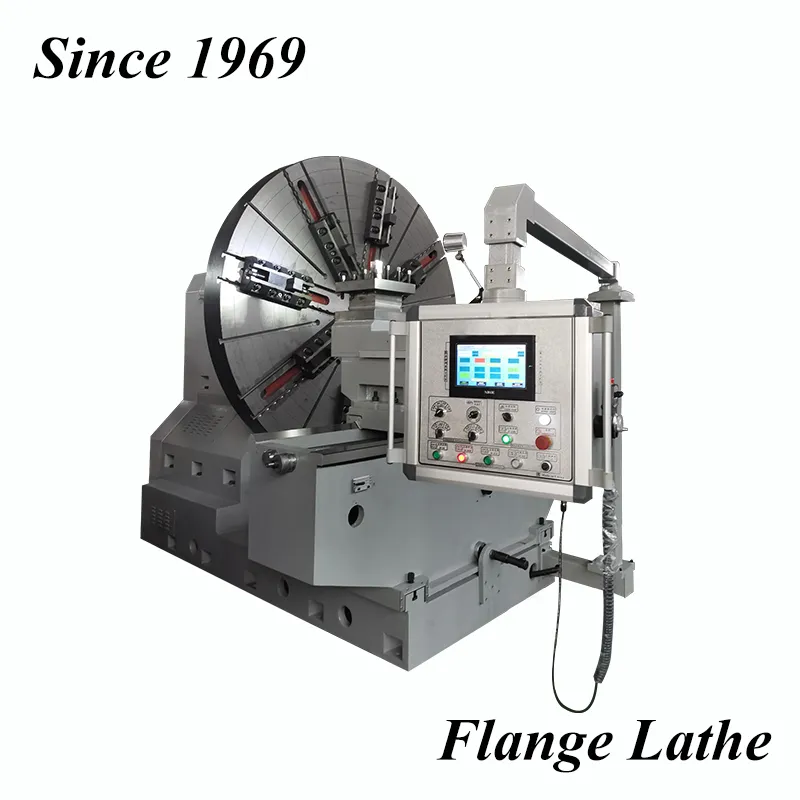

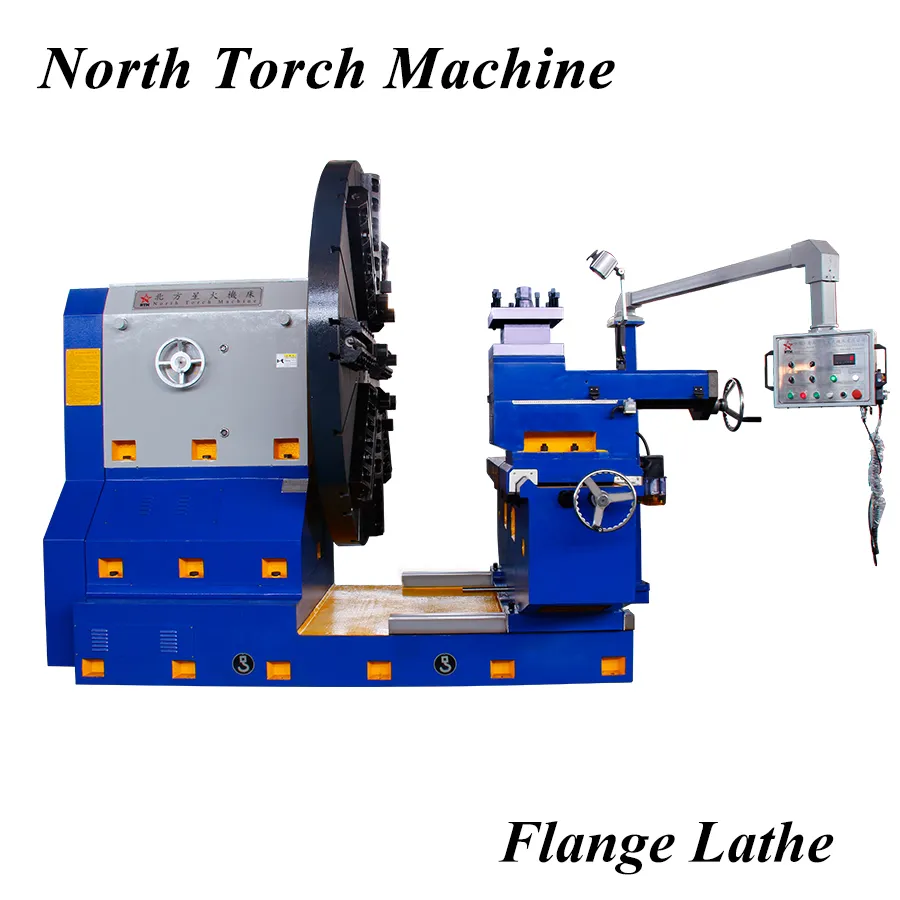

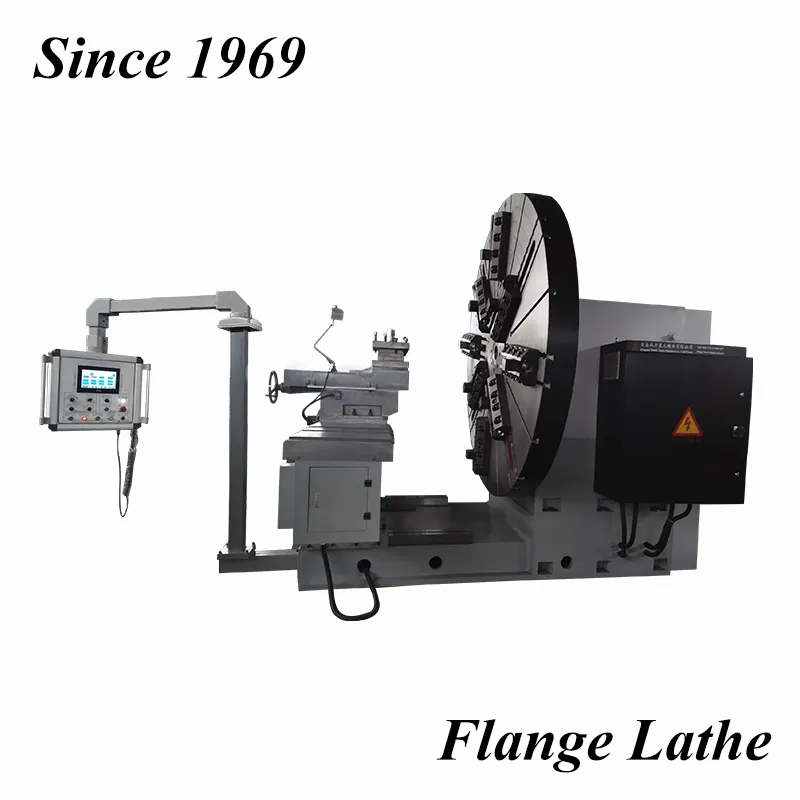

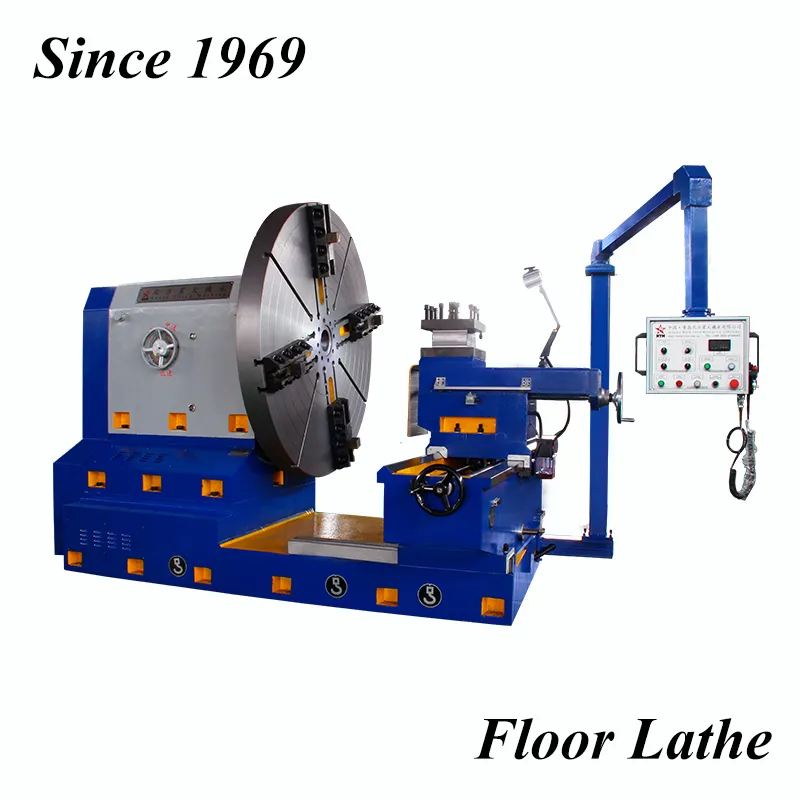

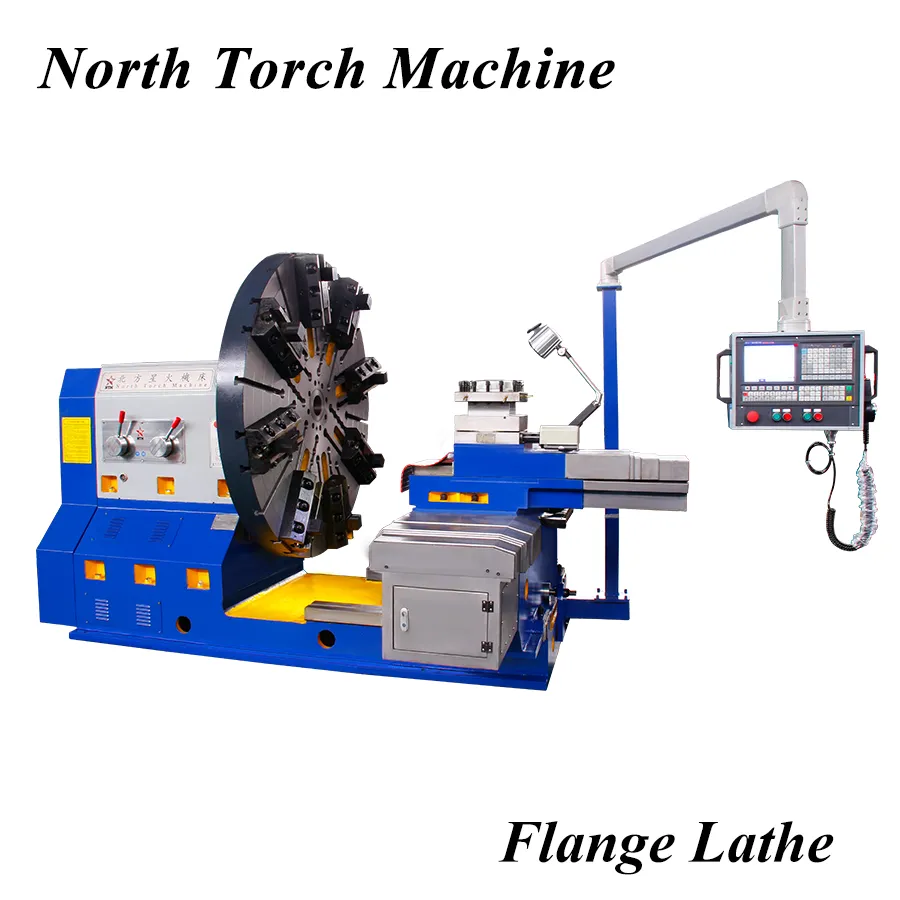

Large Flange Turning Lathe Machine with Special Designed Dro System
China Professional Large Flange Turning Horizontal Lathe with DRO system, Horizontal Lathe, Lathe Machine, HDPE Flange , Steel Flange turning lathe 1. Our Avantages of flange turning lathe, horizontal lathe machine and company More than 50 years' experience in machinery industry since 1960s.Manu......
Send Inquiry
Product Description
China Professional Large Flange Turning Horizontal Lathe with DRO system, Horizontal Lathe, Lathe Machine, HDPE Flange , Steel Flange turning lathe
1. Our Avantages of flange turning lathe, horizontal lathe machine and company
More than 50 years' experience in machinery industry since 1960s.
Manual Control with DRO system,FANUC ,SIMENS or Chinese Brand system (Optional)
Base adopts triangular guide design
Reasonable structure
High performance with low cost
Maximize Customer's Profitability under the minimum invest cost compared with other competitors.
Application: This series flange turning lathe machine, horizontal lathe machine adopts rectangular structure, all the guide rail is ground by grinding machine with high accuracy and rigidity. It is very suitable for low speed and high load cuttings. This machine has a high carrying capacity, high rigidity, optimal appearance design and easy operation. It is widely used for machining neutral parts with large diameter, such as tire mold, large flange tube plate, turbine parts, end enclosure, etc. It is also extensively applicable for manufacturing the parts of chemical industry, heavy machinery, mining and railways equipments and aviation industry.
2. Standard Technical Parameters of Horizontal Flange Turning Lathe
Notes: The above technical parameters are standard configuration, we are also specialized in making customized lathe according to the special request and work-piece features.
3. After-sale service of flange turning lathe, horizontal lathe machine
1. We provide professional technical training for users' operators and maintenance staff to enable them to properly use and operate the lathe and carry out normal maintenance.
2. Warranty period: One year after acceptance of the lathe.
3. In case of any quality problem found during operation, the factory will dispatch personnel to the user's location within 48 hours (domestic users) & within 3 days (Foreign Customer) and the technical staff won't leave before resolving the malfuntion.
4. The company will freely provide different electrical and mechanical parts for the purchased lathe timely within warranty period.
5. The company will provide lifetime guarantee for the consulting services in terms of application, maintenance, repair, renovation, etc of equipments.
For more details, please feel free to contact us. Thanks!
Tag: Flange turning lathe, Large Horizontal Lathe, Conventional Lathe with DRO , CNC Lathe Machine. HDPE Flange turning lathe, Steel Flange
1. Our Avantages of flange turning lathe, horizontal lathe machine and company
More than 50 years' experience in machinery industry since 1960s.
Manual Control with DRO system,FANUC ,SIMENS or Chinese Brand system (Optional)
Base adopts triangular guide design
Reasonable structure
High performance with low cost
Maximize Customer's Profitability under the minimum invest cost compared with other competitors.
Application: This series flange turning lathe machine, horizontal lathe machine adopts rectangular structure, all the guide rail is ground by grinding machine with high accuracy and rigidity. It is very suitable for low speed and high load cuttings. This machine has a high carrying capacity, high rigidity, optimal appearance design and easy operation. It is widely used for machining neutral parts with large diameter, such as tire mold, large flange tube plate, turbine parts, end enclosure, etc. It is also extensively applicable for manufacturing the parts of chemical industry, heavy machinery, mining and railways equipments and aviation industry.
2. Standard Technical Parameters of Horizontal Flange Turning Lathe
| CW60 series - Flange Lathe, horizontal lathe machine for turning flange, tyre mold | ||||||
| Type | Unit | CW6016 | CW6018 | CW6020 | CW6025 | CW6030 |
| Swing Diameter over machine bed | mm | φ1600mm | φ1800mm | φ2000mm | φ2500mm | φ3000 |
| Chuck Diameter | mm | φ1250mm | φ1400mm | φ1600mm | φ2000mm | φ2500mm |
| Chuck jaw seat length | mm | 400mm | 400mm | 500mm | 500mm | 500mm |
| Work-piece length | mm | 500mm | 500mm | 500mm | 750mm | 1000mm |
| Work-piece Weight | T | 2T | 2T | 3T | 3T | 3T |
| Spindle Diameter | mm | φ190mm | φ190mm | φ190mm | φ220mm | φ220mm |
| Spindle speeds | r/min | 21-163r/min | 14-108r/min | 9-104r/min | 4-106r/min | 2-70r/min |
| 6 | 6 | 6 | 3 | 3 | ||
| X Axis Stroke X | mm | 800mm | 900mm` | 1000mm | 1250mm | 1500mm |
| Z Axis Stroke Z | mm | 350mm | 350mm | 350mm | 350mm | 350mm |
| X Axis Rapid Speed X | mm/min | 1000mm/min | 1000mm/min | 1000mm/min | 1000mm/min | 1000mm/min |
| Z Axis Rapid Speed Z | mm/min | 625mm/min | 625mm/min | 625mm/min | 625mm/min | 625mm/min |
| Cutting Tool Carriage Size | 300*300 | 300*300 | 300*300 | 350*350 | 350*350 | |
| Cutting Tool Bar Size | mm | 60*60mm | 60*60mm | 60*60mm | 80*80mm | 80*80mm |
| Motor Parameters | ||||||
| Main motor power | KW | 11KW | 11KW | 15KW | 18.5KW | 22KW |
| Feed motor power | KW | 2.3KW | 2.3KW | 2.3KW | 2.3KW | 2.3KW |
| Lubrication motor power | KW | 0.37KW | 0.37KW | 0.37KW | 0.55KW | 0.55KW |
| Machine Accuracy | ||||||
| Cylindricity | mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm |
| Platness | mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm |
| Roughness | Ra | Ra3.2 | Ra3.2 | Ra3.2 | Ra3.2 | Ra3.2 |
| L*W*H Machine Dimensions | mm | 2800*1850*1800mm | 2800*1950*1900mm | 2800*2000*2000mm | 3250*2650*2650mm | 3500*3300*3200mm |
| Machine Weight | T | 6T | 9.5T | 11T | 12.5T | 15T |
Notes: The above technical parameters are standard configuration, we are also specialized in making customized lathe according to the special request and work-piece features.
3. After-sale service of flange turning lathe, horizontal lathe machine
1. We provide professional technical training for users' operators and maintenance staff to enable them to properly use and operate the lathe and carry out normal maintenance.
2. Warranty period: One year after acceptance of the lathe.
3. In case of any quality problem found during operation, the factory will dispatch personnel to the user's location within 48 hours (domestic users) & within 3 days (Foreign Customer) and the technical staff won't leave before resolving the malfuntion.
4. The company will freely provide different electrical and mechanical parts for the purchased lathe timely within warranty period.
5. The company will provide lifetime guarantee for the consulting services in terms of application, maintenance, repair, renovation, etc of equipments.
For more details, please feel free to contact us. Thanks!
Tag: Flange turning lathe, Large Horizontal Lathe, Conventional Lathe with DRO , CNC Lathe Machine. HDPE Flange turning lathe, Steel Flange
