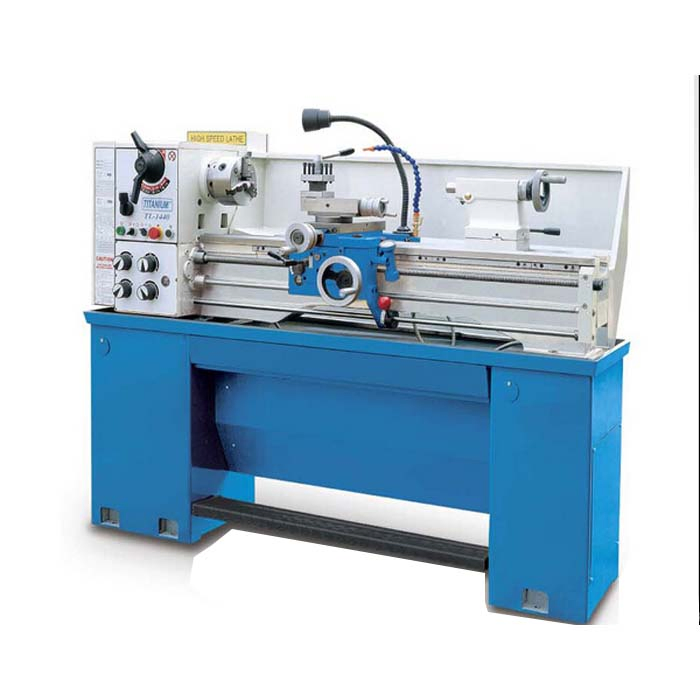

Light Duty Engine Lathe Machine (GH-320A)
Light duty Engine Lathe Machine (GH-320A)Hardened and ground headstock gearsGapped bedwayAdjustable headstock bearingOil-bath lubricated main drive and feed gearCast iron bed, double v-guide, hard and groundShift gear system to change feed drectionInterlocking f......
Send Inquiry
Product Description
Light duty Engine Lathe Machine (GH-320A)
Hardened and ground headstock gears
Gapped bedway
Adjustable headstock bearing
Oil-bath lubricated main drive and feed gear
Cast iron bed, double v-guide, hard and ground
Shift gear system to change feed drection
Interlocking feature prevents simutaneous advance of leadscrew and feedshaft
Ce standard ok
Hardened and ground headstock gears
Gapped bedway
Adjustable headstock bearing
Oil-bath lubricated main drive and feed gear
Cast iron bed, double v-guide, hard and ground
Shift gear system to change feed drection
Interlocking feature prevents simutaneous advance of leadscrew and feedshaft
Ce standard ok
| MODELS CODE NO. | GL320A×750 62016 | GH-320A TOP×1000 62017 | GH-360ATOP ×750 62018 | GL360A×1000 62019 |
| Swing over bed | 330mm (13") | 360mm (14") | ||
| Swing over cross slide | 198mm (7-25/32") | 212mm (8-1/6") | ||
| Swing in gap diameter | 476mm (18-3/4") | 491mm (9-1/3") | ||
| Swing in length | 210mm (8-1/4") | 210mm (8-1/4") | ||
| Center height | 166mm (6-1/2") | 166mm (6-1/2") | ||
| Admits between | 750mm (30") | 1000mm (40") | 750mm (30") | 1000mm (40") |
| Bed width | 187mm (7-3/8") | 187mm (7-3/8") | ||
| Bed length | 1248mm (49-1/8") | 1655mm (65-1/8") | 1363mm (53-2/3") | 1655mm (65-1/8") |
| Spindle bore | 38mm (1-1/2") | 38mm (1-1/2") | ||
| Spindle nose | D1-4" or A2-4" | D1-4" or A2-4" | ||
| Taper in nose | NO.5 morse | NO.5 morse | ||
| Taper in sleeve | NO.3 morse | NO.3 morse | ||
| Speeds number | 8 or 16(pole changeable motor) (optional) | 8 or 16(pole changeable motor) (optional) | ||
| Speeds range | 70-2000r.p.m.or 35-2000r.p.m. (2 speed motor) | 70-2000r.p.m.or 35-2000r.p.m. (2 speed motor) | ||
| Cross slide travel | 160mm (6-5/16") | 118mm (4-5/16") | ||
| Compound rest travel | 68mm (2-11/16") | 68mm (2-11/16") | ||
| Lead screw thread | 8T.P.I. or 3mm pitch | 8T.P.I. or 3mm pitch | ||
| Feed rod diameter | 19mm (3/4") | 19mm (3/4") | ||
| Cutting tool max section | 16mm ×16mm(5/8"×5/8") | 16mm ×16mm(5/8"×5/8") | ||
| Threads imperial pitches | 36 Nos.8-112 T.P.I. or (34 Nos.4-56T.P.I) | 36 Nos.8-112 T.P.I. or (34 Nos.4-56T.P.I) | ||
| Threads metric pitches | 28 Nos.0.2-5mm pitch or (26 Nos.0.4-7mm pitch) | 28 Nos.0.2-5mm pitch or (26 Nos.0.4-7mm pitch) | ||
| Threads diametral pitches | 36 Nos.8-112 D.P | 36 Nos.8-112 D.P | ||
| Threads module pitches | 22 Nos.0.2-3 M.P. | 22 Nos.0.2-3 M.P. | ||
| Longitudinal feeds imperial | 36 Nos.0.0019-0.0273"/Rev.or (32 Nos.0.002-0.548"/Rev) | 36 Nos.0.0019-0.0273"/Rev.or (32 Nos.0.002-0.548"/Rev) | ||
| Longitudinal feeds metric | 36 Nos.0.050-0.696"/Rev.or (32 Nos.0.052-0.392mm/Rev) | 36 Nos.0.050-0.696"/Rev.or (32 Nos.0.052-0.392mm/Rev) | ||
| Cross feeds imperial | 36 Nos.0.0006-0.0094"/Rev.or (32 Nos.0.007-0.0187"/Rev) | 36 Nos.0.0006-0.0094"/Rev.or (32 Nos.0.007-0.0187"/Rev) | ||
| Cross feeds metric | 36 Nos.0.013-0.188"/Rev.or (32 Nos.0.014-0.380mm/Rev) | 36 Nos.0.013-0.188"/Rev.or (32 Nos.0.014-0.380mm/Rev) | ||
| Quill diameter | 32mm (1-1/4")(NO.3M.T.) | 32mm (1-1/4")(NO.3M.T.) | ||
| or (optional) | ||||
| Quill travel | 100mm(3-15/16")(NO.3M.T.) | 100mm(3-15/16")(NO.3M.T.) | ||
| or (optional) | ||||
| Quill taper | NO.3 morse | NO.3 morse | ||
| For main motor | 1.5KW 3PH or 1PH | 1.5KW 3PH or 1PH | ||
