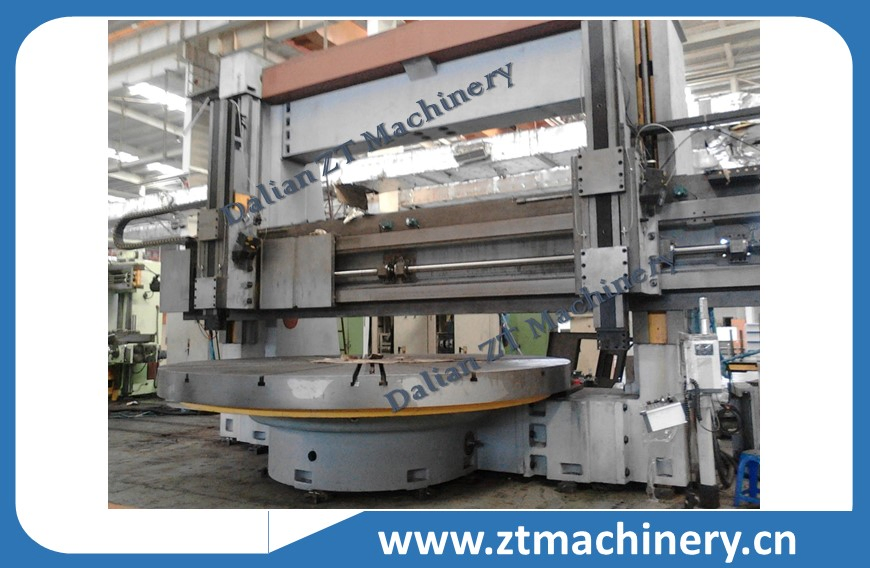

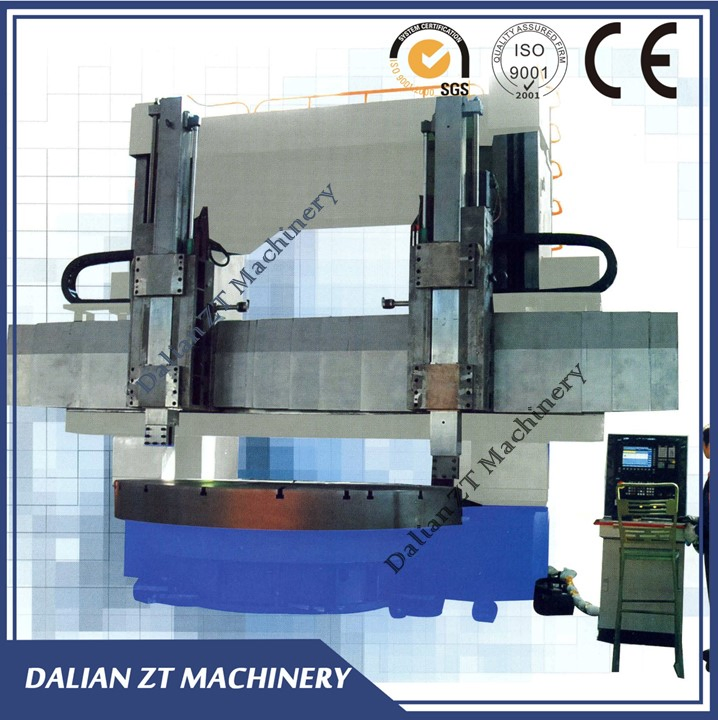

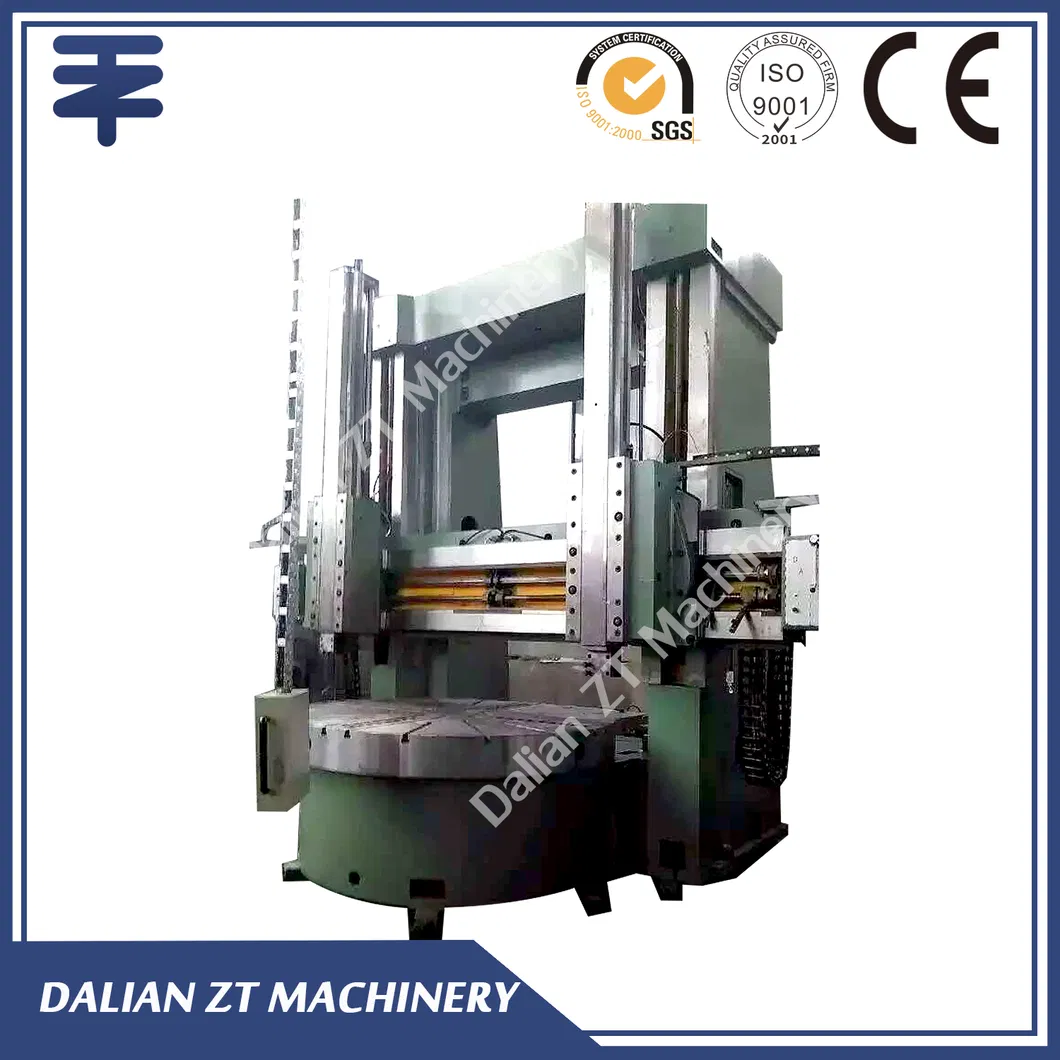

Manual Double Column Vertical Lathe Machine Siemens Controller C5231 C5225 C5250
Workpiece: Valve, pump, auto parts; ring, flange, shell partsFunction: Turning, grooving, drilling, tapping, reaming Specification Unit C5231Max turning diametermm3150Table diametermm2830Max height of workpiecemm1600Max weight of the workpiecet10Max torque of tableKN.m63Spe......
Send Inquiry
Product Description
Workpiece: Valve, pump, auto parts; ring, flange, shell parts
Function: Turning, grooving, drilling, tapping, reaming
Parts supplied with machines
PACKING, FIXING & DELIVERY:
CUSTOMERS' VISITING:
FAQ
1. MOQ
1 set
2. DELIVERY TIME
It depends on the machine and model you choose. Mostly 2 months - 4months. All machines are 100% new and not used.
3. PAYMENT TERM
T/T 30% down payment when order, 70% balance payment before shipment.
4. WARRANTY PERIOD
13 months from the date of B/L, during the warranty period, daily damage parts will be supplied freely, the after sale service will be done by dealers . After warranty period, the spare parts will be supplied at factory price.
Function: Turning, grooving, drilling, tapping, reaming
| Specification | Unit | C5231 |
| Max turning diameter | mm | 3150 |
| Table diameter | mm | 2830 |
| Max height of workpiece | mm | 1600 |
| Max weight of the workpiece | t | 10 |
| Max torque of table | KN.m | 63 |
| Speed range of Table (16steps) | r/min | 2-63 |
| Max.cutting force of vertical tools | KN | 40 |
| Swivel degree of vertical tool | degree | ±30° |
| Tools feeding | mm/min | 0.2-145 |
| Horizontal travel of vertical tool post | mm | -20-1750 |
| Sliding travel of vertical tool post | mm | 1000 |
| Fast moving speed of tool post | mm/min | 1560 |
| Tool Bar section size | mm | 40×40 |
| Seat diameter | mm | φ1980 |
| Seat sliding sides | mm | φ1495 |
| Vertical sliding sides | mm | 450/400 |
| Sliding section size | mm | 250×200(T square sliding) |
| Beam sliding sides | mm | 650 |
| Main motor power | KW | 55 |
| Machine dimension | mm | 6050×4400×4930 |
| Machine weight | t | 34 |
| Configuration (optional) | Four axis DRO | |
Parts supplied with machines
| Name | Specification | Q'ty | Remark |
| Chuck Jaw | 4 sets | ||
| Left and right tool clampers | Tool section 40x50 | 1 for each | |
| Tool bar | Tool section 22x22 | 1pcs | |
| Square socket banner | 24/27 | 1/1 set | |
| banner | S=17-19 | 1 pcs | |
| Banner connector/bending head banner | 1 for each | ||
| Hexgon sockets | 36,46,55 | 1 for each | |
| Allen banner | 10 | 1pcs | |
| blocks | 17pcs | ||
| Bolts | M24×500 | 17sets | |
| blocks | 80×80×6 | 10pcs | |
| Live move banner | 300 | 1pcs | |
| Pressure grease gun | 1pcs | ||
| Lathe working light | 1set | ||
| Flat and cross screwdriver | 1 for each |

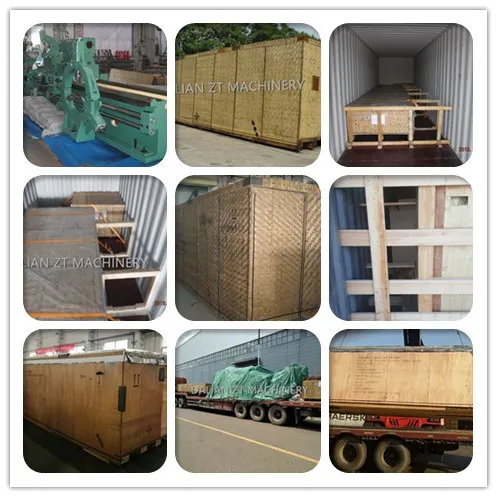

PACKING, FIXING & DELIVERY:
CUSTOMERS' VISITING:
FAQ
1. MOQ
1 set
2. DELIVERY TIME
It depends on the machine and model you choose. Mostly 2 months - 4months. All machines are 100% new and not used.
3. PAYMENT TERM
T/T 30% down payment when order, 70% balance payment before shipment.
4. WARRANTY PERIOD
13 months from the date of B/L, during the warranty period, daily damage parts will be supplied freely, the after sale service will be done by dealers . After warranty period, the spare parts will be supplied at factory price.
