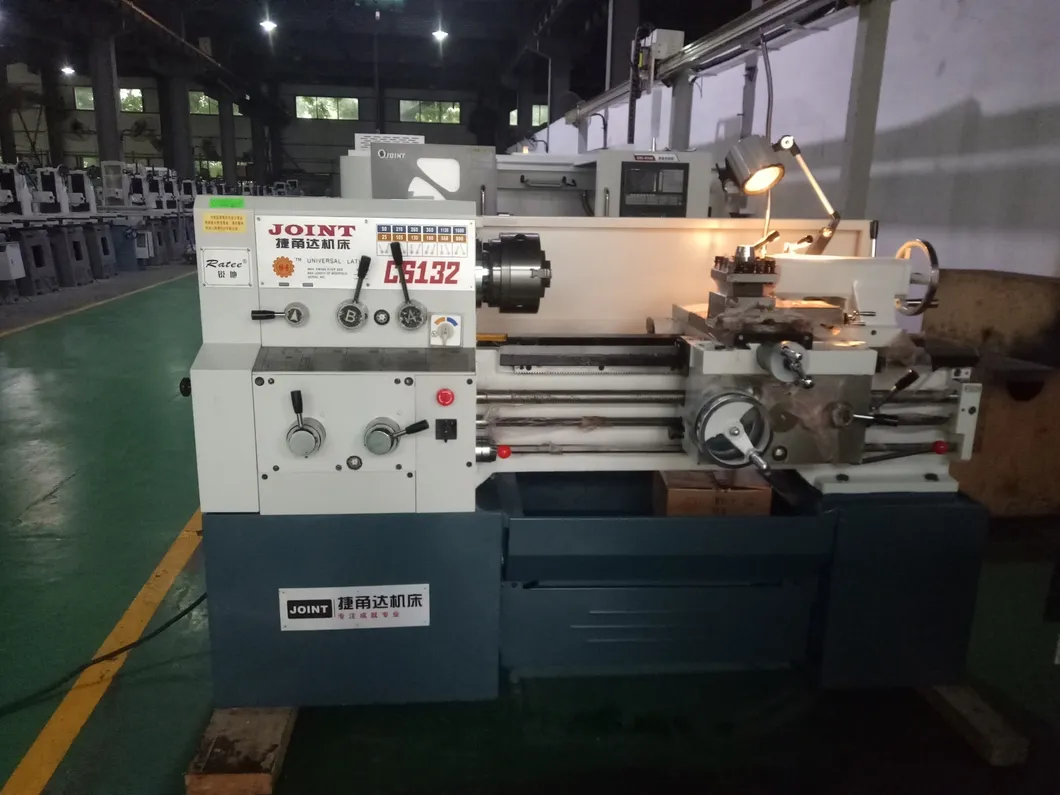

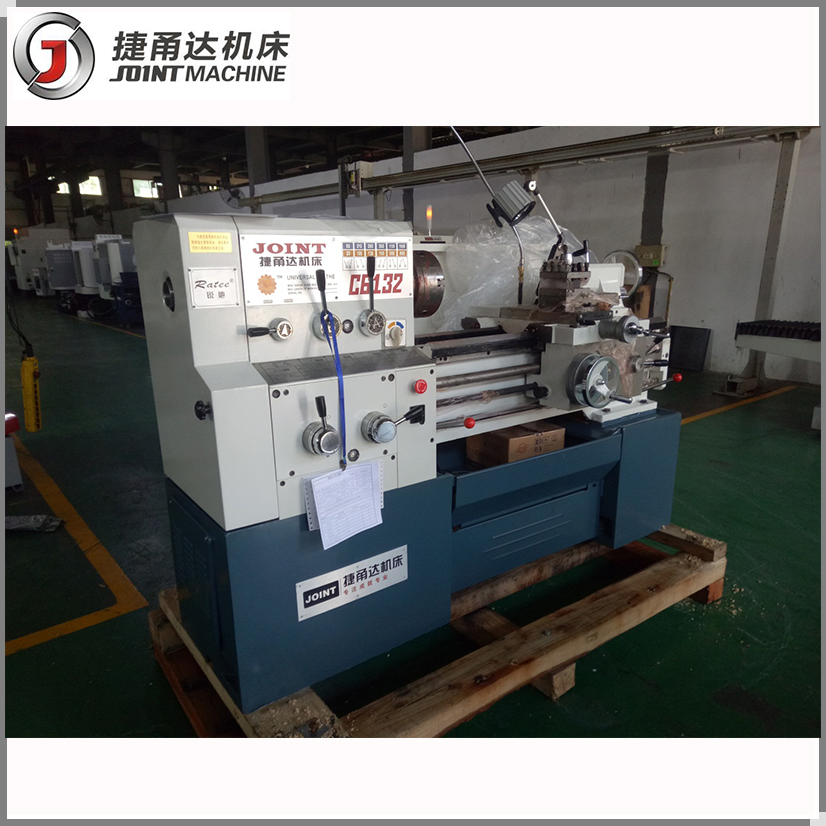

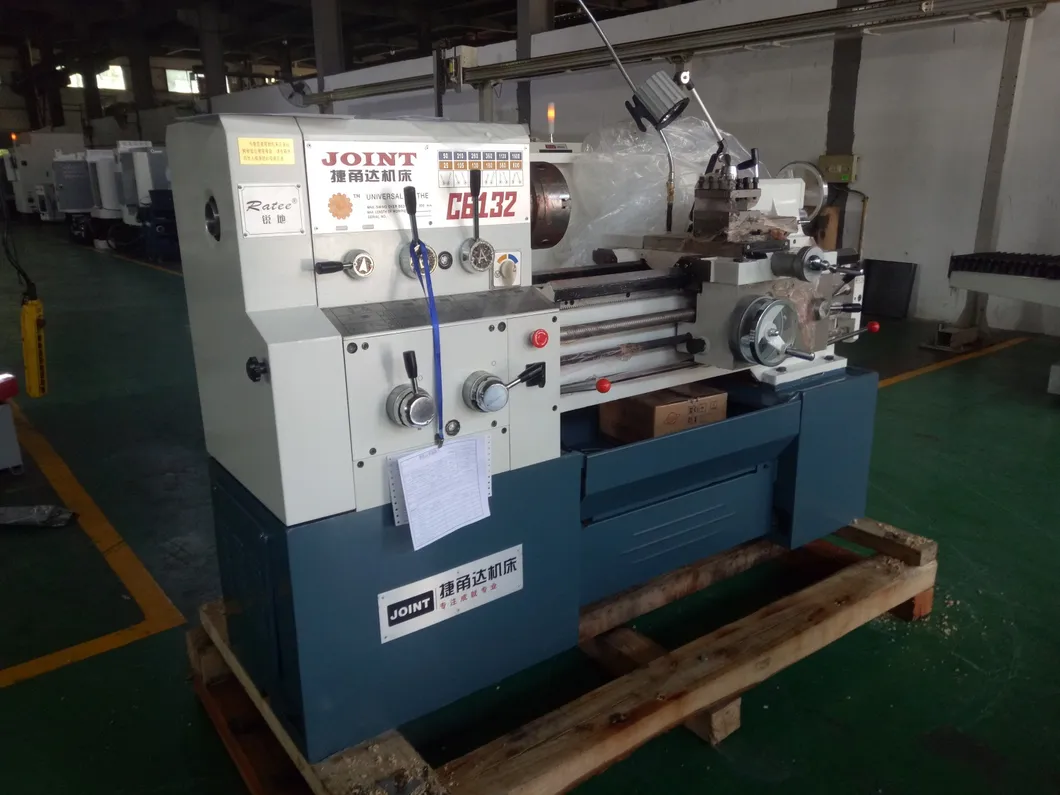

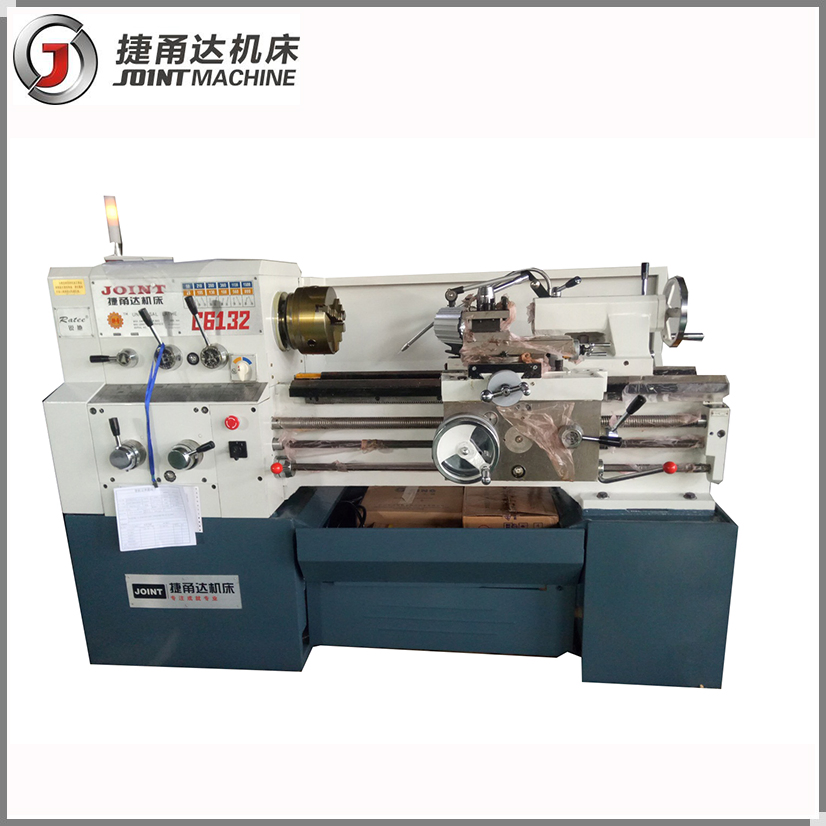

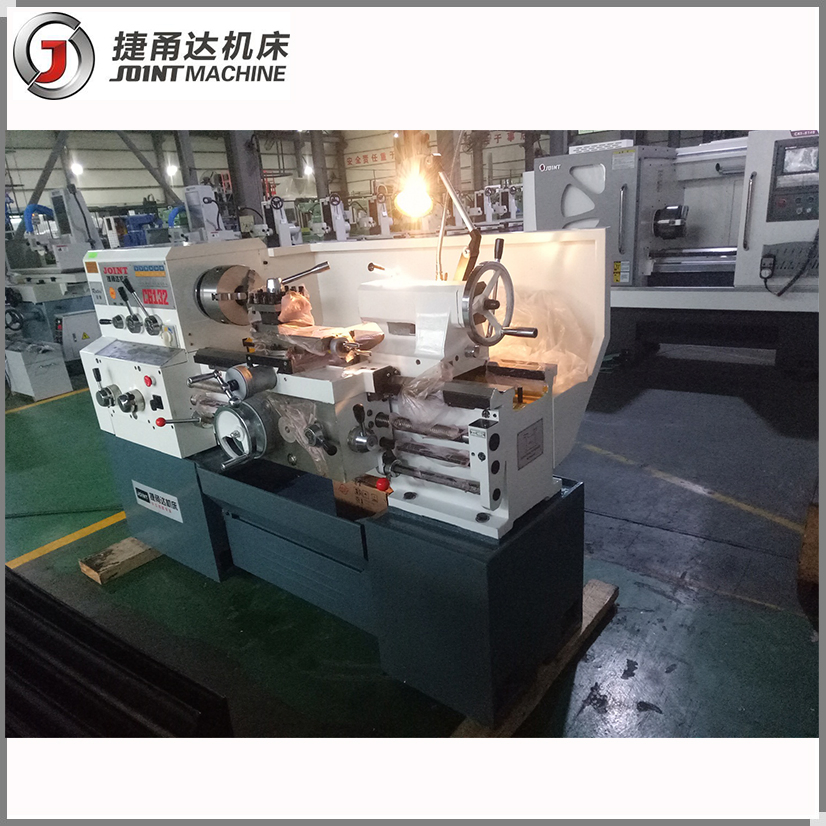

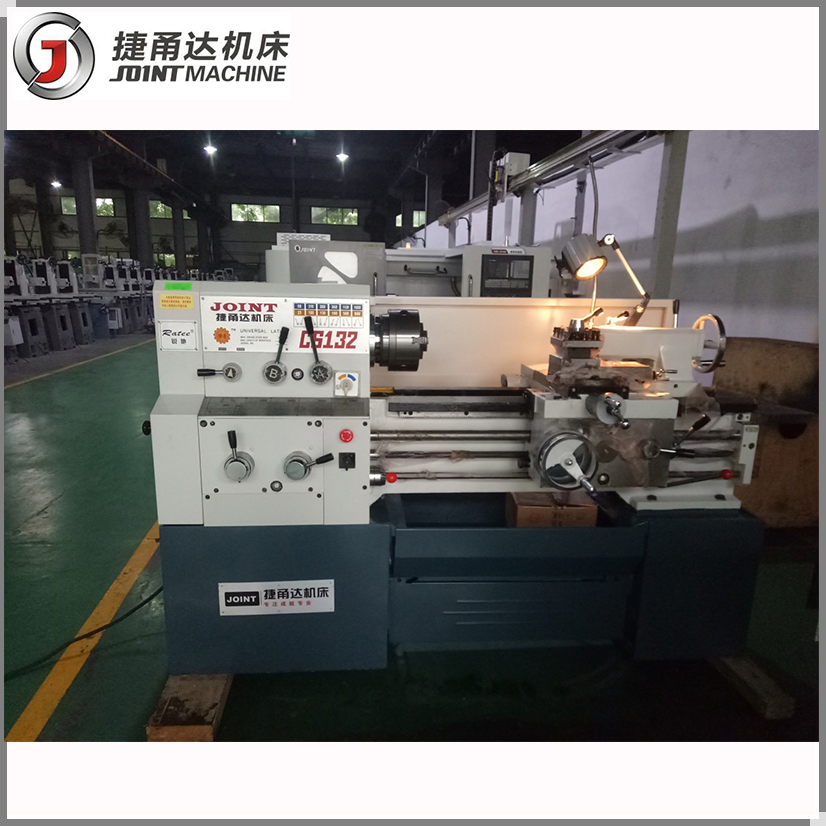

Metal Engine Horizontal Engine Lathe Machine C6132 with 350mm Swing Diameter Over Bed
1. Specification Model Reinforced Model C6132D/750Swing over bed350mmMax work piece length750/1000/1500mmBed rail width320mmMax turning diameter of work piece on tool holder190mmMaximum longitudinal travel of tool rest630/1380880mmMaximum transverse travel of tool rest220mmBar diameter45mmMaximum ......
Send Inquiry
Product Description
1. Specification
Overview:

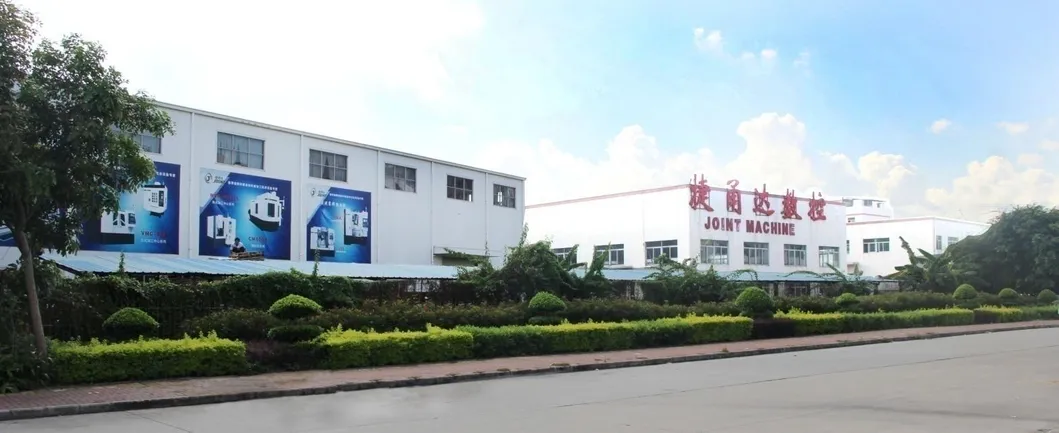

Company Profiles
Shenzhen Joint Technology Co., Ltd. specializes in R&D and manufacturing mold processing and machinery parts processing equipment, we developed high quality and high-tech research, development, manufacturing, service team and management system, and expanded products to more than 11 series from milling machines, to machine center,mechanical arm, automation. With the exceptional quality products and distinct brand reputation, our products are sold to more than 40 developed cities all over China, and also to more than 20 countries all over the world across Asia, Europe and America.Our company takes the high quality product as orientation, R&D ideas is to provide customers with the most suitable quality products, became a professional machine tool manufacturer with a complete product line of mould and parts processing machine tool and strong tailor-made design capability in China.
FAQ
Q1: Are you trading company or manufacturer?
A1: We are factory.
Q2: What is your terms of payments?
A2: 30% as deposit, 70% should be paid before delivery.
Q3: How can I choose the most suitable machines?
A3: Please tell us your requirements of the machines, or you could send us the products drawing, our engineer can help to choose suitable model for you.
Q4: What is the package? Is it suitable for shipment?
A4: Machine will be packed by exporting standard package, water proof and anti-rust. It is very much strong for oversea transportation.
Q5: How long is the warranty for machines?
A5: Warranty time is 12 months. We will supply the repair parts in this warranty time. The charge of repair parts will be free due to its quality problemin this guarantee.
| Model | Reinforced Model C6132D/750 | |
| Swing over bed | 350mm | |
| Max work piece length | 750/1000/1500mm | |
| Bed rail width | 320mm | |
| Max turning diameter of work piece on tool holder | 190mm | |
| Maximum longitudinal travel of tool rest | 630/1380880mm | |
| Maximum transverse travel of tool rest | 220mm | |
| Bar diameter | 45mm | |
| Maximum turning diameter of workpiece in saddle groove | 520mm | |
| Valid length of gap | 200mm | |
| Spindle center height | 175mm | |
| Spindle head connection | C6 | |
| Through hole diameter of spindle | 46mm | |
| Taper of spindle inner hole | MT6 | |
| Spindle rotation speed | 25-1600rpm | |
| Taper of inner hole of top sleeve | MT4 | |
| Maximum movement in tip sleeve | 130mm | |
| Maximum lateral movement | ±10mm | |
Thread | Inch system | 80-33/4n/1" |
| Metric | 0.45-20mm/r | |
| Module | 0.25-10mm | |
| Diameter pitch | 160-31/2DP | |
| Motor specification | YD132M-8/4-B5 3-4.5kw | |
| Belt specification | 4-A-1900mm/4-A-2000mm | |
| Dimension | 1950mm*950mm*1200m m | |
| Net weight | 1350kgs | |
Overview:
Company Profiles
Shenzhen Joint Technology Co., Ltd. specializes in R&D and manufacturing mold processing and machinery parts processing equipment, we developed high quality and high-tech research, development, manufacturing, service team and management system, and expanded products to more than 11 series from milling machines, to machine center,mechanical arm, automation. With the exceptional quality products and distinct brand reputation, our products are sold to more than 40 developed cities all over China, and also to more than 20 countries all over the world across Asia, Europe and America.Our company takes the high quality product as orientation, R&D ideas is to provide customers with the most suitable quality products, became a professional machine tool manufacturer with a complete product line of mould and parts processing machine tool and strong tailor-made design capability in China.
FAQ
Q1: Are you trading company or manufacturer?
A1: We are factory.
Q2: What is your terms of payments?
A2: 30% as deposit, 70% should be paid before delivery.
Q3: How can I choose the most suitable machines?
A3: Please tell us your requirements of the machines, or you could send us the products drawing, our engineer can help to choose suitable model for you.
Q4: What is the package? Is it suitable for shipment?
A4: Machine will be packed by exporting standard package, water proof and anti-rust. It is very much strong for oversea transportation.
Q5: How long is the warranty for machines?
A5: Warranty time is 12 months. We will supply the repair parts in this warranty time. The charge of repair parts will be free due to its quality problemin this guarantee.
