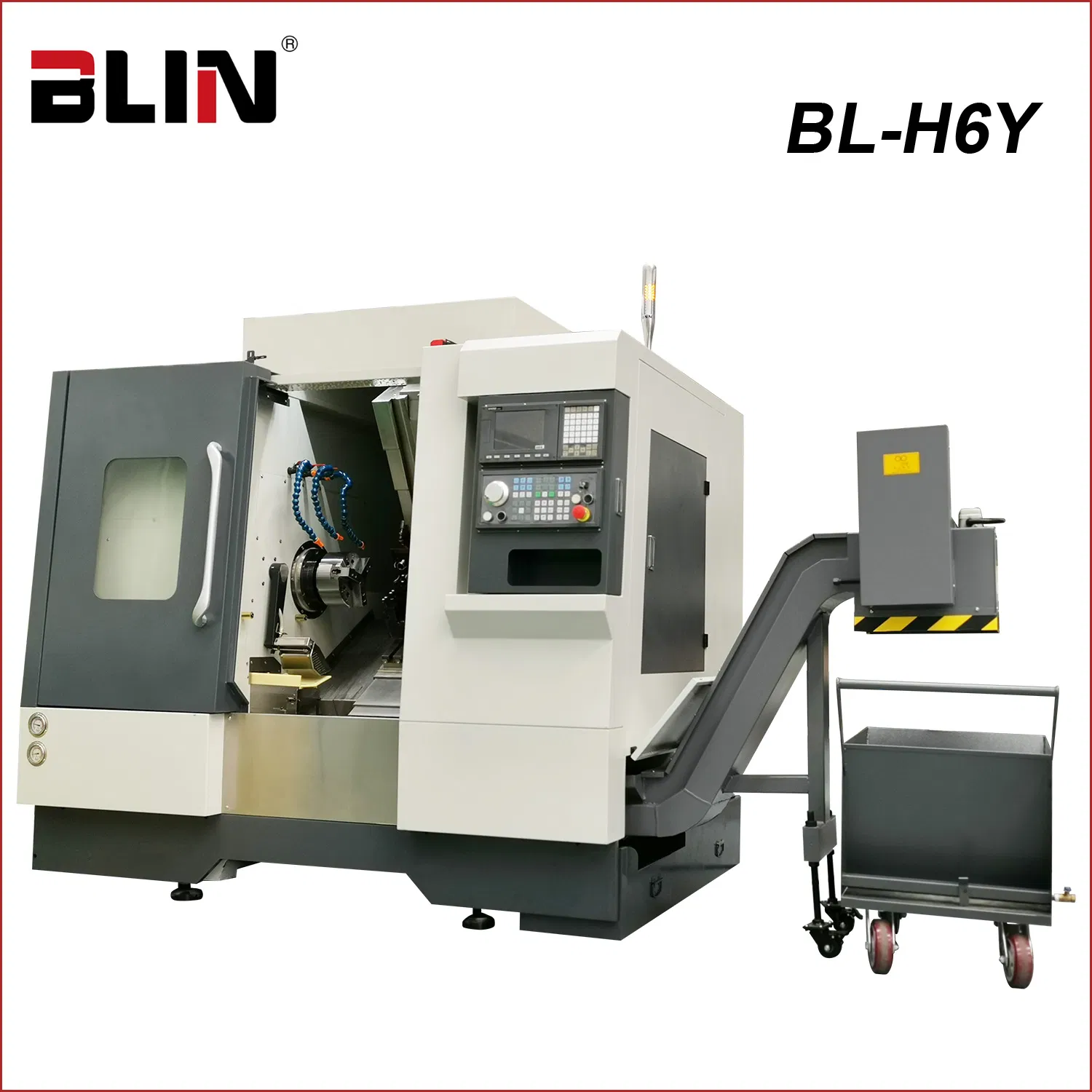

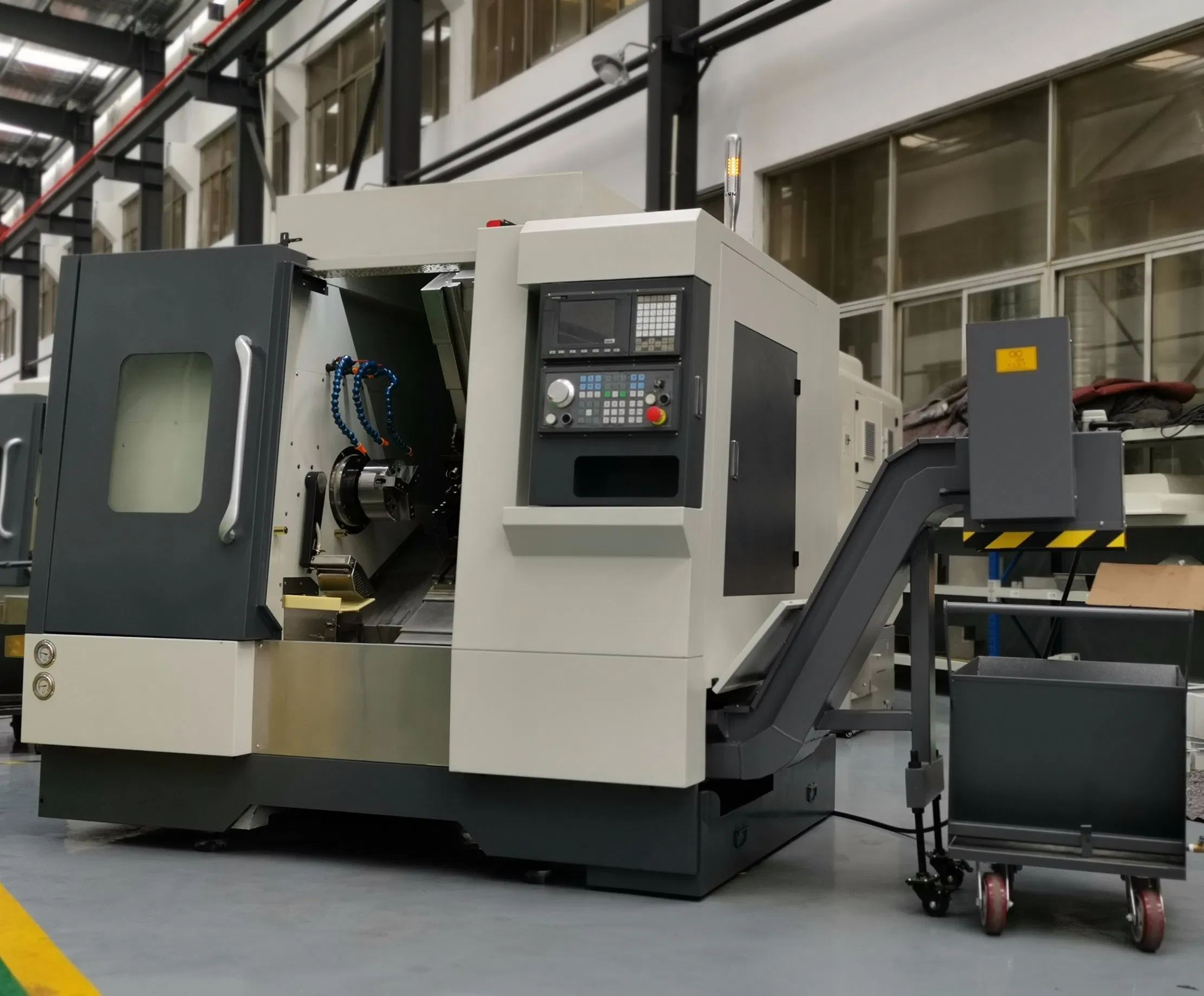

Most Popular 14' Swing Slant Bed CNC Lathe Machine (H6Y)
-Adopt TAIWAN technology, designed by TAIWAN engineer, most parts adopt GERMANY/TAIWAN brand-Adopt 30°integral slant bed design-Z axes adopt 35mm width ROLLER type linear guideway,super high rigidity-Adopt modularization design, easy for various especial configuration choice, such as tool se......
Send Inquiry
Product Description

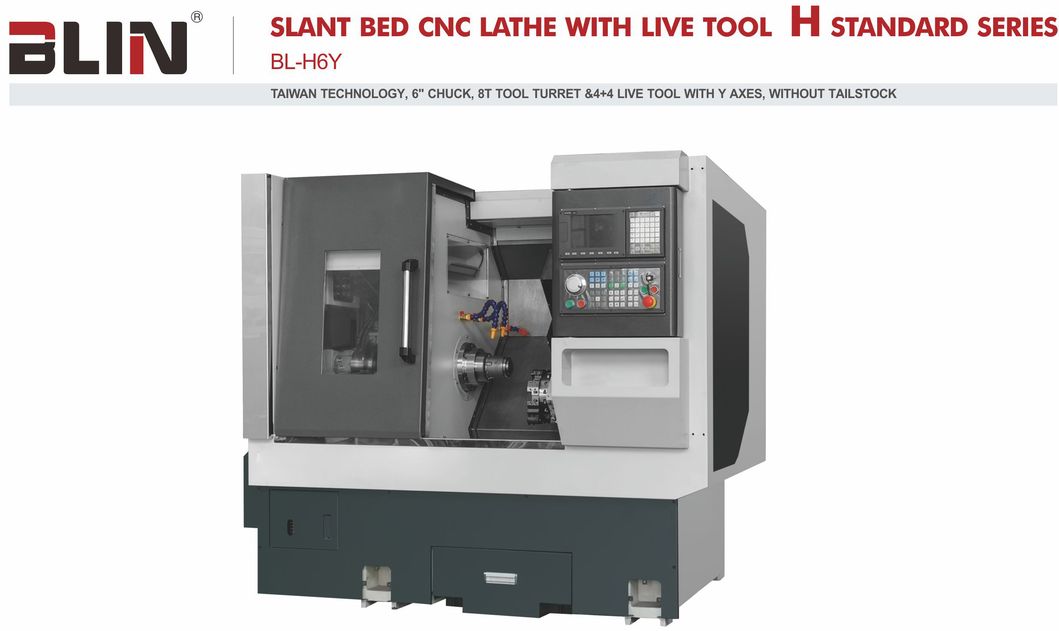

-Adopt TAIWAN technology, designed by TAIWAN engineer, most parts adopt GERMANY/TAIWAN brand
-Adopt 30°integral slant bed design
-Z axes adopt 35mm width ROLLER type linear guideway,super high rigidity
-Adopt modularization design, easy for various especial configuration choice, such as tool setter, parts catcher etc
-Adopt MEEHANITE class cast iron, after aging treatment, small distortion, good torsional strength, good heat stability
-Base adopt multilayer strengthening rib, ensure bed's strength and stability

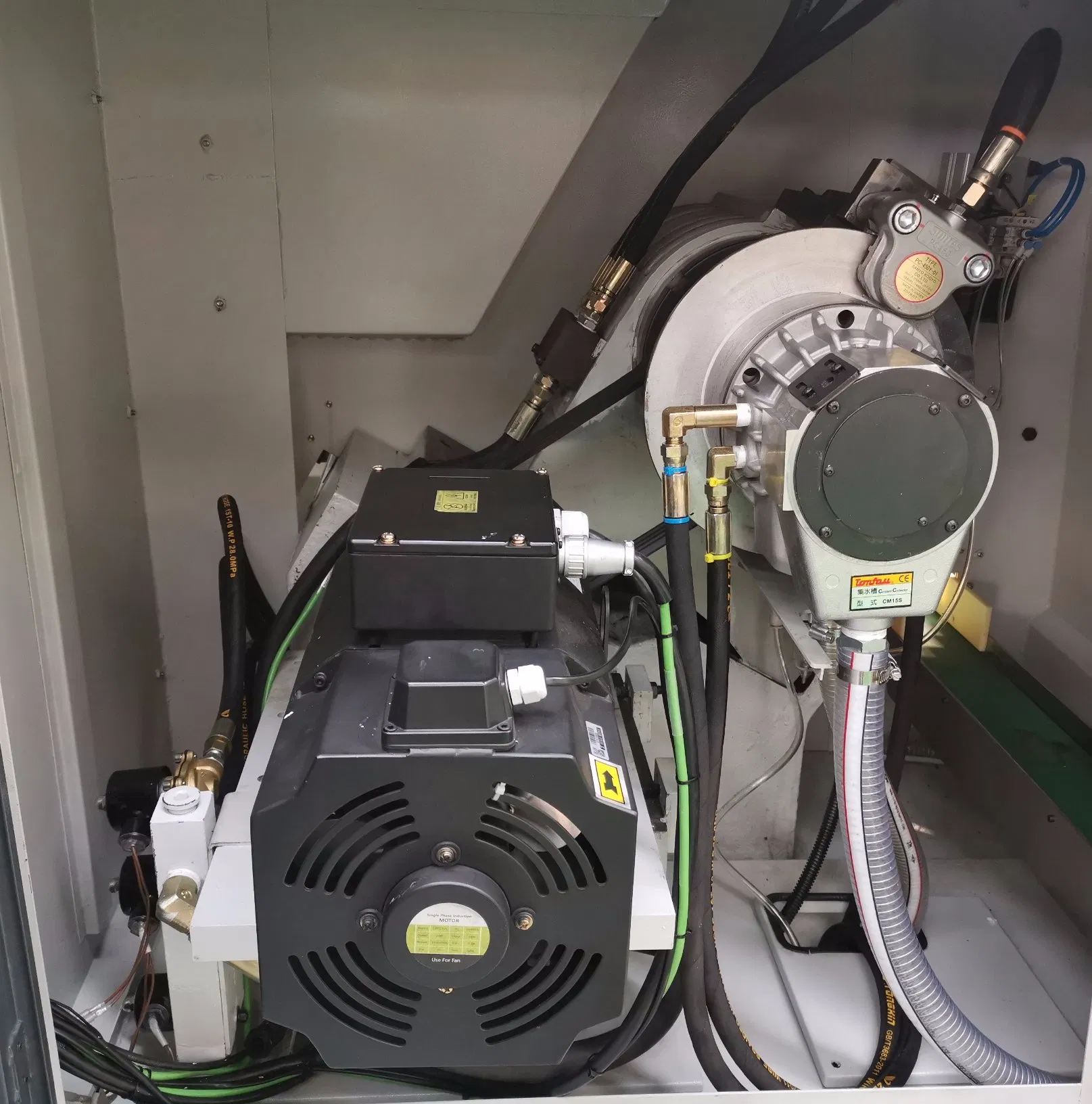

-Adopt high precision integral spindle unit, spindle motor adopt high performance servo motor, big output torque,high speed,wide adjustment range
-Adopt high precision C3 class pre-stretched ball screw(double nuts), coupled with feeding motor directly by linkager, no gap,high transmission rigidity
-Mount 8T hydraulic tool turret and 4+4 Independent live tools with Y axes
Details:
| Item | Specification | Unit | BL-H6Y |
| Capacity | Chuck size | / | 6'' |
| Max. swing dia. over bed | mm | Φ350 | |
| Max. turning length | mm | 300 | |
| Max. turning dia. | Φ200 | ||
| Standard turning dia. | mm | Φ150 | |
| Spindle | Spindle bore | mm | Φ56 |
| Spindle end type | / | A2-5 | |
| Spindle speed | rpm | 5000 | |
| Max. bar through dia. | mm | 44 | |
| Spindle motor power | kw | 5.5(opt.:7.5) | |
| X/Z axes | X/Z axes linear guideway type | / | BALL type/ROLLER type |
| X/Z axes linear guideway width | mm | 30/35 | |
| X,Z axes ball screw O.D./Pitch | mm | Φ32/10 | |
| X axes travel | mm | 460 | |
| Y axes travel | 220 | ||
| Z axes travel | mm | 300 | |
| X/Y/Z axes rapid moving speed | m/min | 28/16/28 | |
| Tool turret | Tool turret type | / | 8T Hydraulic tool turret& 4+4 Independent live tool group with Y axes |
| Live tool collet size | / | ER25 | |
| Toolshank size | mm | 20×20, Φ25 | |
| Tailstock | Tailstock | / | N/A |
| Accuracy | Positioning accuracy(X/Z) | mm | 0.01/1000 |
| Repeat positioning accuracy(X/Z) | mm | 0.008/1000 | |
| Others | Overall size | mm | 2200×1600×1700 |
| N.W. | kg | 3000 |
Main parts list:
| Item | Brand |
| CNC controller | GERMANY-SIEMENS |
| Feeding driver&motor | GERMANY-SIEMENS |
| Spindle unit | TAIWAN-VYU CHENG |
| Tool turret | TAIWAN-GSA |
| Live tool group | CHINA top |
| Ball screw | TAIWAN-HIWIN |
| Ball screw bearing | GERMANY-FAG |
| Linear guideway | TAIWAN HIWIN |
| Lubrication system | TAIWAN-ISHAN |
| Rotary oil cylinder&chuck | TAIWAN-CHANDOX/AUTOGRIP |
| Hydraulic parts | TAIWAN/JAPAN |
| Heat exchanger | TAIWAN |
| Main electricity parts | FRANCE-SCHNEIDER |
Standard configuration:

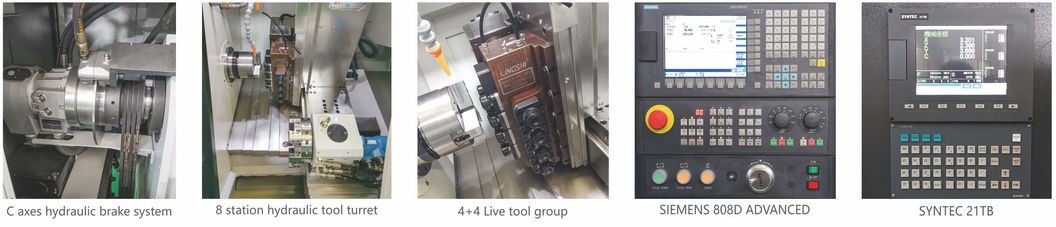

-SIEMENS 808D ADVANCED CNC controller
-Hydraulic chuck
-Hydraulic tool turret
-4+4 Independent live tool group with Y axes
Optional configuration:
-SYNTEC 21TB/SIEMENS 828D/FANUC 0i TF CNC controller
-Automatic chip conveyor
-Tool setting probe
-Parts catcher
