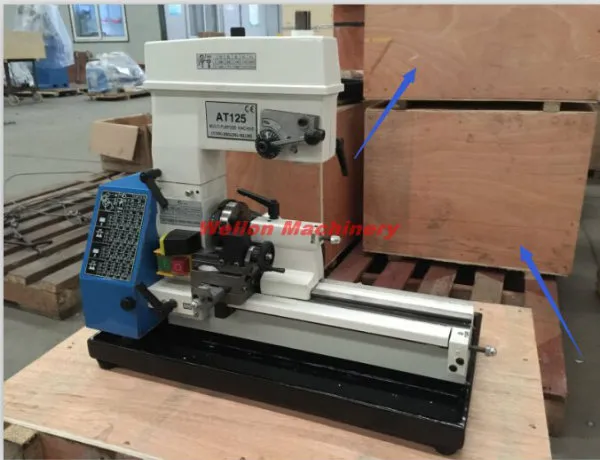

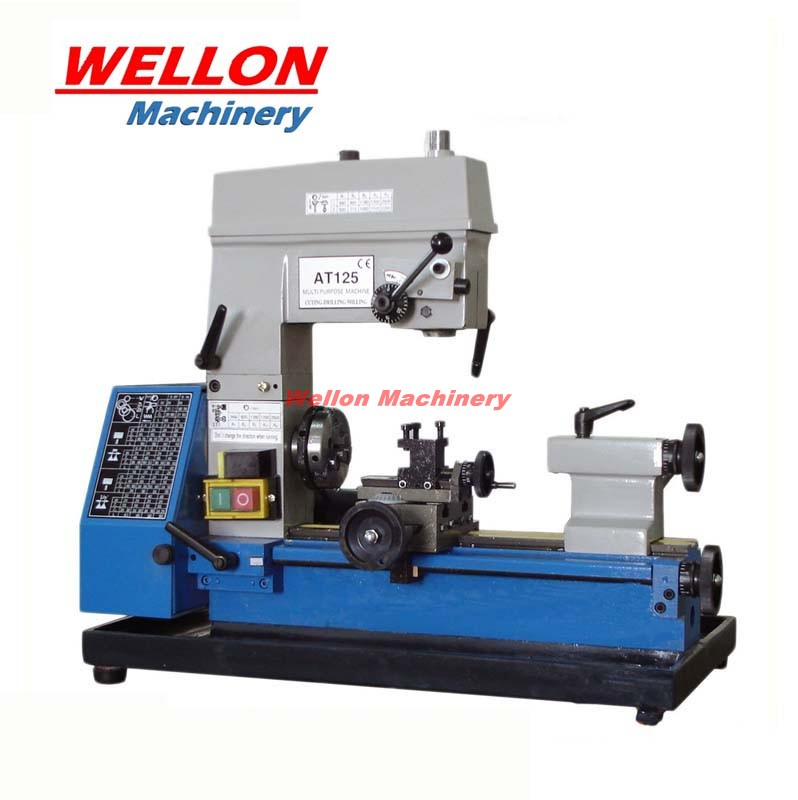

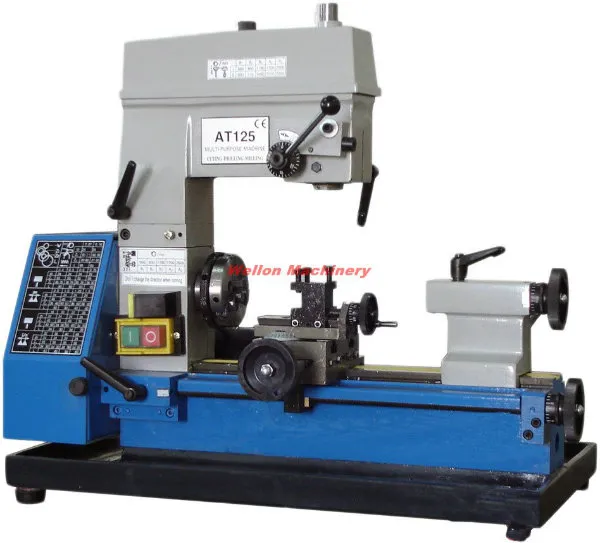

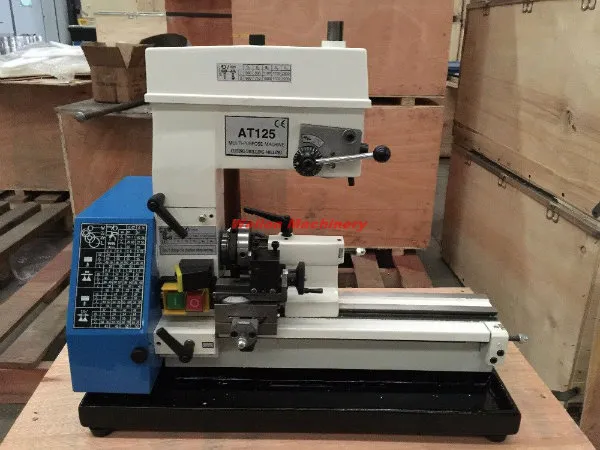

Multi Purpose Bench Turning Milling Drilling Machine At125 (Multi function 3 in 1 Bench Lathe drill mill)
Products Description:Performence Features:Mini Multifunctional Lathe is a little cute Multi-purpose machine tool. It can lathe, drill and mill in metal, wood and other materials, specially made for small and middle size manufacturers, repairing shops, schools, institutes and families. It's a fan......
Send Inquiry
Product Description
Products Description:
Performence Features:
Mini Multifunctional Lathe is a little cute Multi-purpose machine tool. It can lathe, drill and mill in metal, wood and other materials, specially made for small and middle size manufacturers, repairing shops, schools, institutes and families. It's a fantastic hobby machine.
Technical parameter:
STANDARD ACCESSORIES
1,Dead centers
2,Allen wrench
3,Single open end wrench
4,change gear
5,Drill chuck
6,Tapered drift
7,Drill chuck arbor
OPTIONAL ACCESSORIES
1,Turning tool set
2,Machine vice

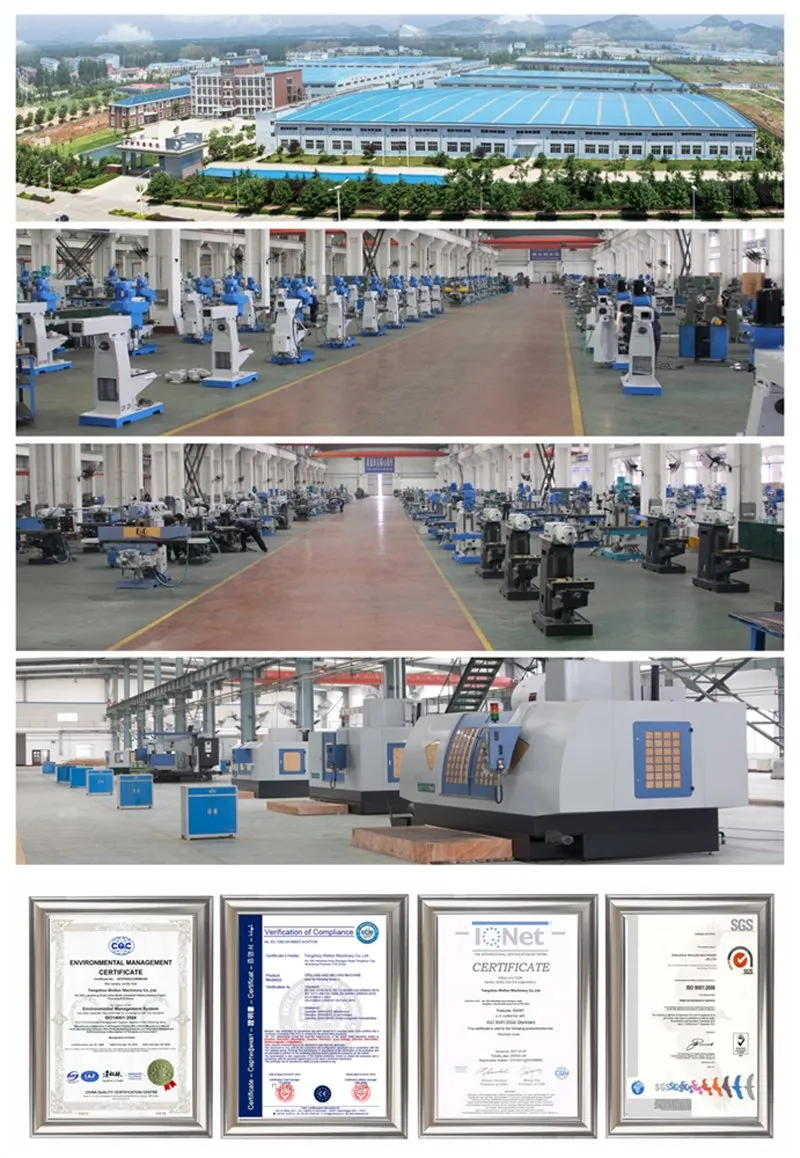

Company Information:
Contact Us:
Performence Features:
Mini Multifunctional Lathe is a little cute Multi-purpose machine tool. It can lathe, drill and mill in metal, wood and other materials, specially made for small and middle size manufacturers, repairing shops, schools, institutes and families. It's a fantastic hobby machine.
Technical parameter:
| Model | AT125 |
| Max. swing diameter over bed | 125mm |
| Max. length of workpiece | 180mm |
| Swing diameter over tool carrier | 60mm |
| Spindle bore | 9mm |
| Taper of hole in spindle morse | No.1 |
| Metric thread kinds on processing | 10 |
| Metric thread pitch on processing | 0.25-1.0mm |
| Inch thread kinds on processing | 10 |
| Inch thread pitch on processing | 22-64 1/n" |
| Longitudinal feed grade | 2 |
| Longitudinal feed on spindle tool carrier | 0.07-0.14 m/r |
| Max. stroke on taper hole | 18mm |
| Taper of hole in tailstock | No.1 |
| Spindle speed step | 5 |
| Spindle speed scope | 560-2500 r/min |
| DRILLING | MILLING | ||
| Max. drilling capacity | 6mm | Bench width | 60mm |
| Distance from bench to spindle nose | 120-180mm | Bench length | 85mm |
| Distance from spindle to column | 125mm | Width of "T" slot | 8mm |
| Swivel-angle of the milling head | 360 | Stroke on spindle hole | 40mm |
| Spindle speed step | 10 | Taper of spindle morse | No.1 |
| Spindle speed scope | 500-2500 rpm | Electric motor | 180w |
1,Dead centers
2,Allen wrench
3,Single open end wrench
4,change gear
5,Drill chuck
6,Tapered drift
7,Drill chuck arbor
OPTIONAL ACCESSORIES
1,Turning tool set
2,Machine vice
Company Information:
Contact Us:
