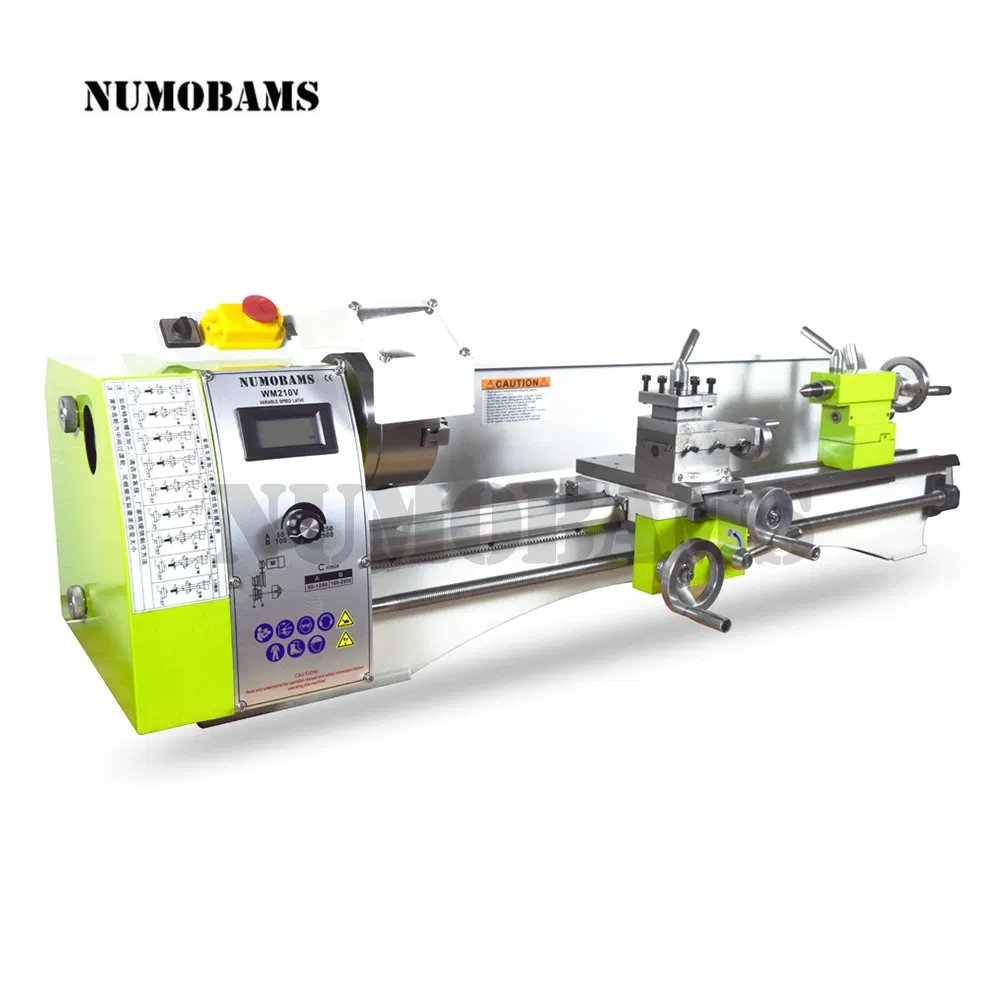

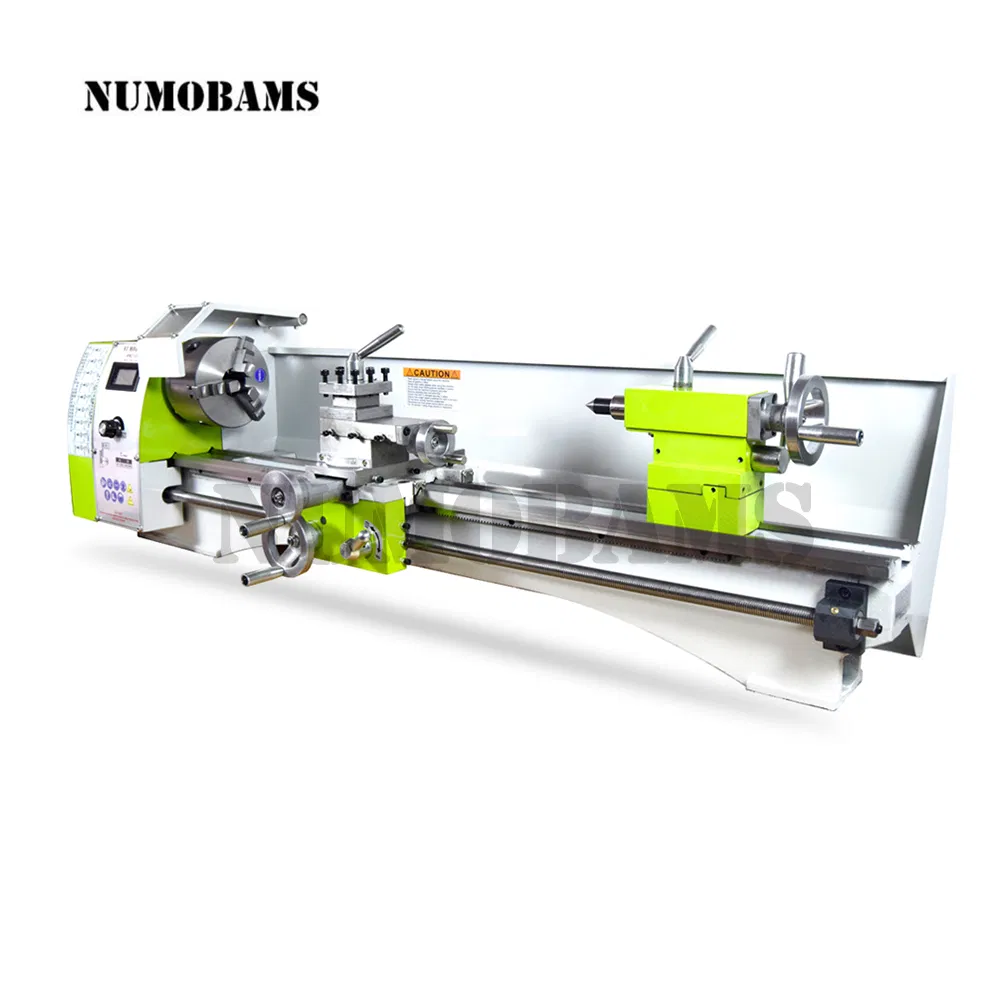

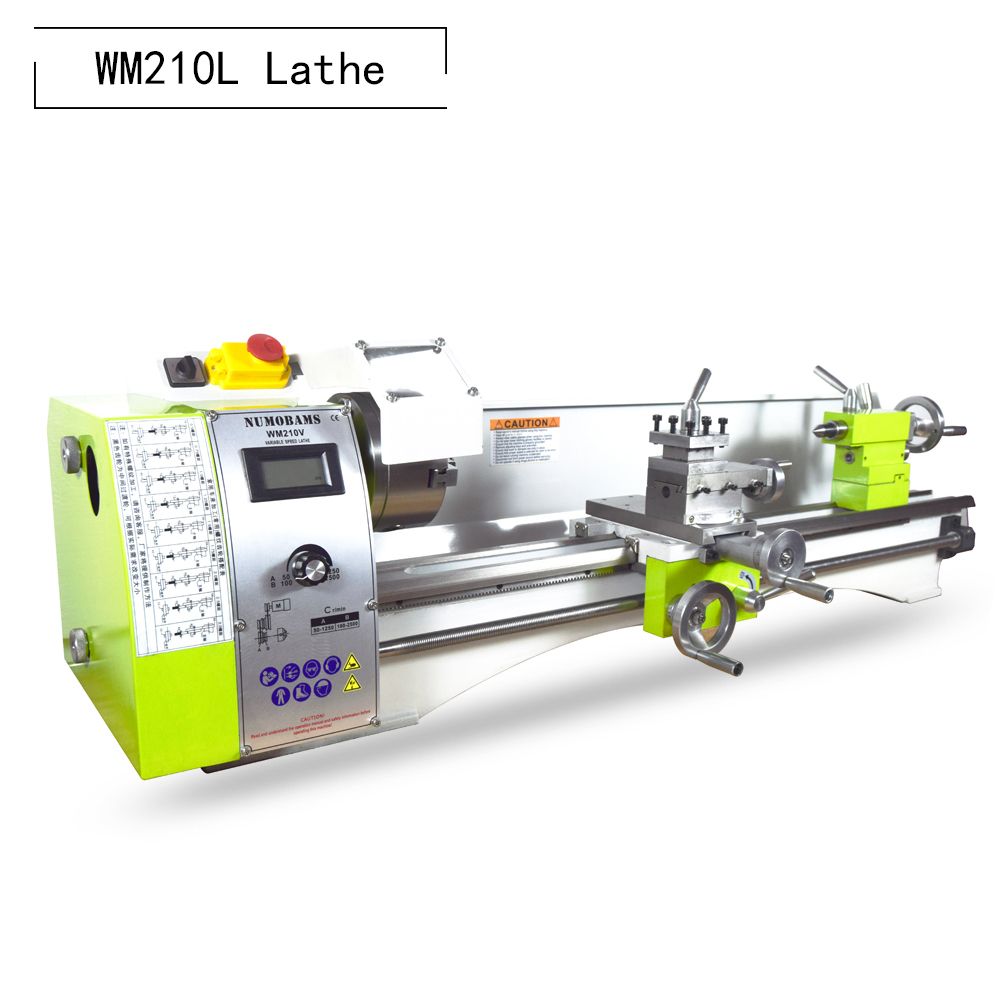

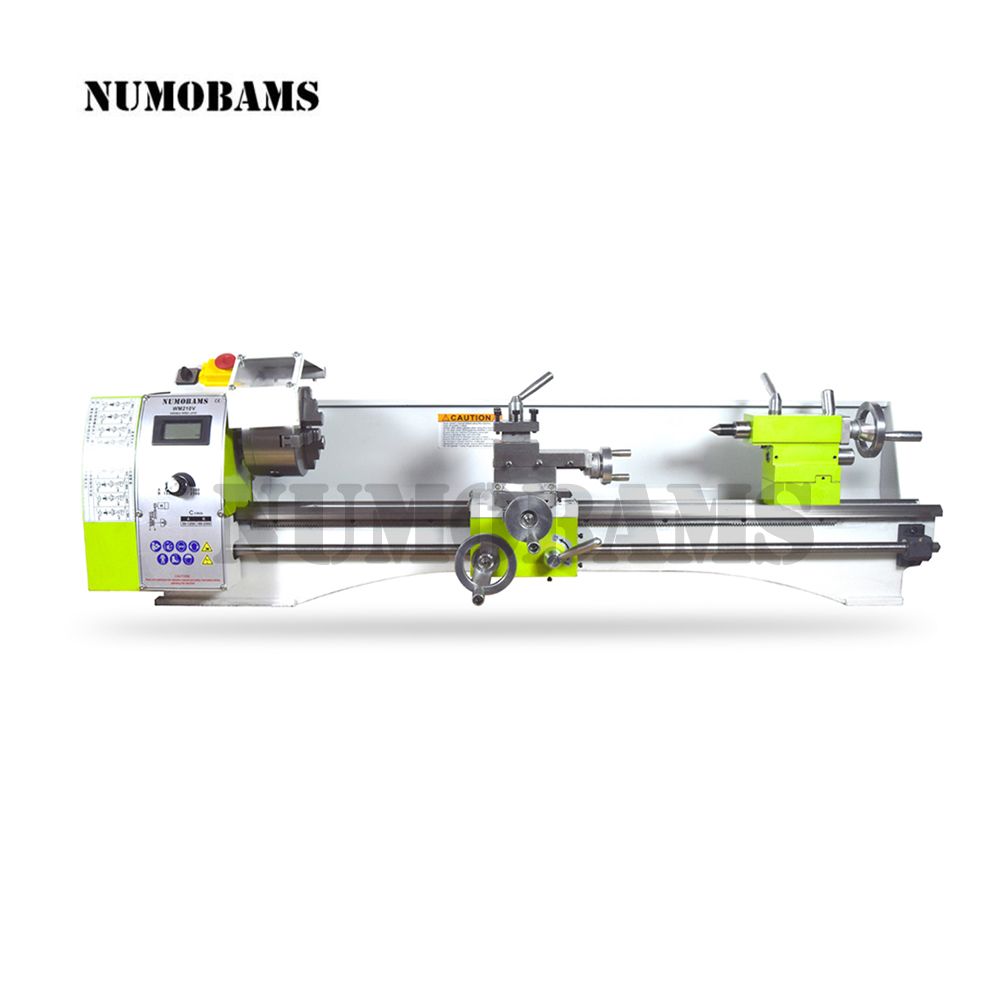

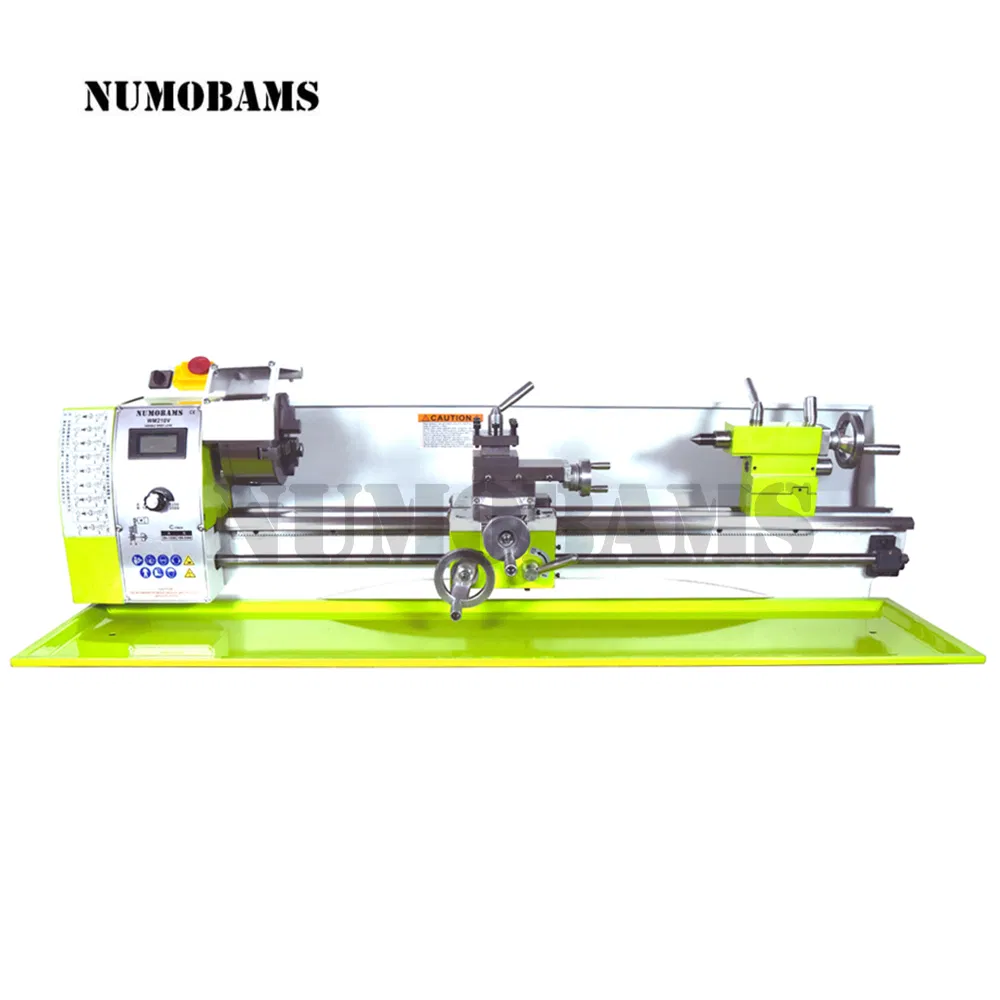

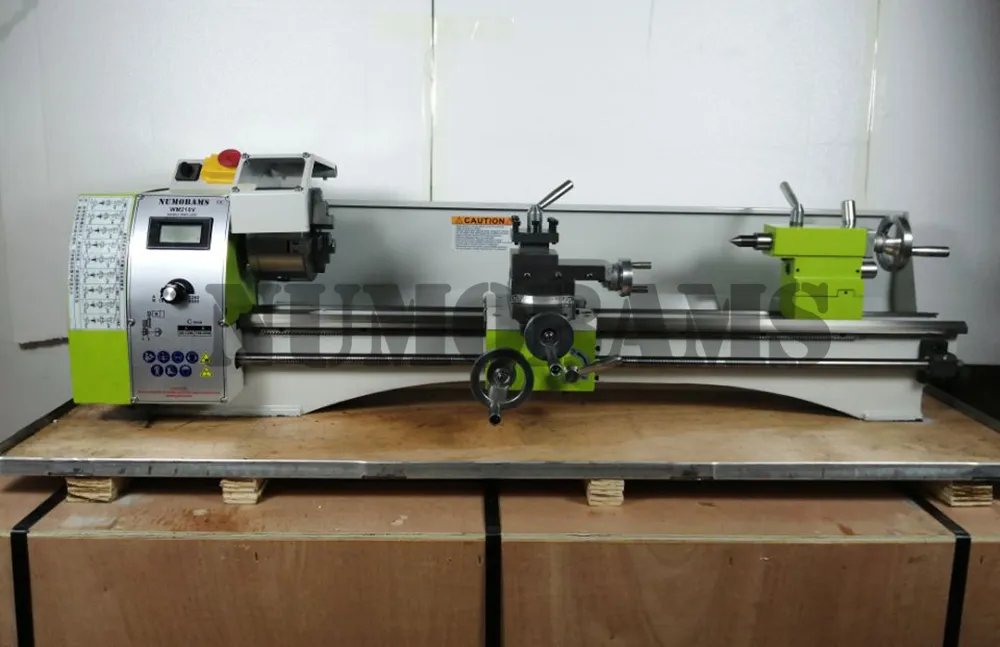

Numobams Wm210L 850W Brushless Motor Mt5 Spindle 800mm Working Length with 125mm Chuck Mini Metal Lathe Machine
Features1. Updated control board, more durable working life.2. SANOU high accuracy 38mm Spindle Hole Chuck3. More width and thickness belt, more durable working life. `4.800mm working length.Packing List38mm spindle hole WM210L Mini Lathe Machine * 1Tool Box * 1Drill Chuck * 1Live Center * 17pcs 10*......
Send Inquiry
Product Description
Features
1. Updated control board, more durable working life.
2. SANOU high accuracy 38mm Spindle Hole Chuck
3. More width and thickness belt, more durable working life. `
4.800mm working length.

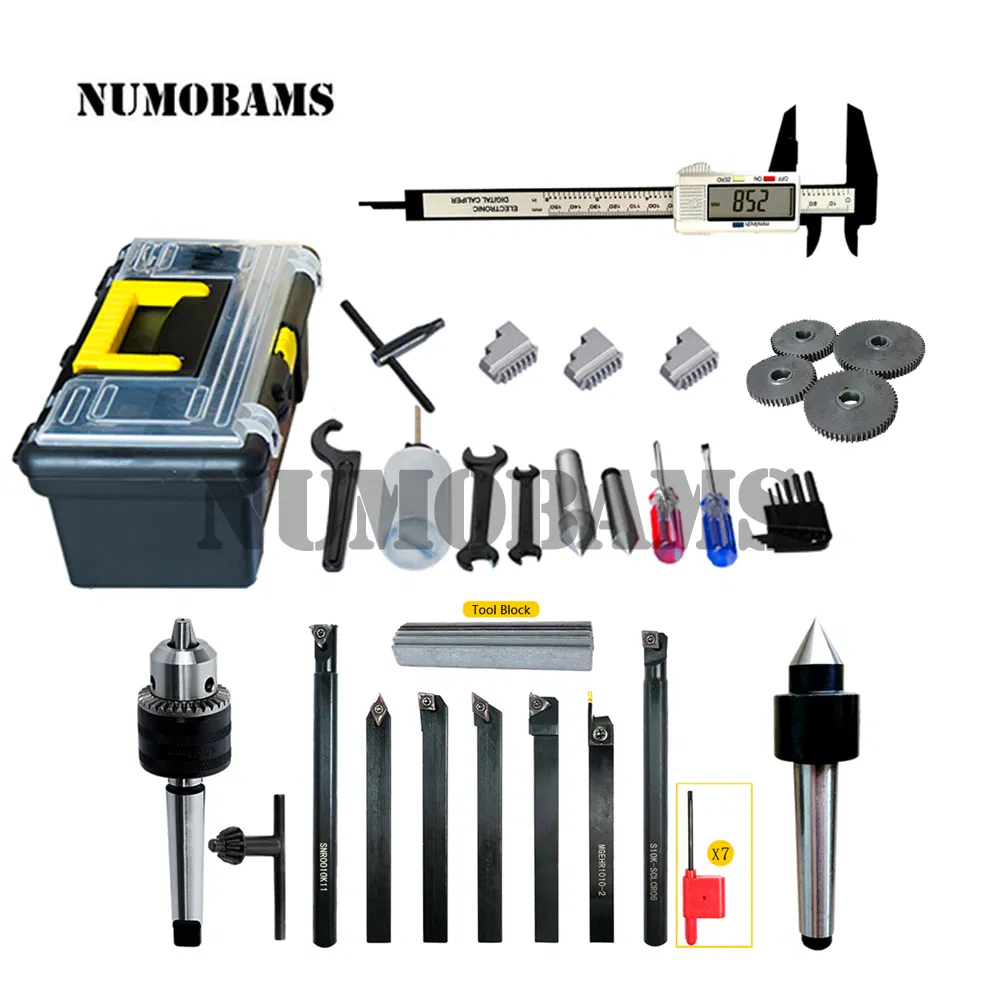

Packing List
38mm spindle hole WM210L Mini Lathe Machine * 1
Tool Box * 1
Drill Chuck * 1
Live Center * 1
7pcs 10*10 CNC Turning Tool Set * 1
Tool Block Set* 1
Gear Set * 1
Vernier caliper * 1
Tool Bolck for 10*10 Turning Tool * 1
English Manual * 1
| NUMOBAMS WM210V Lathe | ||||
| No. | Description | 210*400 | 210*600 | 210*800 |
| 1 | Swing over Bed | 210mm | 210mm | 210mm |
| 2 | Swing Over Cross Slide | 140mm | 140mm | 140mm |
| 3 | Centers Distance | 400mm | 600mm | 800mm |
| 4 | Width of Bed | 100mm(4in) | 100mm(4in) | 100mm(4in) |
| 5 | Spindle Bore | 38mm | 38mm | 38mm |
| 6 | Taper of spindle | MT5 | MT5 | MT5 |
| 7 | Spindle Speeds | 50~2500RPM | 50~2500RPM | 50~2500RPM |
| 8 | Tailstock Taper | MT2 | MT2 | MT2 |
| 9 | Top Slide Travel | 55mm(2-1/6in) | 55mm(2-1/6in) | 55mm(2-1/6in) |
| 10 | Carriage Slide Travel | 75mm(3in) | 75mm(3in) | 75mm(3in) |
| 11 | Carriage Travel | 195mm(7-2/3in) | 276mm(10-6/7in) | 276mm(10-6/7in) |
| 12 | Tailstock Quill travel | 60mm(2-3/8in) | 60mm(2-3/8in) | 60mm(2-3/8in) |
| 13 | Metric Thread | 0.5~3mm | 0.5~3mm | 0.5~3mm |
| 14 | Longitudinal Feed | 0.1~0.2mm/rpm | 0.1~0.2mm/rpm | 0.1~0.2mm/rpm |
| 15 | DC Brush Motor | 750W DC Brushless motor | 750W DC Brushless motor | 1100W DC Brushless motor |
