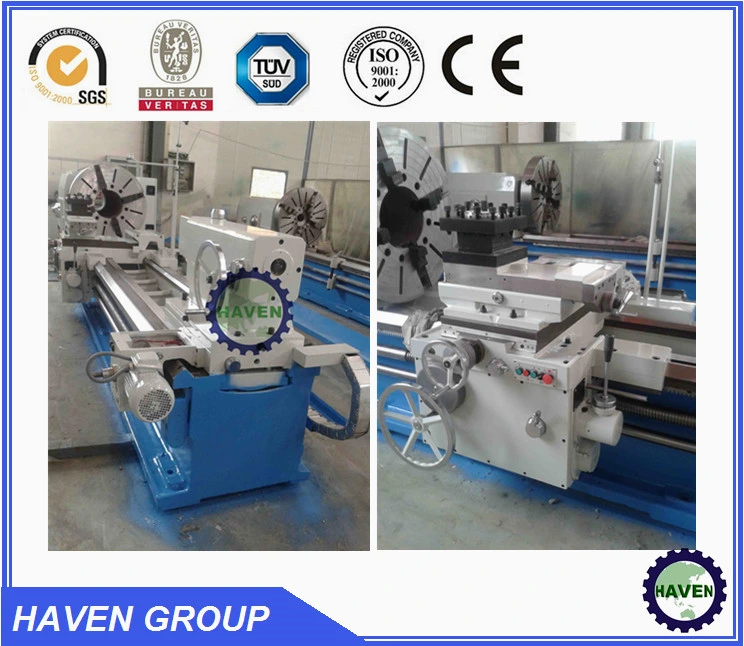

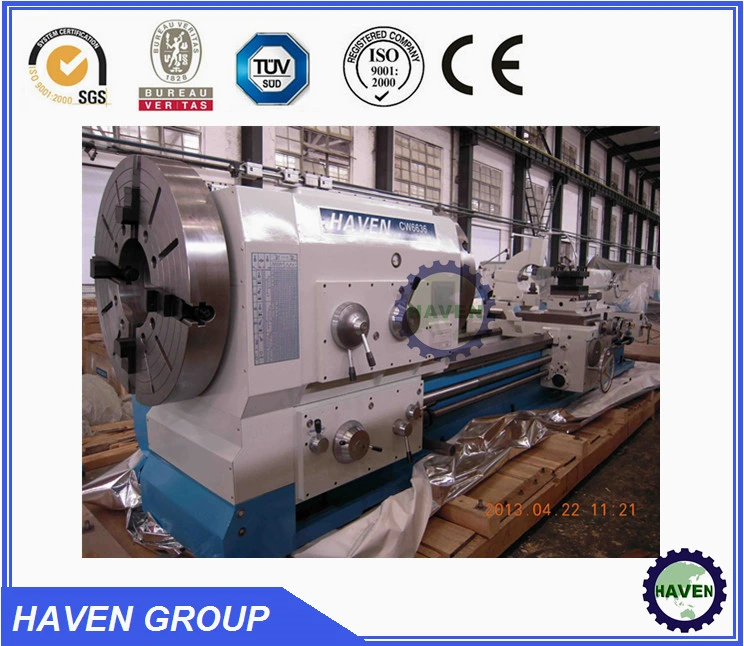

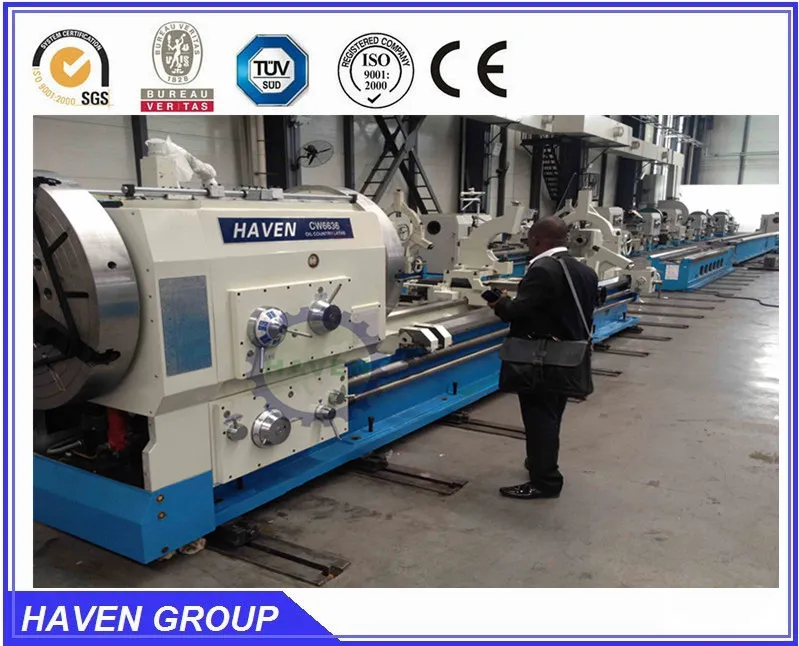

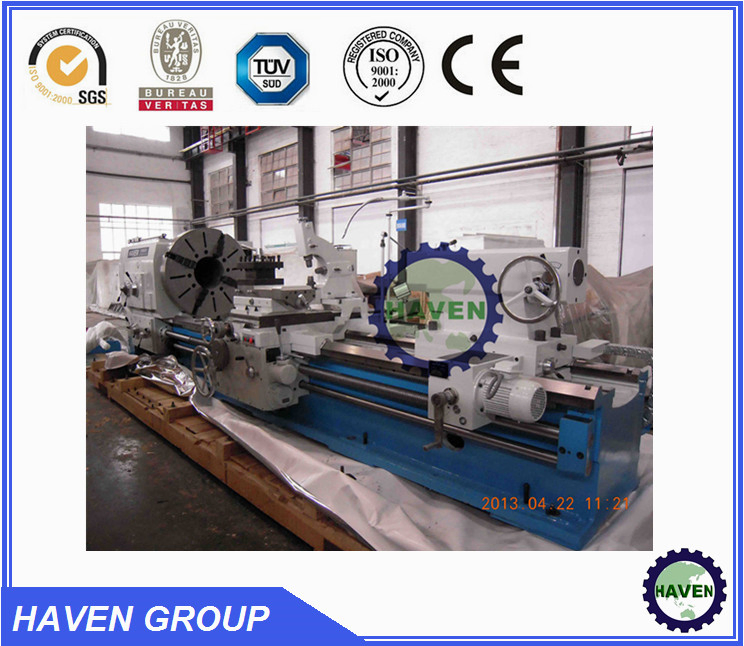

Oil Pipe Lathe Machine
Main specification:
Max. swing over bed 1000 mm
Max. swing over carriage 640 mm
Distance between two centers 3000 mm
Width of bed 755 mm
Diameter of spindle inner hole 360 mm
Max. workpiece weight(without roller support ) 10000kg
Max. workpiece weight(with roller support) 15000kg
Min. clamped diameter of chuck 240 mm
Range of spindle speed 6.3 to 315 r.p.m. with 18 steps
Main motor power 22 kW
Kind of metric thread and pitch range 56 kinds 1 to 120 mm
Kind of Whitworth thread and range 37 kinds 30 to 1.125 teeth/in.
Kind of modular thread and range 46 kinds 0.5 to 60 mm
Kind of radial thread and range 46 kinds 0.5 to 60 D.P.
With 4 position tool post
Tool section ( H×W ) 45×45 mm
Max. travel of tool post 300 mm
Max. travel of cross slide 695 mm
Rapid traverse of tool post longitudinal 3740 mm/min
cross 1870 mm/min
up tool post 935 mm/min
Diameter of tailstock sleeve 160 mm
Travel of tailstock sleeve 300 mm
Taper for taper hole of tailstock sleeve Metric No. 80
Machining length of taper scale 300 mm Taper turning, ±1:4
Net dimension of machine 6100×2045×1915mm
Net weight of machine 13500kg
