Precision Engine Lathe Cm6241 /1000/1500mm
CM6241*1000/1500MM Precision Engine lathe 1.Features :1)No. change any gears,you can turn all the metric and inch thread indicating in chart.2)Three points support for spindle 3)Clutch in apron for safety and for chaning apron feed direction without changing spindle running direction2.Machine photos......
Send Inquiry
Product Description
CM6241*1000/1500MM Precision Engine lathe
1.Features :
1)No. change any gears,you can turn all the metric and inch thread indicating in chart.
2)Three points support for spindle
3)Clutch in apron for safety and for chaning apron feed direction without changing spindle running direction

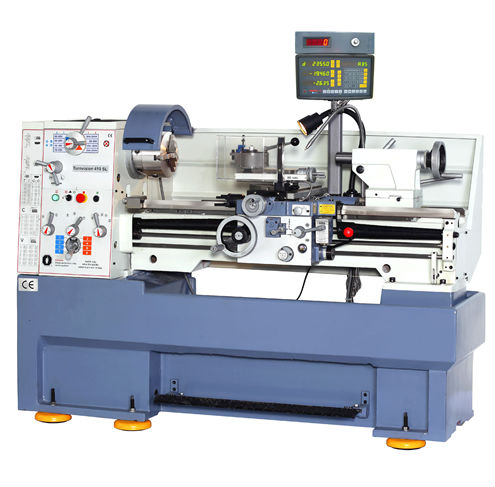

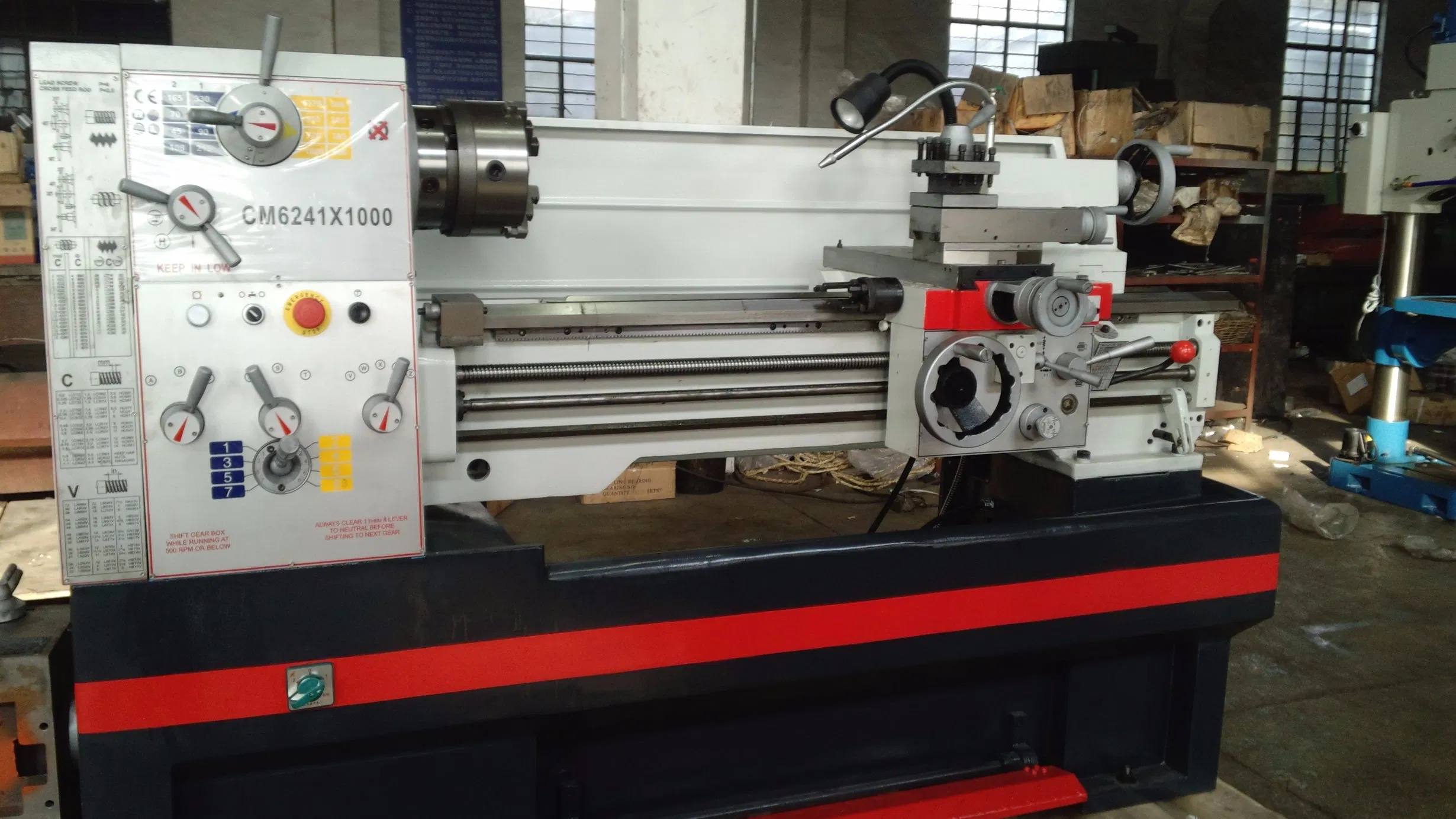

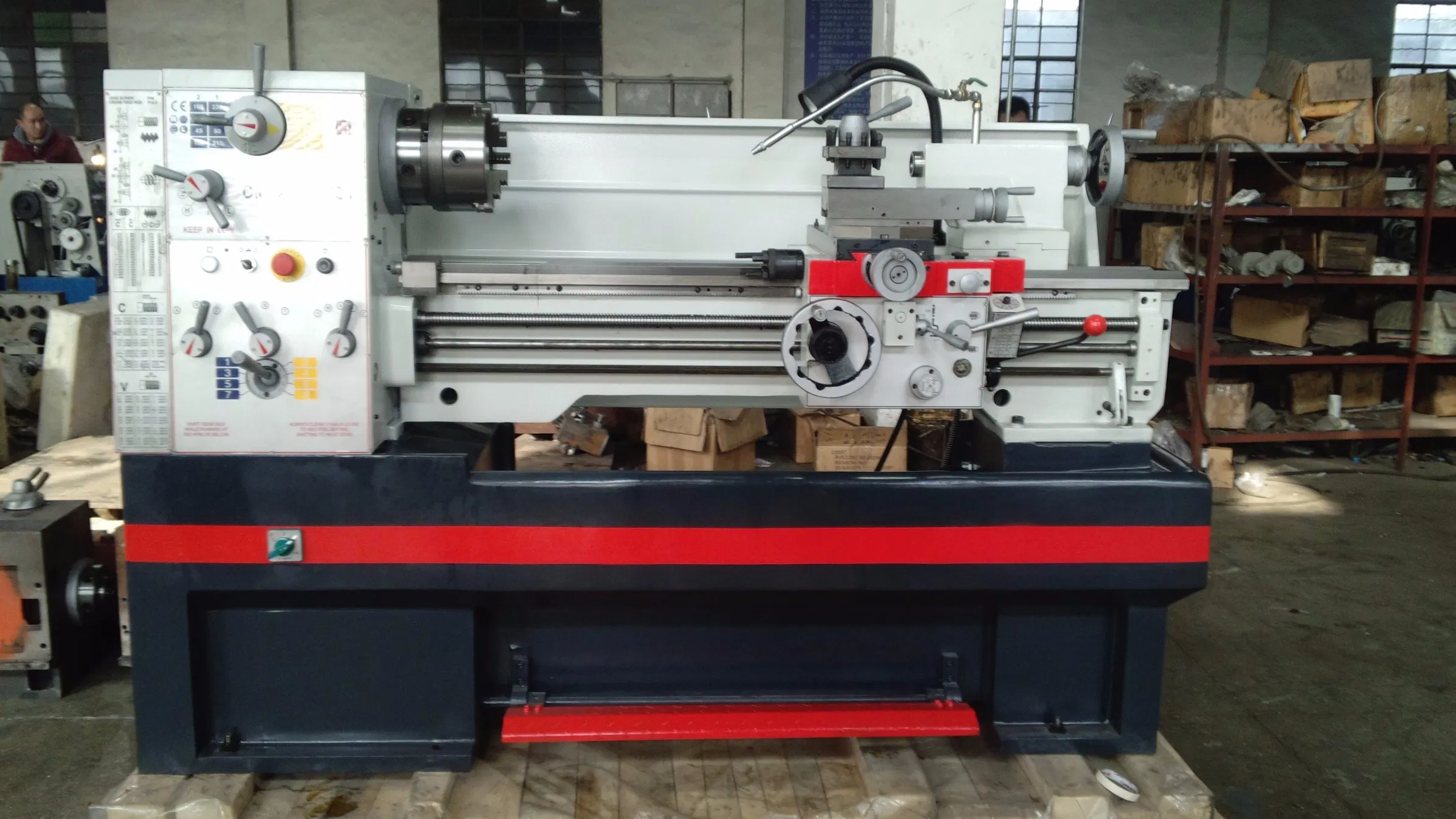

2.Machine photos
3.Machine specification
1.Features :
1)No. change any gears,you can turn all the metric and inch thread indicating in chart.
2)Three points support for spindle
3)Clutch in apron for safety and for chaning apron feed direction without changing spindle running direction
2.Machine photos
3.Machine specification
| Specifications | Unit | CM6241 |
| Swing over bed | mm | 410mm(16" ) |
| Swing over cross slide | mm | 255mm(10" ) |
| Swing in gap | mm | 580(23" ) |
| Length of gap | mm | 250(10" ) |
| Distance between centers | mm | 1000 or 1500 |
| Width of bed | mm | 250(10" ) |
| Spindle nose | D1-6 | |
| Spindle bore | mm | 52m |
| Taper of spindle bore | M.T.6 | |
| Range of spindle speed | r/min | 16 changes 45-1800 |
| Max. travel of compound rest | mm | 102 |
| Max. travel of cross slide | mm | 210 |
| Leadscrew pitch | T. P. I. | 4 |
| Max. Section of tool | mm | 20× 20 |
| Longitudinal feeds range | mm/rev. | 0.05-1.7 |
| Cross oeeds range | mm | 0.025-0.85 |
| Metric threads range | mm | 39kinds 0.2-14 |
| Inch threads range | 45kinds 2-72T. P. I | |
| Diametrical pitchesrange | 21kinds 44D. P. | |
| Module pitches range | 18kinds 0.3-3.5M. P. | |
| Dia. of tailstock sleeve | mm | 50mm(2" ) |
| Travel of tailstock sleeve | mm | 120mm(4-3/4" ) |
| Morse taper of tailstock sleeve | M.T.4 | |
| Cross adjustock | mm | ± 13 |
| Power of main motor | Kw(HP) | 2.8/3.3kw (3.8/4.5HP)3PH |
| Power of coolant pump | Kw(HP) | 0.1KW(1/8HP), 3PH |
| Packing size(L× W× H)mm | mm | 2060(2600)× 900× 1640 |
| Net weight/Gross weight | Kgs | 1500/1750 (1550/1800) |
| Standard accessories | Optional Accessories |
| 200mm three jaw chuck and adapter | Taper Turning Attachment |
| 320mm four jaw chuck and adapter | Live Center |
| 300mm face plates | Leadscrew Guard |
| Work Light | Digital Readout |
| Coolant system | Quick Change Tool Post |
| Foot brake | Chuck Guard |
| Steady rest&Follow rest | Digital Readout (2 Axis) |
| Thread chasing dial | Drill Chuck+Drill Arbor |
| MT6/4 sleeve&MT4 center | |
| Oil gun | |
| One set of wrenches |
