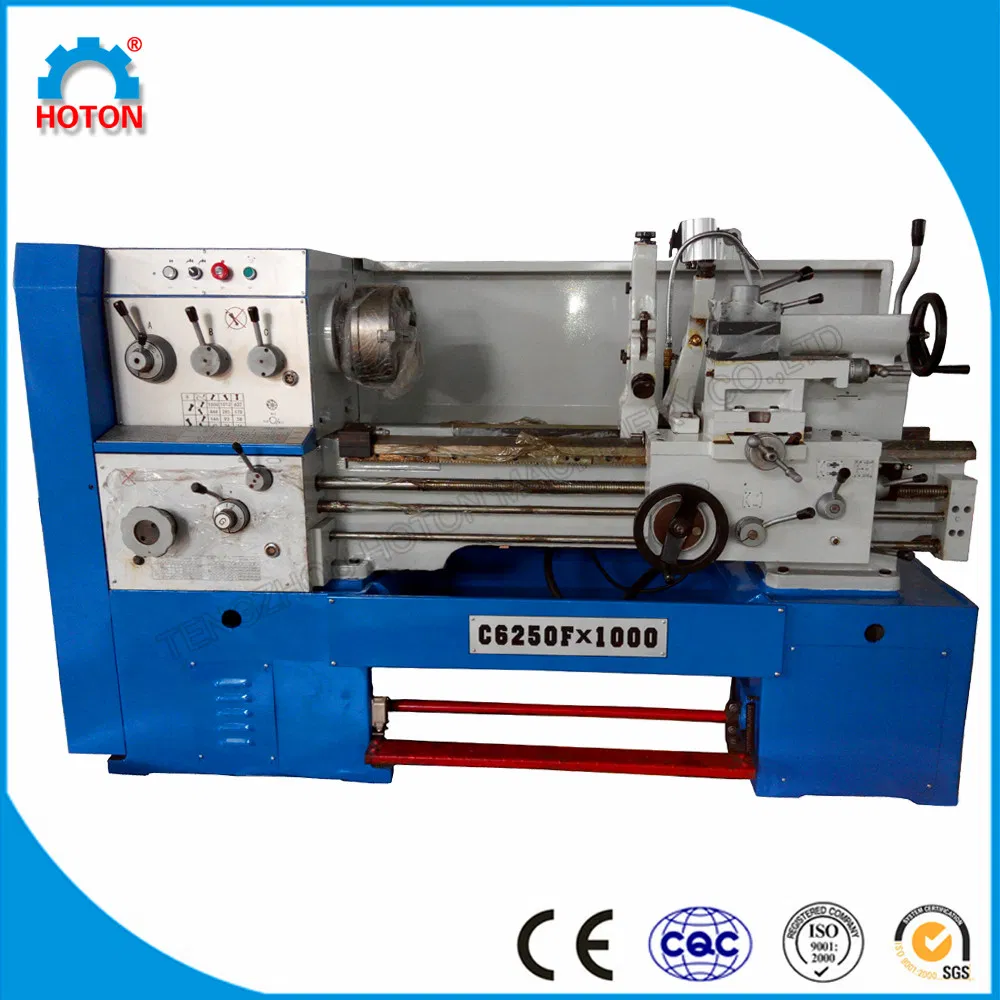

China Professional of Turning Machine (Turning Lathe C6236F C6240F C6250F C6260F)

Product Description

LARGE SPINDLE HOLE PRECISION LATHE
THE FEED BOXES OF THE TWO MODLE ARE DIFFERENCE.
CH SERIES NEED CHANGE GEARS AND THE CHF SERIES DON'T NEED IN THREAD MACHINING.
SPECIFICATIONS:

MODEL		C6236F		C6240F	C6250F	C6260F
CAPACITY	Max.swing over bed	360mm		400mm	500mm	600mm
	Max.swing over cross slide	190mm		230mm	330mm	330mm
	Max.swing over gap	520mm		560mm	660mm	760mm
	Effective length of gap	200mm
	Center Distance	750\1000\1500mm
	Bed Width	360mm
HEADSTOCK	Spindle hole	52mm
	Spindle nose	ISO-C6
	Spindle taper	MT6
	Spindle speed(Number)	(12steps)16-1600rpm
FEEDS	Longitudinal feeds range	0.0832-4.66mm/r
	Cross feeds range	0.048-2.69mm/r
	Metric threads range	19kinds 0.25-14mm
	Inch threads range	49kinds 2-40inch
	Moudule threads range	11kinds 0.5-3.5mπ
CARRIAGE	Max.travel of top slide	95mm
	Max.travel of cross slide	180mm	222mm
	Max.size of toolshank	20*20mm2
TAILSTOCK	Dia.of tailstock sleeve	65mm
	Taper of tailstock sleeve	MT4
	Max.travel of tailstock	140mm
MOTOR	Main drive motor	4KW			5.5KW	7.5KW
	Coolant pump motor	125W

STANDARD ACCESSORIES	OPTIONAL ACCESSORIES
3-jaw & 4-jaw Steady rest & follow rest Face plate Drive plate Thread-cutting dial Longitudinal touch stop Work lamp Coolant system Full-length splash guard Foot brake and brake ribbon Change gears Dead center and center sleeve Oil gun Paddings One whole set spanner	Rapid travel Live center Digital readouts(SINO) Chuck guard and Tool post guard Taper turning attachment
