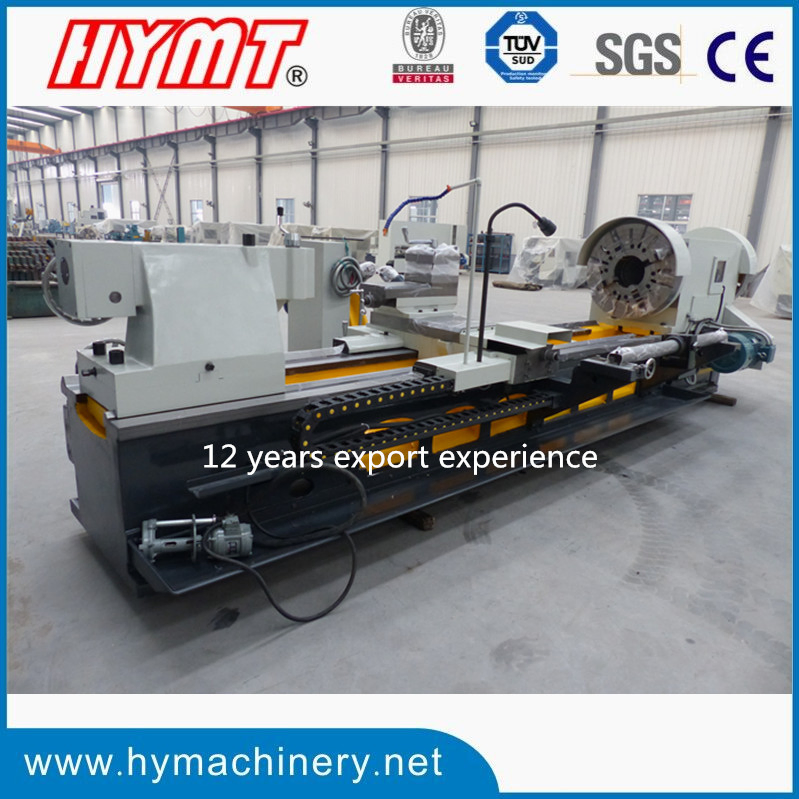

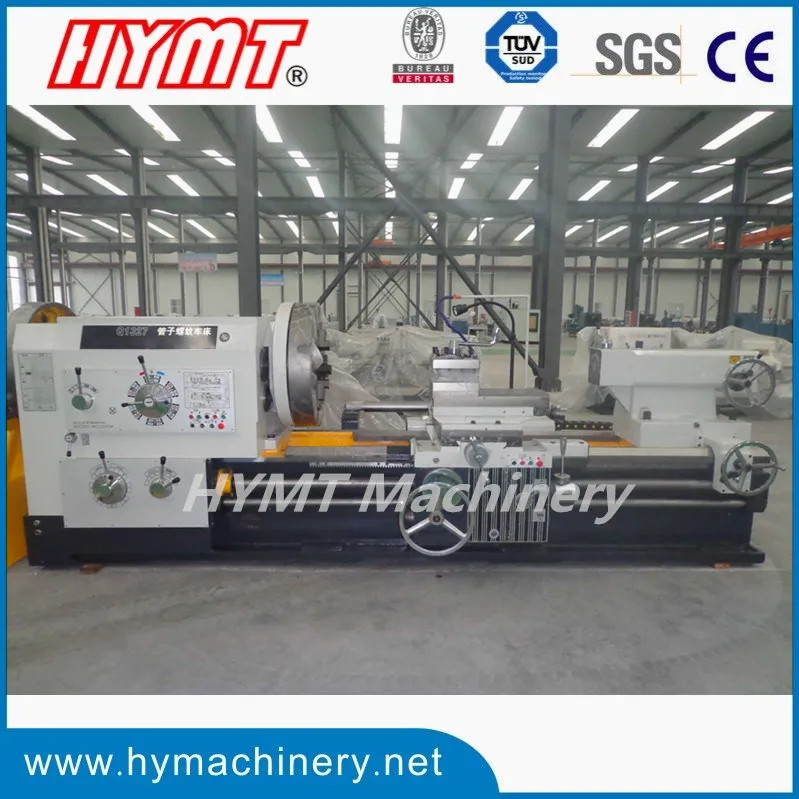

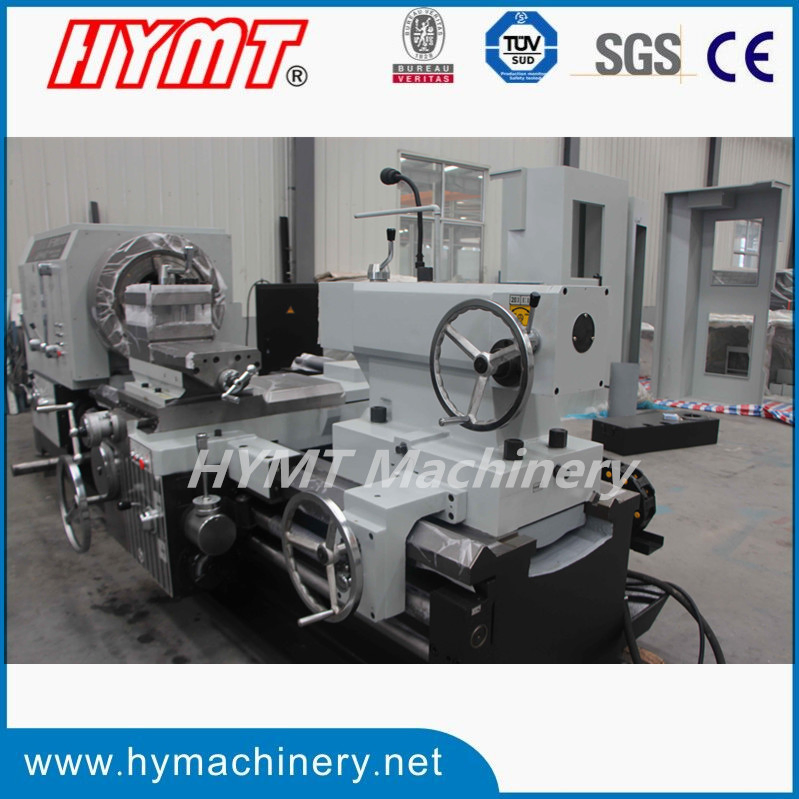

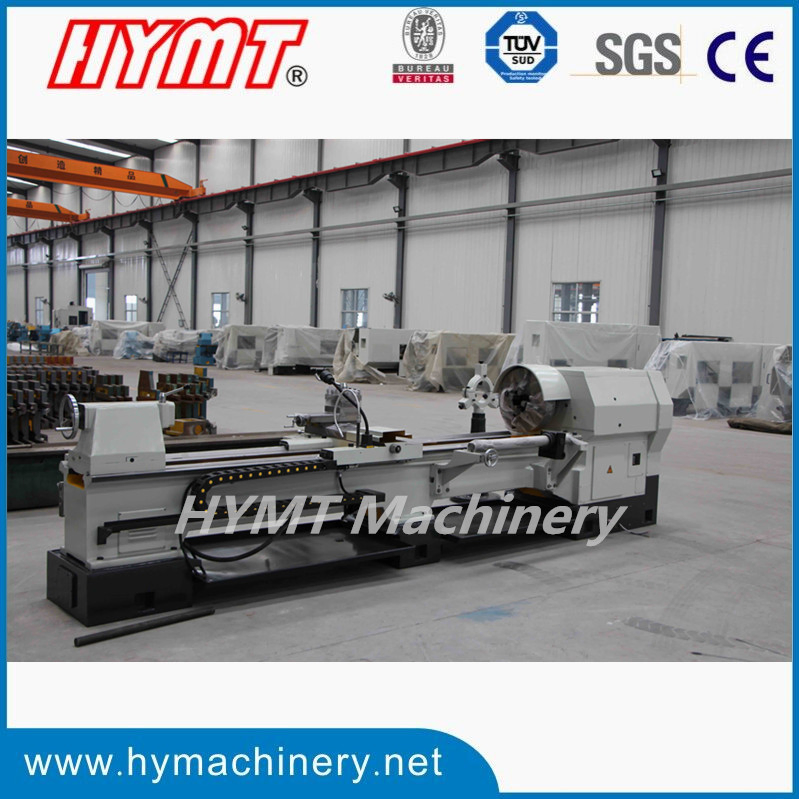

Q1319 Pipe Threading Horizontal Semi Automatic Lathe Machine

Product Description

Main functions:
This lathe meets the special requirements of users in the petroleum, geological, mining and chemical industries, and in agricultural irrigation and drainage, it is able to cut various straight and taper pipe threads of union joints, drill rods, casting pipes, drain pipes, well castings and warter pump pipes more economically and efficiently as compared with the engine lathe, however, it may serve as an engine lathe to cut various metric, with worth and module threads, shafts and disks.
1. The machine is equipped with a tapering unit which can work out a ±1:4 taper.
2. It is able to cut both metric and threads without changing the translating gear.
3. The dripping worm in the apron can protect the mechanisms of the lathe automatically.
4. The guide way is hardened and finely finished.
5. The geat power of the machine is competent at heavy load and power cutting.
6. The floor center rest can be moved freely as required by the user.
7. The center rest is provided with an adjustable clamp unit for long pipes, greatly reducing intensity of labor.
8. The double 4-jaw chucks offer free clamp of both short and long pipes.
Main specifications:

Model	Q1313	Q1319	Q1327	Q1343	Q1350
Bed width	490mm	490mm	750mm	750mm	750mm
Turning diameter over bed (max.)	630 mm	630 mm	1000 mm	1000 mm	1200mm
Turning diameter over carriage (max.)	350mm	350mm	610mm	610mm	705mm
Max. diameter of pipe (manual chuck)	126 mm	193 mm	260 mm	426 mm	510mm
Turning length (Max.)	1500mm	1500mm	1500mm	1500mm	1700mm
Spindle bore	130 mm	200mm	270 mm	440 mm	520mm
Spindle speed steps	18 steps	12 steps	12 steps	9 steps	9 steps
Range of spindle speed	12-640 r/min	24-460 r/min	16-380 r/min	4.9-180 r/min	6-205 r/min
Inch threads (T.P.I)	28~2/40	28~2/40	4~12/6	24~2/17	28-2/22
Metric threads(mm)	1~14/24	1~14/24	2~8/4	1~12/16	1-15/23
Main motor power	11kw	11kw	18.5kw	22 kw	22kw
Machining length of taper scale	500 mm	500 mm	1000 mm	1000 mm	1000
Rapid travel of tool post	6000mm/min	6000mm/min	6000mm/min	6000mm/min	6000mm/min

Our services:
1.Standardization of Service "212"
2: response in 2 hours
1: provide solution in 1 day
2: solve complaint in 2 days
2.Installation Service
Installation Services are available with all HYMT machines. We dispatch technician to customer's
factory for installation and preoperation of machines.
3.Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you
may send your technician to our company to learn how to operate machines.
4.Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data.
We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments.
