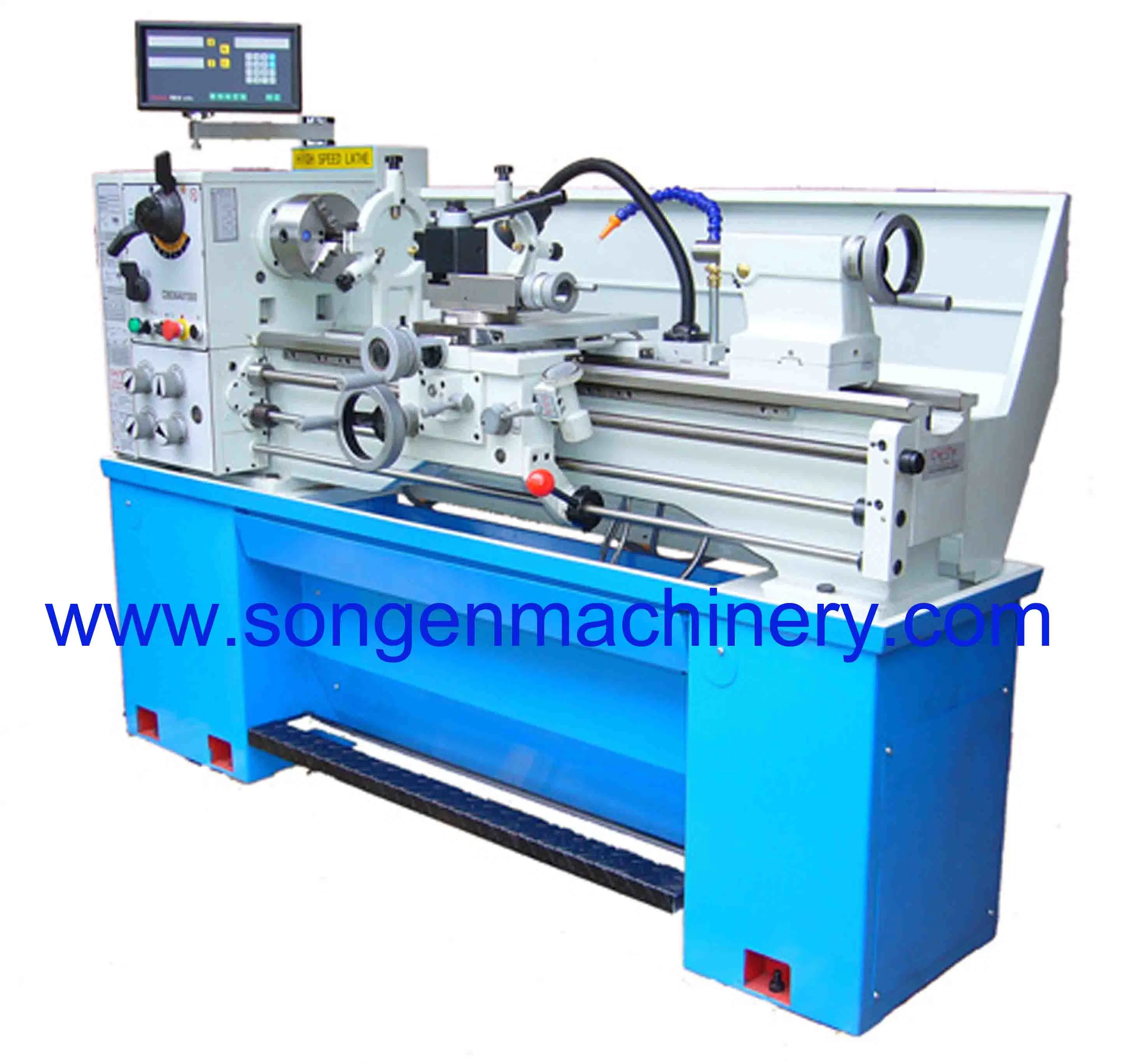

S. O. B. 330mm/360mm, D. B. C. 750mm /1000mmm Precision Horizontal Lathes
Features:1. Induction hardened, precision ground V-way bed.2. D1-4 spindle is supported by high quality tapered roller bearings; 38mm or 52mm spindle bore available.3. Hardened, precision ground gears in headstock.4. High precision directly mounting chuck.5. Gap bed section provided for larger diame......
Send Inquiry
Product Description
Features:
1. Induction hardened, precision ground V-way bed.
2. D1-4 spindle is supported by high quality tapered roller bearings; 38mm or 52mm spindle bore available.
3. Hardened, precision ground gears in headstock.
4. High precision directly mounting chuck.
5. Gap bed section provided for larger diameter work.

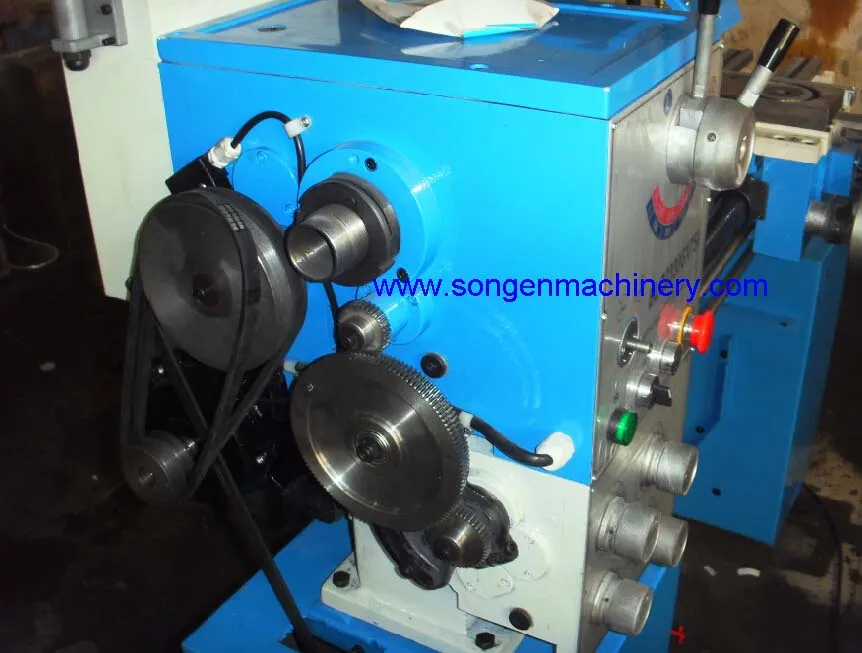

6. Gearbox has large feed and threading functions.

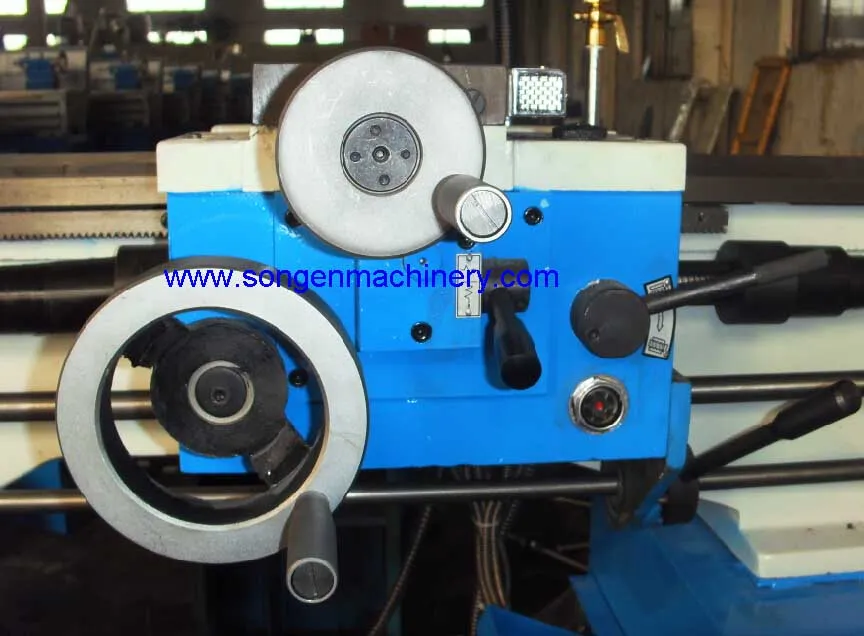

7. Carriage mounted spindle control lever.
8. Adjustable gibs for slideways.
9. Automatic feed and threading are fully interlocked.

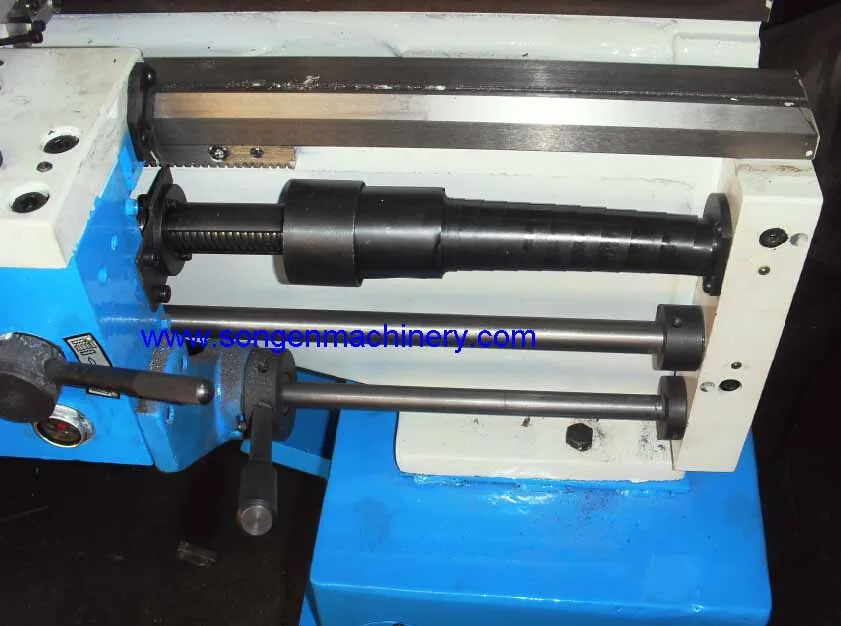

10. Tailstock may be offset for turning tapers.
11. Tolerance test certificate, test flow chart included.
12. 38mm or 52mm spindle bore available.
13. Taper of spindle bore: No. 5 morse; Taper of tail stock quill: No. 3 morse.
Standard Accessories:
3-jaw chuck (160mm) 4-jaw chuck (200mm)
Face plate (250mm)
Steady rest
Follow rest
Splash guard
Stand & oil tray
Toolbox & tools
Coolant system
Foot brake
Optional Accessories:
Quick change tool post
Turning tools
Micro carriage stop
Halogen work lamp
Leadscrew cover
Chuck guard
Tool post cover
Digital readout system
Taper turning attachment
5C Collet chuck
1. Induction hardened, precision ground V-way bed.
2. D1-4 spindle is supported by high quality tapered roller bearings; 38mm or 52mm spindle bore available.
3. Hardened, precision ground gears in headstock.
4. High precision directly mounting chuck.
5. Gap bed section provided for larger diameter work.
6. Gearbox has large feed and threading functions.
7. Carriage mounted spindle control lever.
8. Adjustable gibs for slideways.
9. Automatic feed and threading are fully interlocked.
10. Tailstock may be offset for turning tapers.
11. Tolerance test certificate, test flow chart included.
12. 38mm or 52mm spindle bore available.
13. Taper of spindle bore: No. 5 morse; Taper of tail stock quill: No. 3 morse.
Standard Accessories:
3-jaw chuck (160mm) 4-jaw chuck (200mm)
Face plate (250mm)
Steady rest
Follow rest
Splash guard
Stand & oil tray
Toolbox & tools
Coolant system
Foot brake
Optional Accessories:
Quick change tool post
Turning tools
Micro carriage stop
Halogen work lamp
Leadscrew cover
Chuck guard
Tool post cover
Digital readout system
Taper turning attachment
5C Collet chuck
| Specifications | BLQ2330G B LQ2360G |
| Distance between centers | 750/1000 mm |
| Swing over bed | 330 mm 360mm |
| Swing over gap | 476 mm 491mm |
| Swing over cross slide | 198 mm 212mm |
| Bed width | 187 mm |
| Taper of spindle bore | MT5 |
| Spindle nose | D1-4 |
| Spindle bore | 38 mm or 52mm |
| Step of spindle speeds | 8 |
| Range of spindle speeds | 70-2000 rpm |
| Range of cross feeds | 0.018-0.238 mm/r |
| Range of longitudinal feeds | 0.078-1.044 mm/r |
| Range of inch threads | 2-1/4-40 T.P.I |
| Range of metric threads | 0.45-10 mm |
| Top slide travel | 76 mm |
| Cross slide travel | 175 mm |
| Tailstock quill travel | 92 mm |
| Taper of tailstock quill | MT3 |
| Motor | 1.5 kw |
| Packing size | 1740/1950 x 750 x 1510 mm |
| Net weight | (750mm) 570/620kgs (1000mm) 640/690kgs |
