Product Description

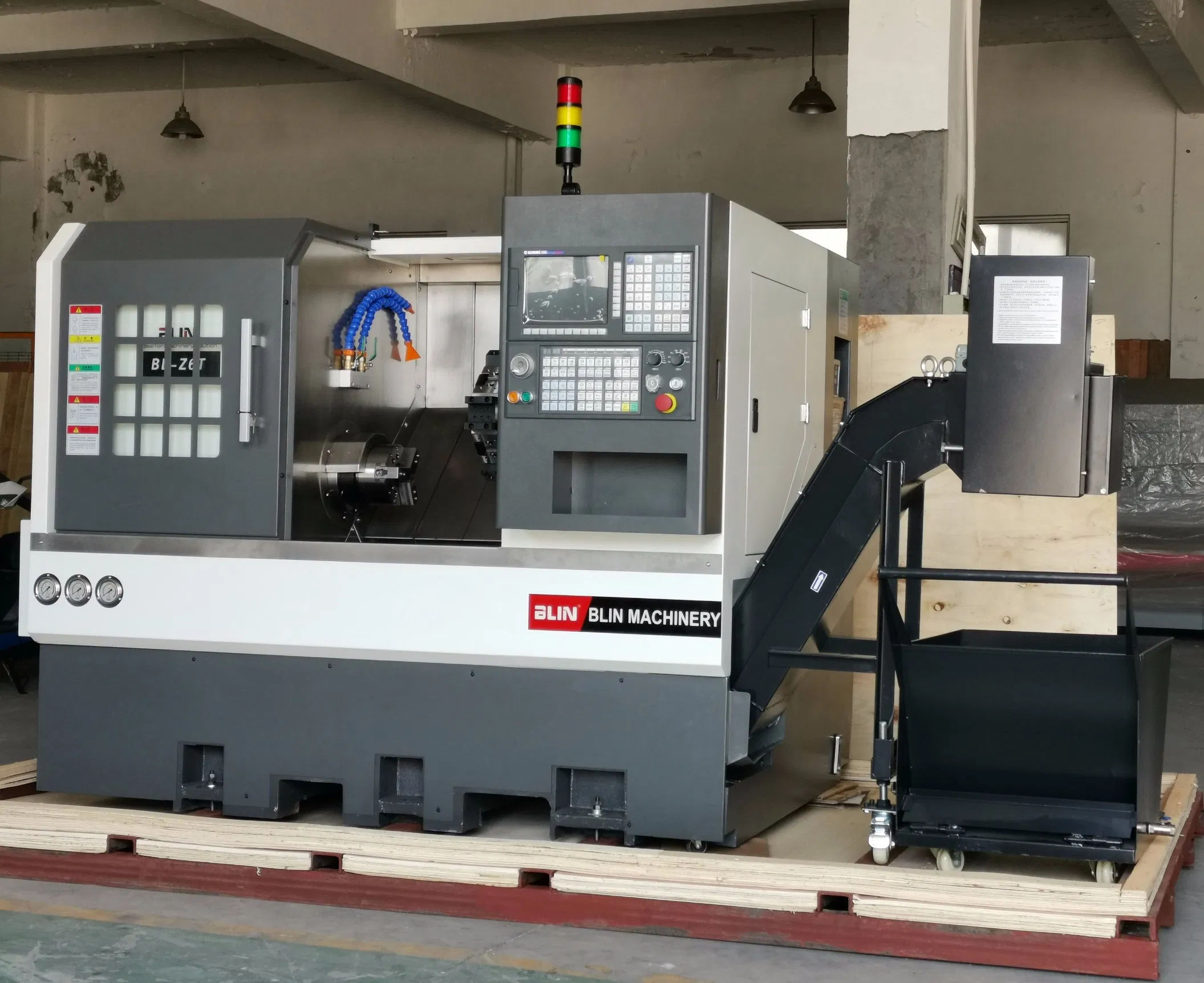

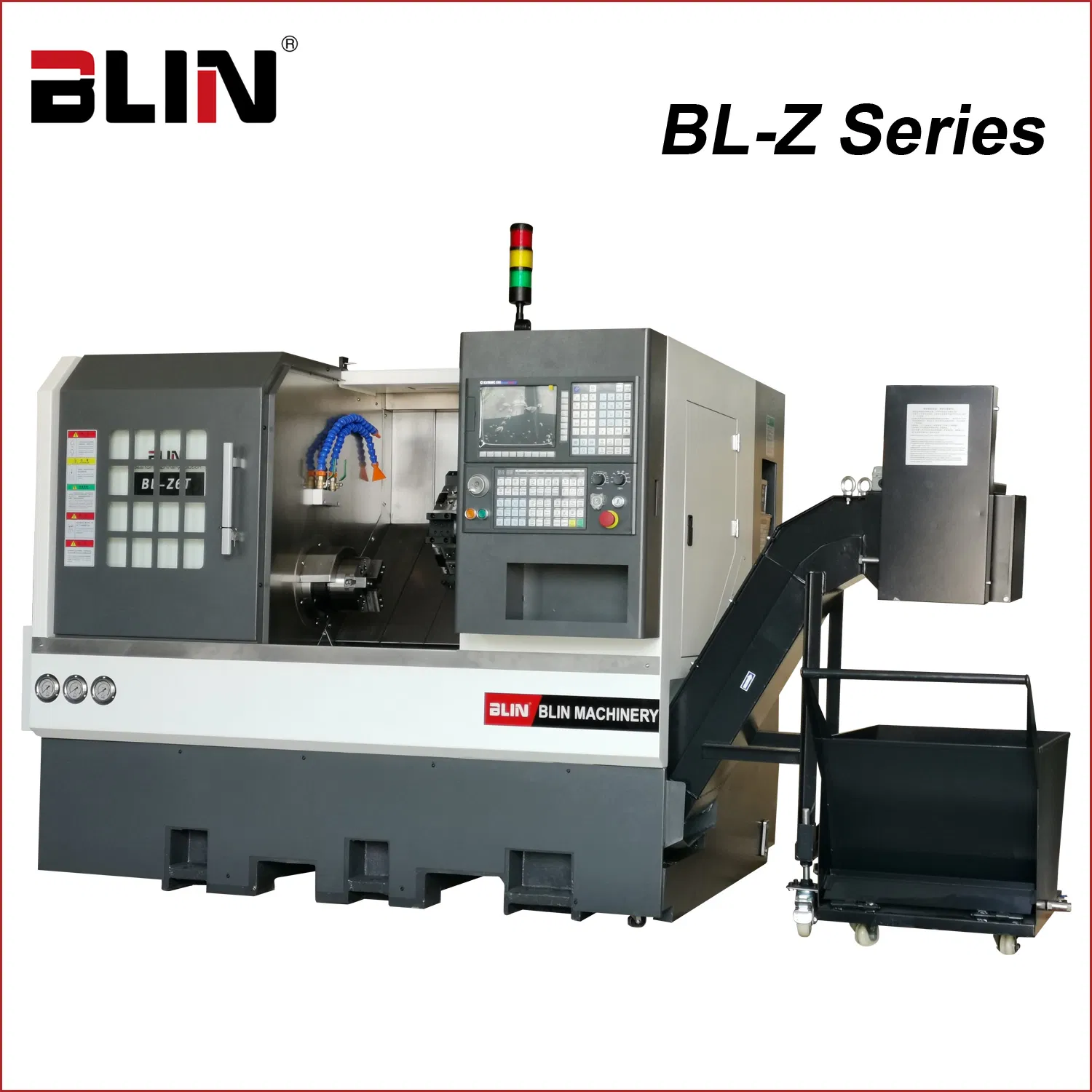

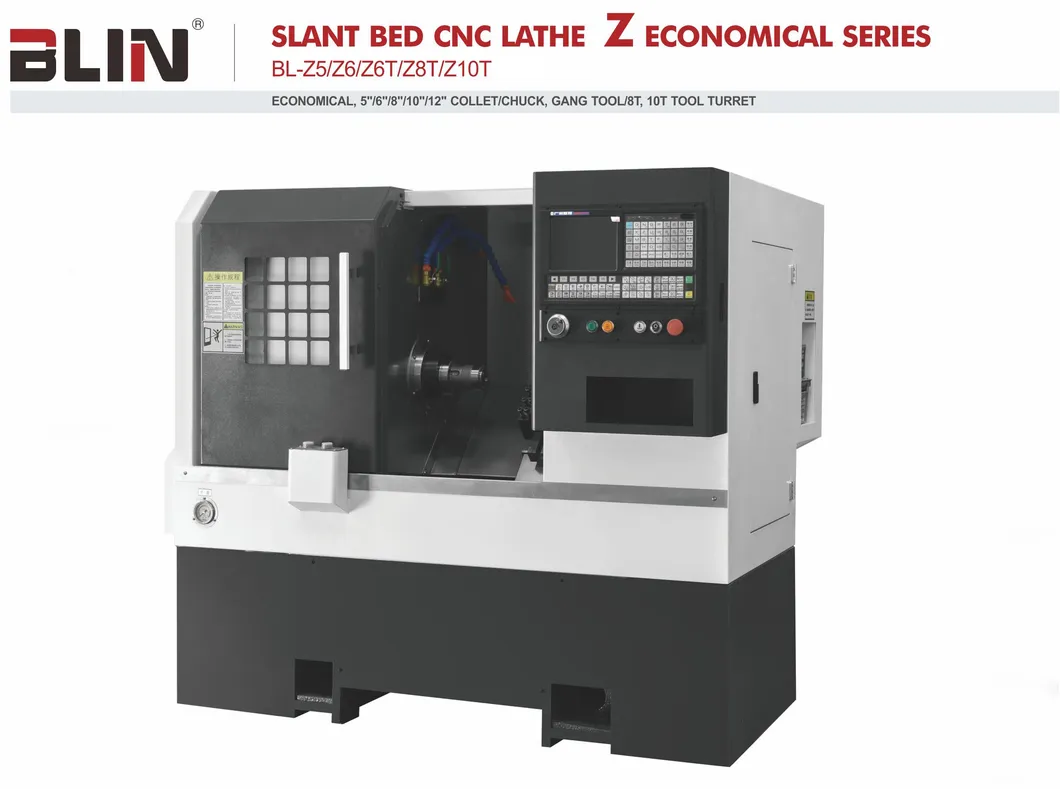

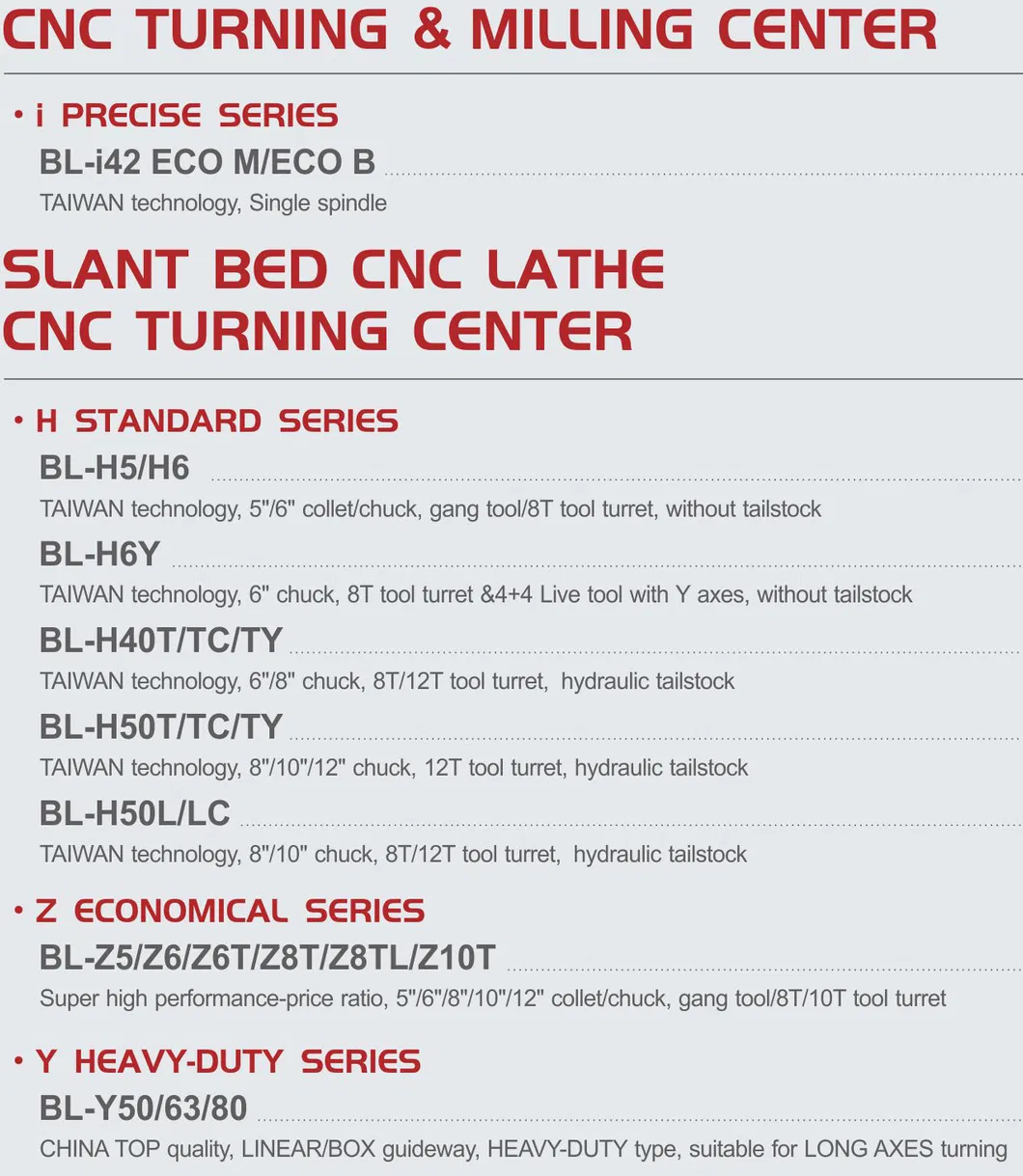

Slant Bed CNC Lathe Machine Without Tailstock

-Super high performance-price ratio
-Mono-block 45° slant bed
-For Z8T/Z10T, X,Z axes adopt ROLLER type linear guideway

Details:
Slant Bed CNC Lathe Machine Without Tailstock

Specification:

Item	Specification	Unit	BL-Z5	BL-Z6	BL-Z6T	BL-Z8T		BL-Z10T
Capacity	Chuck size	/	Collet/5'' chuck*	Collet/6'' chuck*	6''/8''*	6''/8''*	8''/10''*	8''/10''*	10''/12''*
	Max. swing dia. over bed	mm	Φ400	Φ450	Φ360	Φ500		Φ520
	Max. machining dia.(disc type)	mm	Φ200	Φ300	Φ250	Φ400		Φ460
	Max. machining dia.(shaft type)	mm	Φ100	Φ120	Φ180	Φ250		Φ300
	Center distance	mm	/	/	350	500	500/1000	620
	Max. turning length	mm	160	250	300	400	400/1000	550
	Max. bar through dia.	mm	Φ35	Φ45	Φ45	Φ45	Φ51	Φ51	Φ74
Spindle	Spindle speed	rpm	4500	4500	4000	4000	4000	4000	3000
	Spindle bore	mm	Φ45	Φ56	Φ56	Φ56	Φ62	Φ62	Φ86
	Spindle nose	/	A2-4	A2-5	A2-5	A2-5	A2-6	A2-6	A2-8
	Spindle motor	kw	5.5(Servo)	5.5(Servo)	5.5/7.5*(Servo)	7.5(Servo)	11(Servo)	11(Servo)	15(Servo)

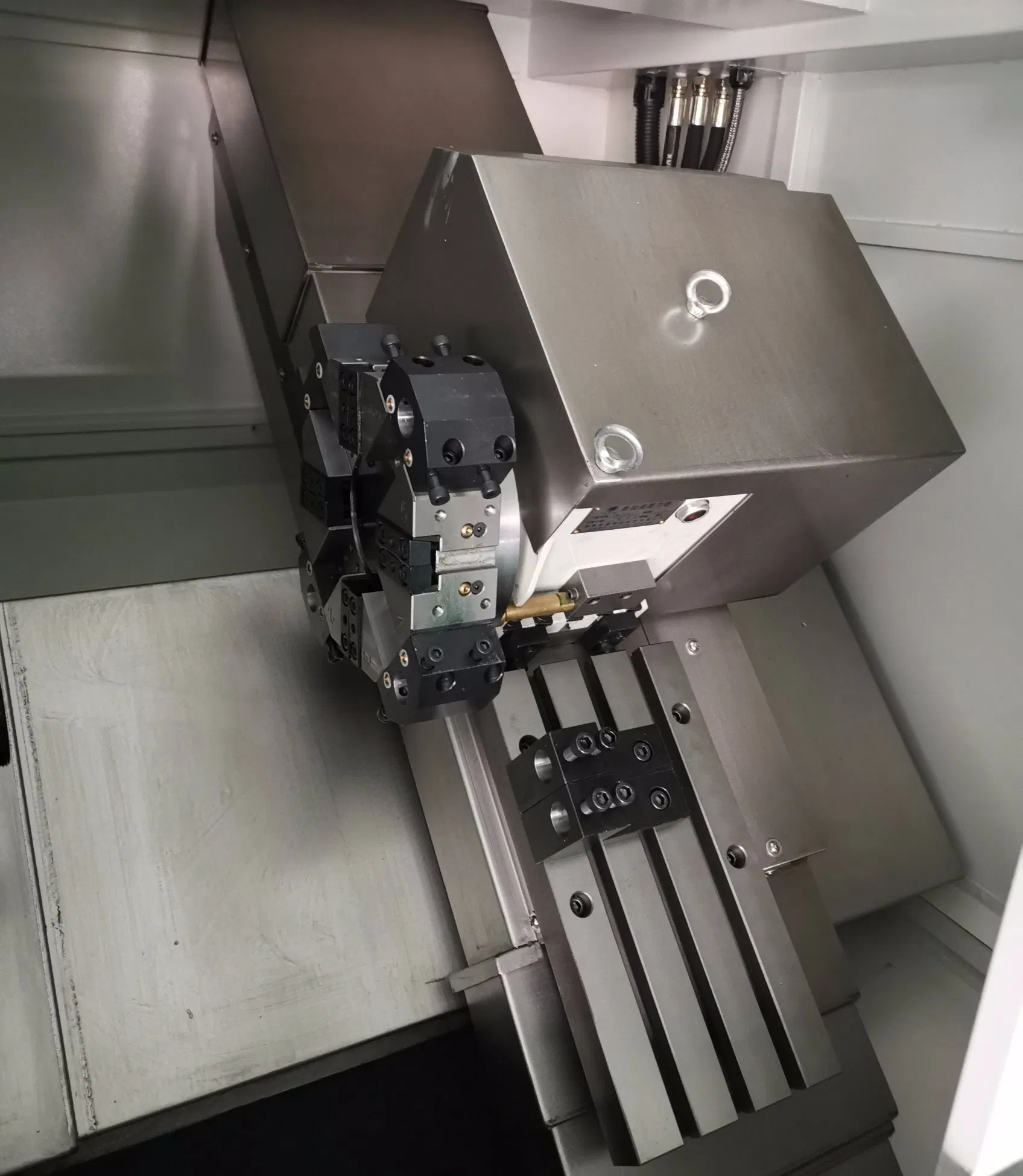

Tool turret	Tool turret type	/	Gang tool	Gang tool/ 8 station tool turret*	8 station Hydraulic tool turret	10 station Hydraulic tool turret		10 station Hydraulic tool turret
X/Z axes	X axes travel	mm	300	360	200	220		260
	Z axes travel	mm	250	310	330	480/1000		620
	X/Z axes servo motor	Nm	7.5/7.5(GSK)	7.5/7.5(GSK)	10/10(GSK)	15/15(GSK)		18/18(GSK)
	X/Z axes Linear guideway width	mm	25	25/30	25/30	30/35(Roller type)		35/45(Roller type)
	X,Z axes ball srew O.D./pitch	mm	Φ25/10	Φ32/10	Φ32/10	Φ32/10		Φ32/10, Φ40/10
	X/Z axes rapid moving speed	m/min	20	20	20	20		20
	X/Z axes positioning precision	mm	+/-0.006	+/-0.006	+/-0.006	+/-0.006		+/-0.006
	X/Z axes repeatable positioning precision	mm	+/-0.005	+/-0.005	+/-0.005	+/-0.005		+/-0.005
Tailstock	Tailstock quill travel	/	N/A	Optional	80	80	100	100
Tailstock	Tailstock quill taper	/	N/A	Optional	MT4#	MT4#	MT5#	MT5#
Others	Toolshank size	mm	16×16,Φ25	20×20,Φ25	25×25,Φ32	25×25,Φ32		25×25,Φ40
	Overall size	mm	1720×1200×1500	2000×1450×1600	2220×1520×1670	2220/2900×1520×1670		2600×1600×1670
	N.W.	kg	1500	2000	2500	2800	3000/4500	3800	4000

* As option

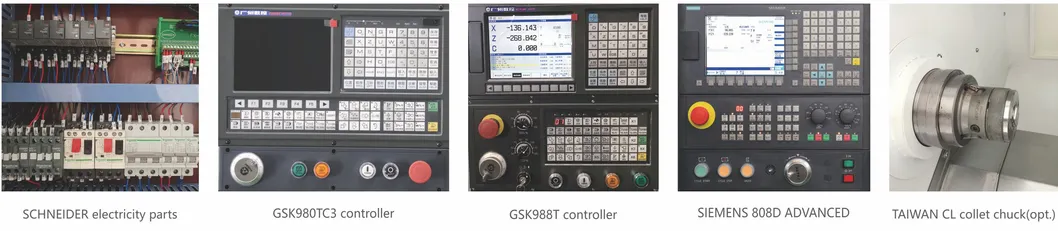

Main parts list:

Item	Brand
CNC controller	CHINA-GSK
Servo motor&driver	CHINA-GSK
Spindle Unit	CHINA Top
Spindle bearing	CHINA Top-HRB
Ball screw bearing	JAPAN-THT
Linear guideway	TAIWAN PMI (Opt.:CHINA Top-HTPM)
Ball screw	TAIWAN PMI (Opt.:CHINA&JAPAN joint venture-LAIEN)
Tool turret	TAIWAN
Chuck&oil cylinder	TAIWAN(Opt.: CHINA brand)
Electricity parts	FRANCE-SCHNEIDER

Standard configuration:
-GSK980TC3 CNC controller
-X.Z axes motor&driver:GSK servo

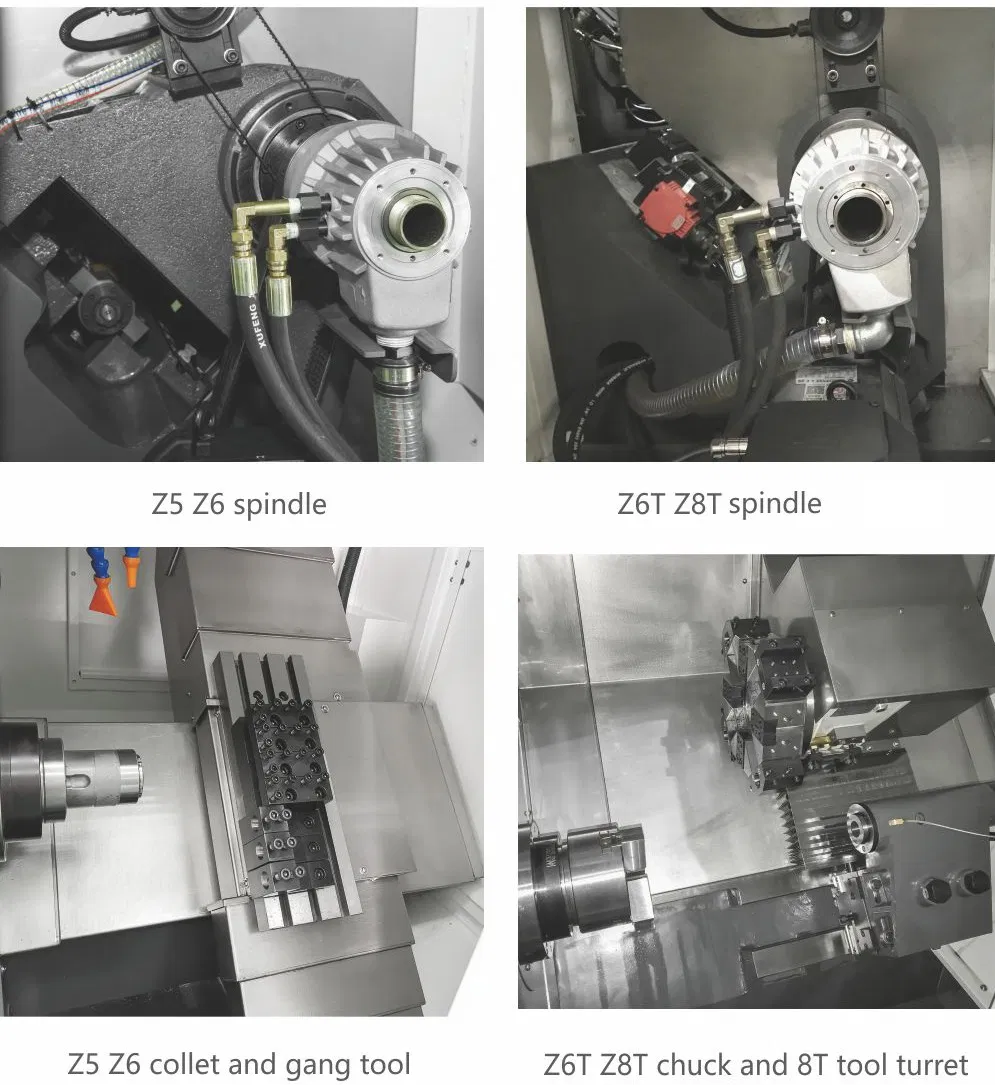

-Spindle: Spindel unit, GSK servo
-Hydraulic collet(Z5/Z6)/Hydraulic chuck(Z6T/Z8T/Z10T)

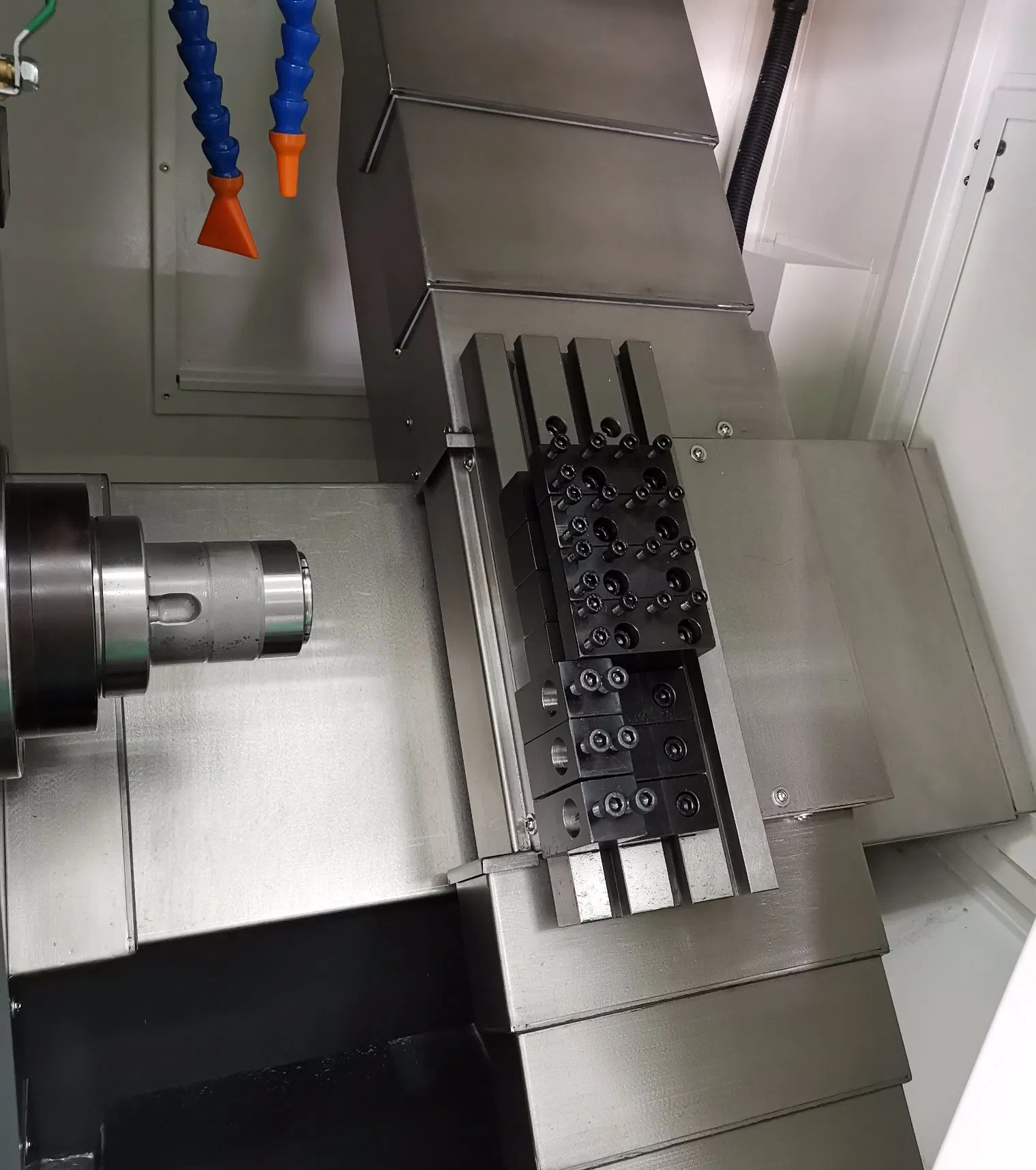

-Gang tool(Z5/Z6)/8,10 station hydraulic tool turret(Z6T/Z8T/Z10T)
-Hydraulic tailstock(Z6T/Z8T/Z10T)

Optional configuration:
-SIEMENS/FANUC controller
-Chip conveyor
-Bar feeder
