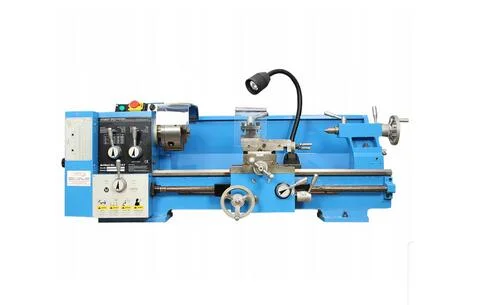

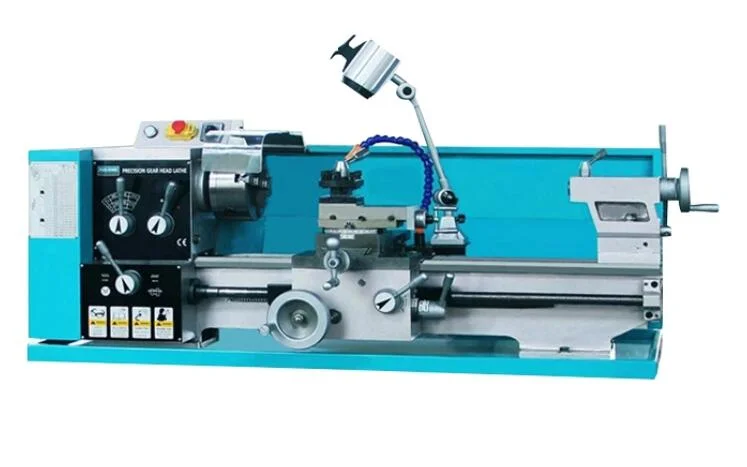

Table Lathe Machine with 330* 750mm Length Model Bl330e Cq6133
SpecificationsBL330ESwing over bed330mmSwing over carriage160mmCenter distance600/750mmSpindle bore38mmSpindle speed60-1800mmSpindle taperMT5Small toolpost travel100mmLongitudinal tracel680mmCross travel160mmMetric thread15/0.5-4mmInch thread 23/9-40TPITailstock taperMT3Tailstock travel85mmMotor pow......
Send Inquiry
Product Description
Specifications | BL330E |
Swing over bed | 330mm |
Swing over carriage | 160mm |
Center distance | 600/750mm |
Spindle bore | 38mm |
Spindle speed | 60-1800mm |
Spindle taper | MT5 |
Small toolpost travel | 100mm |
Longitudinal tracel | 680mm |
Cross travel | 160mm |
Metric thread | 15/0.5-4mm |
Inch thread | 23/9-40TPI |
Tailstock taper | MT3 |
Tailstock travel | 85mm |
Motor power | 1100W |
Net weight | 245/280kgs |
Packing size | 1400/1420x760x650mm |
