Tck6340 High Speed Inclined Slant Bed Lathe CNC Turning Center Machine
1.The main performance characteristics:1). 45 degree slant bed cnc lathe2). High accuracy Taiwan linear guideways3). Chip conveying capacity is large and convenient ,customer could choose chip conveying in the right or in the back4). Spindle unit has two types ,the heavy duty cutting type and the h......
Send Inquiry
Product Description
1.The main performance characteristics:
1). 45 degree slant bed cnc lathe
2). High accuracy Taiwan linear guideways
3). Chip conveying capacity is large and convenient ,customer could choose chip conveying in the right or in the back
4). Spindle unit has two types ,the heavy duty cutting type and the high speed type.The first one is suitable for bearing and gear processing .The second type is suitable for high speed and jhigh precision .
5). Screw pre-stretching structure
6). Gang type tool post
7). Optional turret
2.Application:
This machine is applicable to automobile, motorcycle, electronics, aerospace, military, oil and other industry. It could turn the conical surface, circular arc surface, end face of the rotary parts, could also turn various metric and inch threads etc, with higher efficiency and higher precision in bulk.
3.Product main technical parameters:

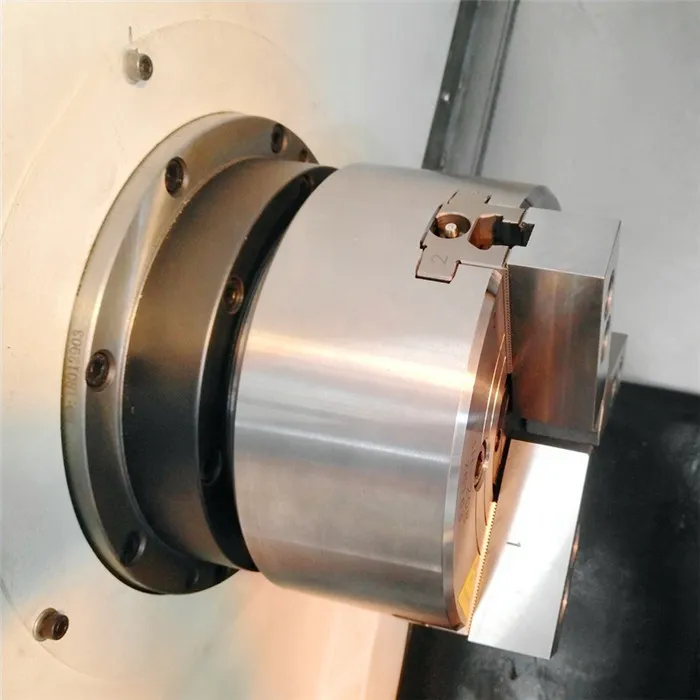

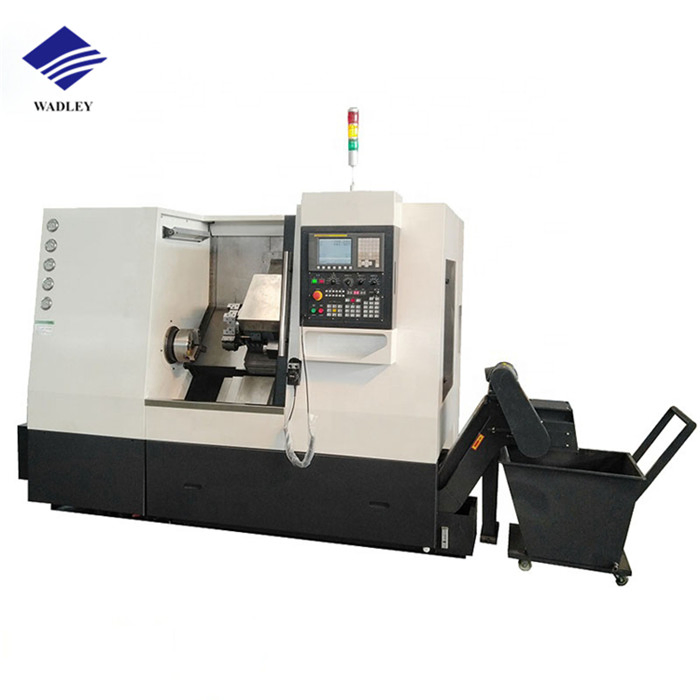

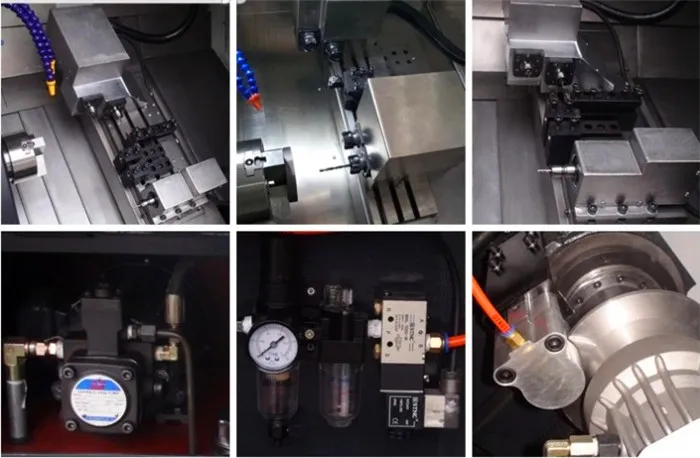

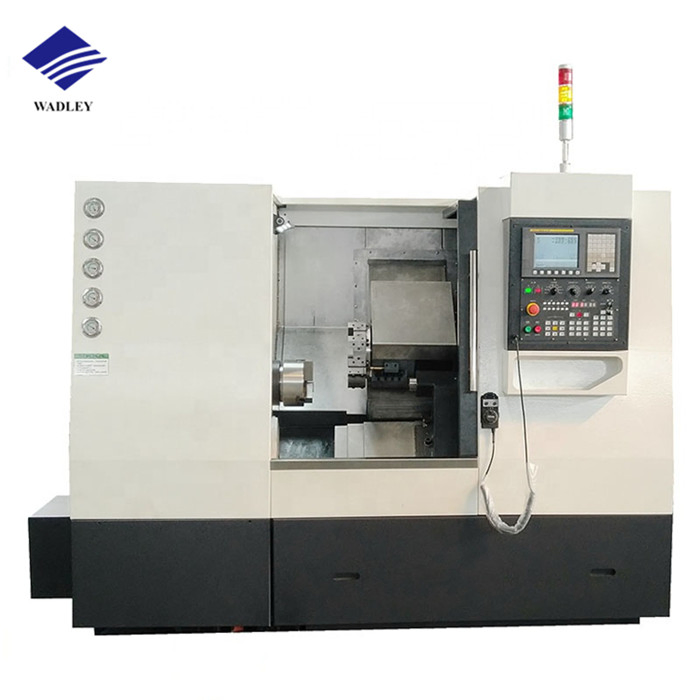

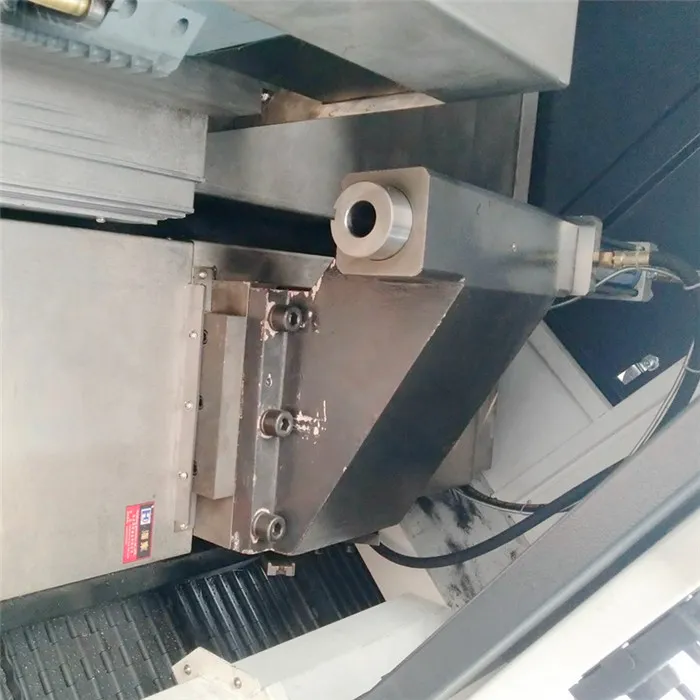

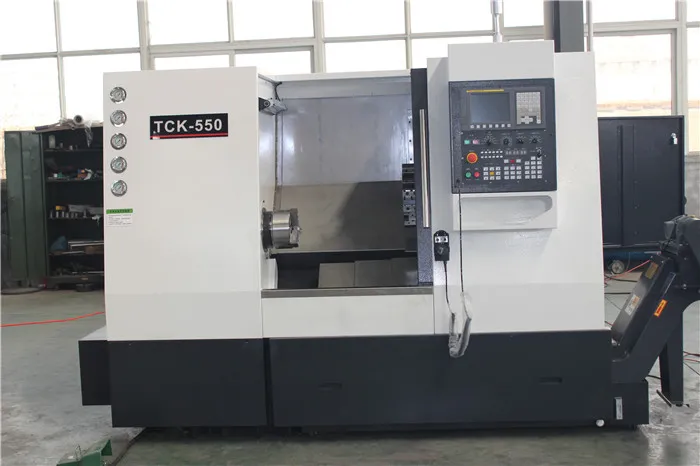

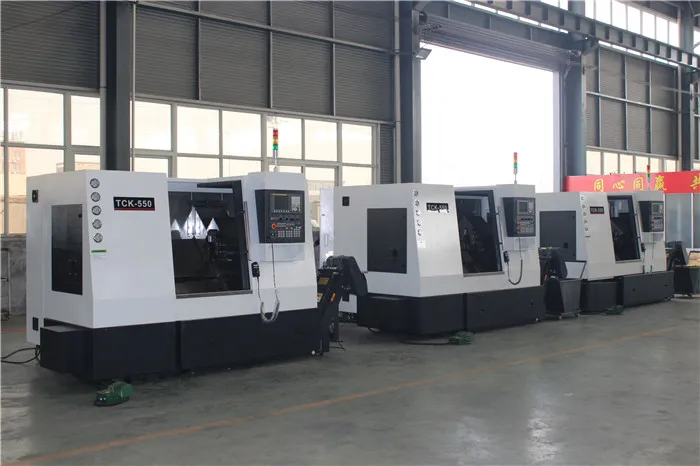

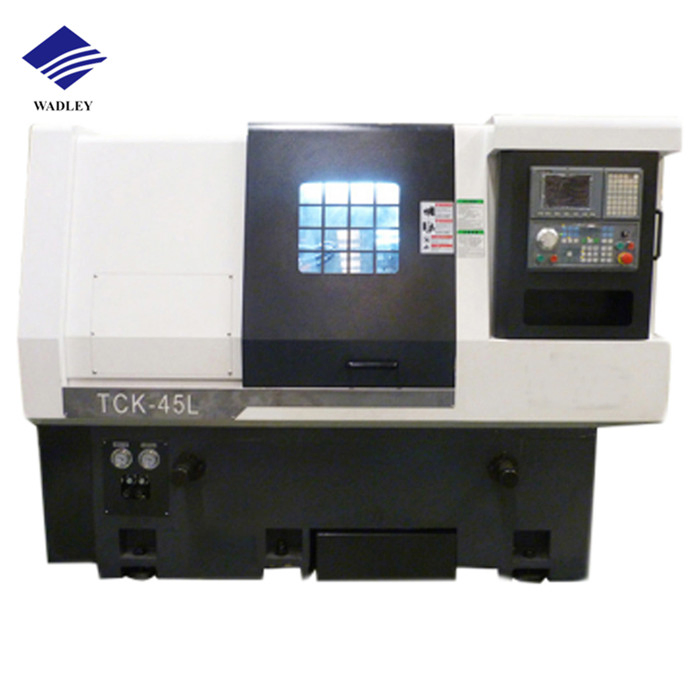

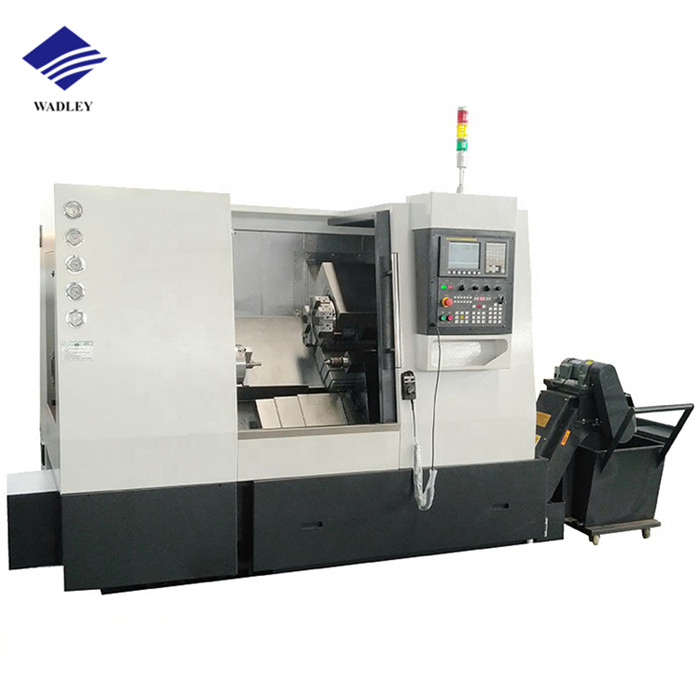

4.Product pictures:
1). 45 degree slant bed cnc lathe
2). High accuracy Taiwan linear guideways
3). Chip conveying capacity is large and convenient ,customer could choose chip conveying in the right or in the back
4). Spindle unit has two types ,the heavy duty cutting type and the high speed type.The first one is suitable for bearing and gear processing .The second type is suitable for high speed and jhigh precision .
5). Screw pre-stretching structure

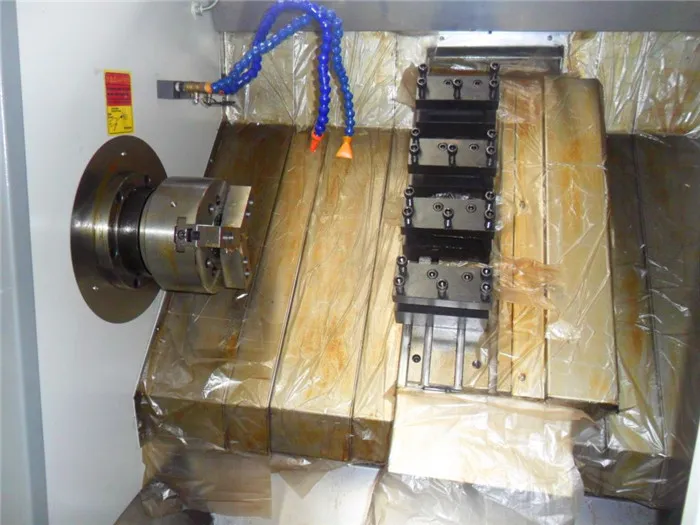

6). Gang type tool post

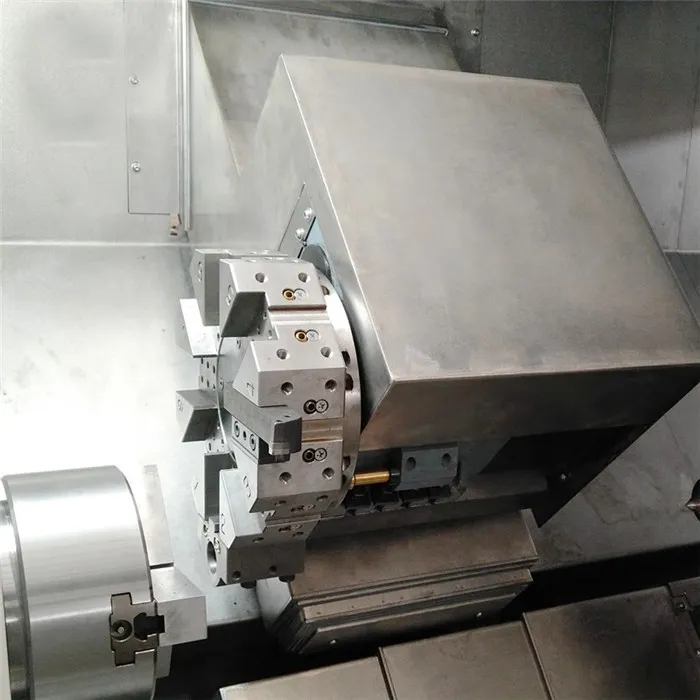

7). Optional turret
2.Application:
This machine is applicable to automobile, motorcycle, electronics, aerospace, military, oil and other industry. It could turn the conical surface, circular arc surface, end face of the rotary parts, could also turn various metric and inch threads etc, with higher efficiency and higher precision in bulk.
3.Product main technical parameters:
| Specification | Unit | TCK6340 |
| Max. swing over bed | mm | 400 |
| Max. swing over cross slide | mm | 140 |
| Max. processing length | mm | 300 |
| X/Z axis travel | mm | 380/350 |
| Spindle unit | mm | 170 |
| Spindle nose | A2-5 | |
| Spindle bore | mm | 56 |
| Spindle drawing pipe diameter | mm | 45 |
| Spindle speed | rpm | 3500 |
| Chuck size | inch | 6/8 |
| Spindle motor | kw | 5.5 |
| X/Z repeatability | mm | ±0.003 |
| X/Z axis feed motor torque | N.m | 6/6 |
| X/Z rapid traverse | m/min | 18/18 |
| Tool post type | Gang type tool post | |
| Cutting tool shape size | mm | 20*20 |
| Guide form | 45° inclined guide rail | |
| Total power capacity | kva | 9/11 |
| Machine dimension (L*W*H) | mm | 2300*1500*1750 |
| N.W. | KG | 2500 |

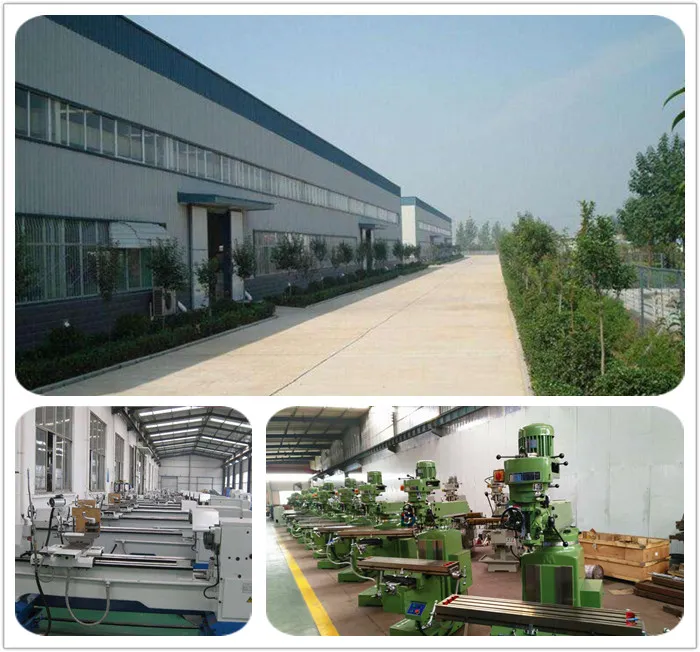

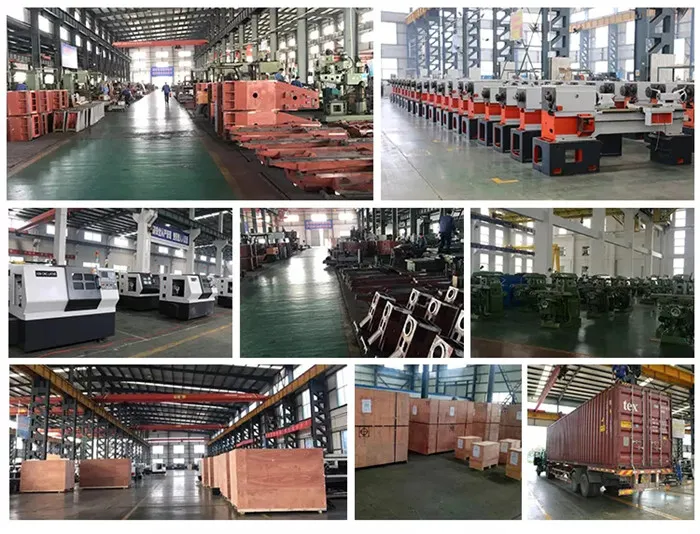

5.Our factory:
6.FAQ:
Q1.How to send my enquiry?
You can contact us by email, phone call, message (Whats APP, We Chat, Skype).
Q2.How long can I get feedback after enquiry?
We will reply you within 3 hours in working day.
Q3.Delivery time
Machines order takes 30 days after deposit payment received. Please inquiry sales.
Q4.What is the package? Is it suitable for shipment?
Machine is by waterproof cloth to covered. And be packed by standard exported wooden case with steel foot. It is very much strong for oversea transportation.
Q5.Payment term
30% T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss the details. Welcome to inquiry sales.
Q6.Can I trust you?
Sure, we're Made in China Gold Suppliers,
Q7.How long is the warranty for machines?
Machines warranty is 12 months after receive goods. in Warranty time,we can provide new free parts for changing.
Q8.Can you engineer come to our place to help with machine installation & commission?
Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.
