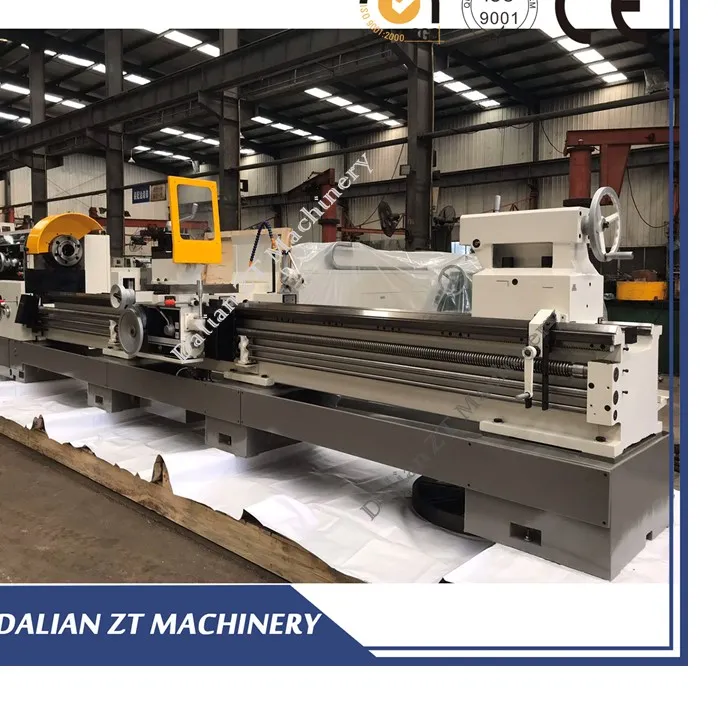

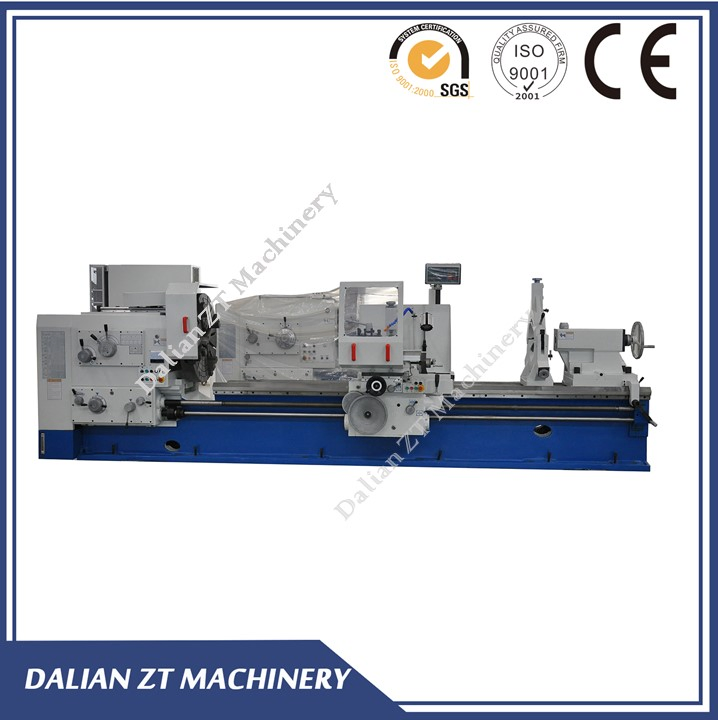

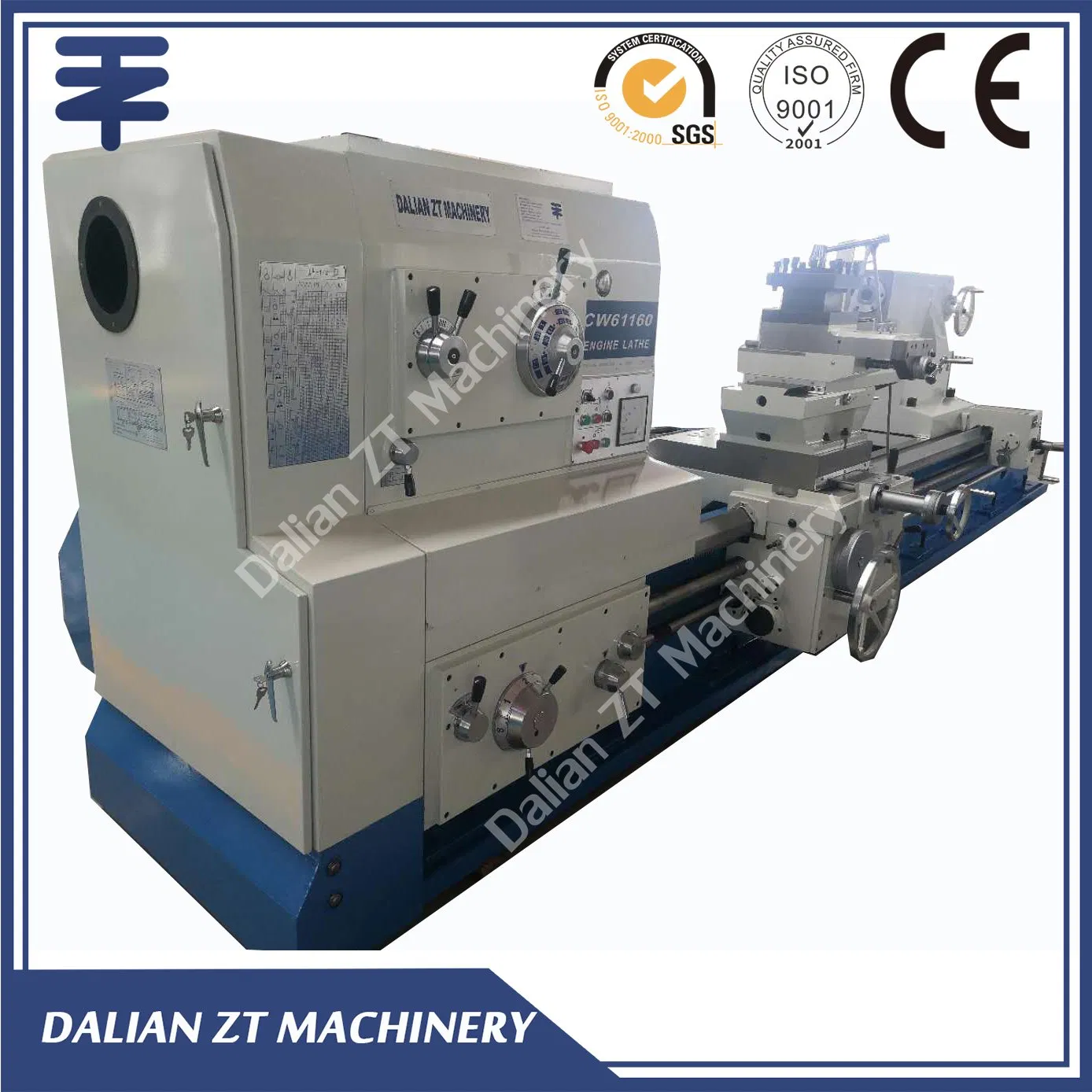

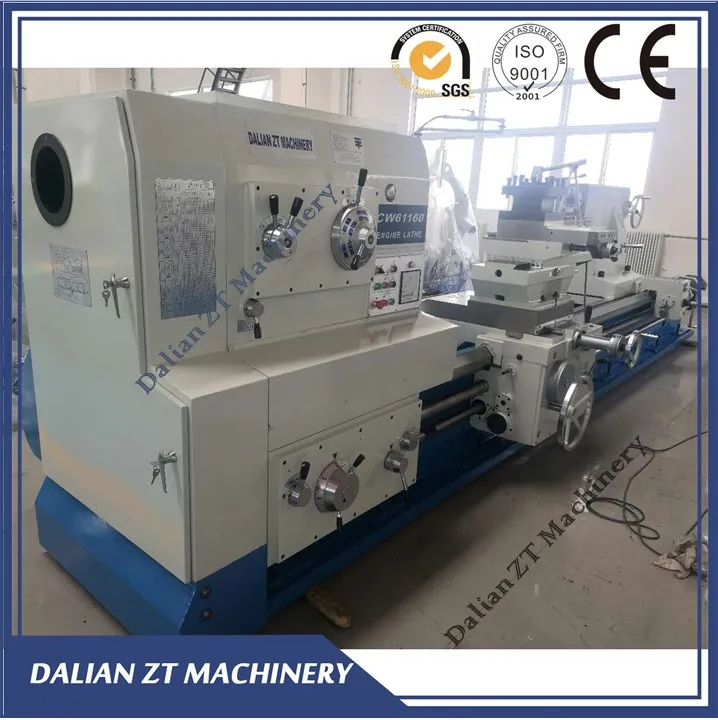

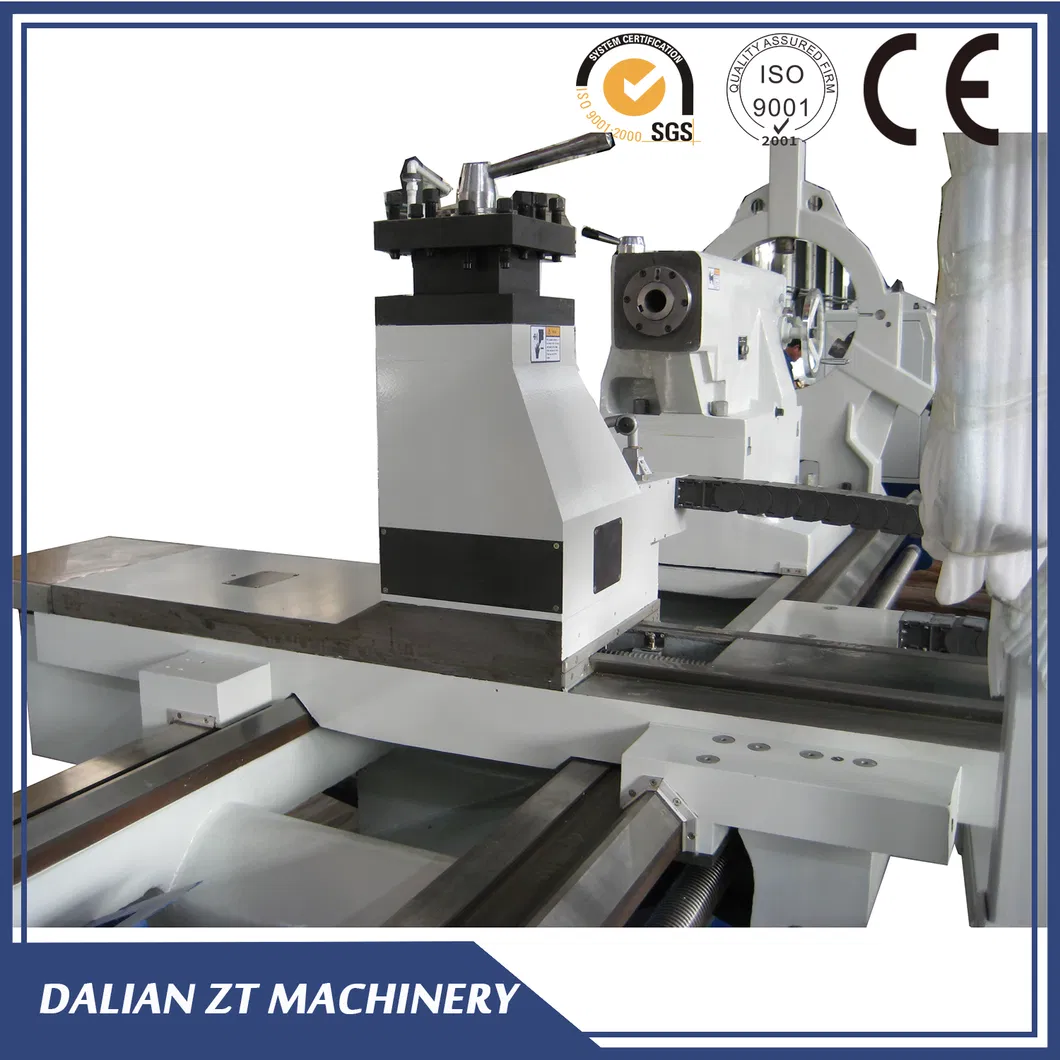

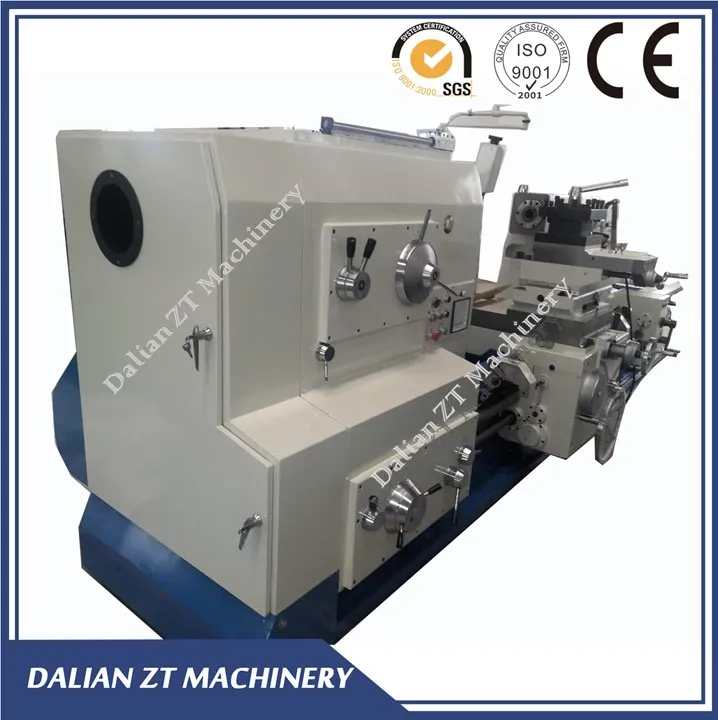

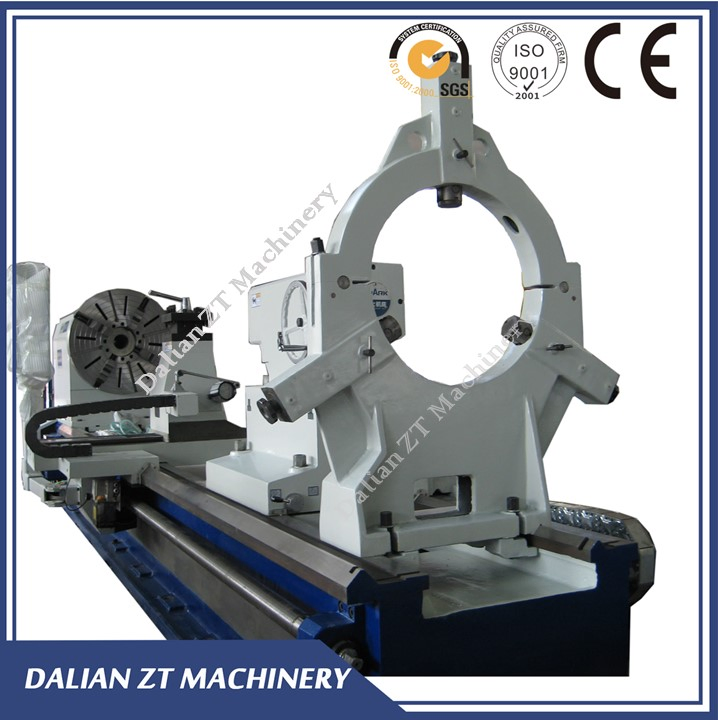

Torno Grande Large Horizontal 970mm Guideway Lathe 6T-32T 3-15m Center Distance
Features:Flat bed structure;high rigidity;heavy load capacity and good reliability; The rotary built-in center in the tailstock features with heavy load and is easy to operate;Rapid movement function; The model of lathe is specially suitable for the following industries: paper making, textile, rubbe......
Send Inquiry
Product Description
Features:

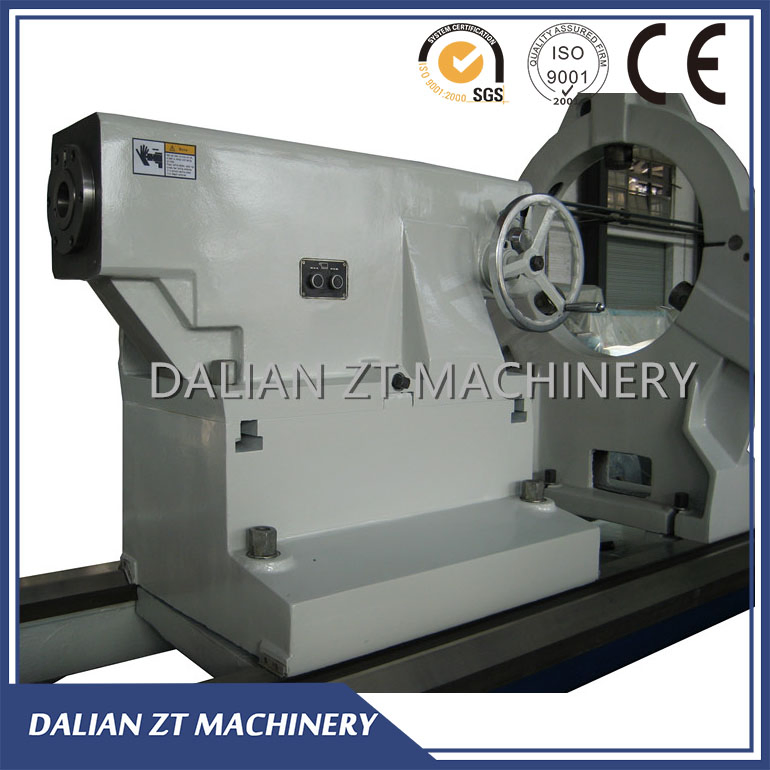

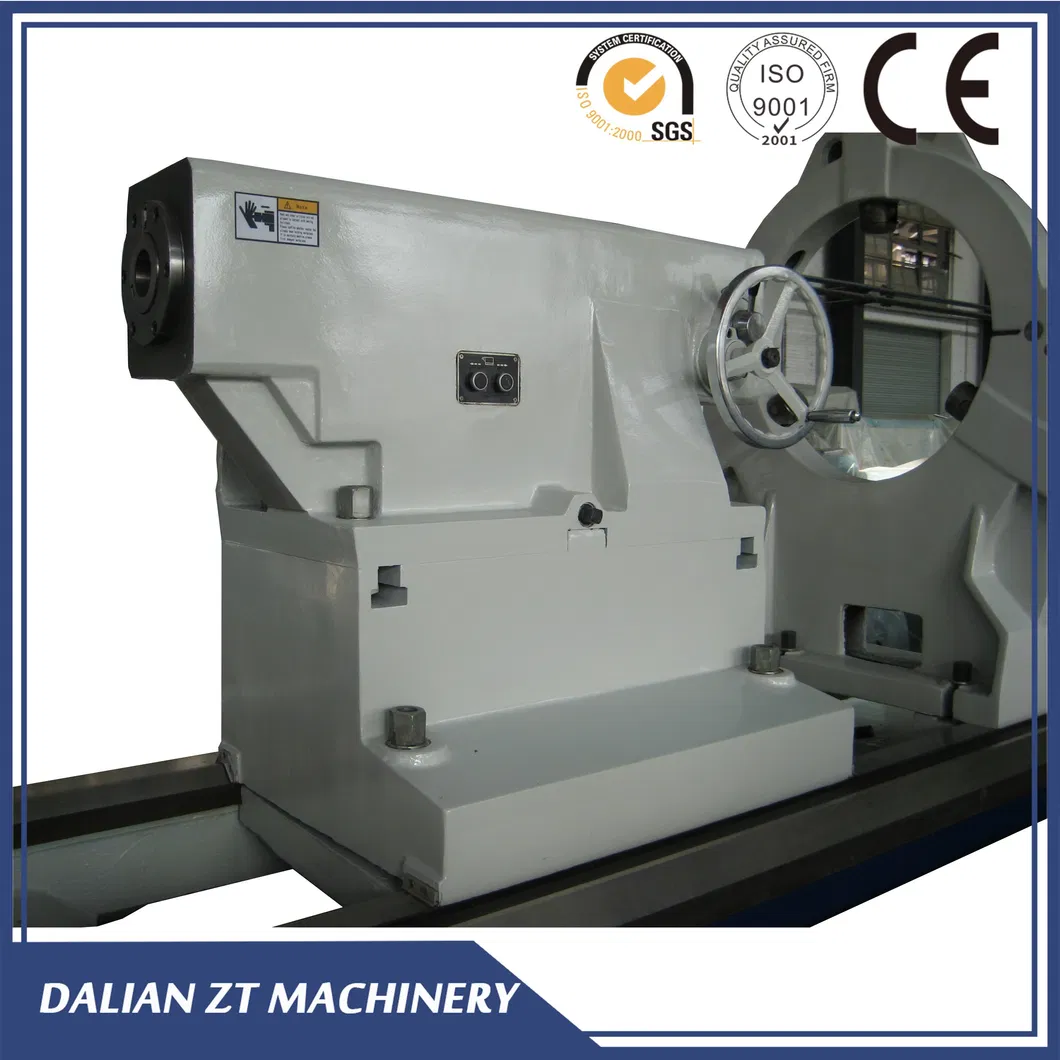

Flat bed structure;high rigidity;heavy load capacity and good reliability; The rotary built-in center in the tailstock features with heavy load and is easy to operate;Rapid movement function; The model of lathe is specially suitable for the following industries: paper making, textile, rubber and shipbuilding etc..The lathe is suitable to machine large sized parts, such as disc type, rubber roller; it can also cut tread, drill hole and bore hole.
| Item | CW61100E | CW61125 | CW61140 | CW61160 |
| Max. swing over bed | 1000mm | 1250mm | 1400mm | 1600mm |
| Max. swing over gap | 1250mm | 1500mm | 1930mm | 2110mm |
| Max. swing over carriage | 650mm | 900mm | 1100mm | 1280mm |
| Max. Turning length | 1500~16000mm | 1500~16000mm | 1500~16000mm | 1500~16000mm |
| Max. Workpiece weight between centers | 6000;8000kg | 6000;8000kg | 6000;8000kg | 6000;8000kg |
| Width of bed | 755mm | 755mm | 970mm | 970mm |
| Spindle nose | ISO A2-15 | ISO A2-15 | ISO A2-15 | ISO A2-15 |
| Diameter of spindle front bearing | 200mm | 200mm | 200/220mm | 200/220mm |
| Diameter of spindle bore | 130mm | 130mm | 130/100mm | 130/100mm |
| Spindle taper | Metric No.140mm | Metric No.140mm | Metric No.140mm | Metric No.140mm |
| Number of spindle speeds | 21 steps; manual | 21 steps; manual | 21 steps; manual | 21 steps; manual |
| Spindle speed range (r/min) | 3.15~315 | 3.15~315r/min | 2.5~250r/min | 2.5~250r/min |
| Main motor power | AC22kW | AC22kW | AC22kW | AC22kW |
| Tool shank section | 32x32mm | 32x32mm | 45x45mm | 45x45mm |
| Diameter of tailstock quill | 160mm | 160mm | 160mm | 160mm |
| Taper of tailstock quill | Morse No.6 | Morse No.6 | Morse No.6 | Morse No.6 |
| Travel of tailstock quill | 300mm | 300mm | 300mm | 300mm |
| Weight of machine (3m length) | 10800kg | 11500kg | 12200kg | 13200kg |
| Additional weight per 1 m BC | 1200kg | 1200 | 1400 | 1400kg |
| Overall dimensions of machine (3m length) | 6100x1900x2000 | 6100x2000x2200 | 6360x1960x2400 | 6360x2060x2500 |

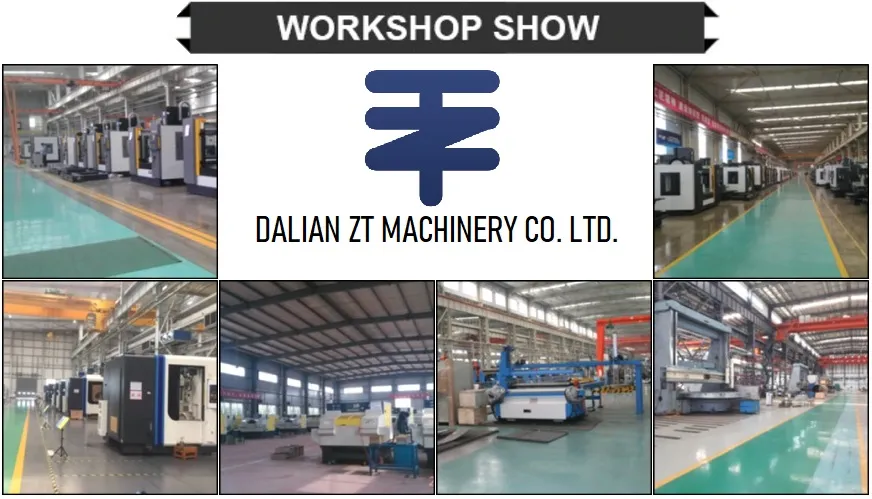

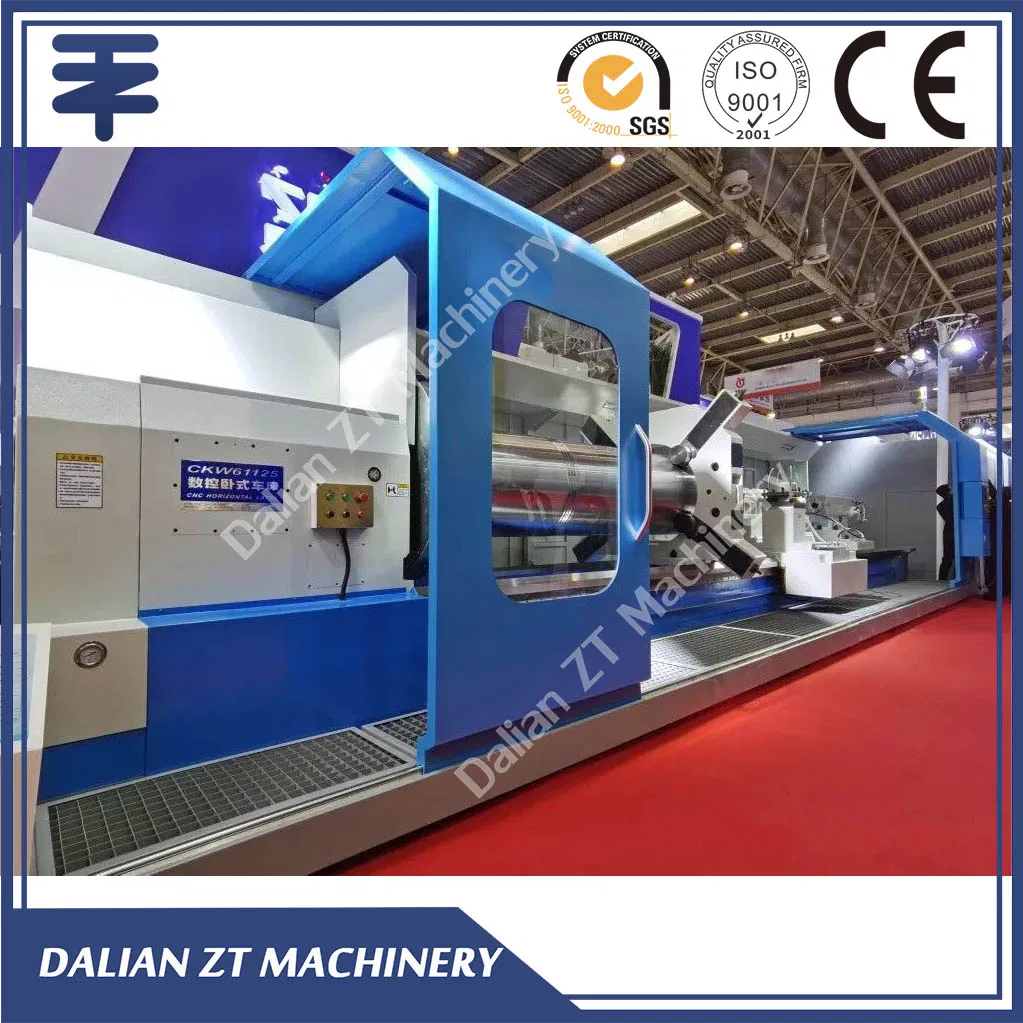

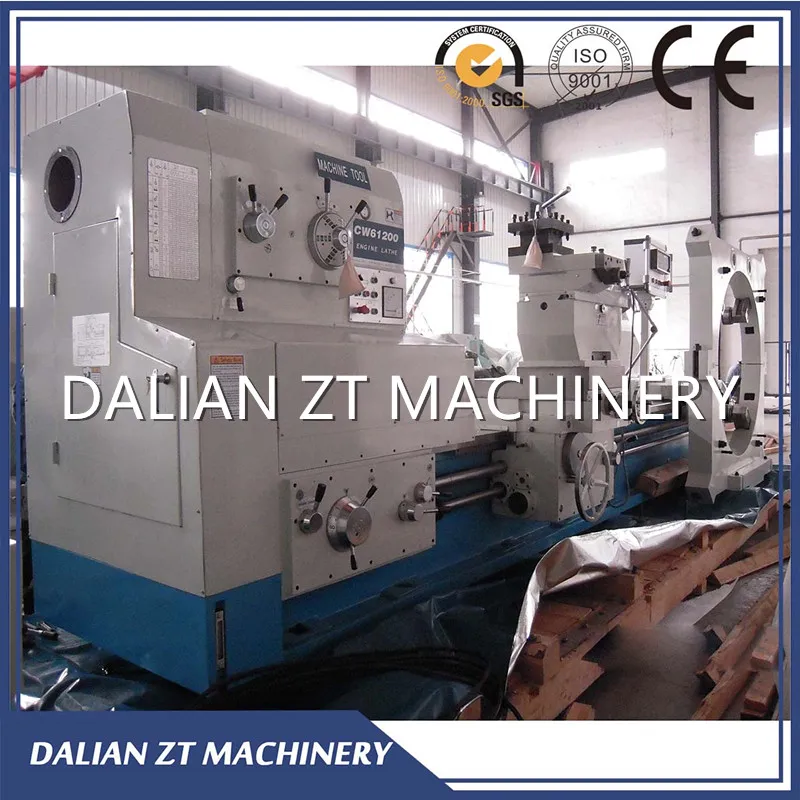

WORKSHOP
FAQ
1. How can I choose the most suitable machines?
A: You can choose the exact model by yourself. Or you can tell us your specifications, to let us choose the best model for you, too.
You can also send us the product drawing, and we will choose the most suitable machines for you.
.
2. When do you deliver?
A: It depends on the machine and model you choose. Mostly 1.5 months - 3 months. All machines are 100% new and not used, only made according to your order. Occasionally there will be a few machines available from stock. You can send us a message or mail to check exact delivery time.
3. Is machine tested?
A: The accuracy, noisy will be tested according to China GB standard. Some machines will
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5. What's the Payment Terms?
A : T/T 30% down payment when order ,70% balance payment before shipment ;
Irrevocable L/C at sight also acceptable.
6. Do you accept cash or L/C?
A: We accept T/T or L/C, all through banking system. We do not accept cash, 'cause we are an official registered company that all payment must go through official bank account.
7. What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set)
8. How is the warranty?
A: 12 months after shipment date
9. If I have a problem setting up/ getting it running problem, will you be available by email to assist in solving the problem.
A: Video technical support, online service, we can answer you in 24 hours.
Quality Control & Inspection before Packing
We control the assembly quality as well as control the quality of casting and parts/units to ensure the machines will be good enough from appearance to performance and stability keeping.
After testing and painting before packing, we will check all the accessories item by item:
1. How can I choose the most suitable machines?
A: You can choose the exact model by yourself. Or you can tell us your specifications, to let us choose the best model for you, too.
You can also send us the product drawing, and we will choose the most suitable machines for you.
.
2. When do you deliver?
A: It depends on the machine and model you choose. Mostly 1.5 months - 3 months. All machines are 100% new and not used, only made according to your order. Occasionally there will be a few machines available from stock. You can send us a message or mail to check exact delivery time.
3. Is machine tested?
A: The accuracy, noisy will be tested according to China GB standard. Some machines will
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5. What's the Payment Terms?
A : T/T 30% down payment when order ,70% balance payment before shipment ;
Irrevocable L/C at sight also acceptable.
6. Do you accept cash or L/C?
A: We accept T/T or L/C, all through banking system. We do not accept cash, 'cause we are an official registered company that all payment must go through official bank account.
7. What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set)
8. How is the warranty?
A: 12 months after shipment date
9. If I have a problem setting up/ getting it running problem, will you be available by email to assist in solving the problem.
A: Video technical support, online service, we can answer you in 24 hours.
Quality Control & Inspection before Packing
We control the assembly quality as well as control the quality of casting and parts/units to ensure the machines will be good enough from appearance to performance and stability keeping.
After testing and painting before packing, we will check all the accessories item by item:
