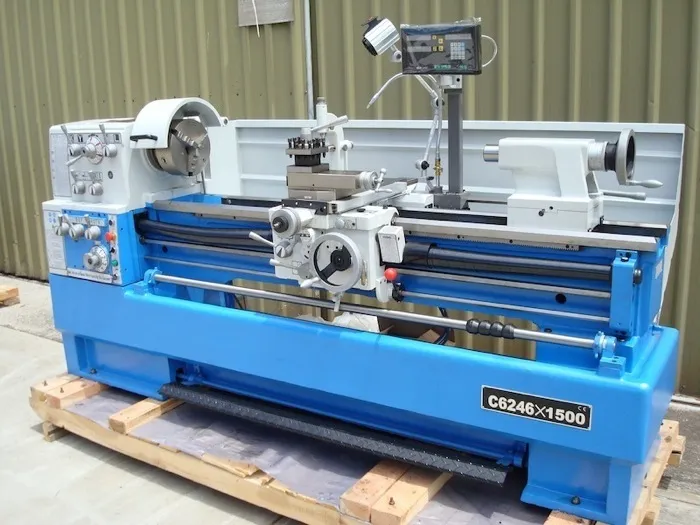

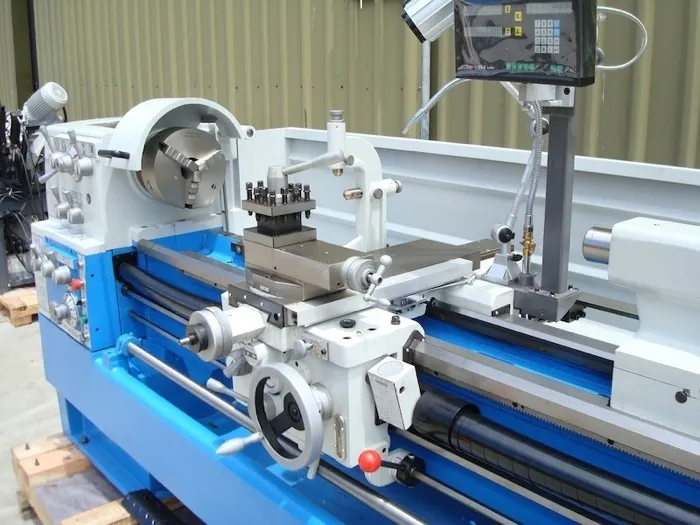

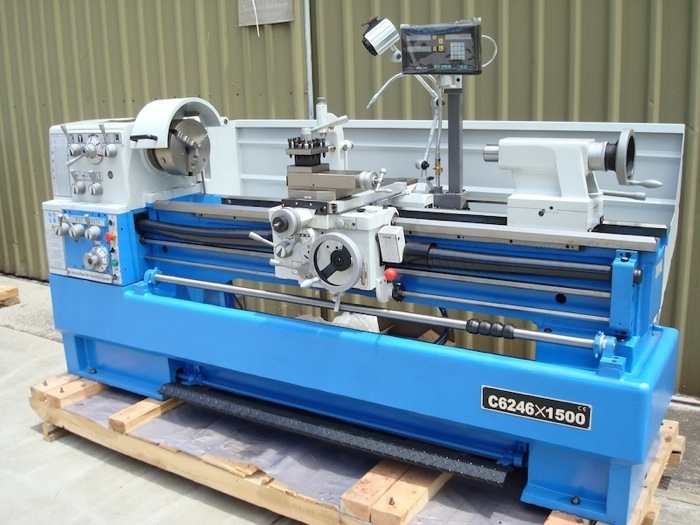

Universal Metal Lathe C6241 C6246 High Quality Big Bore Torno Big Engine

Product Description

CE High precision industrial metal lathe machine

1.Features:
Precision ground and supersonic frequency hardened bed ways.

The spindle is supported with precision roller bearing.

Headstock gears are made of high quality steel,ground and hardened.

2.Big spindle bore 58mm.

3.Most popular in the world.
Universal Metal Lathe C6241 C6246 High Quality Big Bore Torno Big Engine

Universal Metal Lathe C6241 C6246 High Quality Big Bore Torno Big Engine

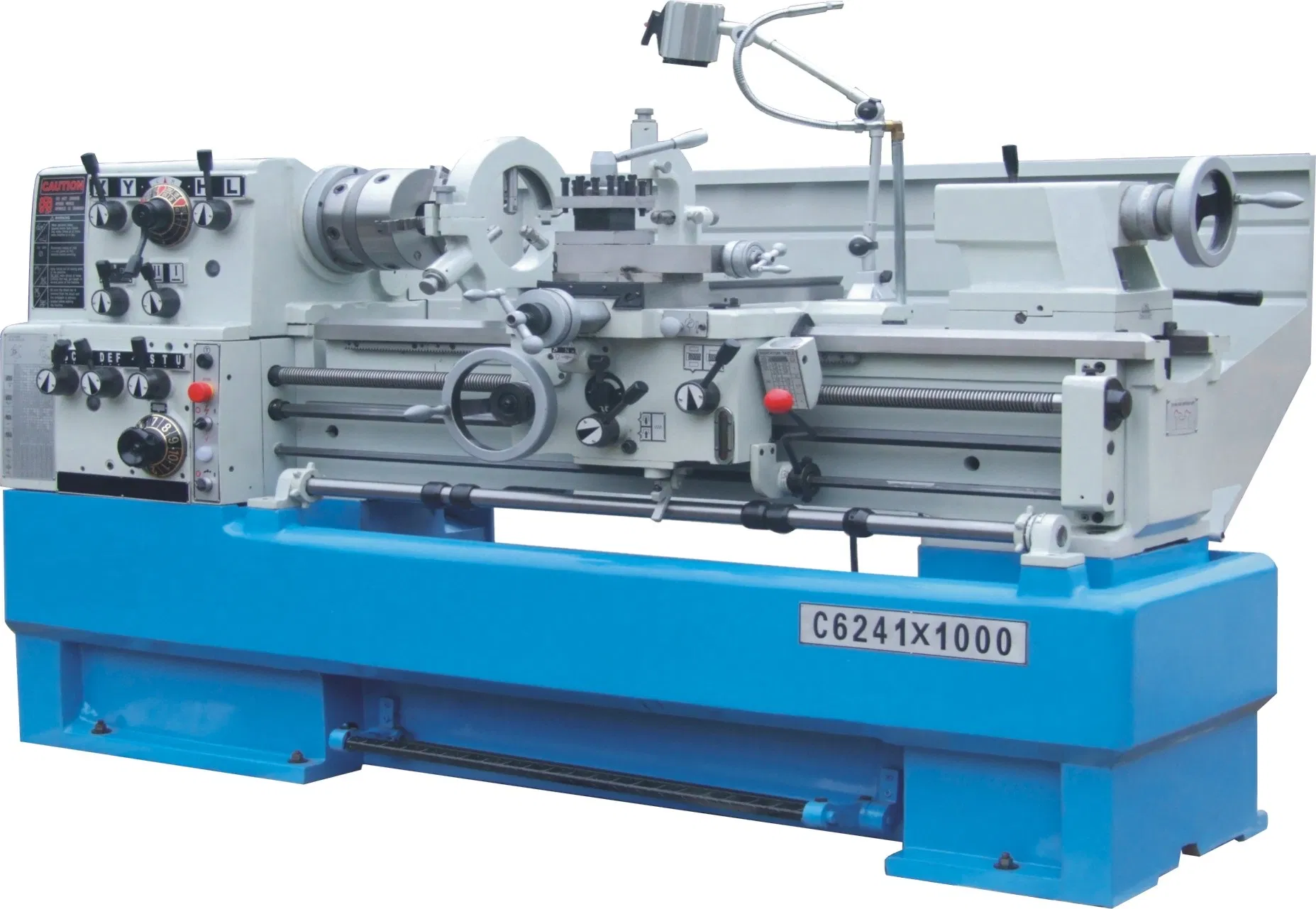

4.C6241/1000 Specification as following:

HIGH PRECISION &HEAVY DUTY INDUSTRIAL LATHE
Model	C6241×1000	C6241×1500
Max.swing over bed	Φ410mm(16")
Max.swing over cross slide	Φ224mm(8 13/16")
Max. swing over gap	Φ640mm(25 1/8")
Length of gap	155mm(6 1/8")
Max.length of workpiece	1000mm(40")/1500mm(60")
Width of bed	300mm(11 13/16")
Spindle nose	D1-6
Spindle bore	Φ58mm(2-1/4")
Taper of spindle bore	M.T.#6
Range of spindle speed	12changes25-2000r/min
Max.travel of compound rest	120mm(4 3/4")
Max.travel of cross slide	290mm(11 3/8")
Leadscrew pitch	metric 6mm
Max.section of tool	25mm×25mm(1×1")
Range of longitudinal feeds	42kinds 0.031-1.7mm/rev (0.0011"-0.0633"/rev)
Range of cross feeds	42kinds 0.014-0.784mm/rev (0.00033"-0.01837"/rev)
Metric threads range	41kinds 0.1-14mm
Inch threads range	60kinds 2-112 T.P.I.
Diametrical pitches range	50kinds 4-112D.P.
Module piches rang	34kinds 0.1-7 M.P.
Dia. of tailstock sleeve	60mm(2 5/16")
Travel of tailstock sleeve	120mm(4 3/4")
Morse taper of tailstock sleeve	M.T.#4
Power of main motor	4kw(5.4HP),optional 5.5kw(7.5HP)3PH
Power of coolant pump	40w
Packing size	2250X1120X1700/2800X1120X1700
Weight	1670/1980

5.FAQ

1.Question : Are you a factory or trading company ?
Answer: We are an SGS recognized OEM / ODM manufacturer factory with export license. we have an experienced team made up of "A" player who have a passion for doing something great to create more value for customers world-wide.

2. Question :  Why choose cooperate with us ?
Answer :
                --Reliable Quality and All components from world leading suppliers ;
                --Cost-effective export infrastructure and total supply chain management ;

3. Question :  Can you do OEM ?
Answer : Yes, we have the ability to do OEM / ODM to meet clients' requirements.

4. Question : How about machine Warranty ?
The warranty period is general 13 months after B/L date. During the warranty period, we will provide free replacement parts (EXW) which are easy damaged. And also parts caused by machine itself quality problems. Meanwhile, the machine should be under normal operation according to Operation Manual.(Except for improper operation or man-made damaged by buyers)

Welcome you contact :Ms Alice
Mobile:0086-15357788287 /0086-17398394840
