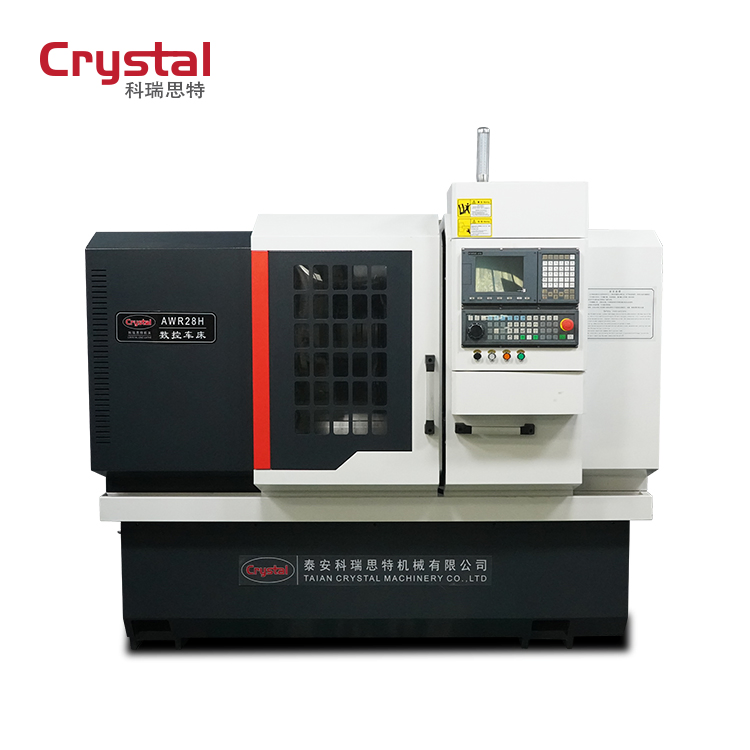

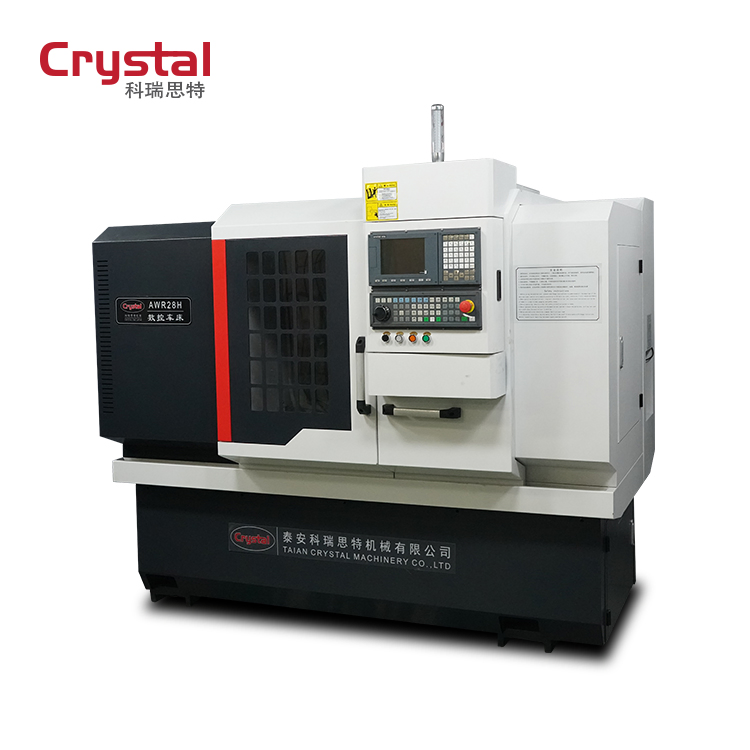

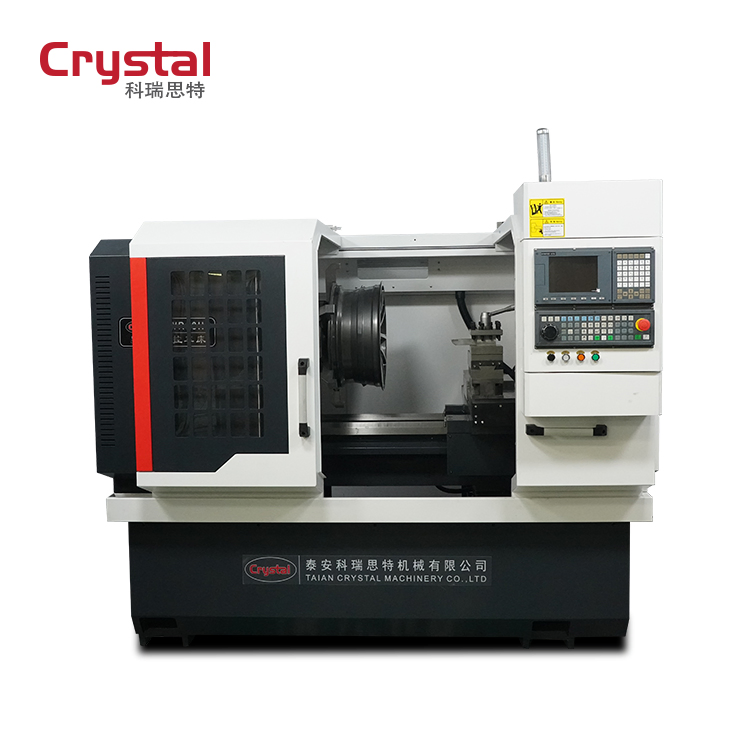

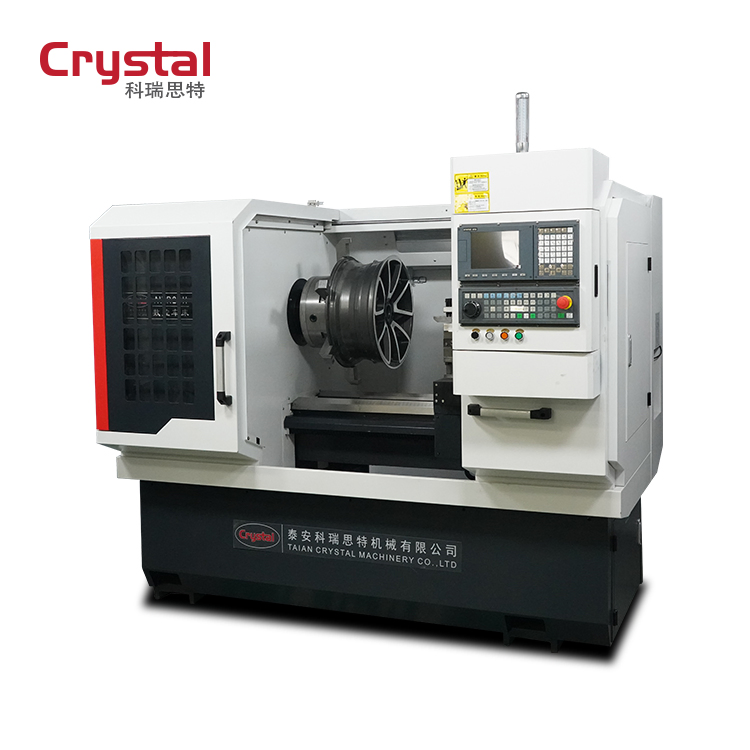

Wheel Repair Lathe Awr28h with Ruby Probe
Wheel Repair Lathe AWR28H With Ruby Probe CNC alloy wheel lathe machines are designed for repair and refurbish alloy wheel , Be applied to the full face and lip of the wheel. The machine is very easy to operate ,operator don't need to learn complicated programme . It can cut spectacular finishs......
Send Inquiry
Product Description
CNC alloy wheel lathe machines are designed for repair and refurbish alloy wheel ,
Be applied to the full face and lip of the wheel. The machine is very easy to operate ,
operator don't need to learn complicated programme . It can cut spectacular finishs and achieve mirror finishing different density textured finishing etc .
Wheel Repair Lathe Advantages
1. Cuts wheel up to 28''.
2. With CE, SGS, ISO, BV certificates.
3. Automatic ruby probe system.
4. Easy Operation.
5. Self-developed optimization software.
6. Free Training video and manual instructions.
7. 7x24 hours technology support.
8. 2 USB interface.
9. High efficiency and economic.
10. Two-year warranty.
11. Free factory hand-to-hand training.
12. Agencies in UK, Germany, Poland, Netherlands, Australia etc.
ITEMS | AWR28H |
Max. swig over bed (mm) (inch) | Φ770 (30') |
Max. Size of alloy wheel (mm) (inch) | Φ720 (28') |
Adjustable stroke of carrier in X direction (mm) | 100 |
Cross slide travel (mm) | 390 |
Width of the rail (mm) | 300 |
Length of the rail (mm) | 1300 |
Size of the three-jaw chuck (inch) | 12' |
Range of spindle speed (rpm) | 50~2000 |
Spindle speed control | Automatic |
Spindle bore (mm) | Φ82 |
Taper of spindle bore | 1:20(Φ90) |
Max. size of tool post | 25×25mm |
Stations of tool carrier | 4 position |
Min. setting unit of motor | (Z) long 0.001mm, (X) cross 0.001mm |
Moving speed of post | (Z) long 8m/min, (X) cross 6m/min |
Motor power | 7.5KW |
Machine base (cast iron base) | Whole |

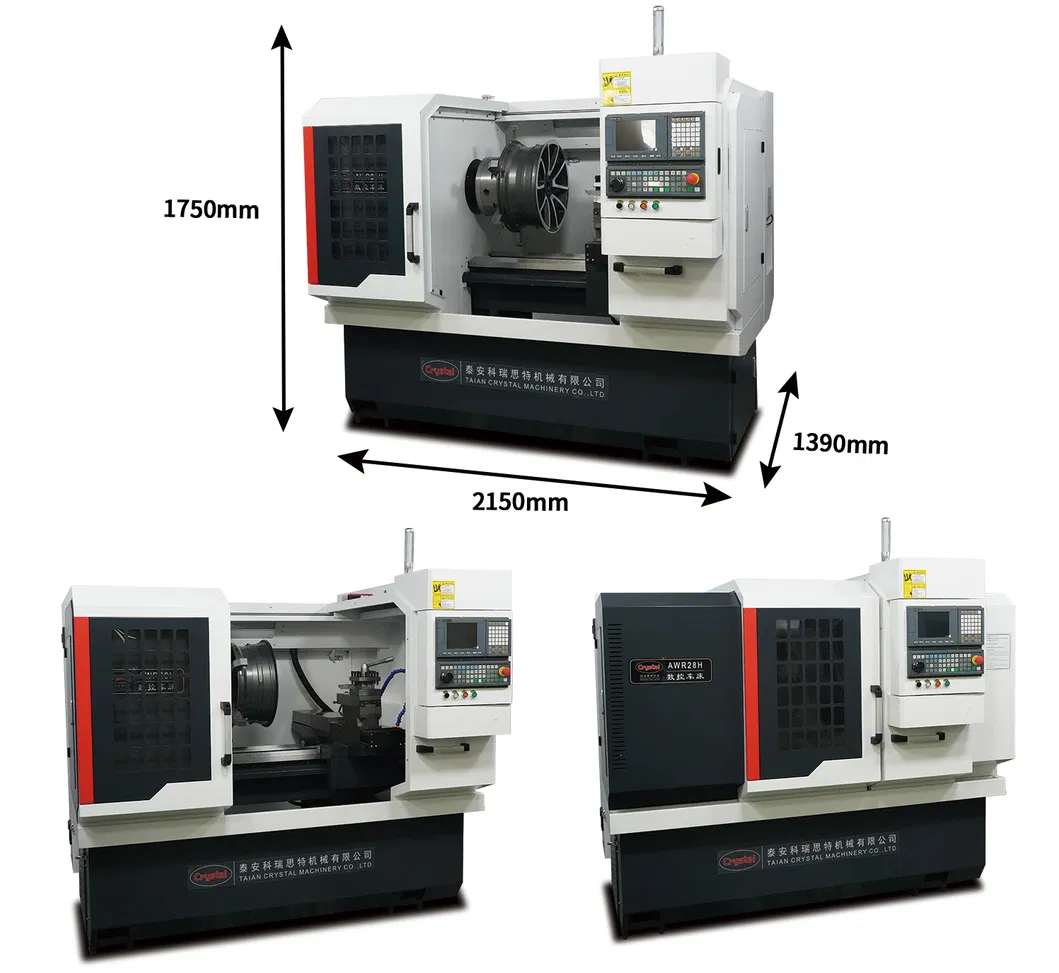

Machine size (L×W×H) (mm³) | 2140 ×1600×1860 |
Net weight | 2600kg |

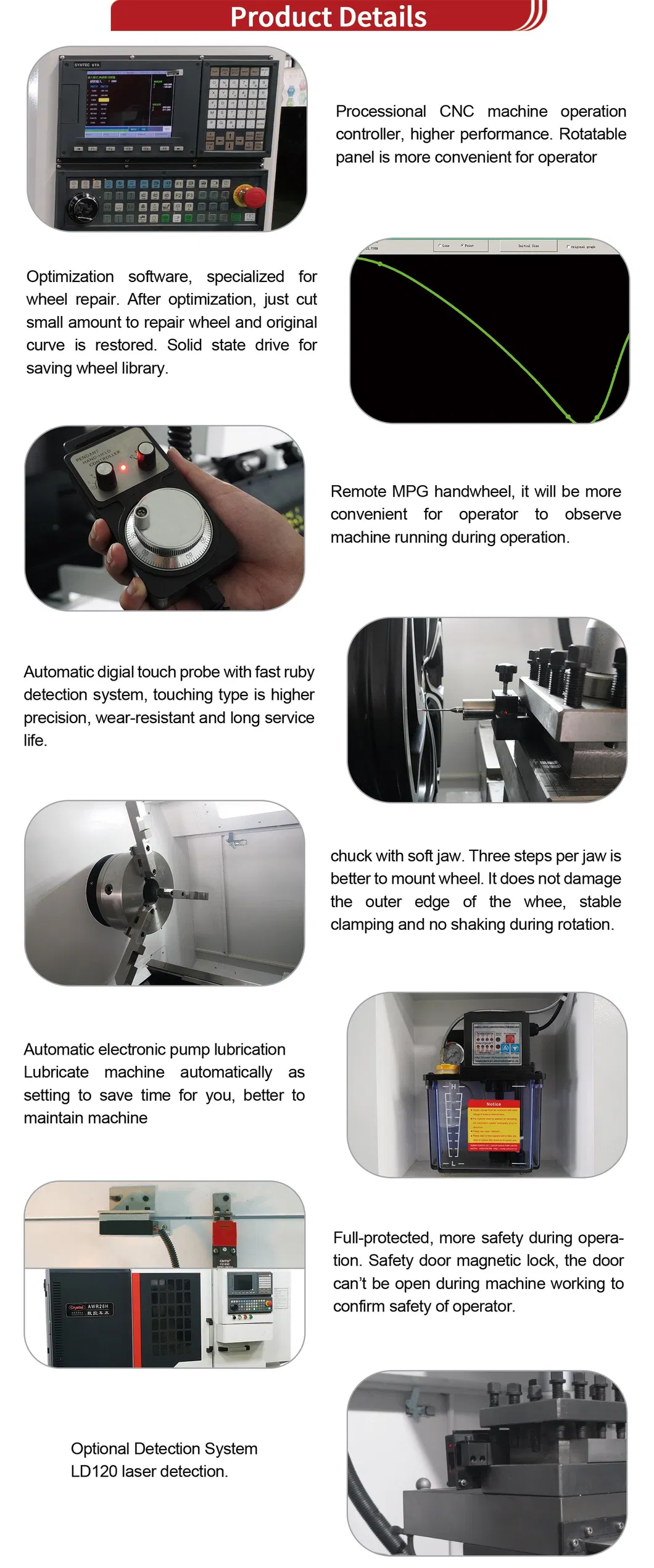

Standard configuration of diamond cut wheel repair machine
Diamond Cutter 1 set | 3-Jaws Chuck(With Special Soft Jaws) |
high precision prob system 1 set | SYNTEC CNC Controller |
Manual Quick Change Toolpost,Four-station | Work Lighting System |
Automatic Lubrication System | Cooling System |
Full Enclose(Security Guard Door) | Tools&Tool Box |
Self developed professional wheel repair software | Training Video CD |
