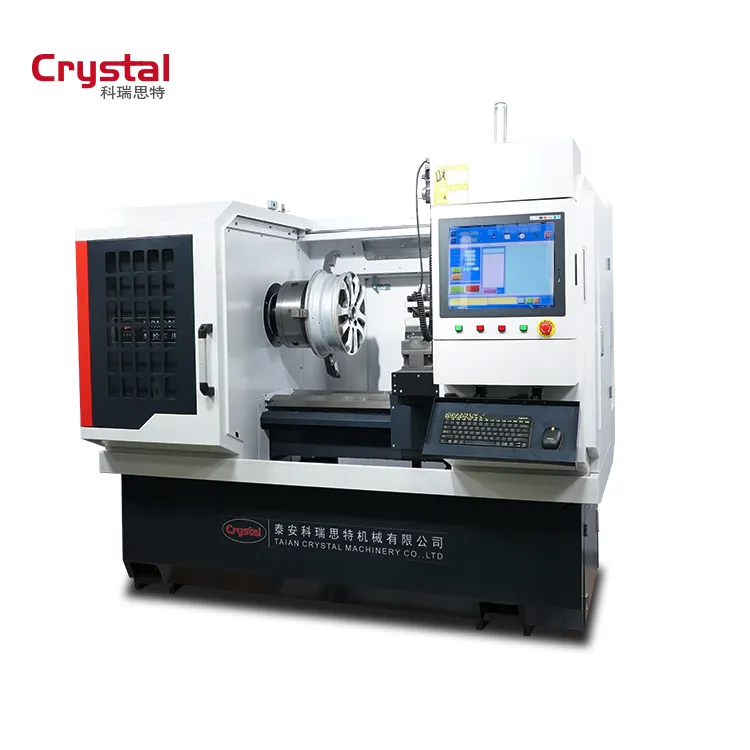

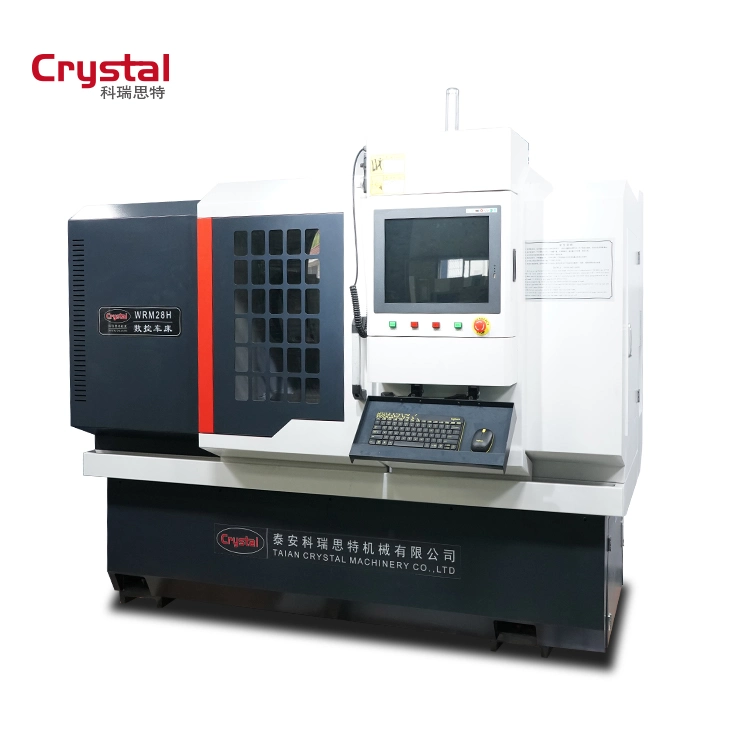

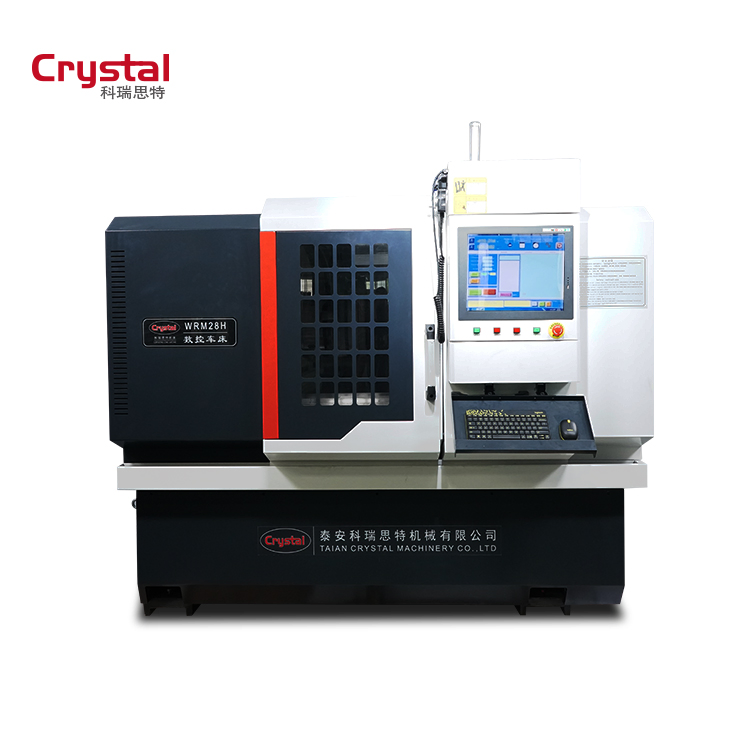

Wrm28h Diamond Cutting Alloy Wheel Rim Repair Lathe Machine 5% off
Horizontal Car ally wheel rim repair cnc lathe for sale WRM28H 5% OFF Our purpose build alloy wheel lathe incarcerates a user friendly multi-touch interface for simplified probing and cutting processes. With full digital optimization build directly into the interface, there is no need of a separated......
Send Inquiry
Product Description
Horizontal Car ally wheel rim repair cnc lathe for sale WRM28H 5% OFF

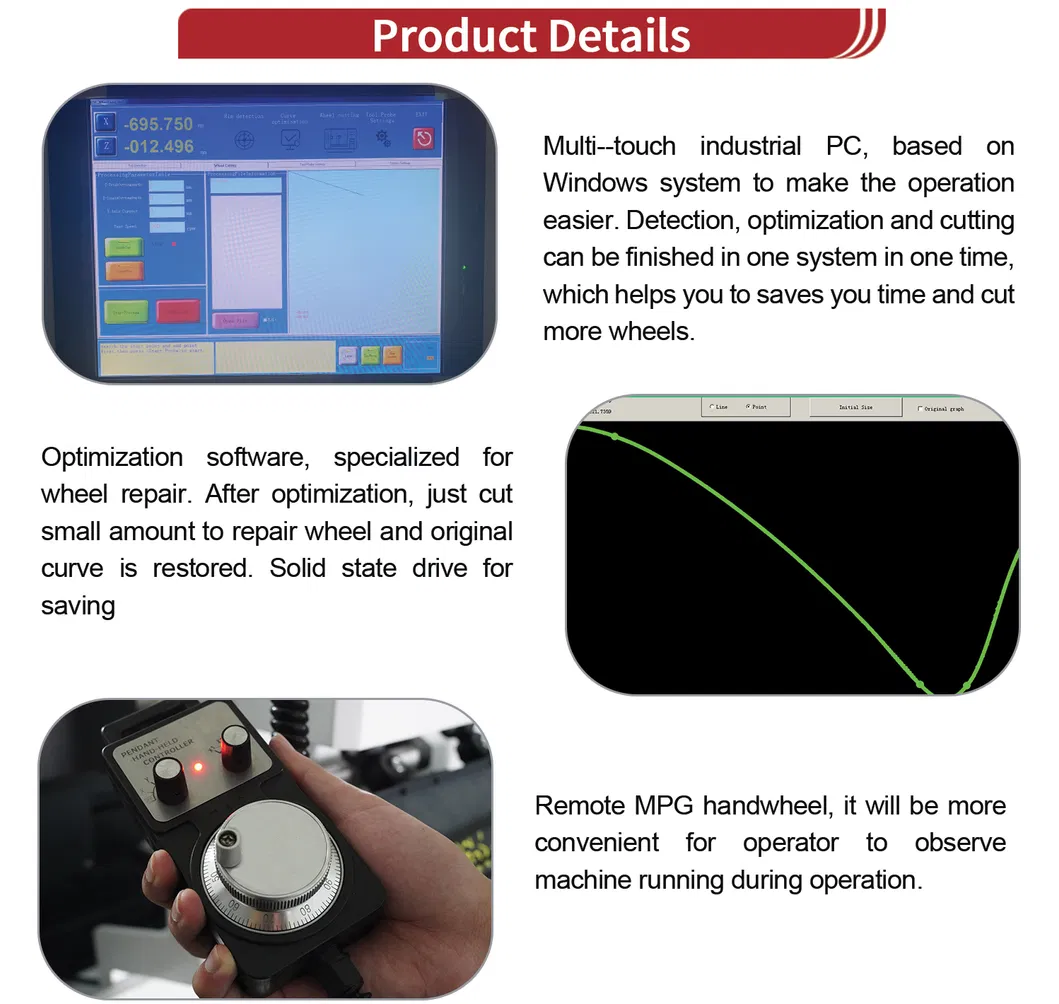

Our purpose build alloy wheel lathe incarcerates a user friendly multi-touch interface for simplified probing and cutting processes. With full digital optimization build directly into the interface, there is no need of a separated computer system to house the software, making this our best ALL IN ONE solution for repairing diamond cut alloy wheels.
Wheel Repair Lathe Advantages
1. Cuts wheel up to 28''.
2. 17 inch interface touchscreen.
3. With CE, SGS, ISO, BV certificates.

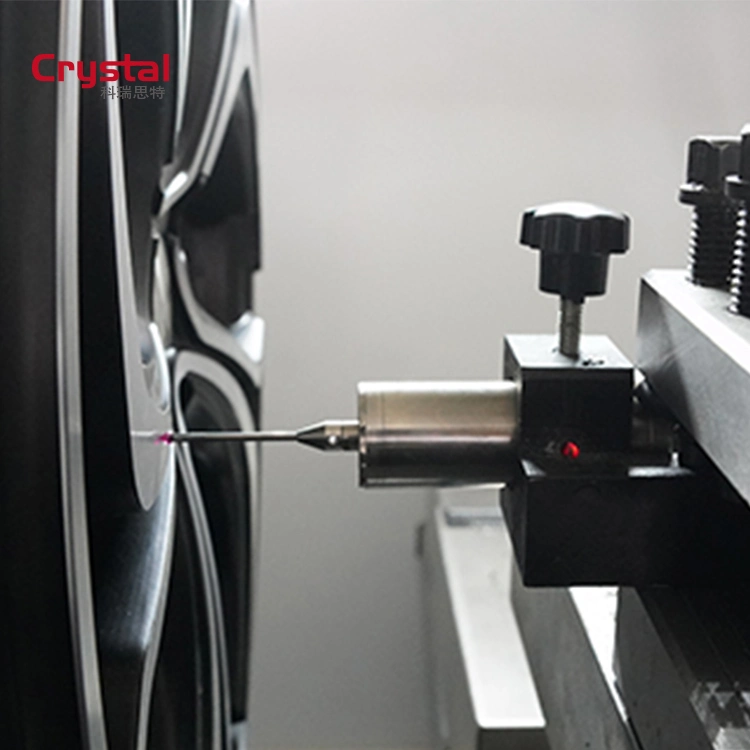

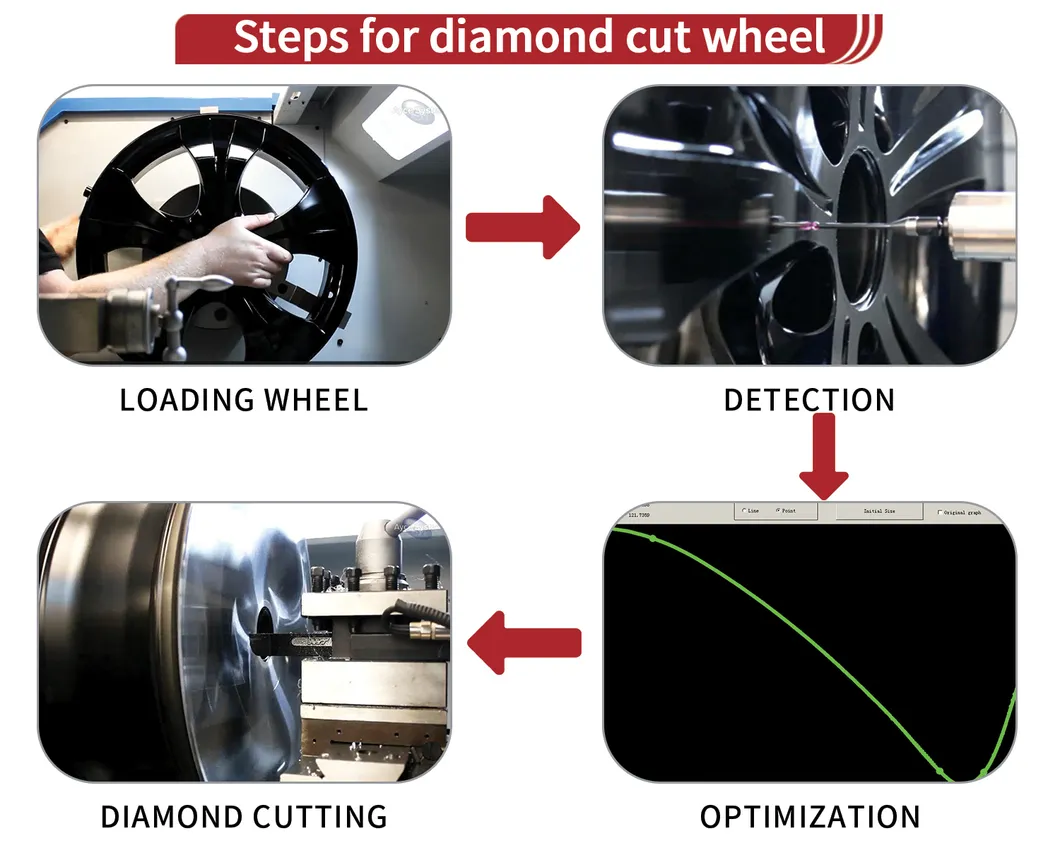

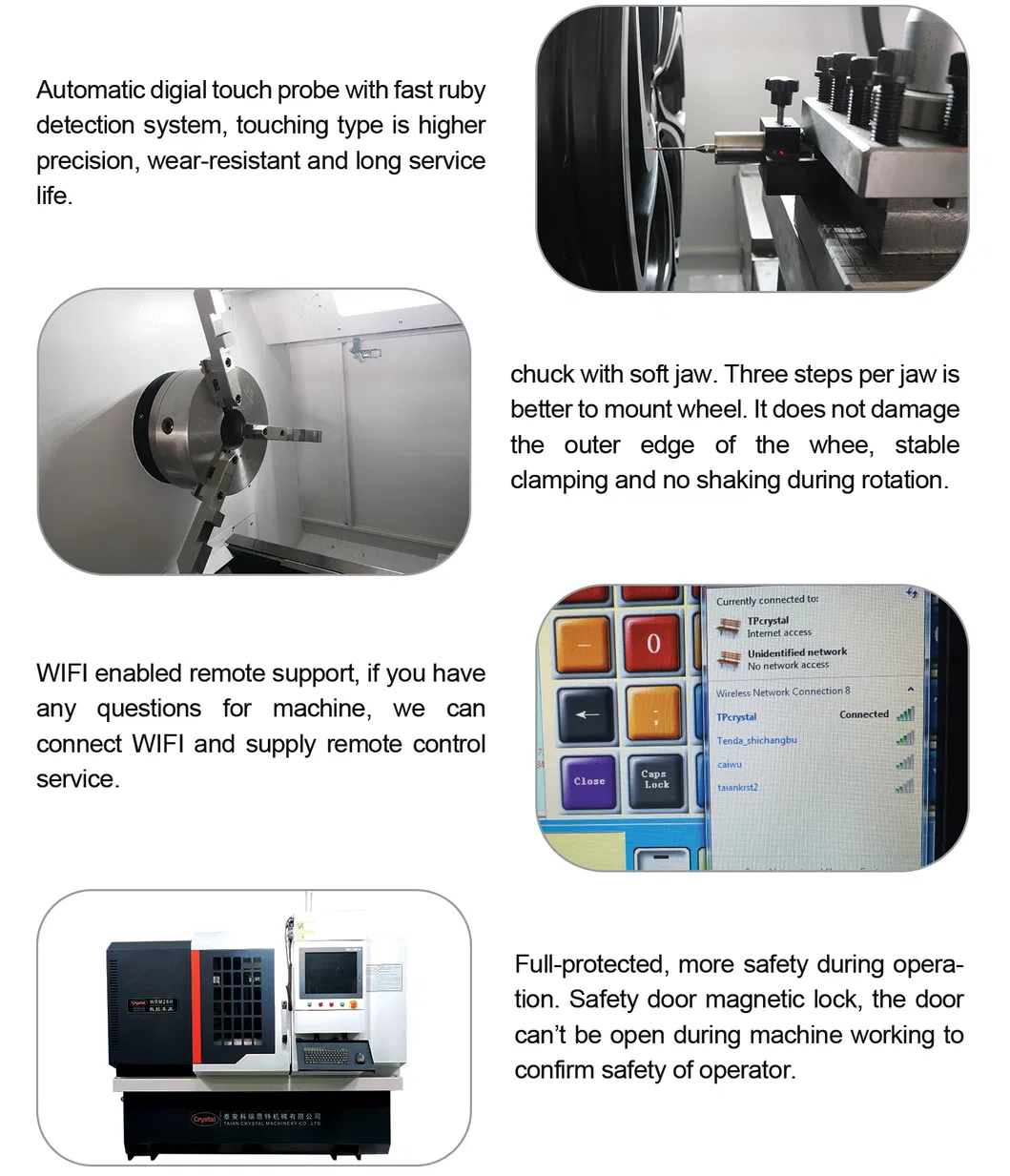

4. Automatic ruby probe system.
5. Self-developed optimization software.
6. Free Training video and manual.
7. 7x24 hours technology support.
8. 2 USB interface.
9. High efficiency and economic.
10. Two-year warranty.
11. Free factory hand-to-hand training.
12. Agencies in UK, Germany, Poland, Netherlands, Australia etc.
Alloy Wheel Repair Lathe Specifications
ITEMS | WRM28H-PC | |
Max. swig over bed (mm)(inch) | Φ770(30') | |
Max. Diameter of alloy wheel(mm) (inch) | Φ710(28') | |
Max. Stroke of the X-axis(mm) | 390 | |
Max. Stroke of the Z-axis (mm) | 880 | |
Width of the rail (mm) | 300 | |
Length of the rail (mm) | 1320 | |
Size of the three-jaw chuck (inch) | 13'' | |
Range of spindle speed (RPM) | 500-2000 | |
Spindle speed control | Automatic | |
Spindle bore (mm) | Φ82 | |
Taper of spindle bore | 1:20(Φ90) | |
Taper of spindle nose | A2-10 | |
Adjustable stroke of carrier in X direction | 100mm | |
Max. size of tool post | 25×25mm | |
Stations of tool carrier | 4 position | |
Min. setting unit of motor | (Z) long 0.001mm, (X) cross 0.001mm | |
Moving speed of post | (Z) long 8m/min, (X) cross 6m/min | |
Motor power | 7.5KW | |

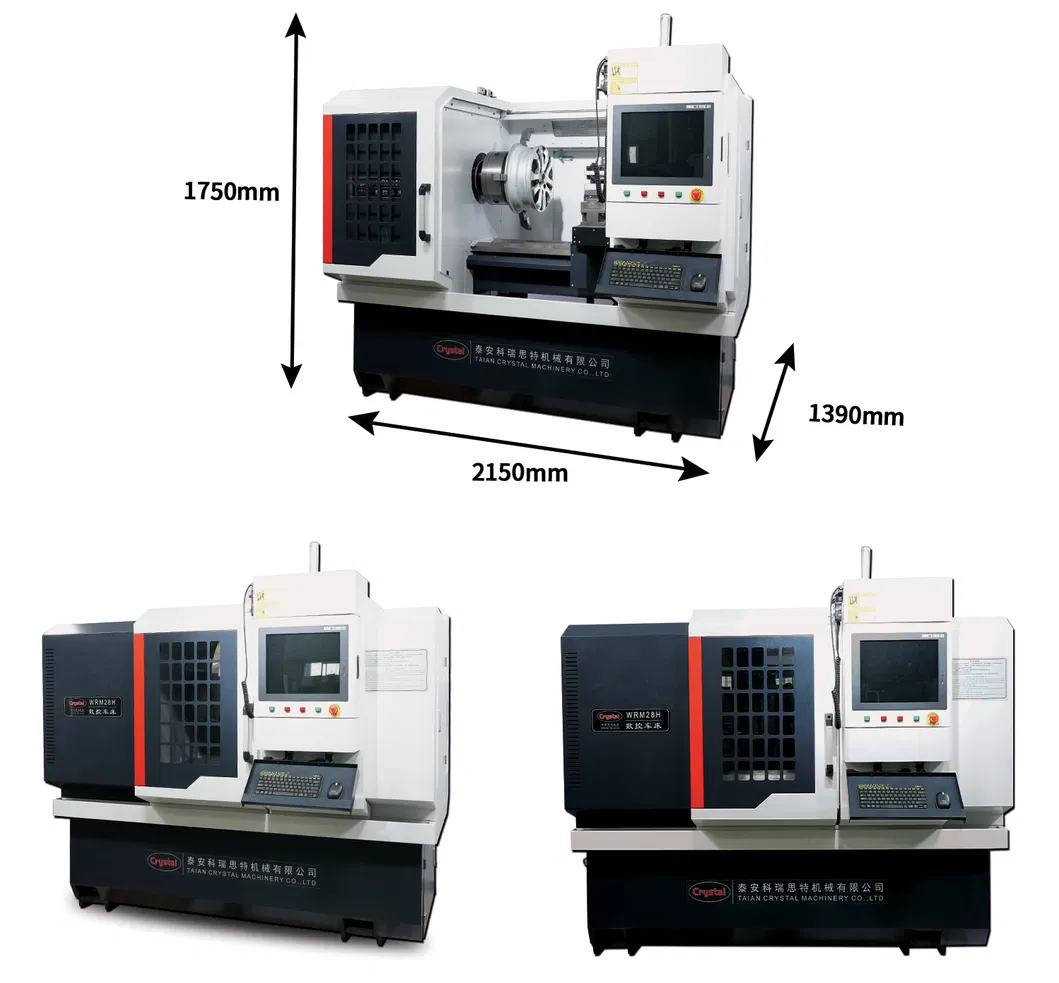

Machine size | (L/W/H) (mm) | 2200/1620/1870 |
Package size |
| 2300/1720/2170 |
Net weight | 2400KGS | |
Standard configuration
| wireless key&mouse 1 set | diamond cutter 1 set inner |
| diamond cutter 1 set outer | special ordered soft jaws 1 set |
| high precision prob system 1 set | 4 station tool which can adjust X stroke |
| automatic lubrication system | cooling system(standard) |
| full cover safety door | tool case |
training videos | -- |
