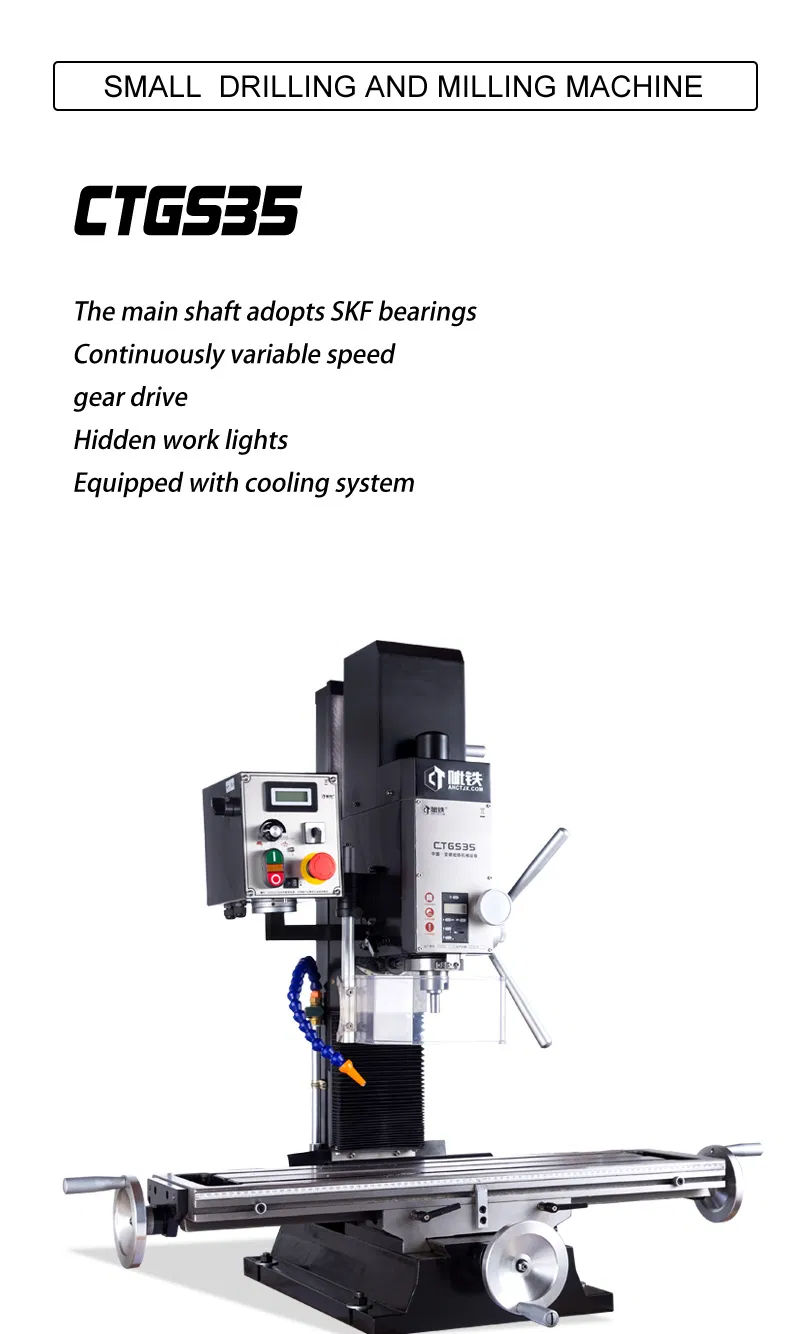

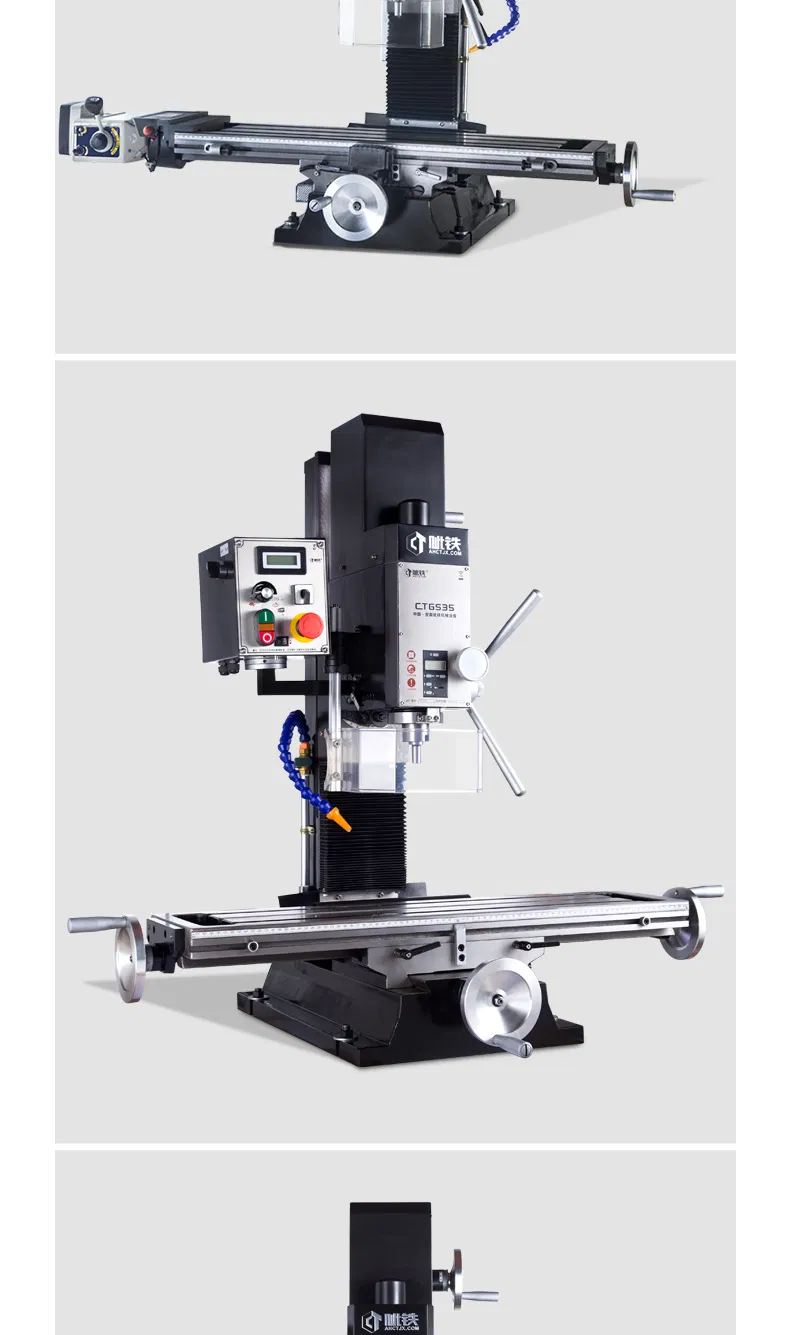

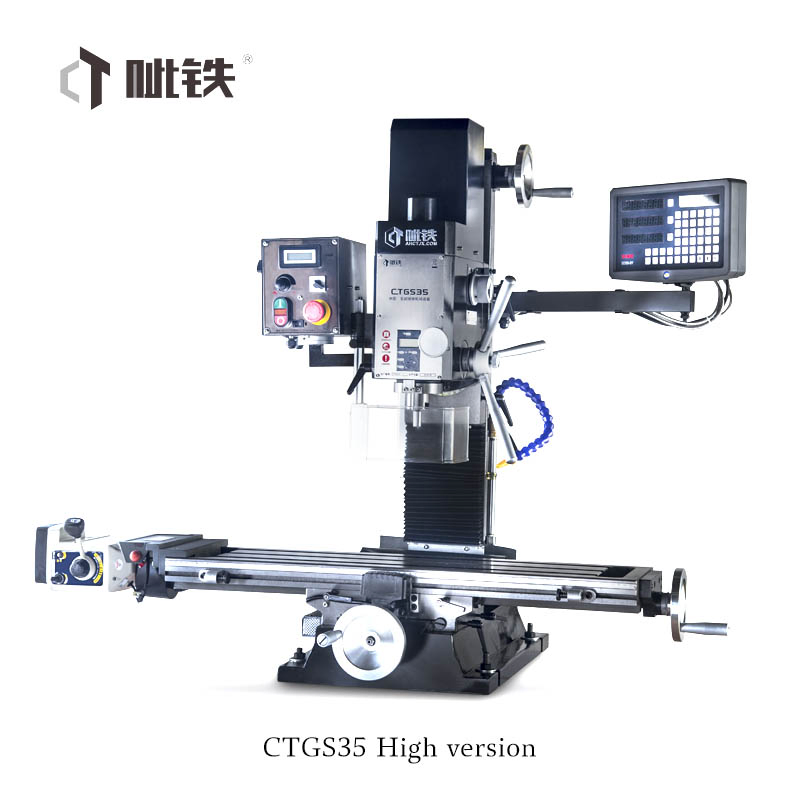

35mm Drilling Milling Machine Weiss Ctgs35 with Dro and Automatic Feeding
Max.Drilling capacity35mmMax.milling capacity70mmMax.vertical milling capacity30mmTable size 840*210mmT-slots size 14mmX spindle travel 570mmY spindle travel 200mmZ spindle travel350mmSpindle taper MT3/M12Spindle travel 70mmDistance from spindle to column guide rail180mmDistance from spindle end to ......
Send Inquiry
Product Description

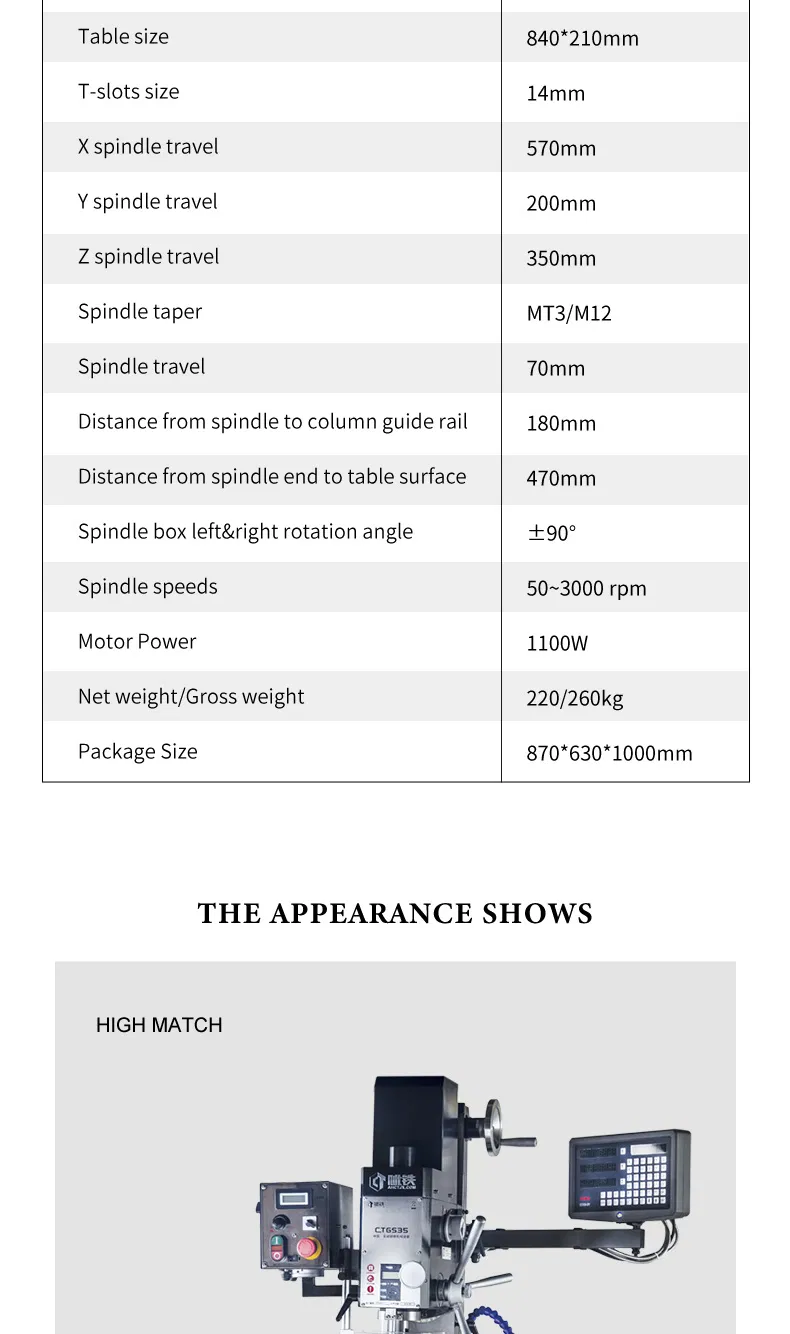

| Max.Drilling capacity | 35mm |
| Max.milling capacity | 70mm |
| Max.vertical milling capacity | 30mm |

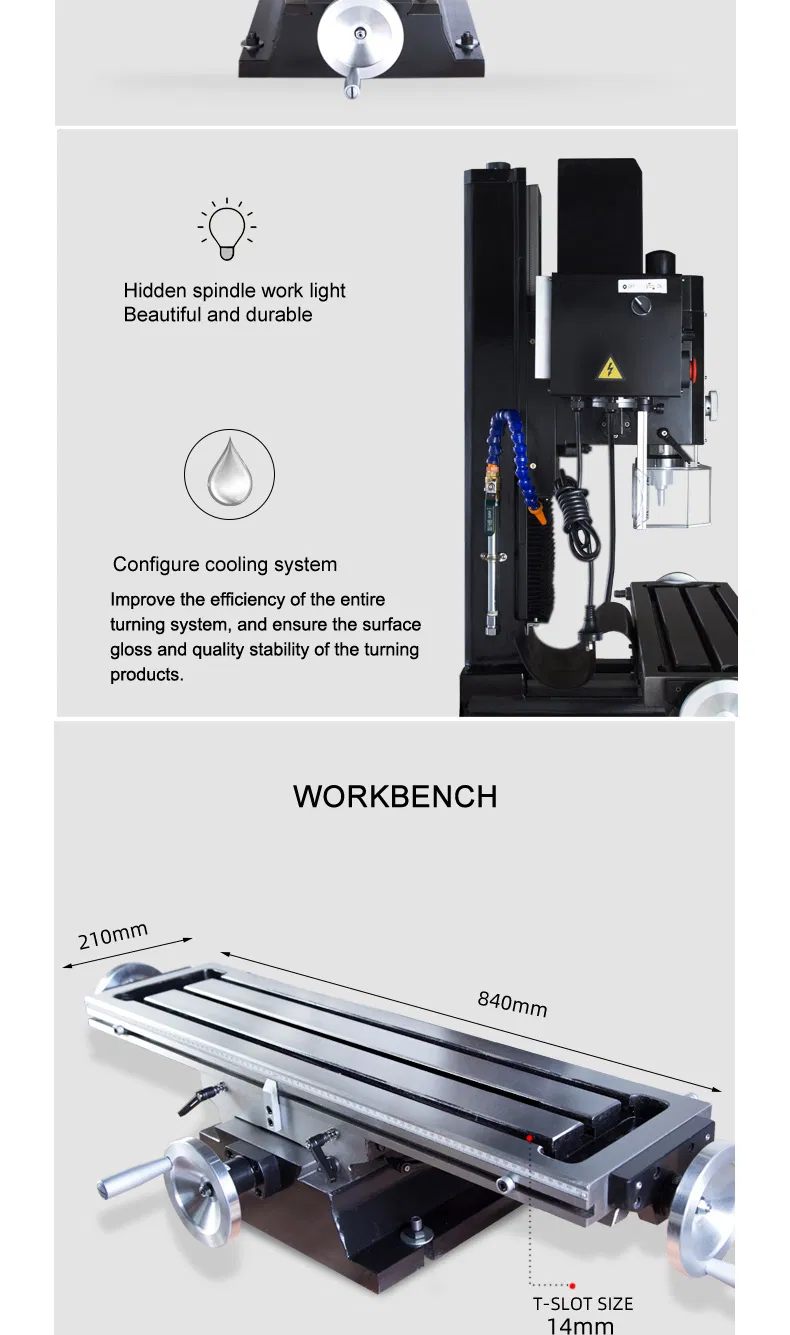

| Table size | 840*210mm |
| T-slots size | 14mm |
| X spindle travel | 570mm |
| Y spindle travel | 200mm |
| Z spindle travel | 350mm |
| Spindle taper | MT3/M12 |
| Spindle travel | 70mm |
| Distance from spindle to column guide rail | 180mm |
| Distance from spindle end to table surface | 470mm |
| Spindle box left&right rotation angle | ±90° |

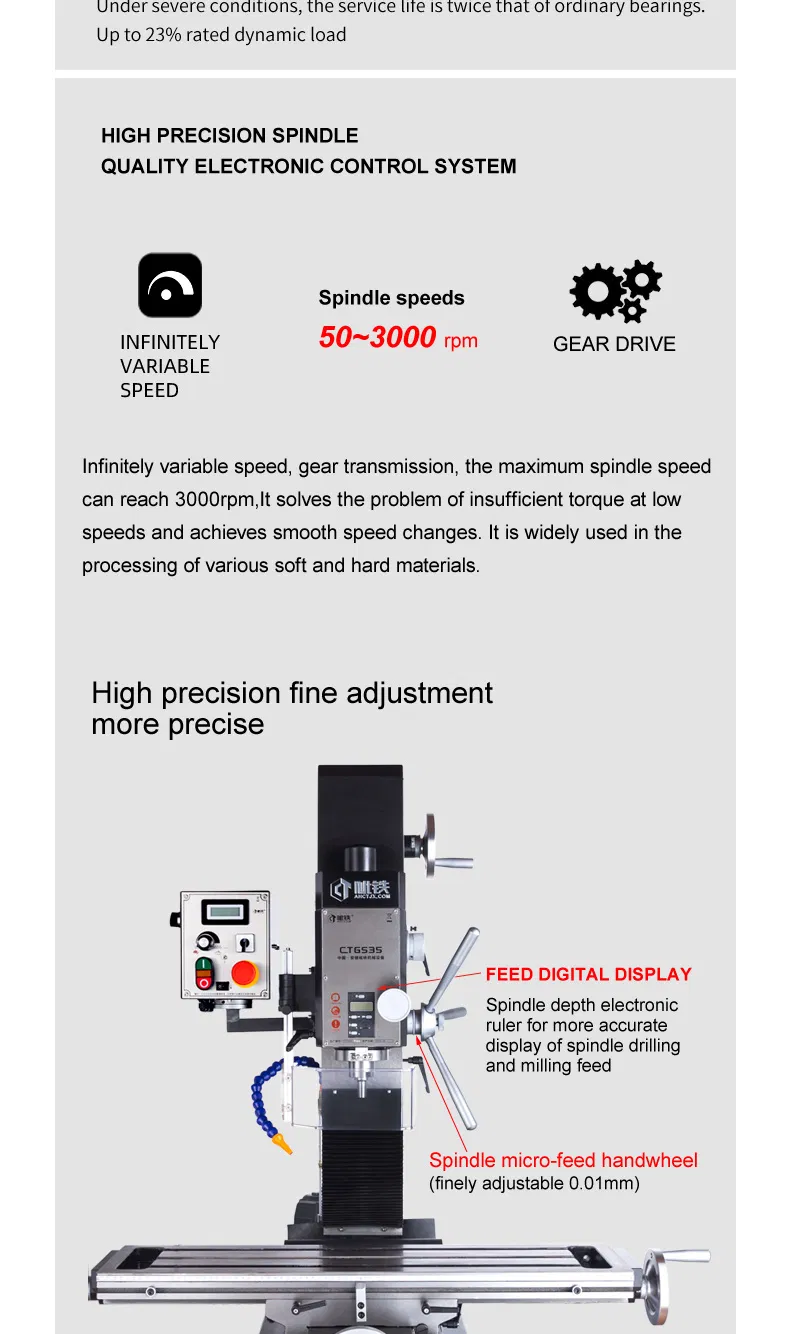

| Spindle speeds | 50~3000 rpm |
| Motor Power | 1100W |
| Net weight/Gross weight | 220/260kg |
| Package Size | 870*630*1000mm |
