China CNC Vertical Universal Gantry Table Horizontal Dividing Head Turret Plano Milling Machine for Metal
Product ParametersFeature of Universal Turret Milling Machine: Table size: Hvtm1450a/hvtm1450b: 1250*320mm; Table travel: Hvtm1450a: 600mm*300mm*350mm, hvtm1450b: 800mm*300mm*350mm. For the detailed specification of the milling machine, pls see the photo.Universal Turret Milling MachinemodelHVTM1450......
Send Inquiry
Product Description
Feature of Universal Turret Milling Machine: Table size: Hvtm1450a/hvtm1450b: 1250*320mm; Table travel: Hvtm1450a: 600mm*300mm*350mm, hvtm1450b: 800mm*300mm*350mm. For the detailed specification of the milling machine, pls see the photo.
| Universal Turret Milling Machine |
model | HVTM1450A | HVTM1450B |
| spindle taper | 7:24 ISO40 | 7:24 ISO40 |
| distance from spindle to table | 150-490mm | 150-490mm |
| distance from spindle to column | 200-550 | 200-550 |
| spindle speeds | (20 steps) 78-6980(V) 400-1300(H)rpm | (20 steps) 78-6980(V) 400-1300(H)rpm |
| table size | 1250*320 | 1250*320mm |
| table travel(X*Y*Z) | 600/300/350 | 800/300/350mm |
| feeding range of longitudinal,cross travel | (8 steps) 30-740(rapid feed 1080)mm/min | (8 steps)30-740(rapid feed 1080)mm/min |
| auto-feeding of Z-axis | 560mm/min | 560mm/min |
| T-slot(number-width-distance) | 3/14/70mm | 3/14/70mm |
| main motor power | 3.7/2.2kw | 3.7/2.2kw |
| overall dimension | 1700*1520*2260mm | 1700*1520*2260mm |
| N.W/G.W | 1550/1750kg | 1650/1850kg |
The milling machine is a kind of universal light duty metal cutting machine,
Has two functions of vertical and horizontal milling, Milling medium, small parts of the plane, inclined plane, groove and spline, etc..
Widely used in mechanical processing, mold, equipment, instrumentation and other industries.

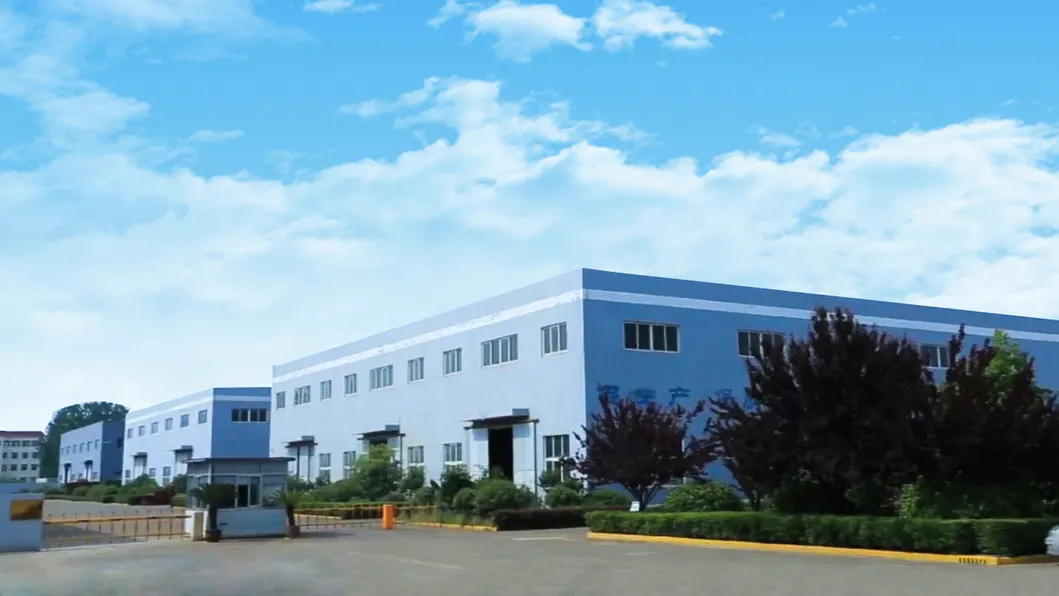

Tengzhou Hising Machine Tools Co., Ltd. is one leading manufacturer and exporter for machine tools and accessories in the south of shandong province. The main products have developed to 5 series in recent years, CNC machine center, CNC lathe, milling machine series, milling/drilling machine series, Machine tools, and Press brake & Shears altogether more than 60 specifications. With stable capability & Realiable quality, the products are good sell well at home and abroad. The machines are widely exported to more than 70 countries regions.
The corporation purpose and the quality strategy is to establish famous and high grade brand. Strict management, honest attitude and timely service is our eternal policy. At the same time, we have good relation and connection with over 100 manufacturers in China, we can help and provide most of the machine tools and accessories.
Tengzhou Hising Machine Tools Co., Ltd. Wishes to cooperate sincerely with friends at home and abroad to realize mutual development!
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
4: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
