China Vertical Turret Head Milling Machine 4H 5H Milling Machines
China Vertical Turret Head Milling Machine 4H 5H Milling MachinesProduct DescriptionDetailed PhotosProduct ParametersThe main performance characteristics: 1.M Hanna high strength cast iron, internal honeycomb rib structure, high rigidity, long service life.2.Spindle adopts imported from Japan King c......
Send Inquiry
Product Description

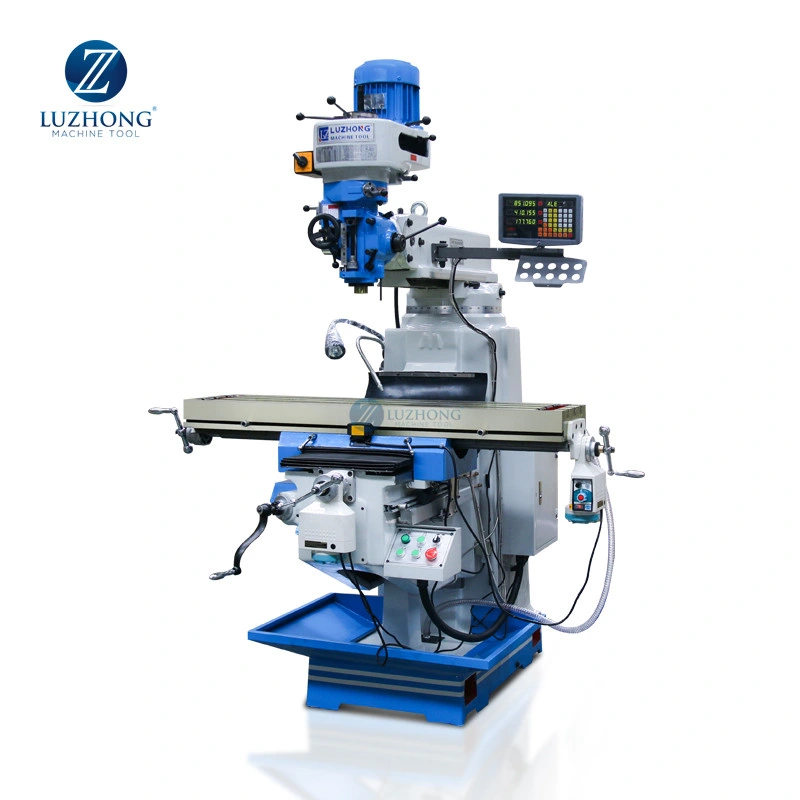

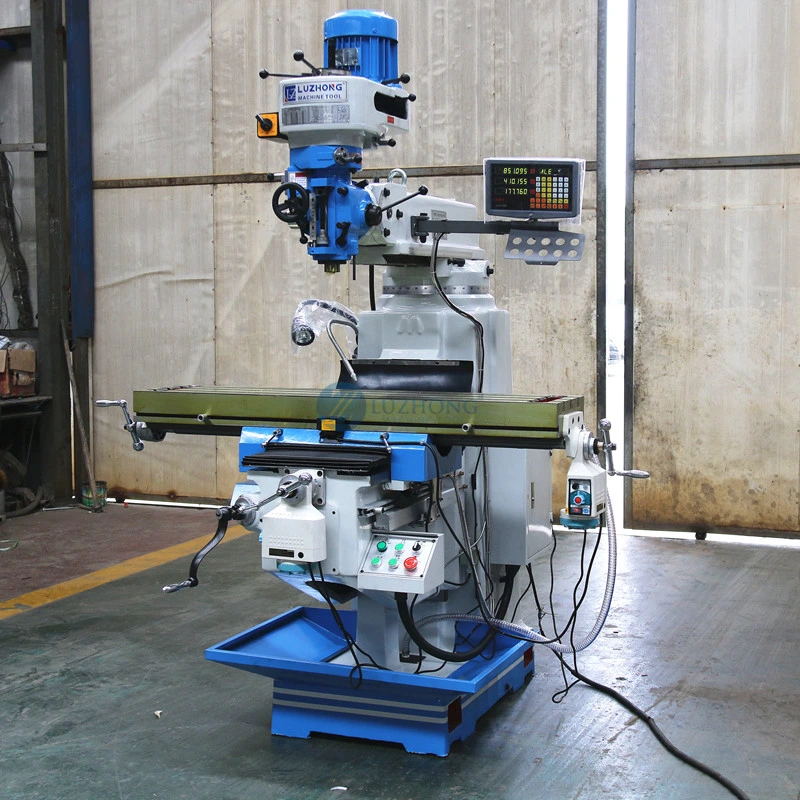

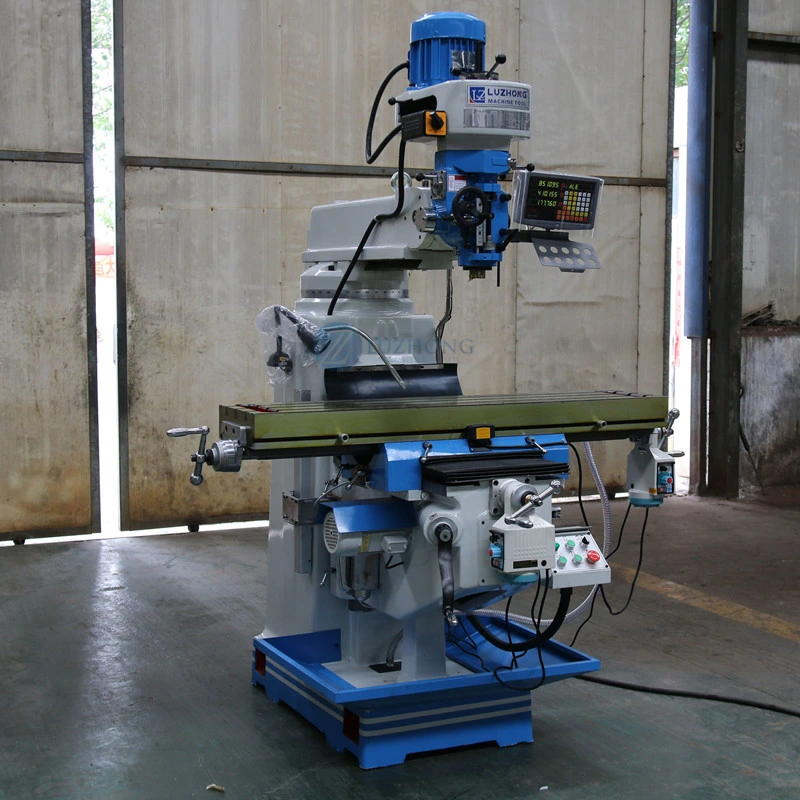

China Vertical Turret Head Milling Machine 4H 5H Milling Machines
The main performance characteristics:
1.M Hanna high strength cast iron, internal honeycomb rib structure, high rigidity, long service life.
2.Spindle adopts imported from Japan King combination diamond. After the quenching and tempering and frequency processing, after fine grinding with 4 imported bearings (other manufacturers spindle 3 bearing), ensure high quality and high precision.
3.Three shaft screw fine grinding with advanced phosphor bronze nut, durable.
4.Horizontal milling with 4 gear shaft speed (other manufacturers for the 2 gear shaft), a wide range of variable speed, torque.
Application:
The milling machine is a kind of universal light duty metal cutting machine,
Has two functions of vertical and horizontal milling, Milling medium, small parts of the plane, inclined plane, groove and spline etc..
Widely used in mechanical processing, mold, equipment, instrumentation and other industries.
Product main technical parameters:
1.M Hanna high strength cast iron, internal honeycomb rib structure, high rigidity, long service life.
2.Spindle adopts imported from Japan King combination diamond. After the quenching and tempering and frequency processing, after fine grinding with 4 imported bearings (other manufacturers spindle 3 bearing), ensure high quality and high precision.
3.Three shaft screw fine grinding with advanced phosphor bronze nut, durable.
4.Horizontal milling with 4 gear shaft speed (other manufacturers for the 2 gear shaft), a wide range of variable speed, torque.
Application:
The milling machine is a kind of universal light duty metal cutting machine,
Has two functions of vertical and horizontal milling, Milling medium, small parts of the plane, inclined plane, groove and spline etc..
Widely used in mechanical processing, mold, equipment, instrumentation and other industries.
Product main technical parameters:
| Specifications | Units | 4H | 5H | ||
| Table size | mm | 1270x254(10"x50") | 1370x305(54" x 12") | ||
| T- slot number and size | mm | 3x16 | 3x16 | ||
| Working table stroke | X | mm | 780 | 810 | |
| Y | 400 | 420 | |||
| Z | 500 | 500 | |||
| Telescopic arm stroke | mm | 470 | 500 | ||
| Spindle nose to working table distance | mm | 0-405 | 0-350 | ||
| Taper of spindle hole | Standard: R8 Optional: ISO30/ISO40 | Standard:ISO40 | |||
| Spindle speed | r/min | Standard: 16(shift grade)50HZ:65-4500 60HZ:80-5440 | Standard: 16(shift grade)50HZ:65-4500 60HZ:80-5440 | ||
| Optional:(variable)65-4000 | Optional: Variable 65-3750 | ||||
| Spindle travel | mm | 127 | 127 | ||
| Spindle feed rate | mm/r | Three steps: 0.04(0.0015")/0.08(0.003")/0.15(0.006") | Three steps: 0.04(0.0015")/0.08(0.003")/0.15(0.006") | ||
| Spindle motor power | KW/HP | 2.25/5HP | 3.75/5 | ||

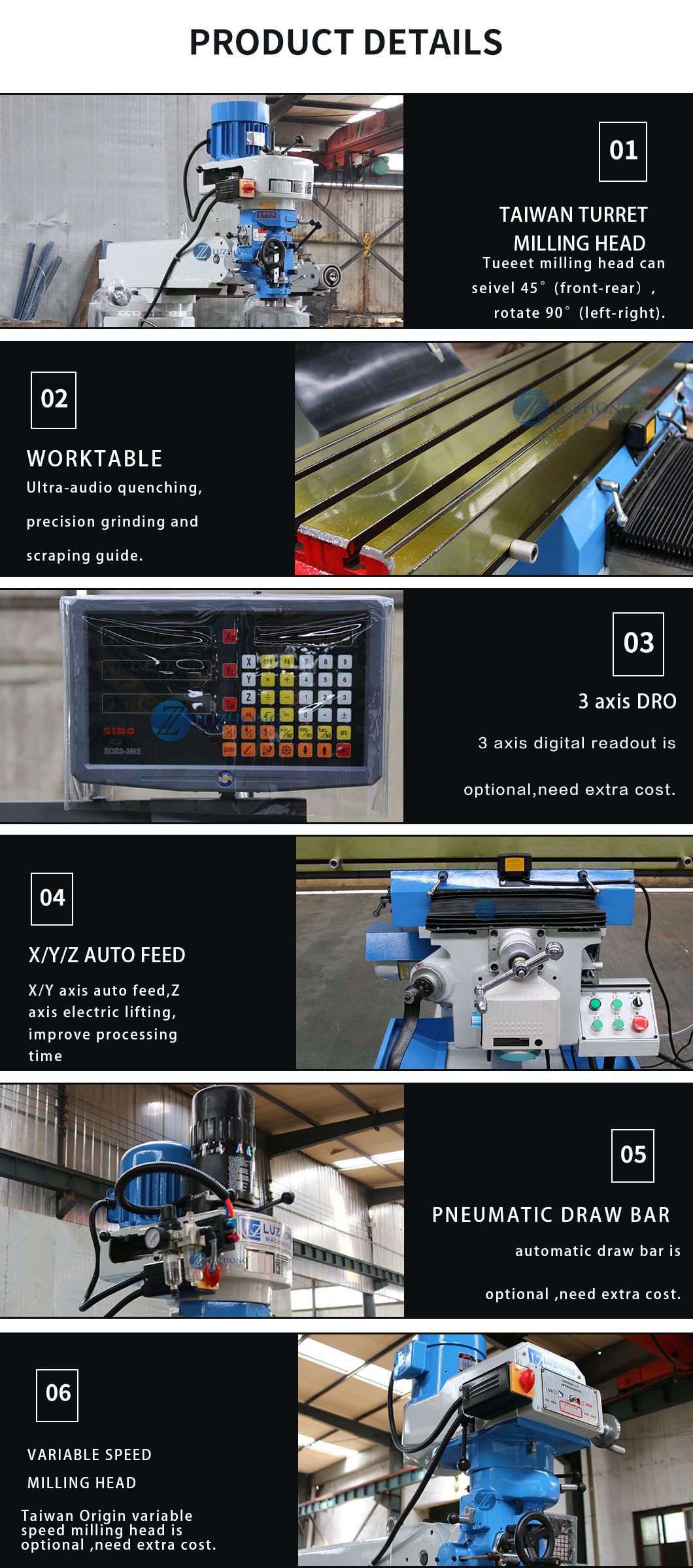

| Head rotation (left - right ) | ° | 90° | 90° | ||
| Head rotation (front - rear) | ° | 45° | 45° | ||

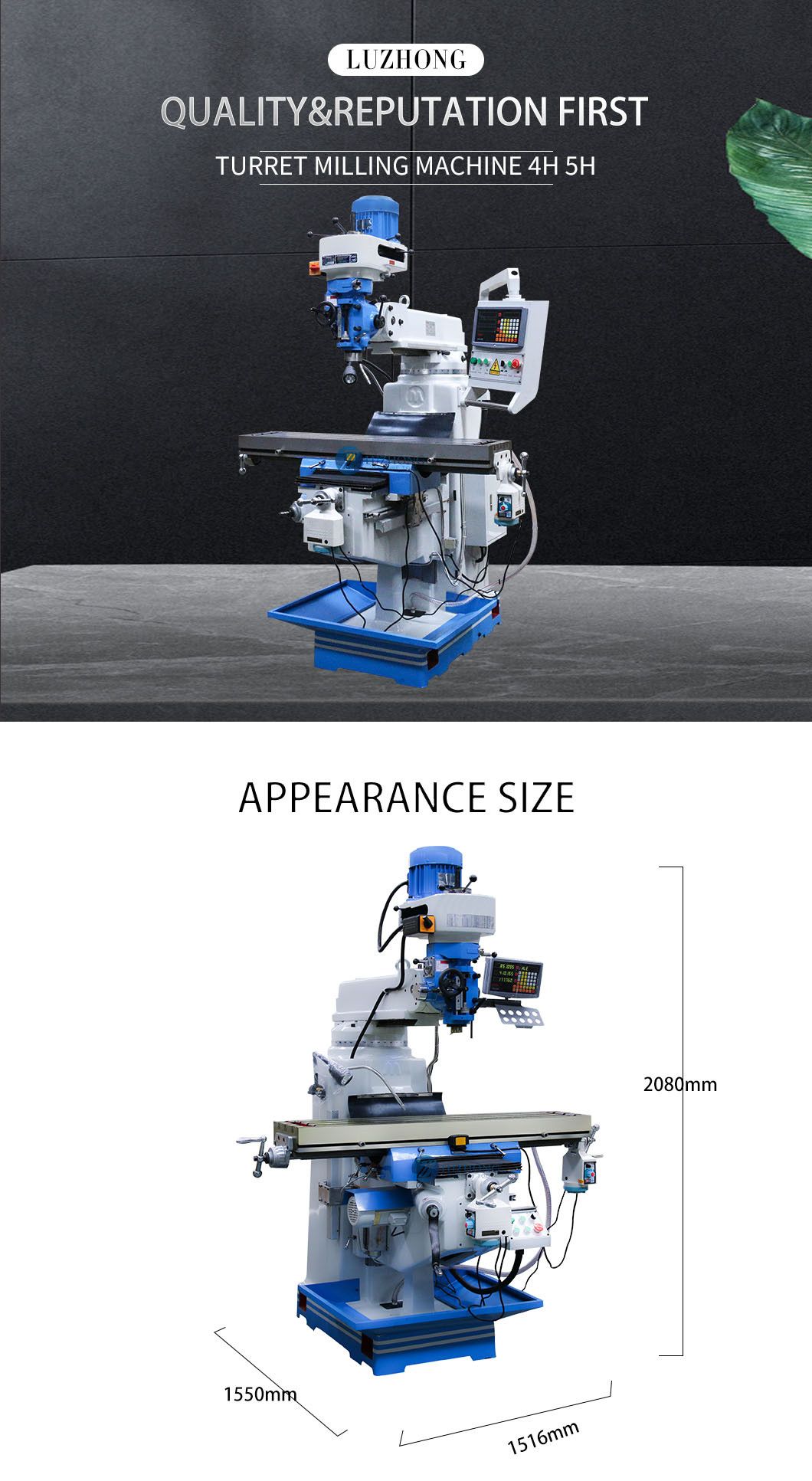

| Packaging size(Lx W x H) | Single package | mm | 1516x1550x2080 | 1566x1650x2080 | |
| Two sets of packaging | 1650x1790x2170 | 1720x1800x2175 | |||
| Three sets of packaging | 1650x2285x2235 | ||||
| Gross Weight | Kg | 1650 | 1700 | ||
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,
Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,
Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
