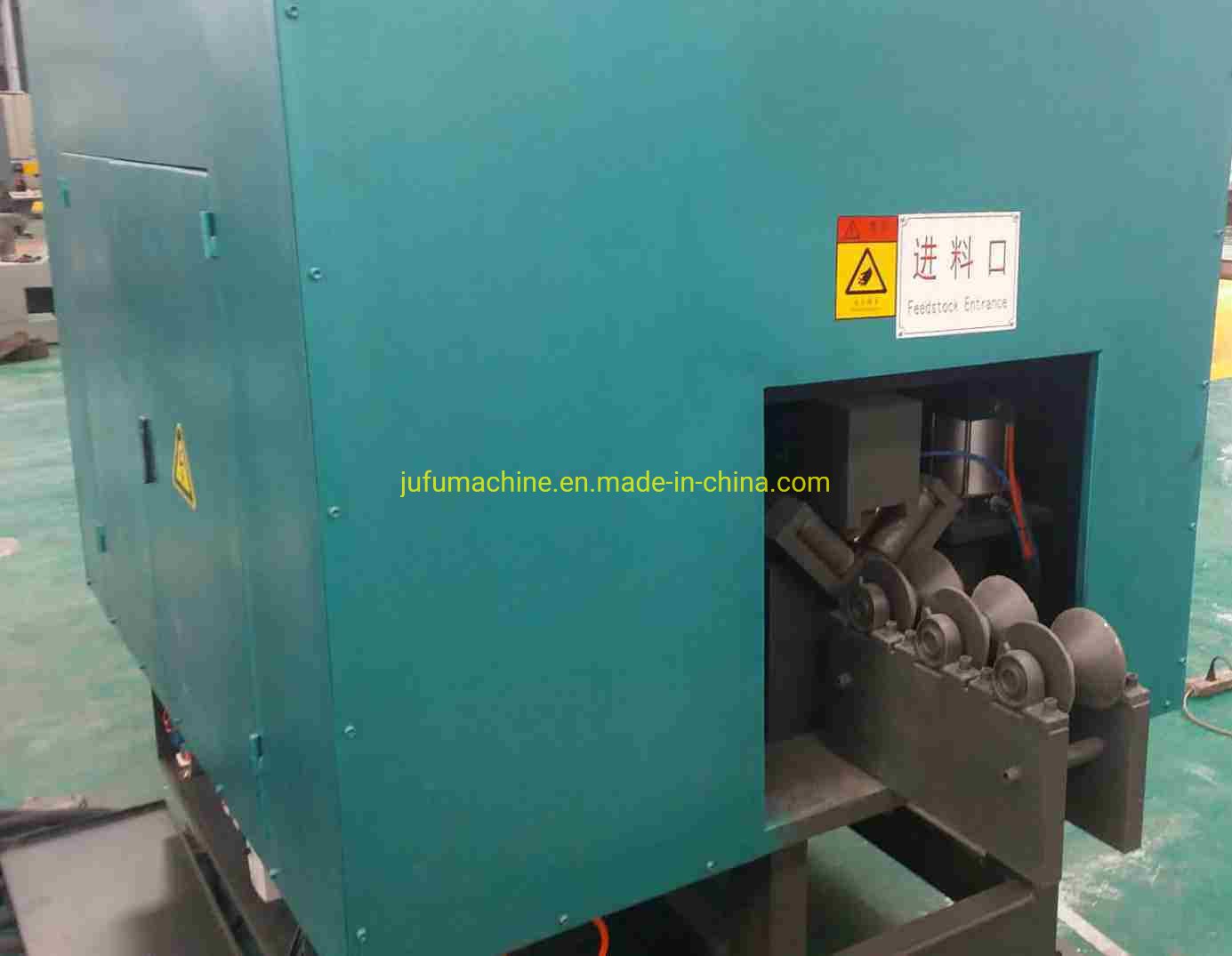

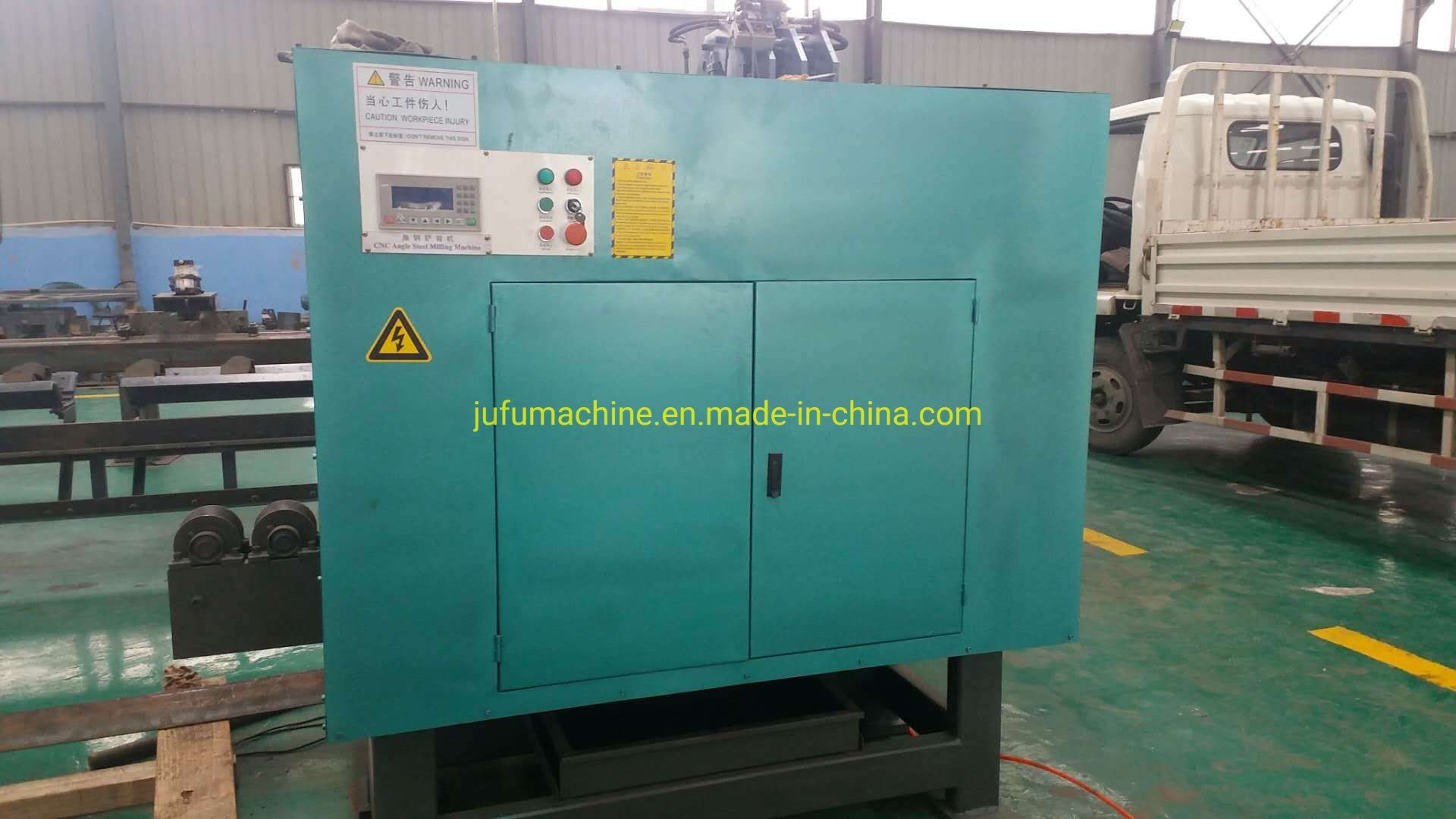

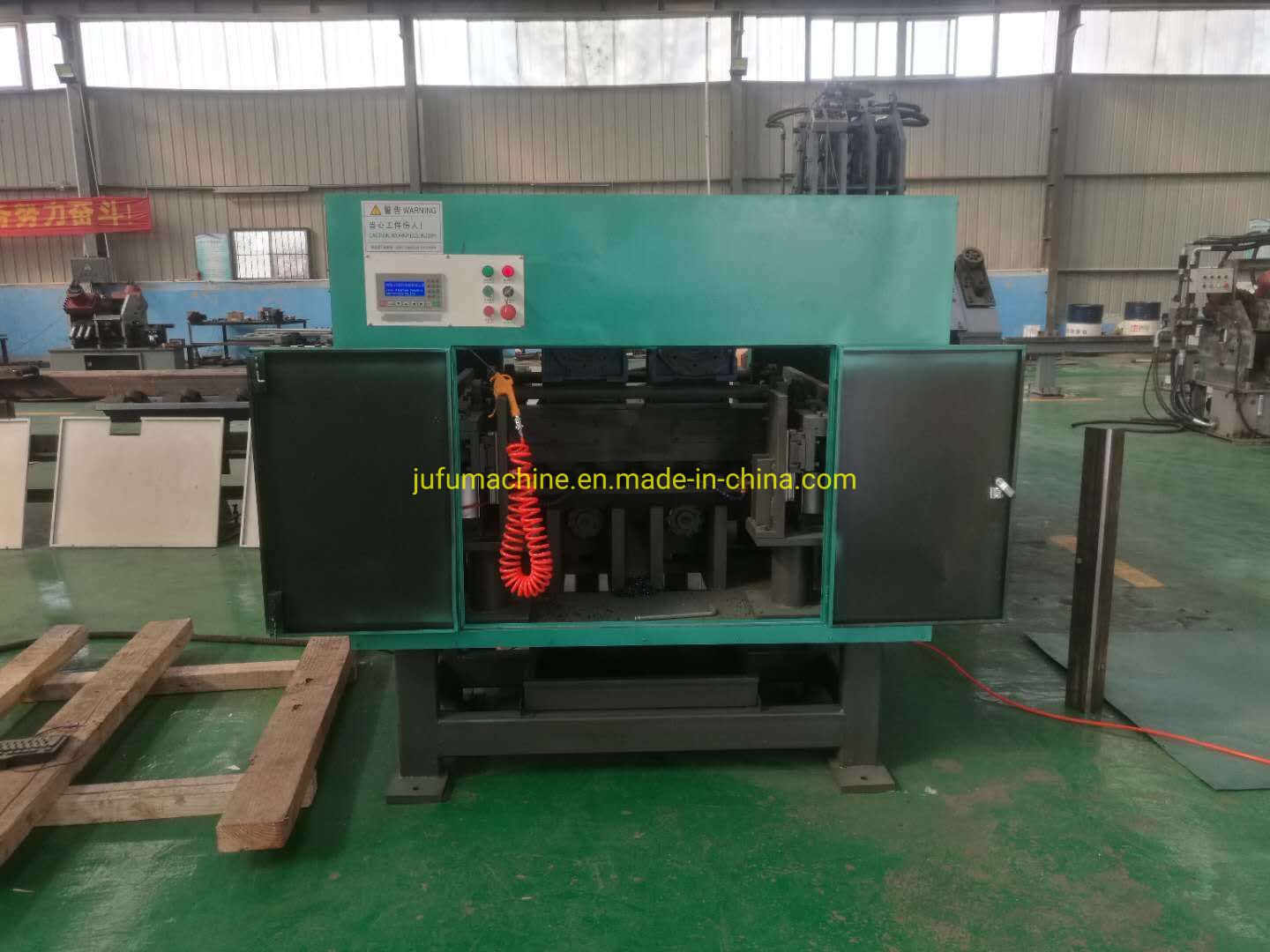

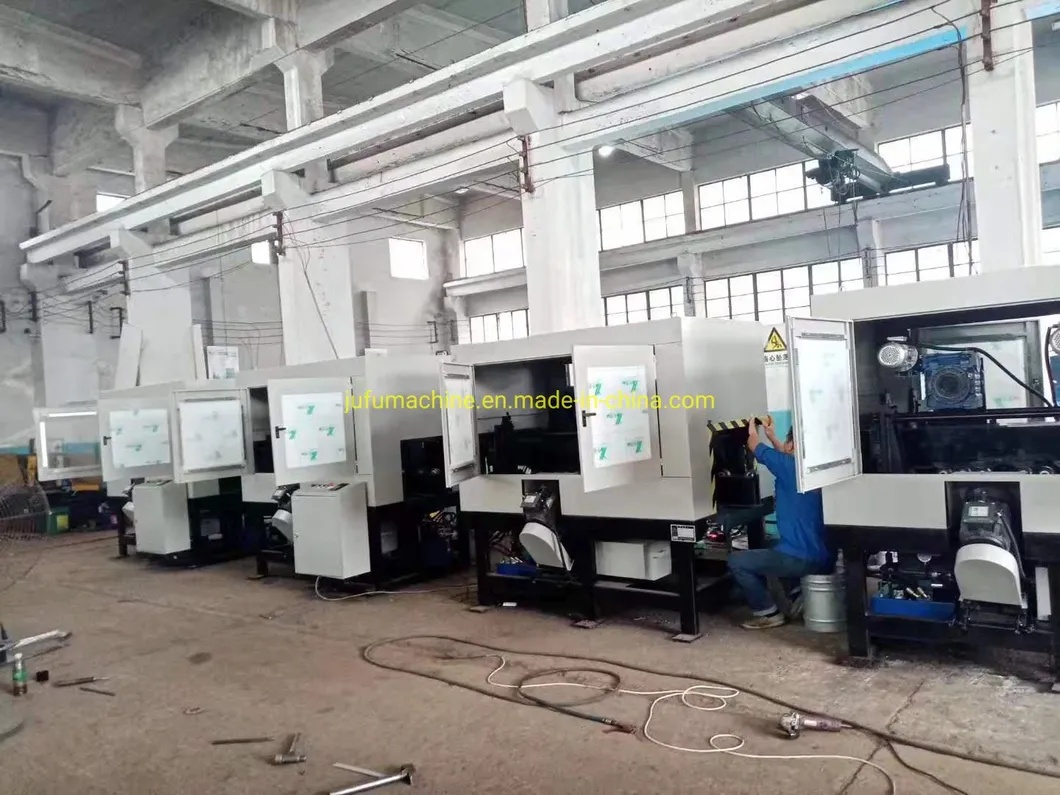

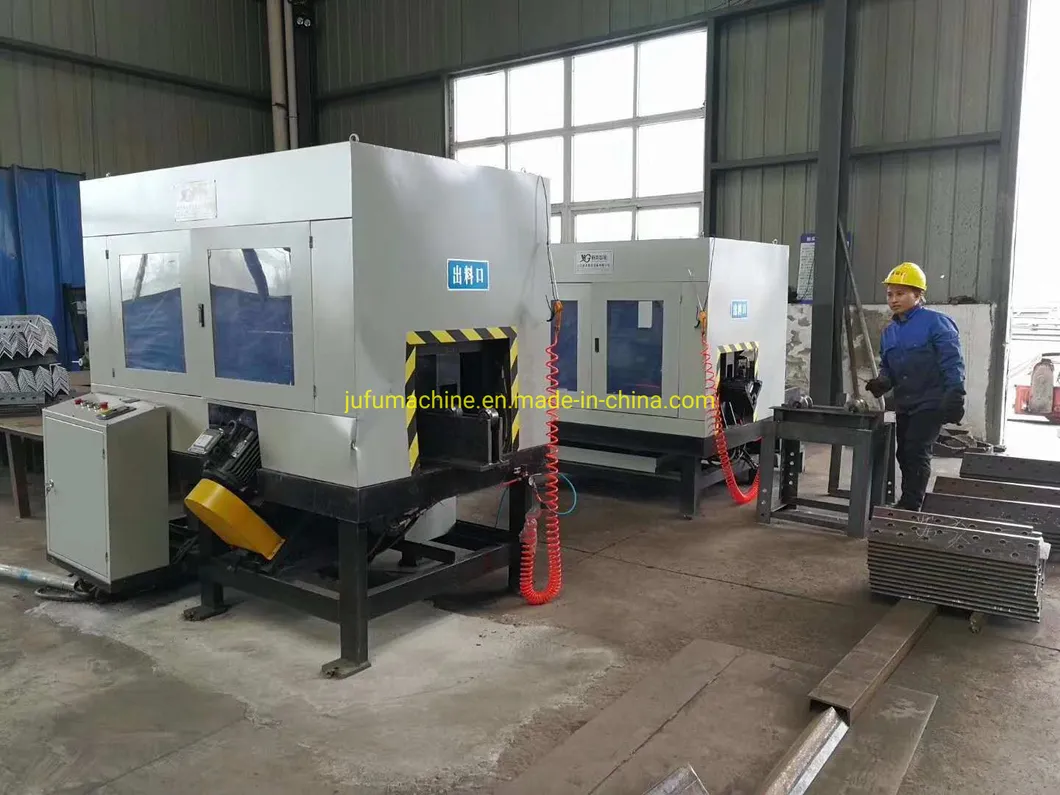

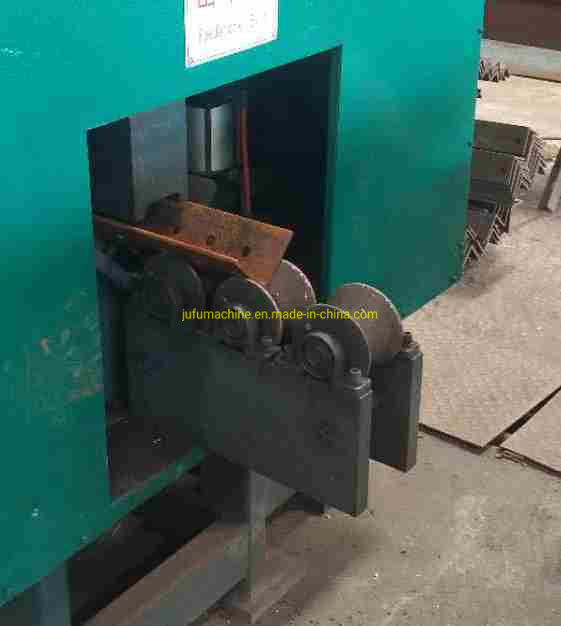

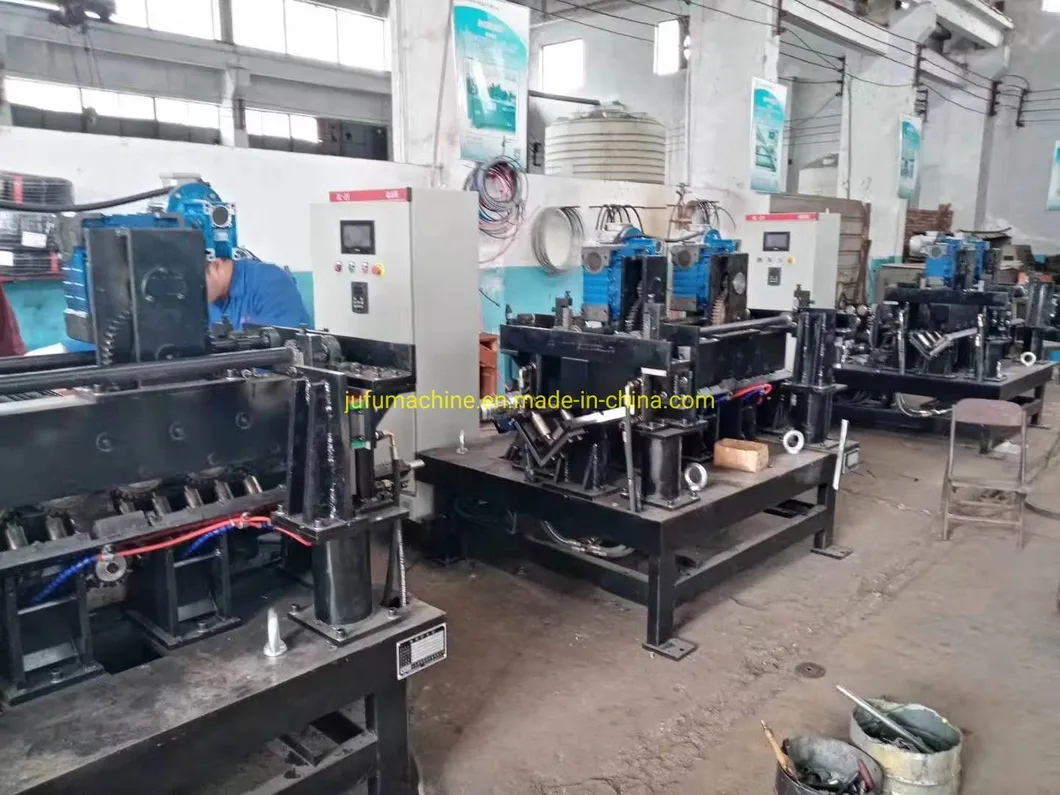

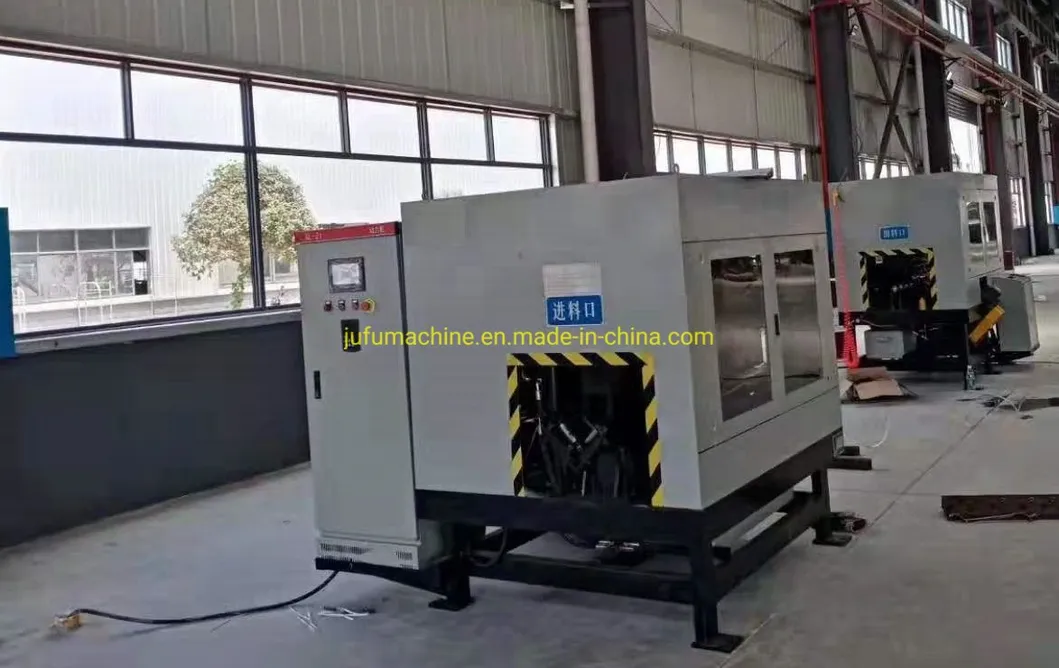

CNC Angle Steel Heel Milling Machine
CNC Angle Heel Milling Machine (Wipe off Outer) MODEL:TGC250 FEATURE:1.CNC milling principle ,it install some bites by specified facing cutter working , shovel back fast , efficiency high , workpiece surface flatness good2.This machine operate simpleness , to worker operation requirement lower3.Au......
Send Inquiry
Product Description
CNC Angle Heel Milling Machine (Wipe off Outer) MODEL:TGC250
FEATURE:
1.CNC milling principle ,it install some bites by specified facing cutter working , shovel back fast , efficiency high , workpiece surface flatness good
2.This machine operate simpleness , to worker operation requirement lower
3.Automation degree high ,it can get continuation pay-off, improve work efficiency
4.This machine overcome working length restricted clamp on fussy problem than tradition planer processing technic.
5.This machine operate simpleness , adjust flexible , run stabilize
Specification:
1.Power of motor 11 KW
2.Power single spindle 5.5KW
3.Voltage 415V+/-5%, 50Hz 3 Phase
4.Air pressure 0.6MPa~0.7MPa
5.Cutting speed 150~400 rpm
6.Cutter head diameter 120mm ( replaceable cutter blade )
7.Feed speed 230~500mm Per Minute ( Variable Frequency Drive Adjustment )
8.Spindle rotate speed 400rpm
9.Number of spindle 2 pc
10.Number pay-off motor 2 pc
11.Number swage setting air cylinder 4 pc
12.Range of process angel steel L40×40×3~L250×250×32
13.length of process angel steel 350mm~+∞
14.Computed mode: data input Touch screen have compensation function.
15.Maximum Heel cutting depth in single pass 15mm minimum.
FEATURE:
1.CNC milling principle ,it install some bites by specified facing cutter working , shovel back fast , efficiency high , workpiece surface flatness good
2.This machine operate simpleness , to worker operation requirement lower
3.Automation degree high ,it can get continuation pay-off, improve work efficiency
4.This machine overcome working length restricted clamp on fussy problem than tradition planer processing technic.
5.This machine operate simpleness , adjust flexible , run stabilize
Specification:
1.Power of motor 11 KW
2.Power single spindle 5.5KW
3.Voltage 415V+/-5%, 50Hz 3 Phase
4.Air pressure 0.6MPa~0.7MPa
5.Cutting speed 150~400 rpm
6.Cutter head diameter 120mm ( replaceable cutter blade )
7.Feed speed 230~500mm Per Minute ( Variable Frequency Drive Adjustment )
8.Spindle rotate speed 400rpm
9.Number of spindle 2 pc
10.Number pay-off motor 2 pc
11.Number swage setting air cylinder 4 pc
12.Range of process angel steel L40×40×3~L250×250×32
13.length of process angel steel 350mm~+∞
14.Computed mode: data input Touch screen have compensation function.
15.Maximum Heel cutting depth in single pass 15mm minimum.
