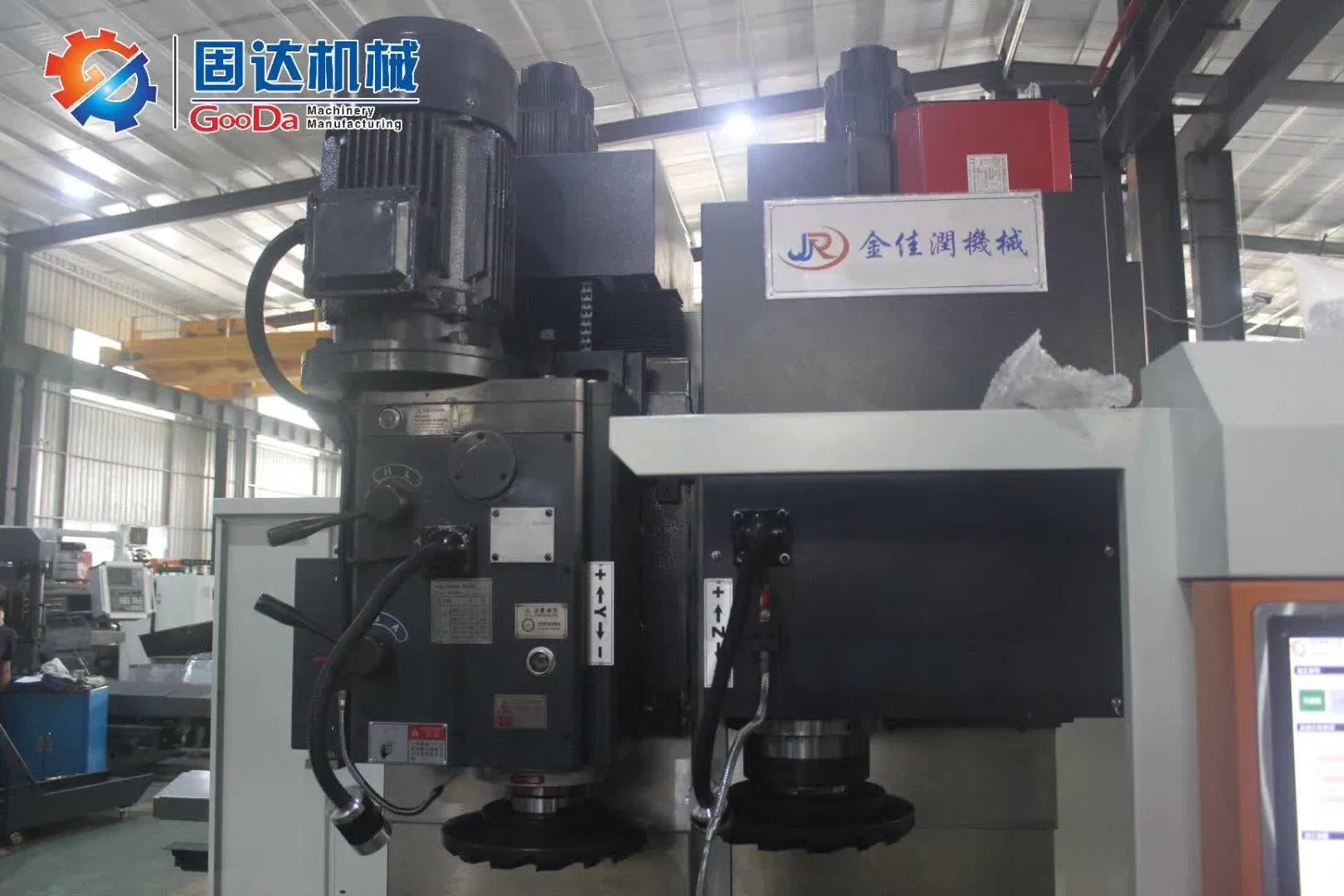

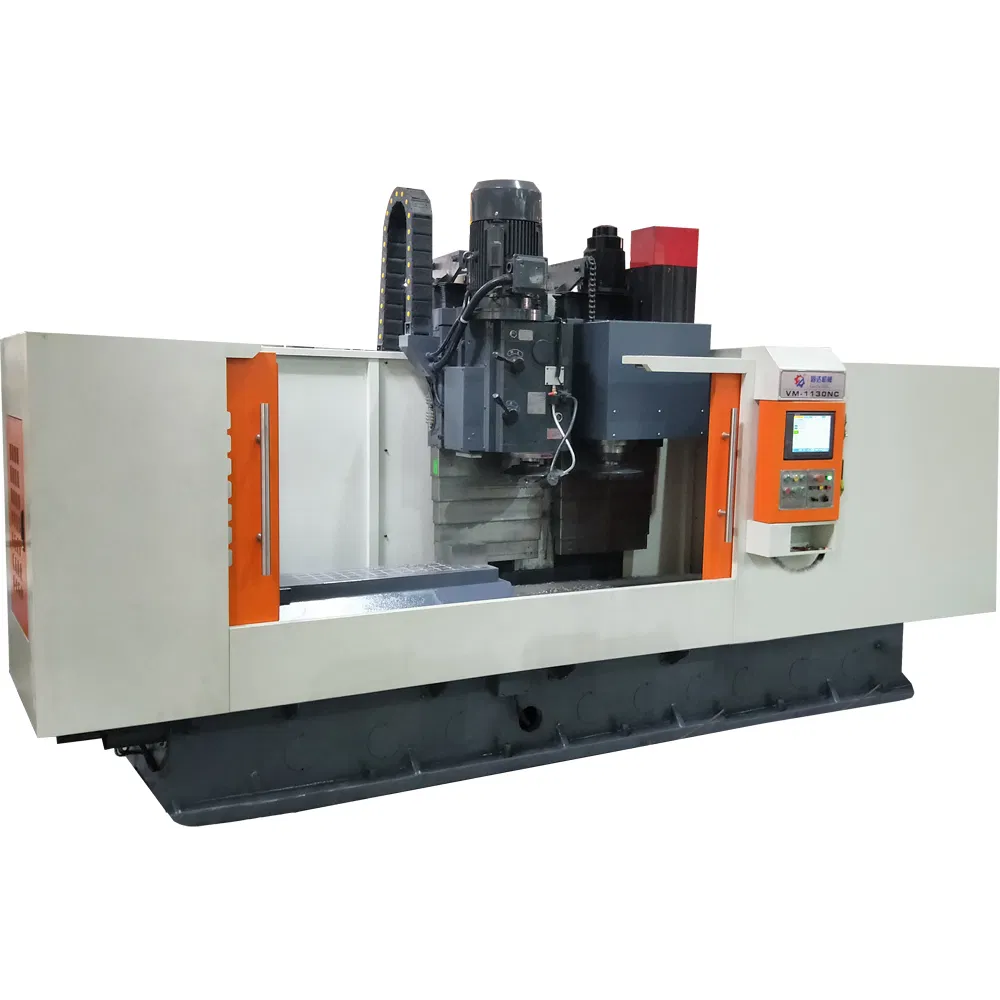

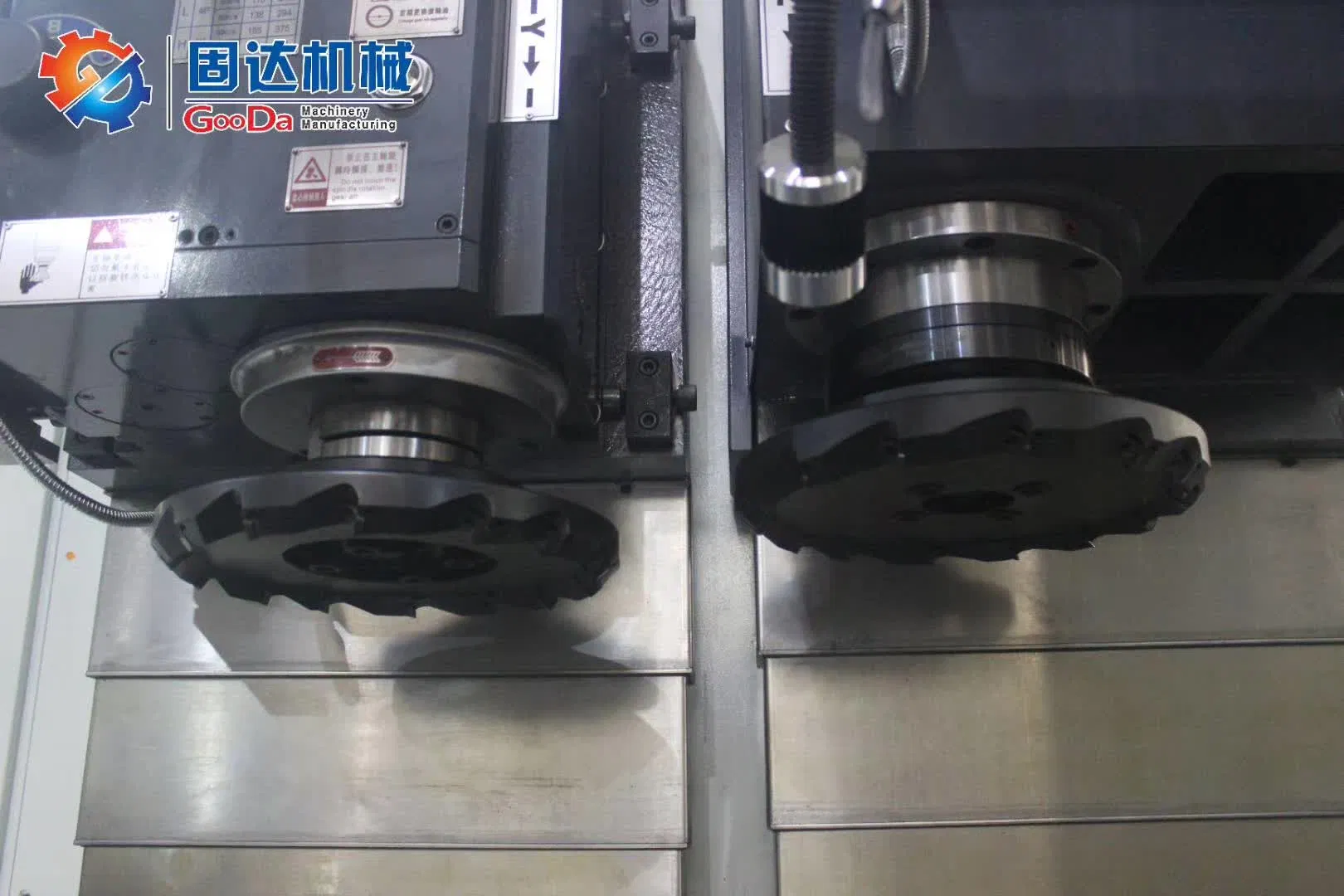

CNC Double Headed Millling Machine with Both Finish and Rough Cutters
CHINA GOODA-VM-1130NCCNC Double Headed Millling Machine With Both Finish And Rough CuttersTECHNICAL PARAMETERVM-1060NC SpecificationsNo.ItemDescriptionSpecification1ModelGOODA CNC vertical milling machineVM-1130NC2Cutting capacityCutting range mm1100*290Max.cutting thickness mm3003WorktableWorktable......
Send Inquiry
Product Description
CNC Double Headed Millling Machine With Both Finish And Rough CuttersTECHNICAL PARAMETER
| VM-1060NC Specifications | |||
| No. | Item | Description | Specification |
| 1 | Model | GOODA CNC vertical milling machine | VM-1130NC |
| 2 | Cutting capacity | Cutting range mm | 1100*290 |
| Max.cutting thickness mm | 300 | ||

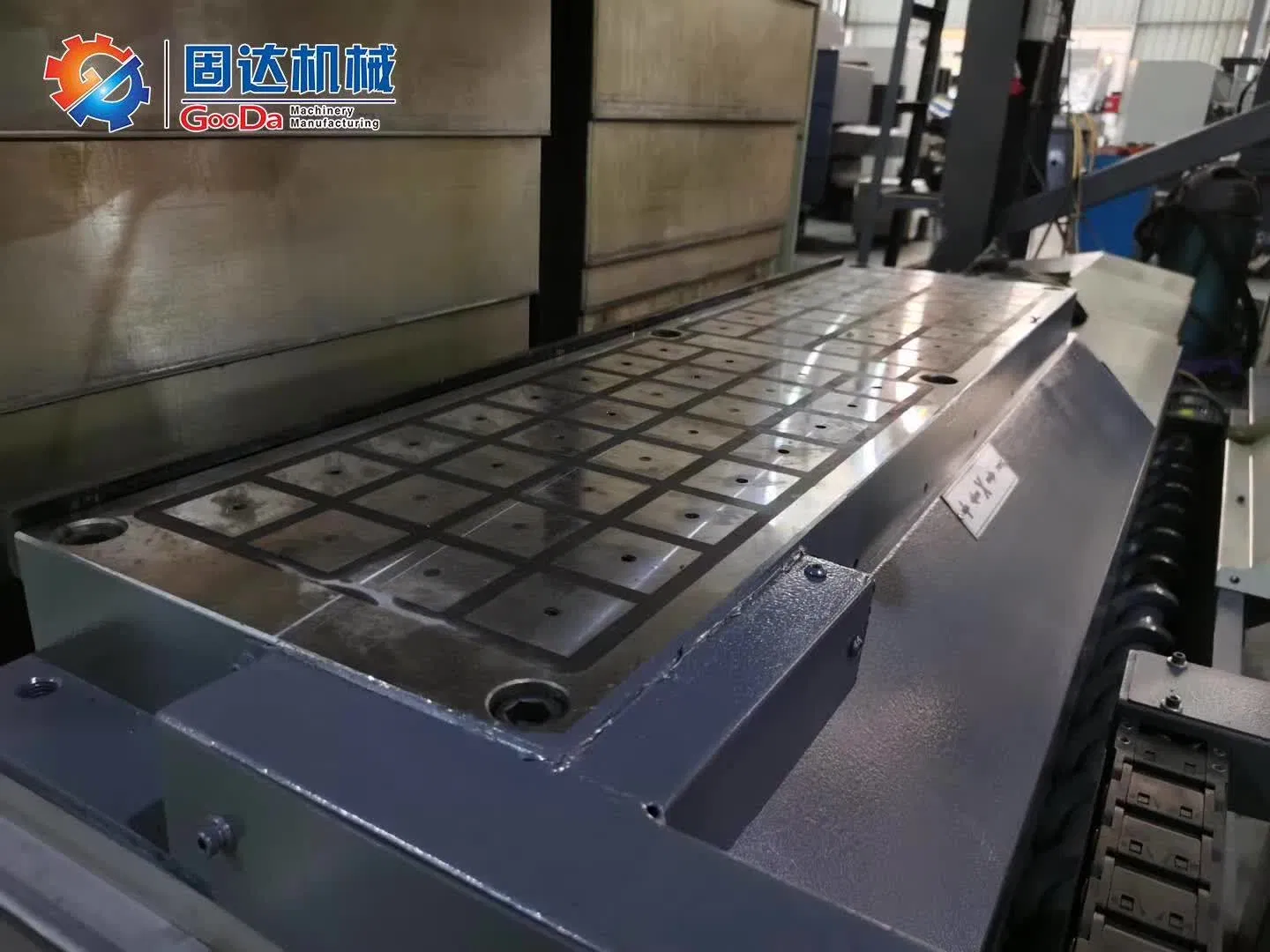

3 | Worktable | Worktable size mm | 1100*290 |
| Max loading weight kg | 1000 | ||
4 | The heavy duty milling head assembly | Spindle power kw | 15 |
| Spindle taper | BT50 | ||
| Speed rpm | 115/185/245/375 | ||
| 5 | The milling head assembly | Spindle power kw | 7.5 |
| Speed rpm | 50-500 | ||
6 | Feeding speed | X axis mm/min | 0-8000 |
| Y axis mm/min | 0-8000 | ||
| Z axis mm/min | 0-8000 | ||
7 | Motor power | X ,Y,Z axis motor kw | 3/3/3 |
| Chip remover motor kw | 0.2 | ||
| 8 | Dimension & weight | Machine area mm | 4.8*2 |
| Machine weight kg | 11000 | ||
- Automatically measure, automatically processing and excellent surface performance.
- Maintain high accuracy for dimension, squareness and parallelism.
- One loading and one setting needed only is helpful to shorten the preparation time.
- Mainly used for pre-squared steel plate and non-ferrous metal materials for flat surface.
- Machine bed base with chip removal groove.
1. What is your minimum order quantity and warranty?
MOQ is one set, and warranty is one year.
2.What CNC system do you use?
FANUC, SIEMENS, MISTSUBISHI etc. It depends on your choice.
3.When is the delivery time?
Conventional Machines,We will delivery then within 30-45 working days after received your
deposit,if some special machines will be some longer.we will give you the answer accordingly.
4. What is the package of the machines?
Packing: PE bag cover inside+ Plywood box + Steel beam frame.
5.How can I choose the most suitable machines ?
Please let us know your machining demand or machine size ,we can choose the best model
for you , or you can choose the exact model by yourself. You can also send us the products
drawing ,we will choose the most suitable machines for you .
6. What is your trade terms?
FOB, CFR,CIF or others terms are all acceptable.
7. What is your payment terms ?
Payment Terms : T/T 30% advance , 70% before shipment.

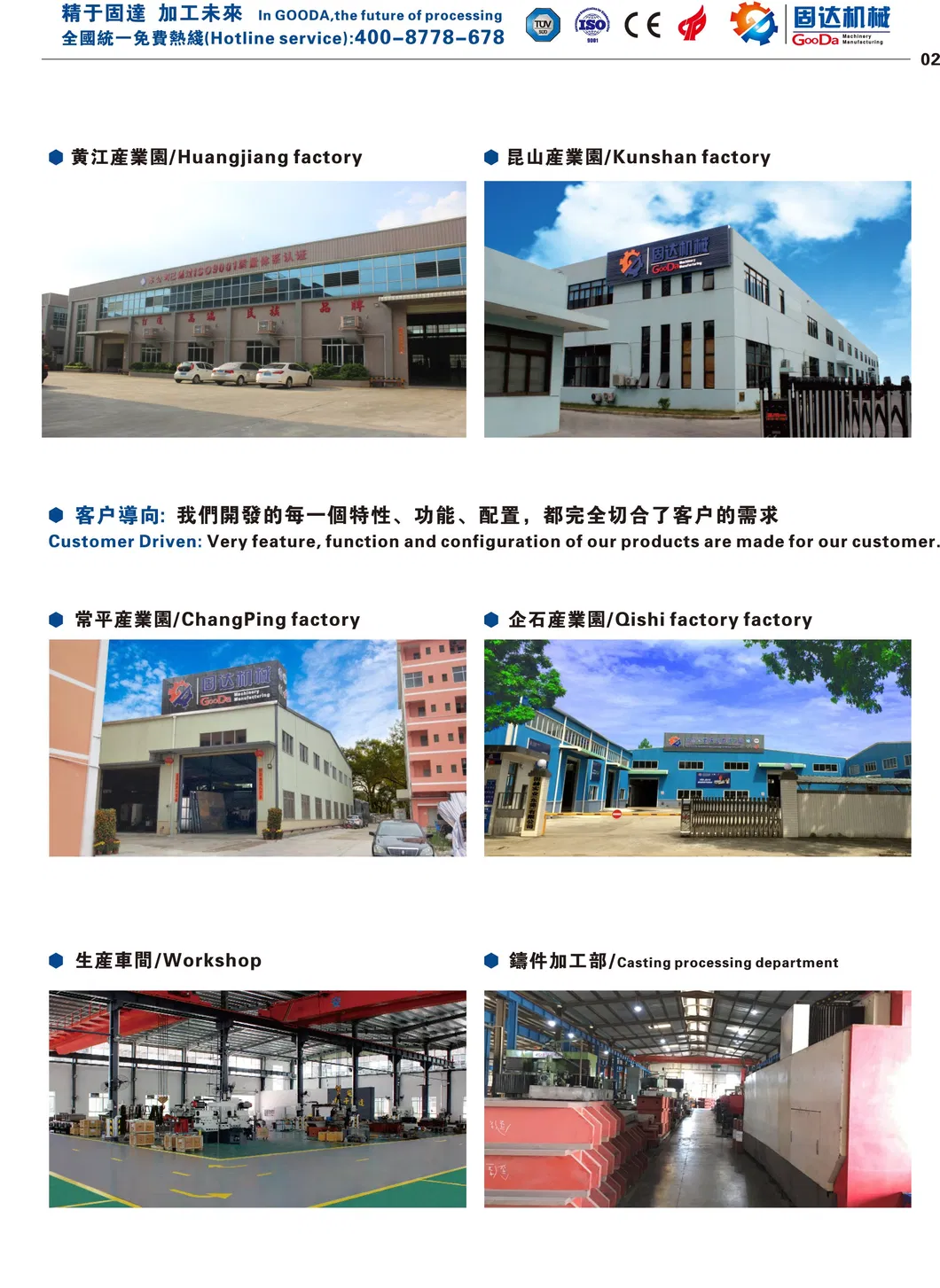

Company Profile
We are the first manufacturer to produce the high-end CNC machine in China, who focusing on developing and supplying the high efficiency, high accuracy, and high quality of CNC Duplex Milling Machine, Exchange-Pallet Vertical CNC Milling Machine,CNC Gantry Grinding Machine,5-Axis High Speed Gantry Machining Center , CNC High Speed Saw Machine and CNC Chamfering Machine.
Our aspiration is to be flexible in implementing customer requirements, guarantee the high reliability of the milling machine, ensure that spare parts are available at short notice and facilitate the prompt availability of service engineers.

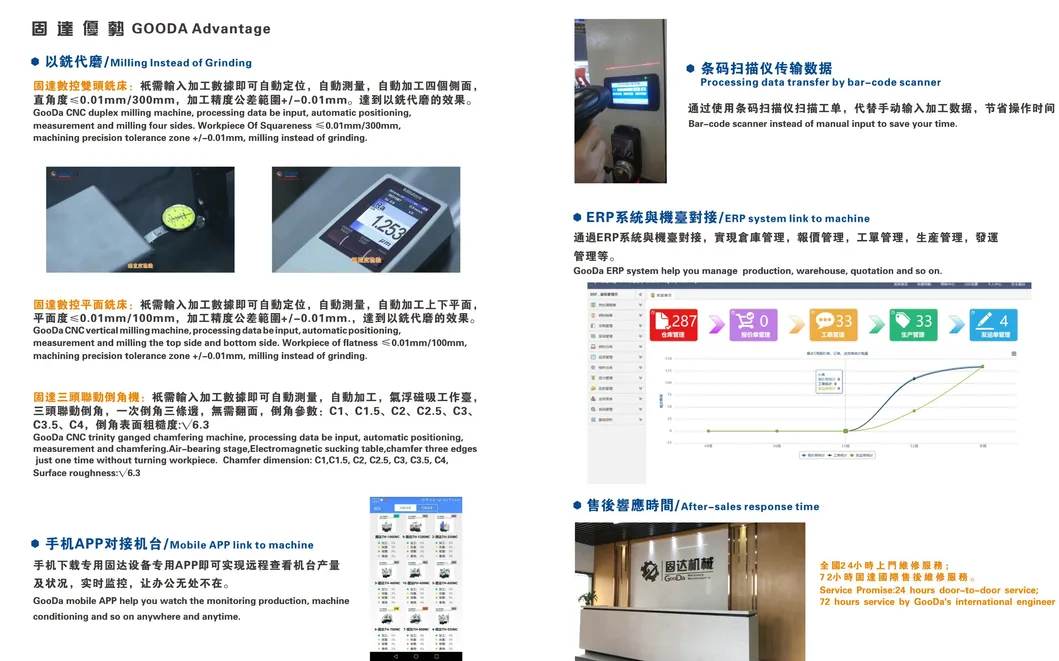

Advantage
Certification
Maintenance and repair
The benefits of GOODA maintenance contract (After sales 3 years):
- Basic requirement in a certified QS system
- Guarantee for the accuracy of the measuring and test results
- Calibration, maintenance and, if necessary, repair with just one visit
- Fixed prices with a clear breakdown of costs
- Preventive maintenance helps you avoid expensive faults and ensures a high level of quality that lasts
The maintenance contract includes:
- Travelling time and expenses for our technician
- Maintenance and calibration work
- Small items required for carrying out the specified maintenance work
- Calibration with a corresponding maintenance and test report, allowing the results to be used to demonstrate compliance with national standards
