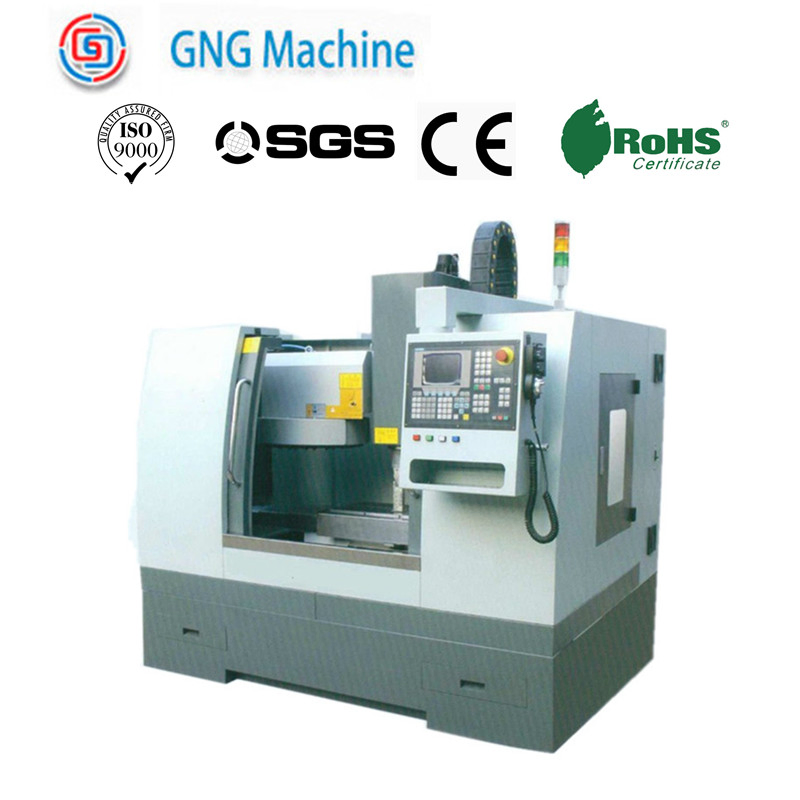

CNC Drilling&Milling Center Vmc550L
Min. Order Quantity: 1 Set/SetsSupply Ability: 100 Set/Sets per MonthPort: Qingdao/ShanghaiPayment Terms: T/TQuick DetailsCondition: NewPlace of Origin: Shandong, China (Mainland)Brand Name: GNGModel Number: VMC550LType: VerticalCNC or Not: CNCVoltage: 380VPower(W): 5500WCertification: CEWarranty: 1......
Send Inquiry
Product Description
Min. Order Quantity: 1 Set/Sets
Supply Ability: 100 Set/Sets per Month
Port: Qingdao/Shanghai
Payment Terms: T/T
Quick Details
Condition: New
Place of Origin: Shandong, China (Mainland)
Brand Name: GNG
Model Number: VMC550L
Type: Vertical
CNC or Not: CNC
Voltage: 380V
Power(W): 5500W
Certification: CE
Warranty: 1year
After-sales Service Provided: No overseas service provided
Packaging & Delivery
Packaging Details: Steel bottom plywood case
Delivery Detail: Complete machine 60days. Frame 45days
Specifications
CNC vertical machine center
Able to mill steel, copper, aluminum, wood and plastic

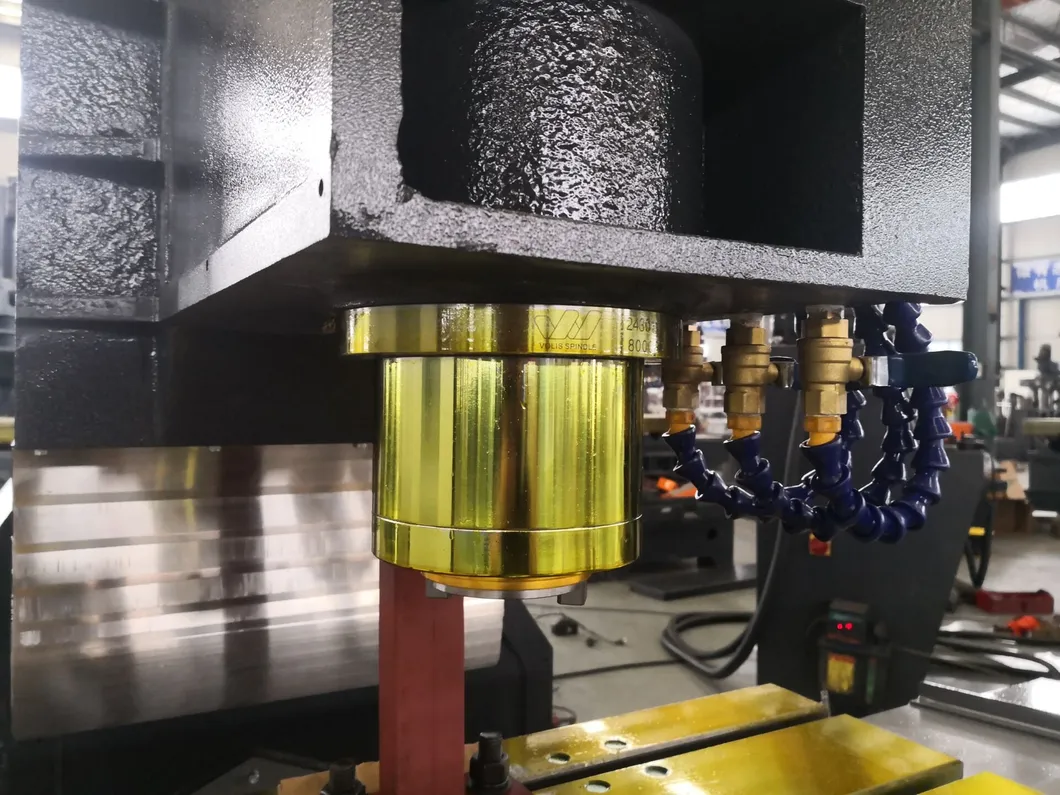

Taiwan spindle, Taiwan linear guideways
CNC vertical machine center VMC420L
Table size LxW: 800X260
T slot QTY/width/center distance: 5-16-50
Maxload(KG): 150
X travel (mm): 420
Y travel (mm): 270
Z travel (mm): 410
Spindle nose to table(mm): 70-480
Spindle center to column(mm): 315
Spindle taper: BT30
Max spindle speed(rpm): 6000 or 8000
Main motor: 2.2KW
X torque(N. M): 4
Y torque(N. M): 5
Z torque(N. M): 6
Max. Install size XY: Square 110X110 diameter 95
Max install size Z: Square 130X130 diameter 110
Rapid moving speed(m/min): 10
Cuttingg speed(mm/min): 1-4000
Ball screw(diameter mm/pitch) XY: 20/5
Ball screw(diameter mm/pitch)Z: 25/5
Linear guide way width (mm) XY: 20
Linear guide way width (mm)Z: 25
Positioning accuracy (mm): 0.016
Repeatability accuracy(mm): 0.008
Funnel type (optional) BT30: 10 or 8
Tool change time (s): 8
Air pressure MPa: 0.6
Frame machine weight: 800Kg
Complete machine weight: 1300Kg
Frame machine overall size: 830X1000X1800mm
Complete machine overall size: 1900X1400X2100
VMC420L mini machine center:
Able to mill steel, copper, aluminum, wood and plastic
Taiwan spindle, Taiwan linear guideways
Complete machine: Standard with external handwheel, tri-colour light, lubrecation, coolant system.
Complete machine standard with RS232 interface

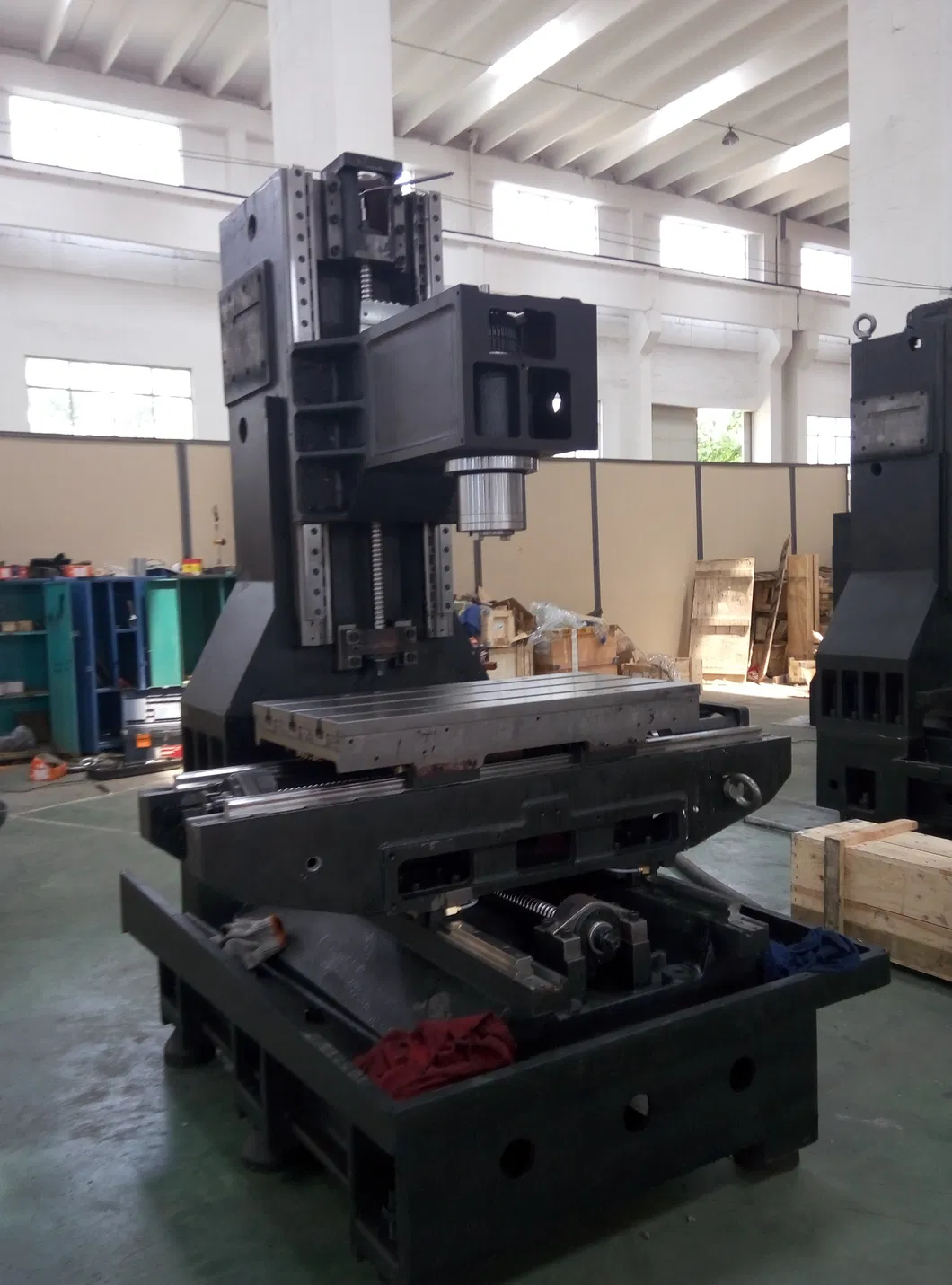

Frame is with lubrecation, without controller, without any electrial parts
Tool:
Suggest max tools length(BT30): 200mm
Suggest max tools weight(BT30): 5KG
Suggest max tools diameter(BT30): 16mm
ATC(automatic tool changer):

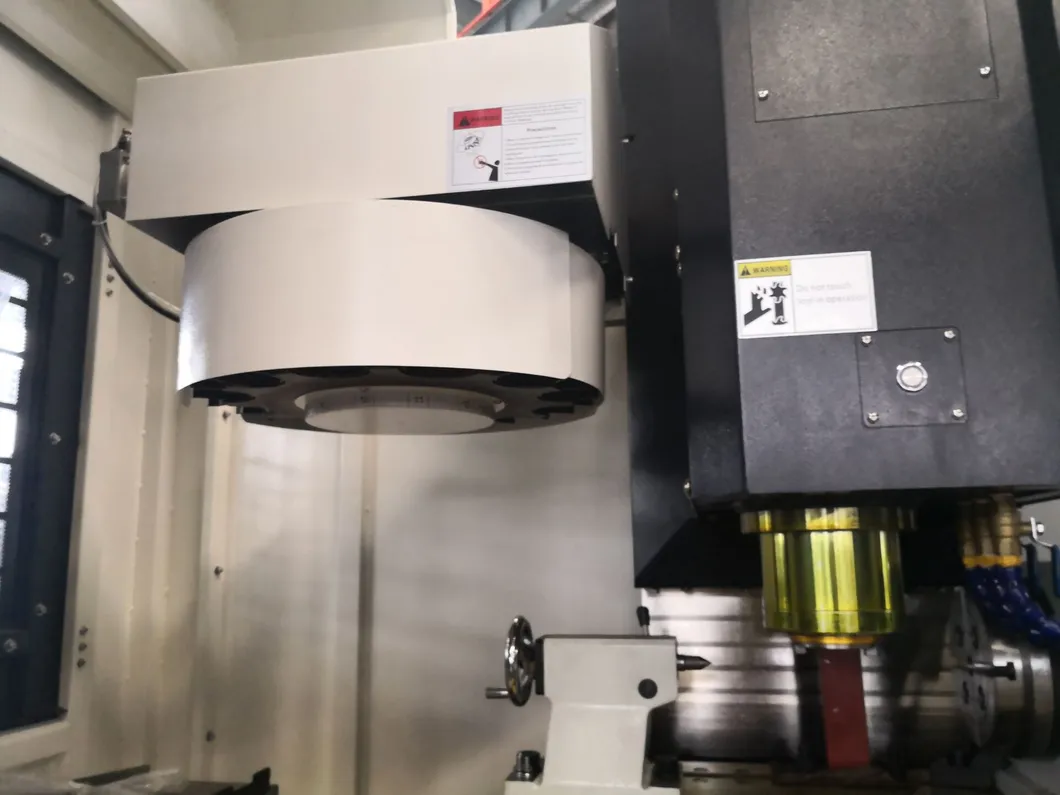

Standard: Funnel type tool changer (BT30, 8 or 10 tools)
Optional: Manipulator tool changer (different price)
Controller:
Standard: GSK218M or KND1000M2 controller(with regid tappering function)
Optional: Siemens 802C control panel with servo motor and servo driver made in China.
Motor:
When machine is with ATC. Spindle motor is servo motor. 2.2KW, torque 14NM
When machine is without ATC. Spindle motor is frequency motor, 2.2KW, torque 14.5NM
X, Y, Z axes are all servo motors
Accessories:
Complete machine is with standard accessories: 1PC tool holder, 1PC pull stud, 1set collects, 1PC spanner, 1PC direct screw driver, 1PC Philips screwdriver
Optional accessories: 1.4th axis. 2. Rotary table(price sepreated)
Power:
Please inform power voltage and current. If transfomer is needed. Price would be different.
| NO. | ITEM | SPECIFICATION | |||
| 1 | Table size L(mm)× W(mm) | 800× 320 | |||
| 2 | T slot QTY /width/interval distance(mm) | 3-14-100 | |||
| 3 | Maximum load(KG) | 300 | |||
| 4 | X travel (mm) | 550 | |||
| 5 | Y travel (mm) | 340 | |||
| 6 | Z travel (mm) | 460 | |||
| 7 | Spindle nose to table (mm) | 100-470 | |||
| 8 | Spindle center to column (mm) | 380 | |||
| 9 | Spindle taper | BT40 | |||
| 10 | Max. spindle speed (Rpm) | 8000 | |||
| 11 | Main motor kW | 5.5 | |||
| 12 | Feed motor | X torqueN. M | 5 | ||
| Y torqueN. M | 6 | ||||
| ZtorqueN. M | 6 | ||||
| Max. install size | 5.5 | ||||
| 13 | Rapid moving speed (m/min. | 12/12/10 | |||
| 14 | Cutting speed mm/min | 1-5000 | |||
| 15 | Ball screw diametermm/pitch mm | 32/10 | |||
| 17 | Accuracy | Positioning accuracy (mm) | 0.016 | ||
| Repeatability accuracy (mm) | 0.008 | ||||
| 18 | Tool changer | Funnel type (optional ) BT40 | 10 or 16 | ||
| 19 | Air pressure Mpa | 0.6 | |||
| 20 | Machine weight (kg) | Frame | 2000 | ||
| Complete machine | 2500 | ||||
| 21 | Machine overall size: | Frame | 1600x1860x2100 | ||
| L(mm)× W(mm)× H(mm) | Complete machine | 2200x1600x2300 | |||
