CNC Duplex/Twin Head Milling Lathe CNC Milling Machine- Prefect CNC Two Head Milling Machine for Steel Plate Gear Type
LC-600NC CNC DUPLEX MILLING MACHINE Super (Belt drive)Product Introduction Once setting parameter in CNC system, it can be automatic positioning,automatic measurement,six-side processing, which can reduce working intensity, increase productivity and ensure high accuracy for dimension/squareness/para......
Send Inquiry
Product Description

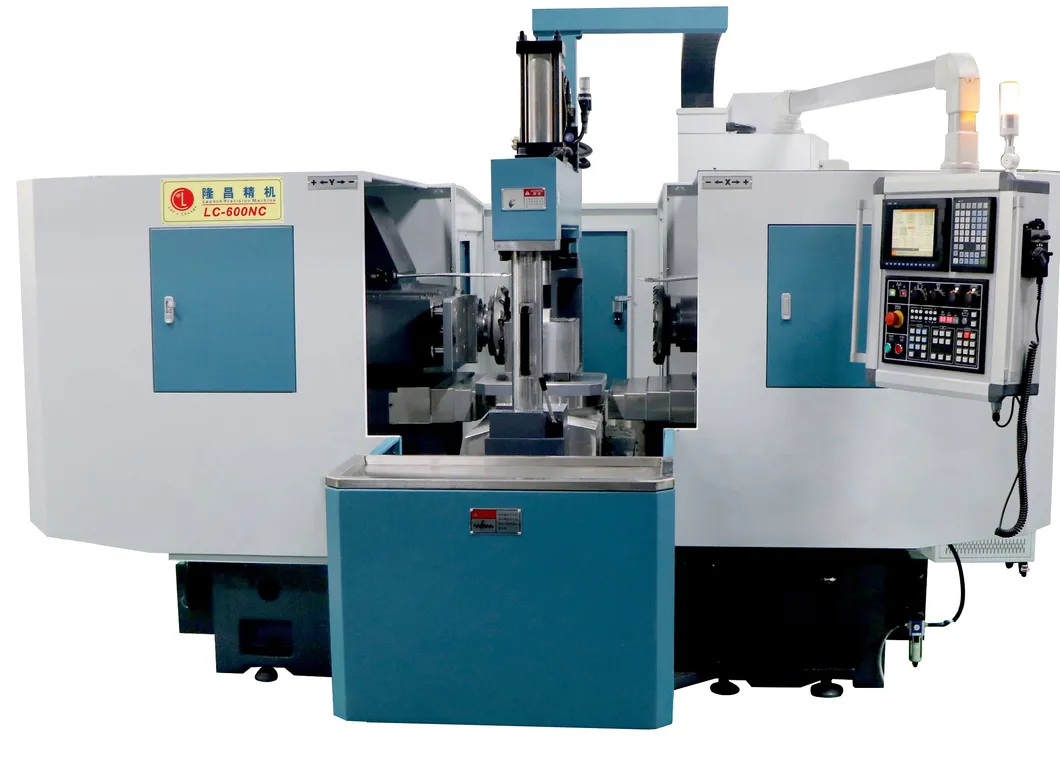

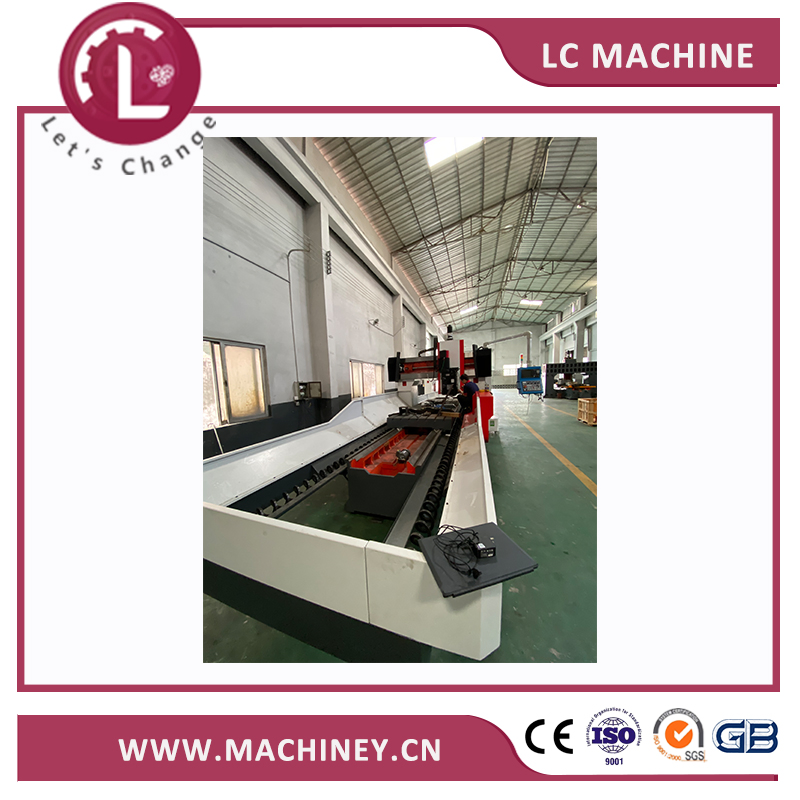

LC-600NC CNC DUPLEX MILLING MACHINE Super (Belt drive)
Product Introduction

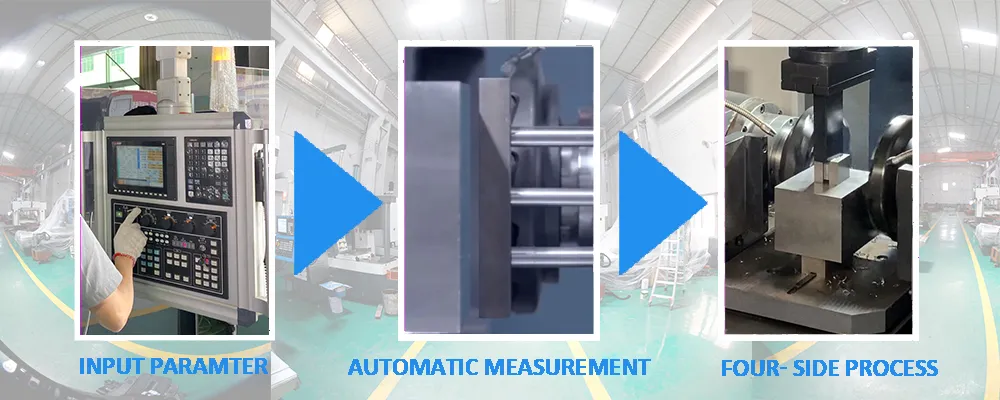

Once setting parameter in CNC system, it can be automatic positioning,automatic measurement,six-side processing, which can reduce working intensity, increase productivity and ensure high accuracy for dimension/squareness/parallelism.

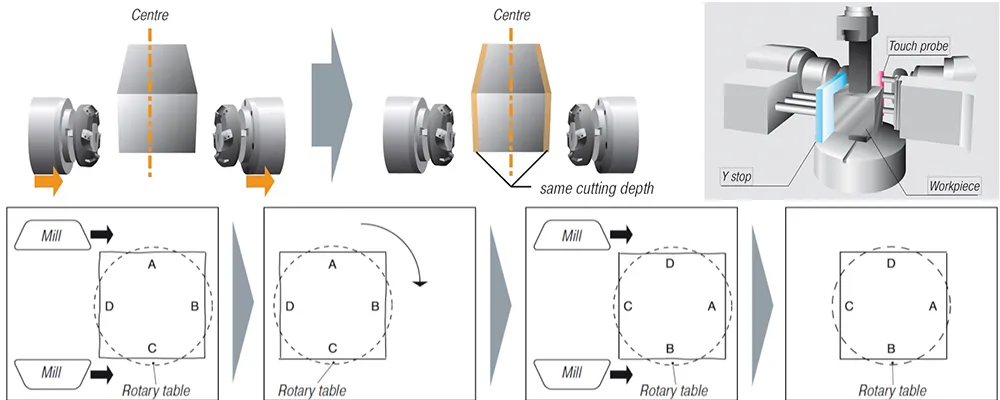

Automatic Centering

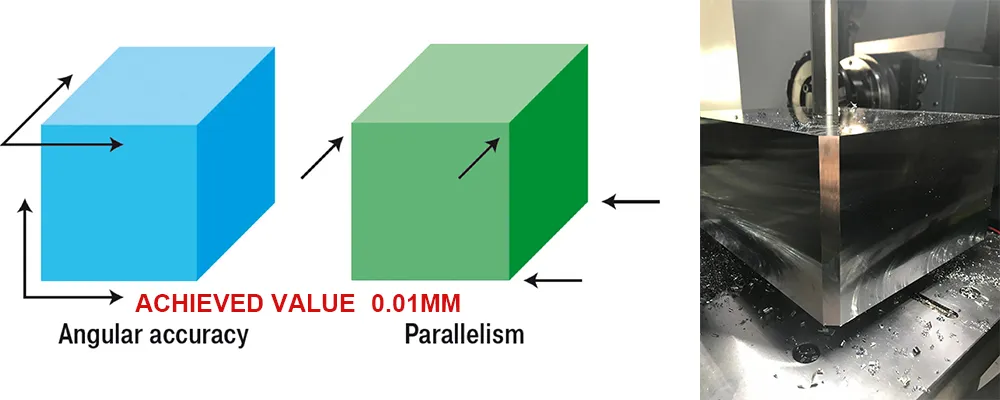

High Precision
Base Data
| Main specification LC-600NC Super(Belt drive Super) | |||
| Items | Detail | ||
| Cutting capacity | Control axis number | 4 | |
| Cutting capacity mm | 3mm*2 | ||
| Cutting width mm | 30-600 | ||
| Worktable | Dimensions mm | 410*410 | |
| Max loading weight kg | 750 | ||
| Spindle | Spindle speed(Infinitely variable speeds) rpm | 0-600 | |
| Spindle power kw | 2*15 | ||
| Spindle taper | BT50(7:24) | ||
| Cutter diameter mm | 250 | ||
| XYZ axis | X/Y/Z axis motor power kw | 2/2/3 | |
| X/Y/Z Max feed speed m/min | 10/10/10 | ||
| X/Y/Z Max cutting speed m/min | 6/6/6 | ||
| Accuracy | Squareness mm/300mm | 0.015 | |
| Accuracy for dimension mm/300mm | 0.015 | ||
| Tank capacity | Hydraulic oil tank L | 80 | |
| Lubrication oil tank L | 2*3L | ||
| Power | Power | AC380/220V 40KVA | |
| Net weight | Net weight kg | 9500 | |
| Product size | Product size mm | W3350*L3550*H2500 | |
| Main part | |||
| Sort | Name | Quantity | Origin |
| Machinery | Ball screw (XYZ axis) | 3 | Taiwan HIWIN |
| Guide rail | 3 | Quenched hard guide rail | |
| Main Spindle (Horizontal) | 2 | Japanese SEIKO | |
| Flexible stainless steel plate shield of worktable | 2 | EHONG | |
| Base casting | 1 | HT300 | |
| Automatic lubricating machine | 3 | Domestic | |
| Oil line | 3 | Domestic Aluminium tube | |
| Bearing | / | Japan NSK | |

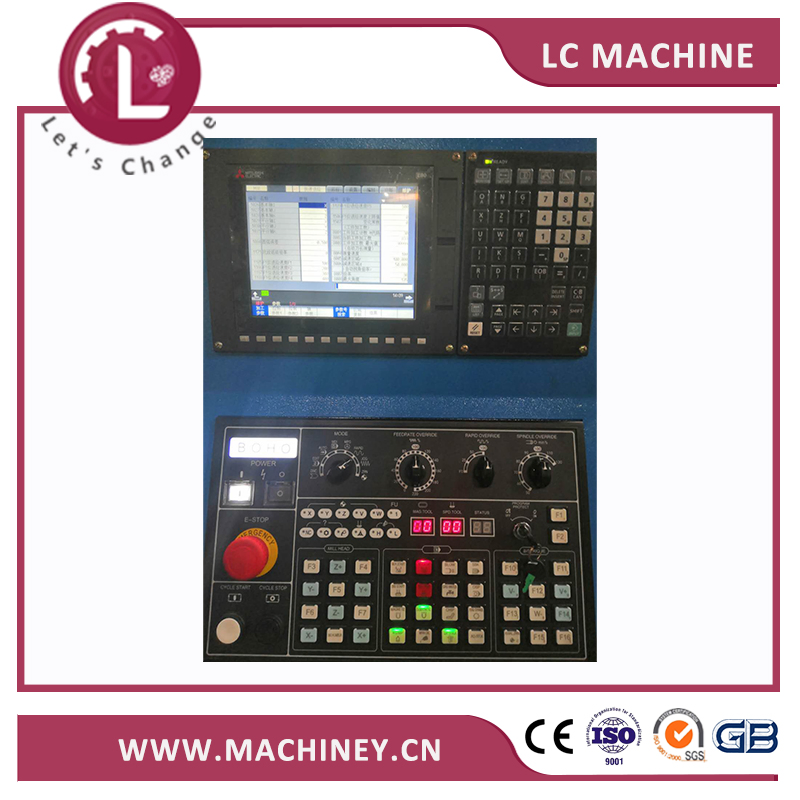

| Electrical appliances | CNC system | 1 | Japan Mitsubishi |
| MPG | 1 | Japan Mitsubishi | |
| Servo motor | 4 | Japan Mitsubishi | |
| High precision rotary table | 1 | Taiwan Bramd | |
| Spindle motor | 2 | MK | |
| AC contactor | / | Schneider | |
| Relay | / | Schneider | |

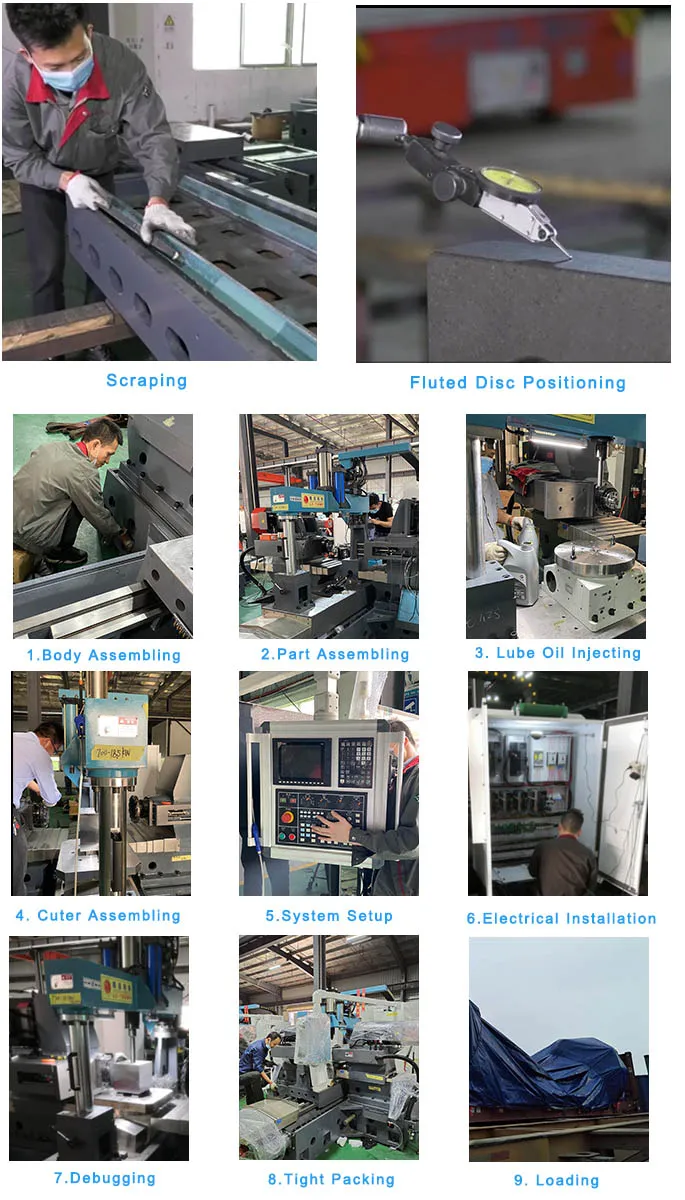

Manufacturing
Production Capacity
Factory Address: No.1 Yintai North Road, Shutian, Humen Town, Dongguan, City, China
R&D Capacity: Own Brand, ODM, OEM
No. of R&D Staff: 160
No. of Production Lines: Above 10
Annual Output Value: US$15Million
R&D Capacity: Own Brand, ODM, OEM
No. of R&D Staff: 160
No. of Production Lines: Above 10
Annual Output Value: US$15Million
APPLICATION
Company Profile
Launch Precision Machinery Co.,Ltd (LC Machine) is a professional modern enterprise, with long-term research & development, manufacturing, sales, after-service. The company gathered engineer team who engaged in CNC machine and mould manufacturing for decades , won trust and support from domestic and oversea clients by good idea, excellent design,reliable quality,full service.
The company has absorbed the advantages of NC technology from Germany and Japan and gathering the leading technology from domestic and foreign industries. All machines are marked ISO 9001 and CE, exported to 58 countries. Main products: Duplex milling machine, Vertical gantry milling machine, Side milling machine, Powerful gantry grinder, Cutting machine, Chamfering machine etc.
We are committed to be the No.1 brand in 6 side milling machine and one-stop service supplier in mould processing industry, serving global client , promoting mould processing industry to reach new level.
Launch Precision Machinery Co.,Ltd (LC Machine) is a professional modern enterprise, with long-term research & development, manufacturing, sales, after-service. The company gathered engineer team who engaged in CNC machine and mould manufacturing for decades , won trust and support from domestic and oversea clients by good idea, excellent design,reliable quality,full service.
The company has absorbed the advantages of NC technology from Germany and Japan and gathering the leading technology from domestic and foreign industries. All machines are marked ISO 9001 and CE, exported to 58 countries. Main products: Duplex milling machine, Vertical gantry milling machine, Side milling machine, Powerful gantry grinder, Cutting machine, Chamfering machine etc.
We are committed to be the No.1 brand in 6 side milling machine and one-stop service supplier in mould processing industry, serving global client , promoting mould processing industry to reach new level.
After-Sale Service
1. Installation services for free.
2. Operation training for free.
3. We will create files for every client, to track product quality and after service.
4. Providing one year (12 months) warranty for free except for the wrong operation by the user . The spare part is not on the free warranty list.
5. Providing maintenance and repair service termly.
6. Seller will provide solution way within 72 hrs once receiving A-F service request from the buyer.
2. Operation training for free.
3. We will create files for every client, to track product quality and after service.
4. Providing one year (12 months) warranty for free except for the wrong operation by the user . The spare part is not on the free warranty list.
5. Providing maintenance and repair service termly.
6. Seller will provide solution way within 72 hrs once receiving A-F service request from the buyer.
FAQ
Q: Are you a manufacturer or Trading Company?
A: We are a innovative interprise with rich import & export experience and 10 professional production line.Warmly welcome you to visit our factory.
Q: Do you have Agency in my country?
A: With the development of our company, we are expanding export gradually to get a bigger worldwide share of marketing.(The United States/ Korea / India / Southeast Asia etc.). Till now, we have agence in India/Korea/Thailand/ Vietnam, please feel free to contact us to get more detail.
Q: How can I Install the machine, and What should I do if my machine was broken down
A: We provide free installation service to your home. If your machine was broken, please contact us immediately and we will give you solution way within 48 hours.
Q: Can you support OEM Service?
A: Sure, As your requirement, We would like to make the plan and provide the best service for you.
Q: Are you a manufacturer or Trading Company?
A: We are a innovative interprise with rich import & export experience and 10 professional production line.Warmly welcome you to visit our factory.
Q: Do you have Agency in my country?
A: With the development of our company, we are expanding export gradually to get a bigger worldwide share of marketing.(The United States/ Korea / India / Southeast Asia etc.). Till now, we have agence in India/Korea/Thailand/ Vietnam, please feel free to contact us to get more detail.
Q: How can I Install the machine, and What should I do if my machine was broken down
A: We provide free installation service to your home. If your machine was broken, please contact us immediately and we will give you solution way within 48 hours.
Q: Can you support OEM Service?
A: Sure, As your requirement, We would like to make the plan and provide the best service for you.
