CNC Moulding Machine- Prefect CNC Two Head Milling Machine for Steel Plate Gear Type
LC-8015MASS CNC Twin Head Gantry Milling MachineProduct Introduction The thickness of the workpiece is coarse and the precision milling is integrated, the numerical control system controls the size to set the processing size, the automatic measurement, the second side automatic coarse and finishing,......
Send Inquiry
Product Description

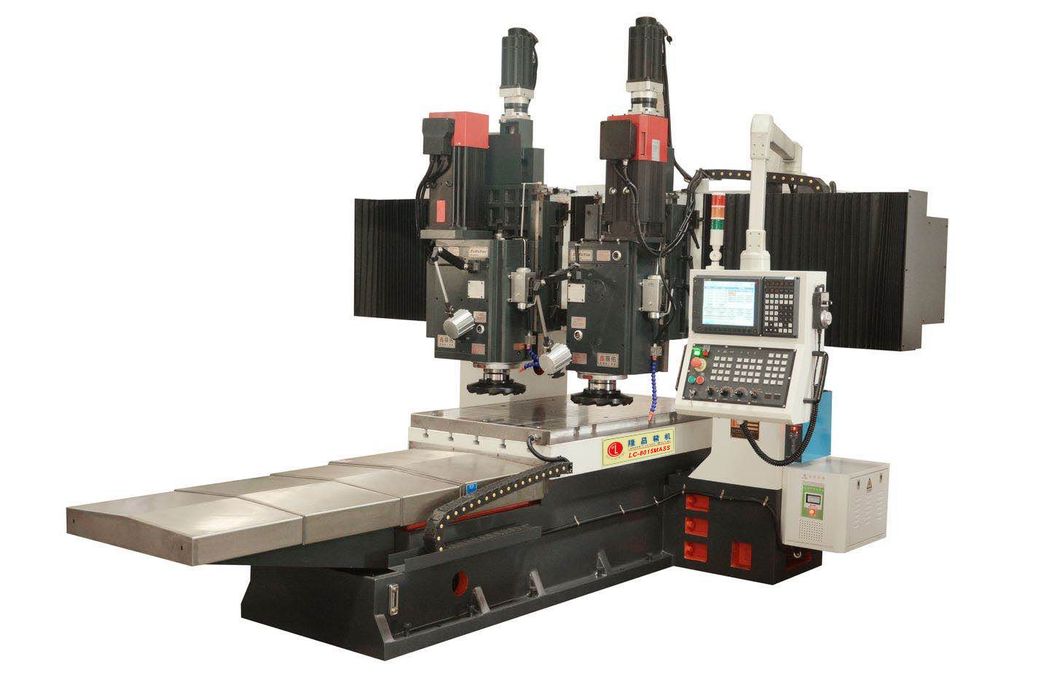

LC-8015MASS CNC Twin Head Gantry Milling Machine
Product Introduction
The thickness of the workpiece is coarse and the precision milling is integrated, the numerical control system controls the size to set the processing size, the automatic measurement, the second side automatic coarse and finishing, reduce the working intensity of the operation staff, improve the processing efficiency, ensure the flatness and roughness of the workpiece.

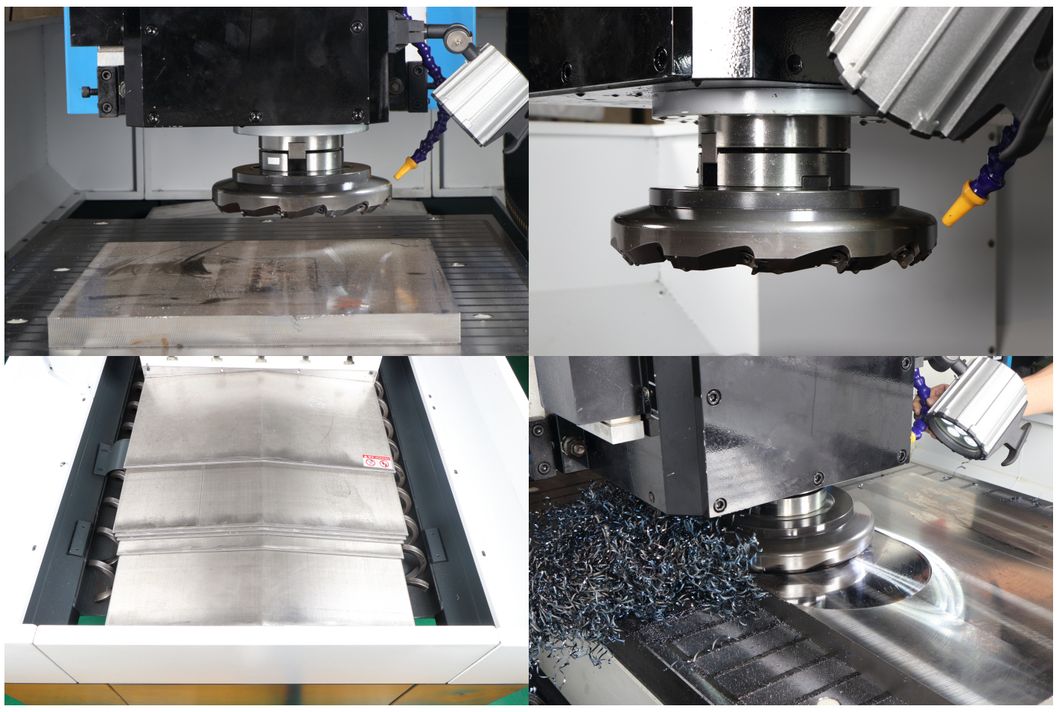

Details Show
1.Firmly hold the workpiece, ensure the safety of the processing process, through the demagnetization controller and machine tool connection, through the button operation demagnetization, very convenient to use, improve the machining efficiency of the machine up to more than 80%

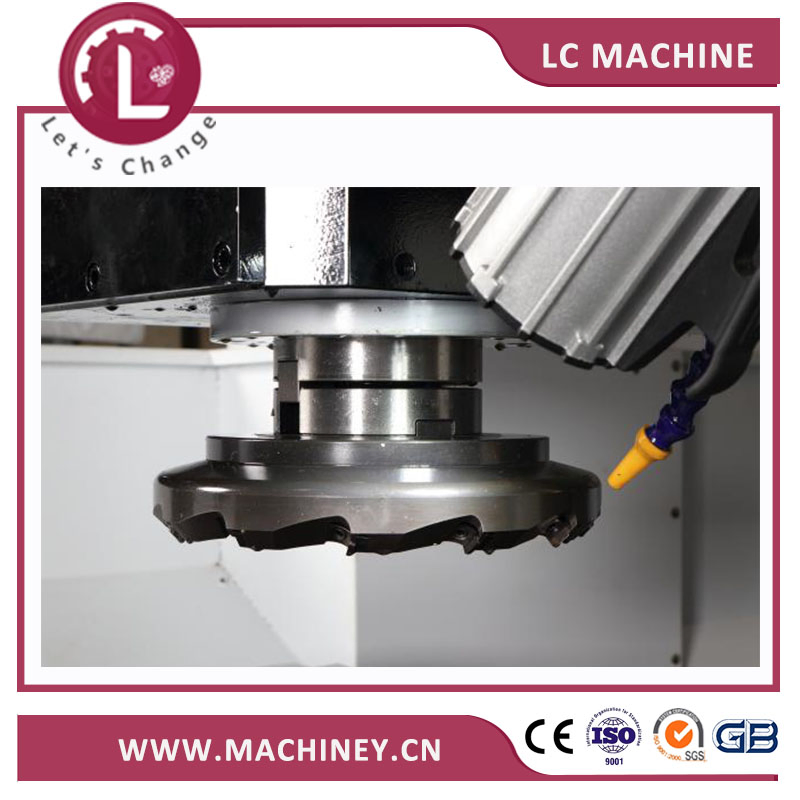

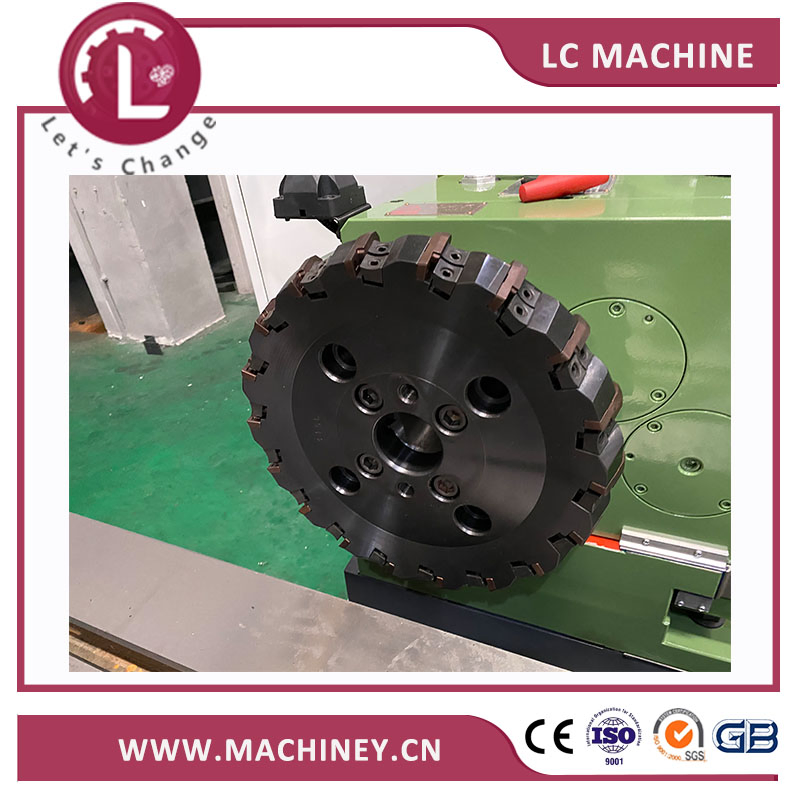

2.The large spiral normal blade provides a small cutting tool for stable cutting, and the thickened reinforcing blade has a finishing treatment
3.The friction resistance is very small, and it has the characteristics of high precision, reversibility and high efficiency.
4.Workpiece processing coarse, fine milling integration, numerical control system control size setting processing size, automatic measurement, automatic coarse, finishing, reduce the working intensity of the operation staff, improve the processing efficiency, ensure the flatness of the workpiece, roughness.
Base Data2.The large spiral normal blade provides a small cutting tool for stable cutting, and the thickened reinforcing blade has a finishing treatment
3.The friction resistance is very small, and it has the characteristics of high precision, reversibility and high efficiency.
4.Workpiece processing coarse, fine milling integration, numerical control system control size setting processing size, automatic measurement, automatic coarse, finishing, reduce the working intensity of the operation staff, improve the processing efficiency, ensure the flatness of the workpiece, roughness.
| Main Specification | |||||
| Items | Name | unit | LC-8015MASS | ||
| Cutting capacity | Maximum machining length | mm | 1500 | ||
| Maximum processing width | mm | 800 | |||
| Maximum working height | mm | 400 | |||
| Width in gantry | mm | 1200 | |||
| Maximum bearing weight | kg | 4000 | |||
| Worktable | Dimensions | mm | 1500*800 | ||
| T-slot (number - size * spacing) | mm | 9-28*180 | |||
| Coarse milling head assembly | motor power | kw | 15 | ||
| gears | / | stepless | |||
| revolving speed | rpm | 0-500 | |||
| Taper hole | / | BT50(7:24) | |||
| Finish milling head assembly | motor power | kw | 11 | ||
| gears | / | stepless | |||
| revolving speed | rpm | 0-400 | |||
| Taper hole | / | / | |||
| Servo drive motor | Table speed (X axis) | KW/N.m | 3.14/15-1:2 | ||
| Translation speed of milling head (Y-axis) | KW/N.m | 3.14/15-1:2 | |||
| Lifting speed of milling head (Z axis) | KW/N.m | 3.14/15-1:5 | |||
| Mobile speed | Table speed (X axis) | M/min | 0-8 | ||
| Translation speed of milling head (Y-axis) | M/min | 0-5 | |||
| Lifting speed of milling head (Z axis) | M/min | 0-3 | |||
| size | Floor space (no outside sheet metal) | mm | 4600*3300 | ||
| Total height of machine tool | mm | 2700 | |||
| Machine weight | ton | 9 | |||
| work environment | power supply | V/HZ | 380V-50HZ | ||
| Air supply | KG/cm² | 4-6 | |||
| operating temperature | °C | 0-45 | |||
| Main parts | ||||
| Sort | Name | Quantity | Size | Origin |
| Machinery | Ball screw (XYZ axis) | 3 | XZ-R5010 Y- R4010 | Taiwan TBI |
| Guide rail | 3 | / | Domestic | |
| Main Spindle (Vertical) | 1 | Gearbox 1:6 | Taiwan ENLOG | |
| Flexible stainless steel plate shield of worktable | 2 | SPCC | Domestic | |

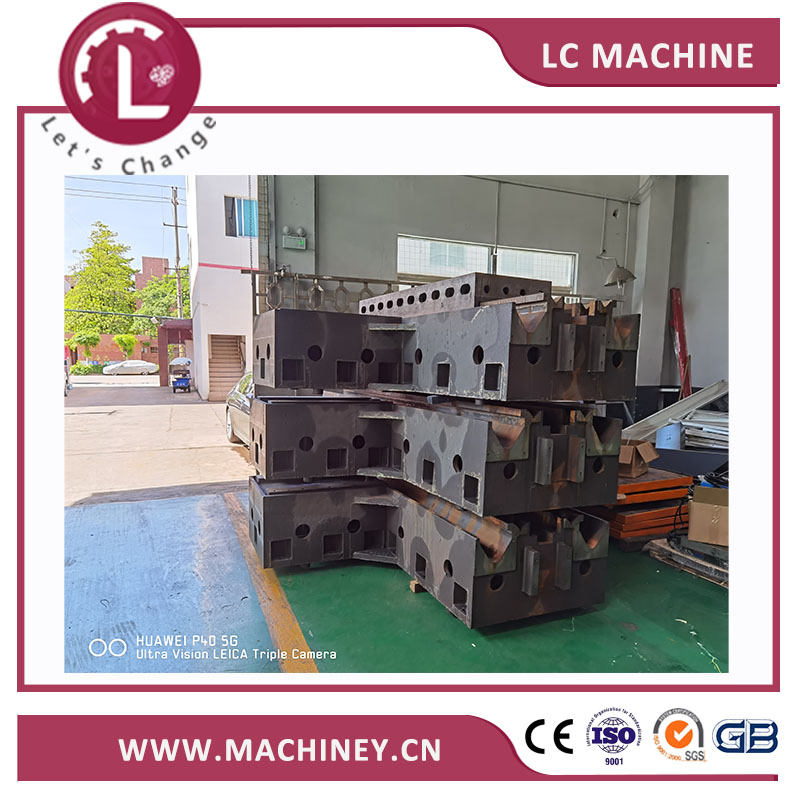

| Base casting | 1 | / | HT300 | |
| Automatic lubricating machine | 1 | 1/4HP Pump | Domestic | |
| Oil line | N | 4/6 | Domestic | |
| Bearing | / | / | Japan NSK | |
| Electrical appliances | CNC system | 1 | E80/EJ | Japan Mitsubishi |
| MPG | 1 | HC121 | Japan Mitsubishi | |
| Servo motor | 3 | / | Japan Mitsubishi | |
| High precision electromagnetic table | 1 | 1500*800mm | Taiwan Brand | |
| Spindle motor | 1 | 15KW-1500rpm | MK | |
| AC contactor | / | / | Schneider | |
| Relay | / | / | Schneider | |

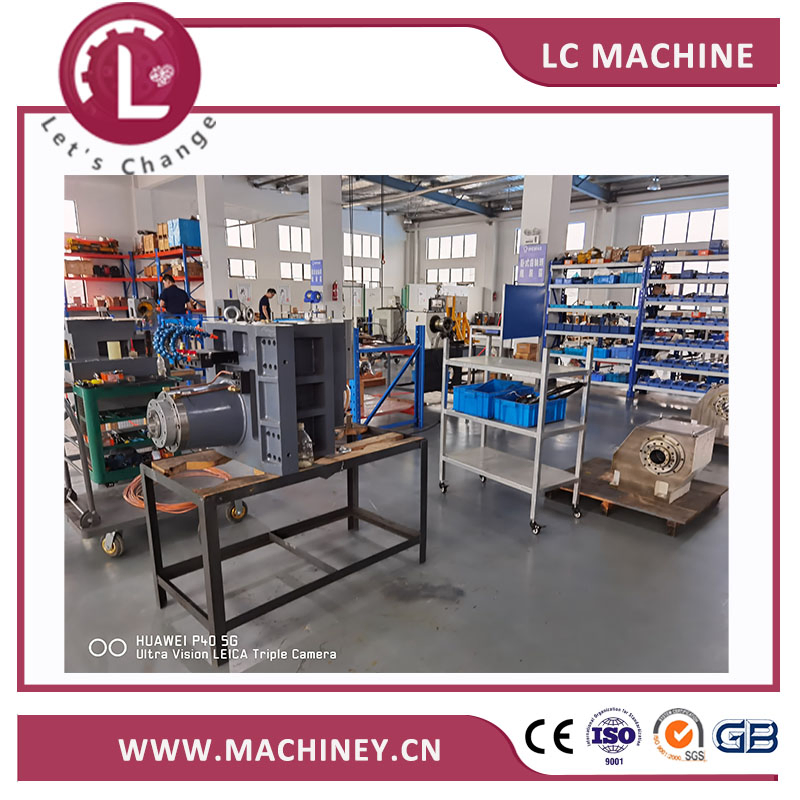

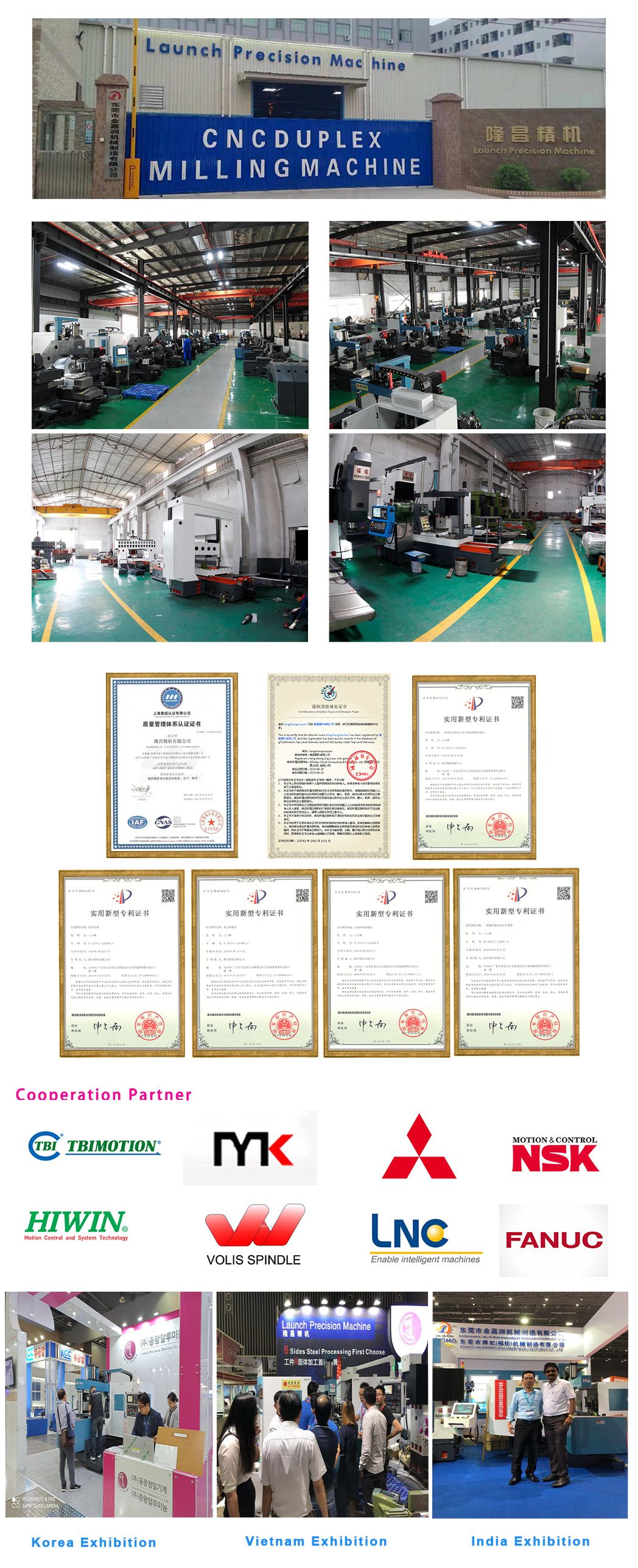

Manufacturing
