The best choice of surface milling machine for 300-1000mm square workpieces.CNC twin head milling machine TH-1000NCAOptional spindle driving spindle driving by Gear type /Belt typeCutting range: (300-1000)*(300-1000)*450(Opt 495)mmMax. Cutting capacity: 2x(3-5)mmMilling accuracy:Squareness toleranc......
Send Inquiry
Product Description
The best choice of surface milling machine for 300-1000mm square workpieces.

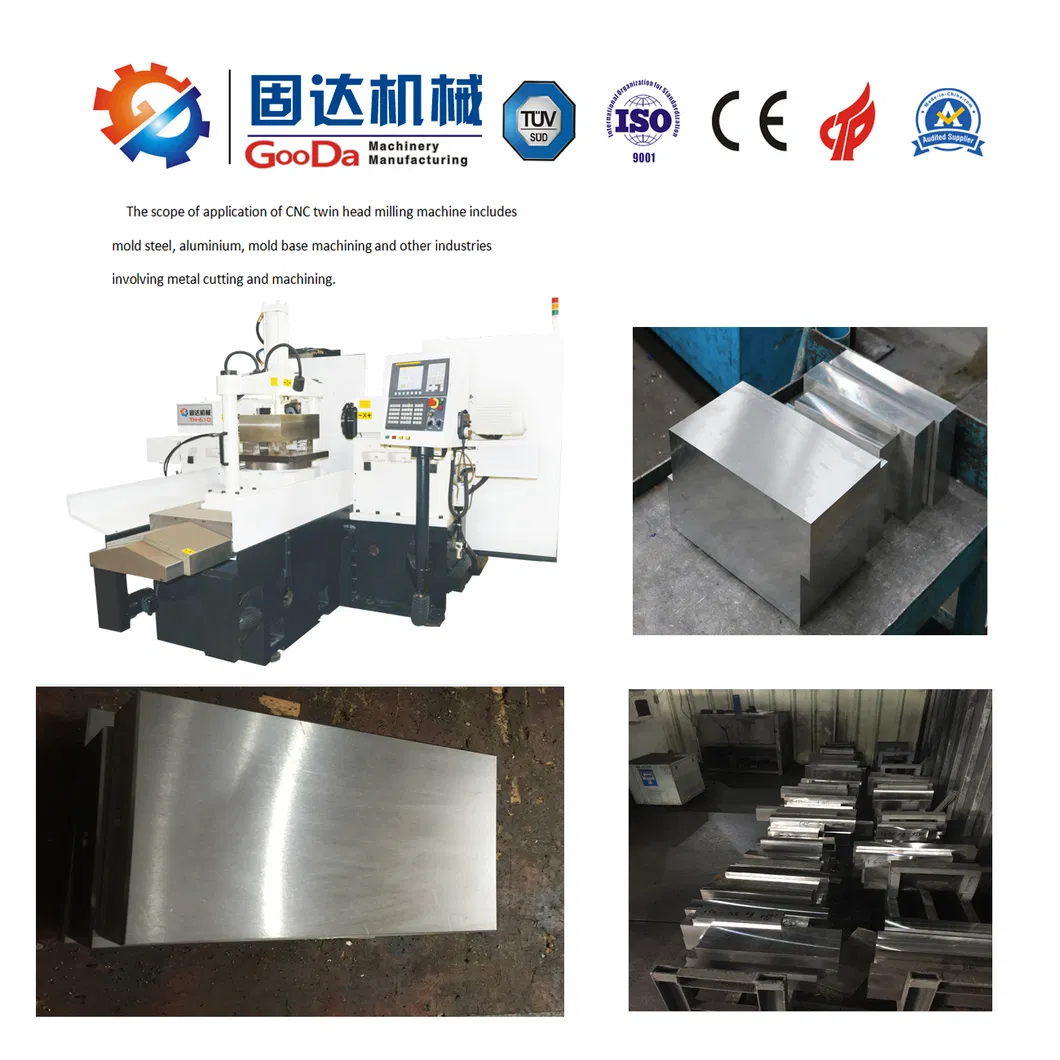

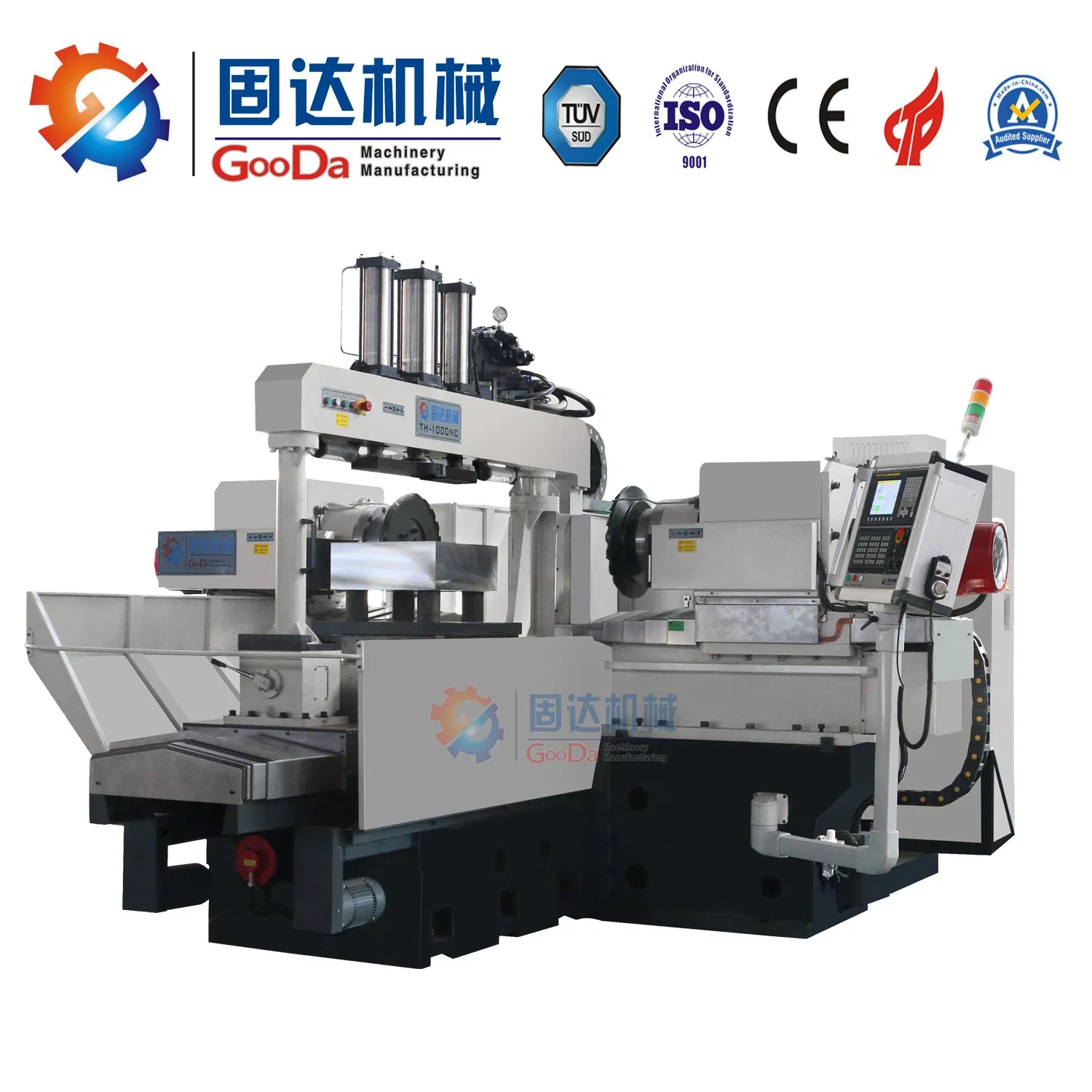

CNC twin head milling machine TH-1000NCA
Optional spindle driving spindle driving by Gear type /Belt type
Cutting range: (300-1000)*(300-1000)*450(Opt 495)mm
Max. Cutting capacity: 2x(3-5)mm

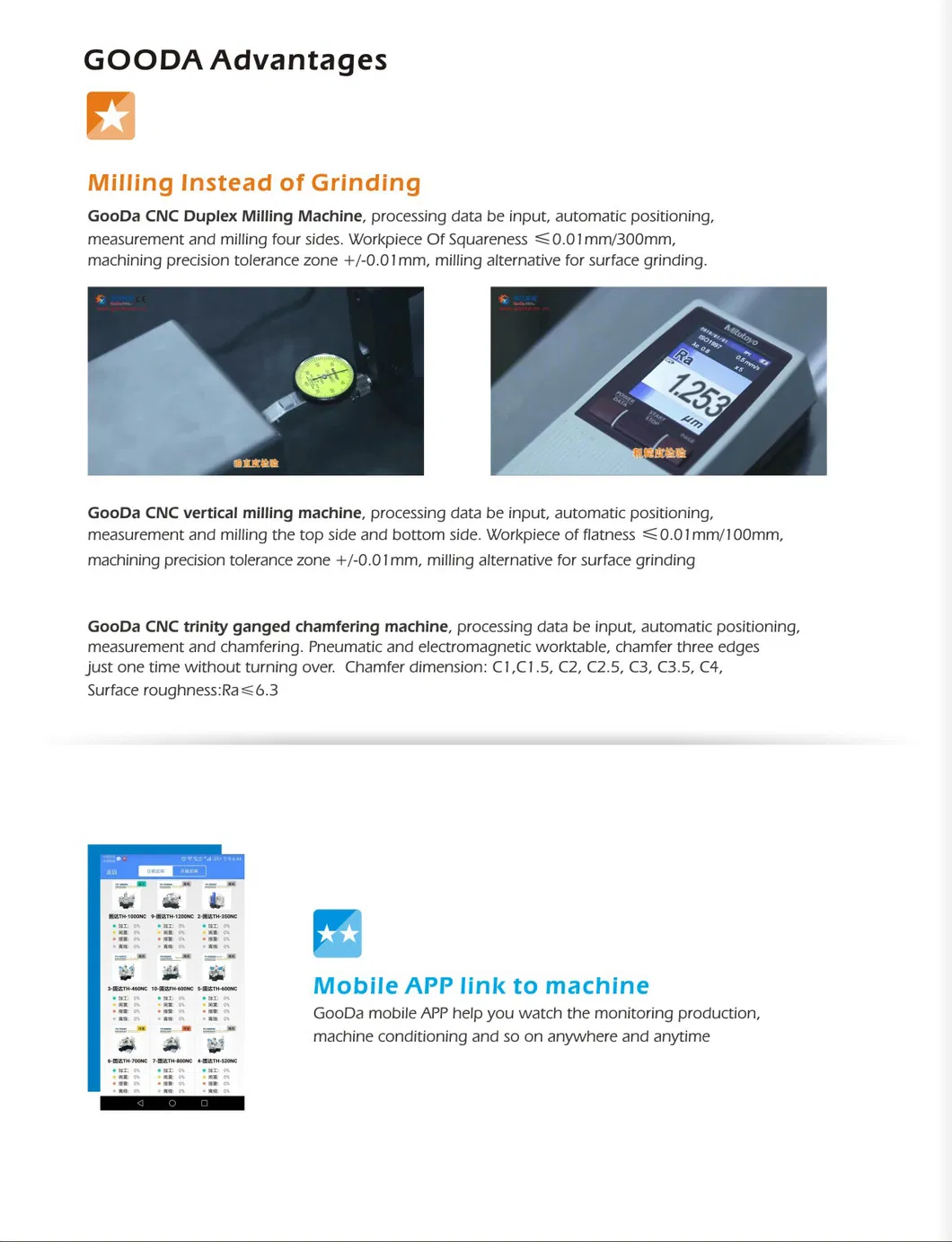

Milling accuracy:Squareness tolerance≤0.015mm/300mm,accuracy tolerance range+/-0.01mm,roughness≤1.6um,parallelism≤0.015/300mm²
Machine base with rigid, one piece iron construction
Powerful vertical hydraulic clamping with one main cylinder
According to following standards:
* TUV ISO 9001 certificate
* TUV certificate
* SGS certificate
* CE certificate
* More than 39 patents certificate
* National High-tech Enterprises certificate
Productivity Features
Productivity configuration
Productivity benefits
GooDa CNC twin head milling machines offer the following benefits:
1.has obtained dozens of patent technology and software copyright, and has successively passed the ISO 9001 quality management system certification and CE product safety certification of the European Union TUV certification, national high-tech enterprise evaluation and other honors.
2. After sale service, deliver high reliability with an emphasis on efficient maintenance service all the time. Maintain part-to-part consistency. we will help you at once when there is a problem. Besides, we will check machine regularly.
3. Machines come wired for USA electricity or your local electricity.
4. We supply expert installation and training.
Don't worry and trust us, we will all here serve you!
CNC twin head milling machine TH-1000NCA
Optional spindle driving spindle driving by Gear type /Belt type
Cutting range: (300-1000)*(300-1000)*450(Opt 495)mm
Max. Cutting capacity: 2x(3-5)mm
Milling accuracy:Squareness tolerance≤0.015mm/300mm,accuracy tolerance range+/-0.01mm,roughness≤1.6um,parallelism≤0.015/300mm²
Machine base with rigid, one piece iron construction
Powerful vertical hydraulic clamping with one main cylinder
According to following standards:
* TUV ISO 9001 certificate
* TUV certificate
* SGS certificate
* CE certificate
* More than 39 patents certificate
* National High-tech Enterprises certificate
Productivity Features

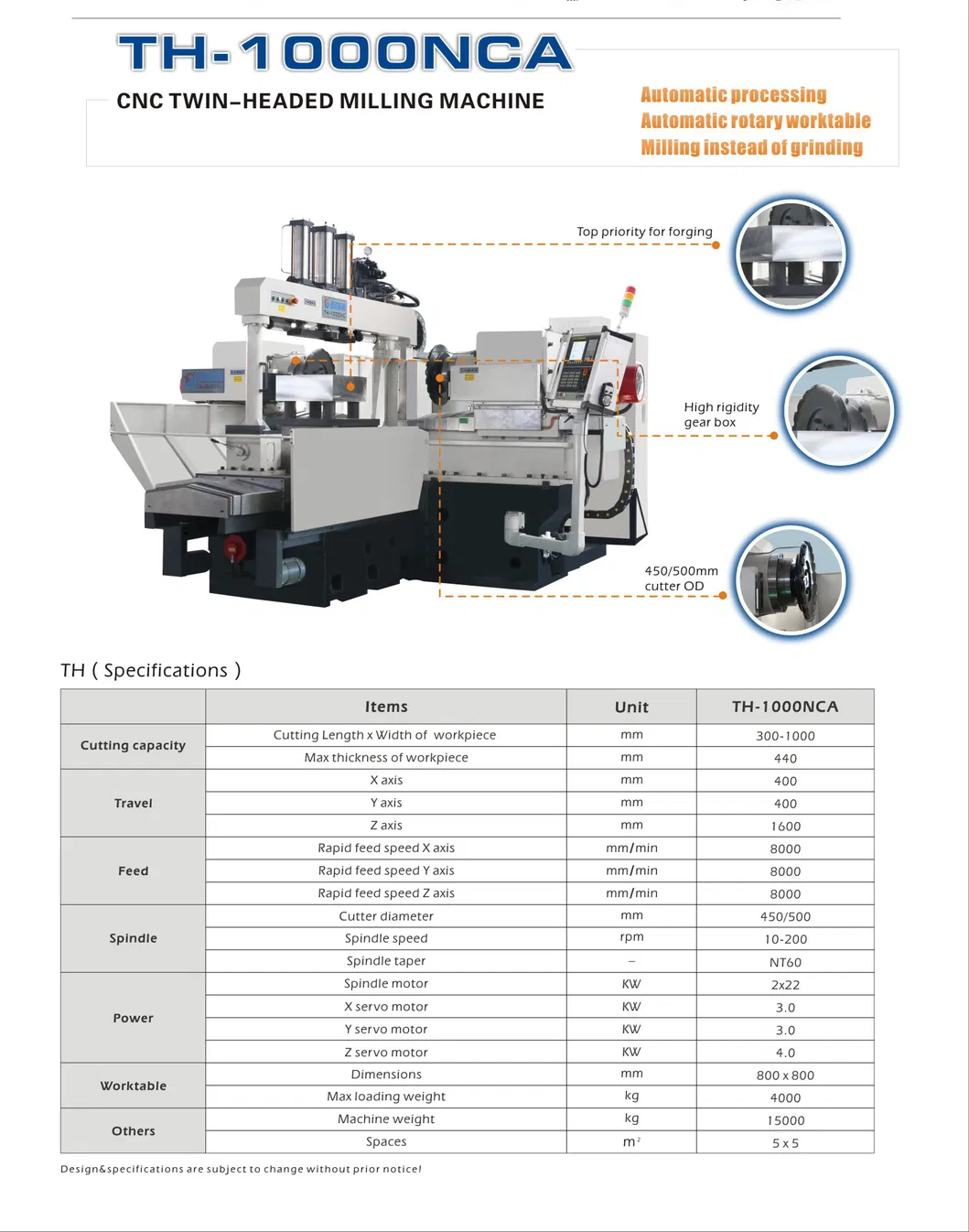

| TH-1000NCA | [Items] | [Unit] | TH-1000NCA |
| [Cutting capacity] | [Width*Length of workpiece] | mm | 300-1000 |
| [MAX.thickness of workpiece] | mm | 445(OP495) | |
| [Travel] | [X axis] | mm | 400 |
| [Y axis] | mm | 400 | |
| [Z axis] | mm | 1600 | |
| [Feed] | [Rapid feed speed X axis] | mm/min | 8000 |
| [Rapid feed speed Y axis] | mm/min | 8000 | |
| [Rapid feed speed Z axis] | mm/min | 8000 | |
| [Spindle] | [Cutter diameter] | mm | 450(OP 500) |
| [Spindle speed] | rpm | 10-200 | |
| [Spindle taper] | NT60 | ||
| [Power] | [Spindle motor] | KW | 2x22 |
| [X servo motor] | KW | 3.0 | |
| [Y servo motor] | KW | 3.0 | |
| [Z servo motor] | KW | 4.0 | |
| [Worktable] | [Dimensions] | mm | 800*800 |
| [Max loading Weight] | kg | 4000 | |
| [Others] | [machine weight] | kg | 15000 |
| Space | m2 | 5.0x5.0 |
| ITEM | SPECIFICATIONS | QUANTITY |
| Main | CNC Twin head milling machine NC Controller FANUC system Model:TH-1000NCA | 1 set |
| Standard configuration | 1.Servo motor rotary worktable 2. Screw type automatic chip conveyor 3. Tools and tools car 4.Closed house sheet metal 5. Full set of cushion/clamp 6. Workpiece automatic measuring 7. 90˚Workpiece positioning device 8. Air pressure system, blowing and automatic measurement 9. Three colors working light 10. Working status indicator light 11. Air cooling system electric box 12. single vertical hydraulic cylinder clamping 13. Man-machine conversation system, automatic protection, diagnosis, display | 1 set 2 sets 1 set 1 set 1 set 1 set 1 set 1 set 1 set 1 set 1 set 1 set 1 set |
| Accessories | 1. Face cutter 450mm (R&L) 2. Transformer (380V to 220V) 3. Scrap car | 2 sets 1 set 1 set |
GooDa CNC twin head milling machines offer the following benefits:
1.has obtained dozens of patent technology and software copyright, and has successively passed the ISO 9001 quality management system certification and CE product safety certification of the European Union TUV certification, national high-tech enterprise evaluation and other honors.
2. After sale service, deliver high reliability with an emphasis on efficient maintenance service all the time. Maintain part-to-part consistency. we will help you at once when there is a problem. Besides, we will check machine regularly.
3. Machines come wired for USA electricity or your local electricity.
4. We supply expert installation and training.

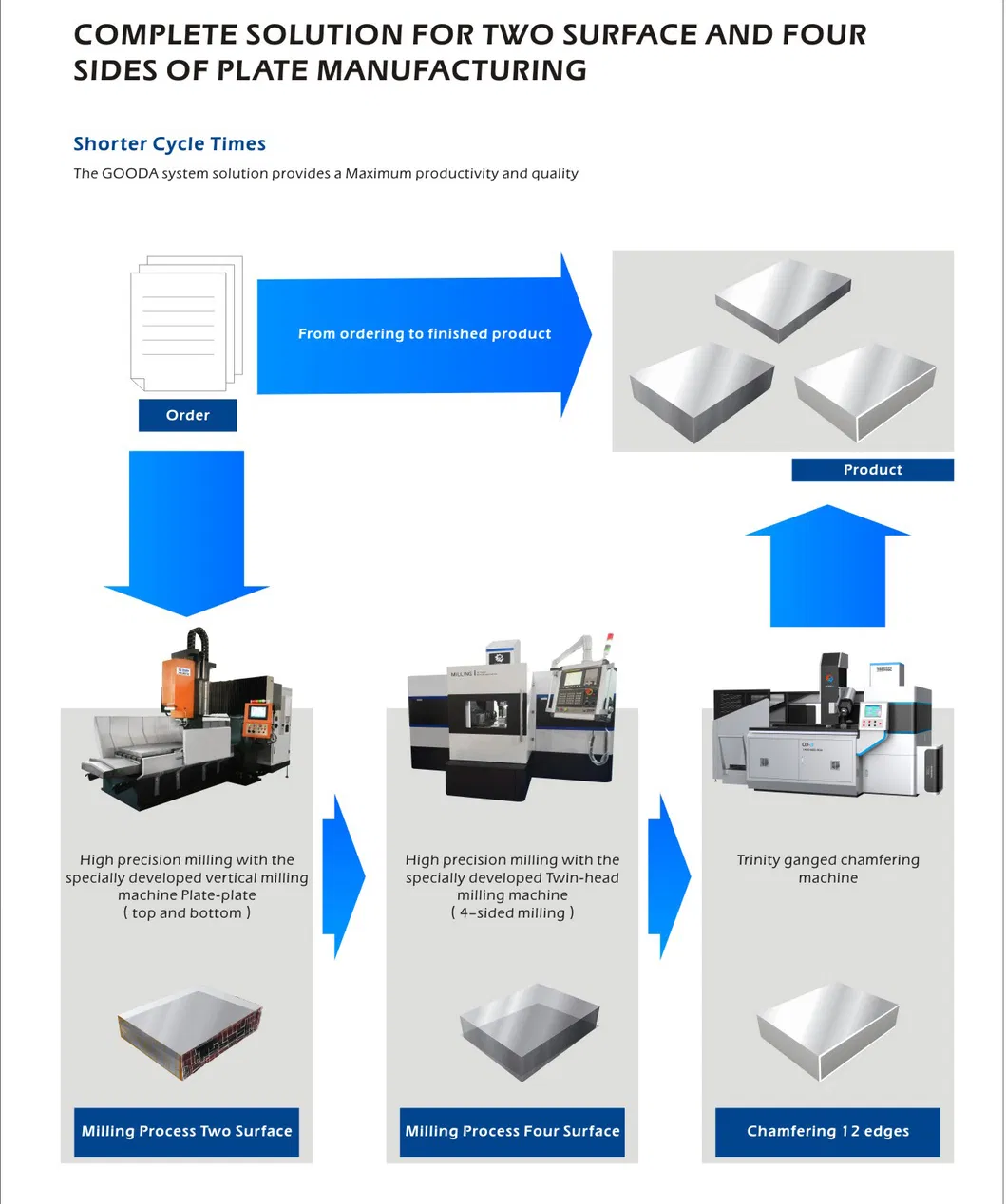

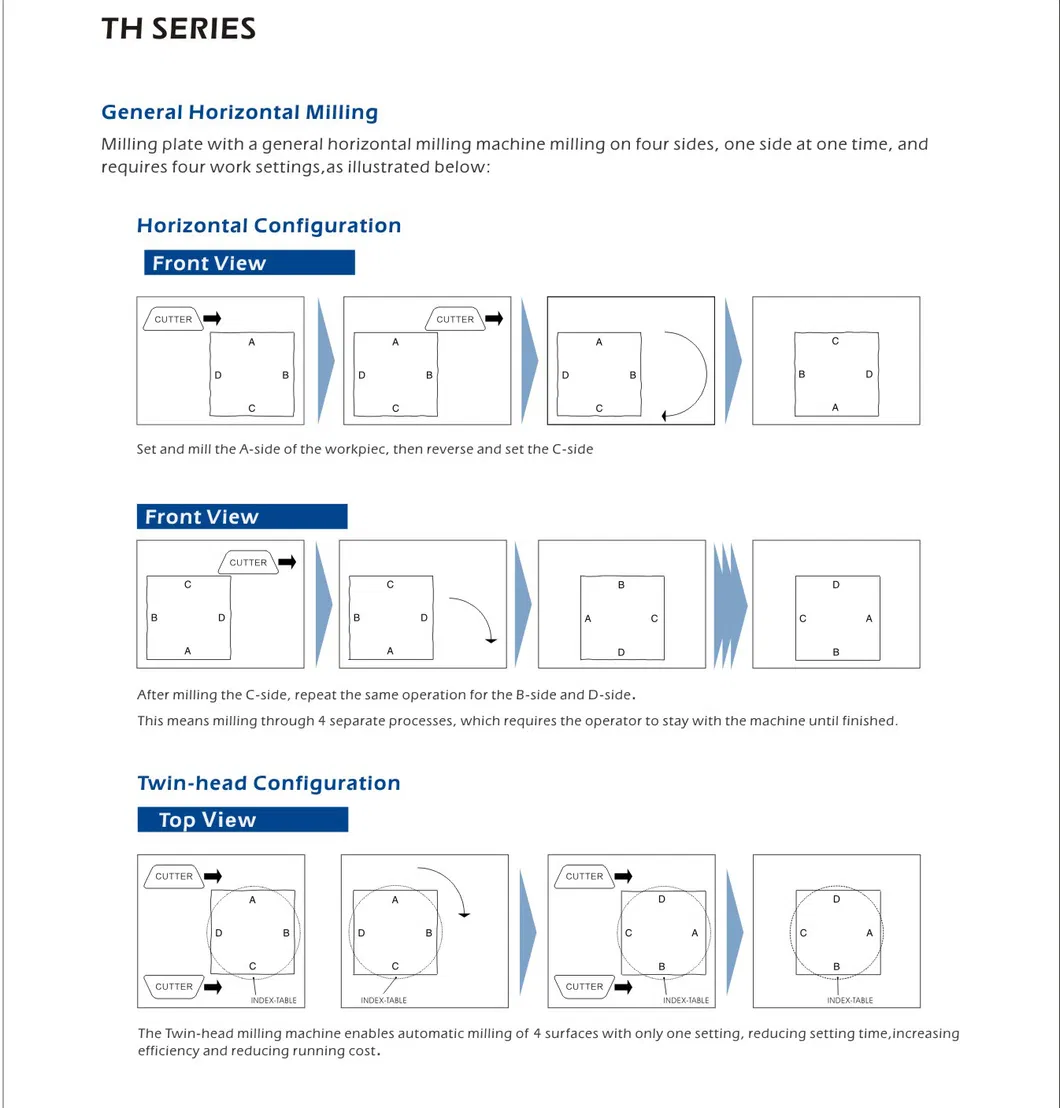

5.Save you time and money and increase your productivity by milling your tools two sides at once.
6. Maximize tool life assuring your production will pay dividends for many years.
6. Maximize tool life assuring your production will pay dividends for many years.
Don't worry and trust us, we will all here serve you!
