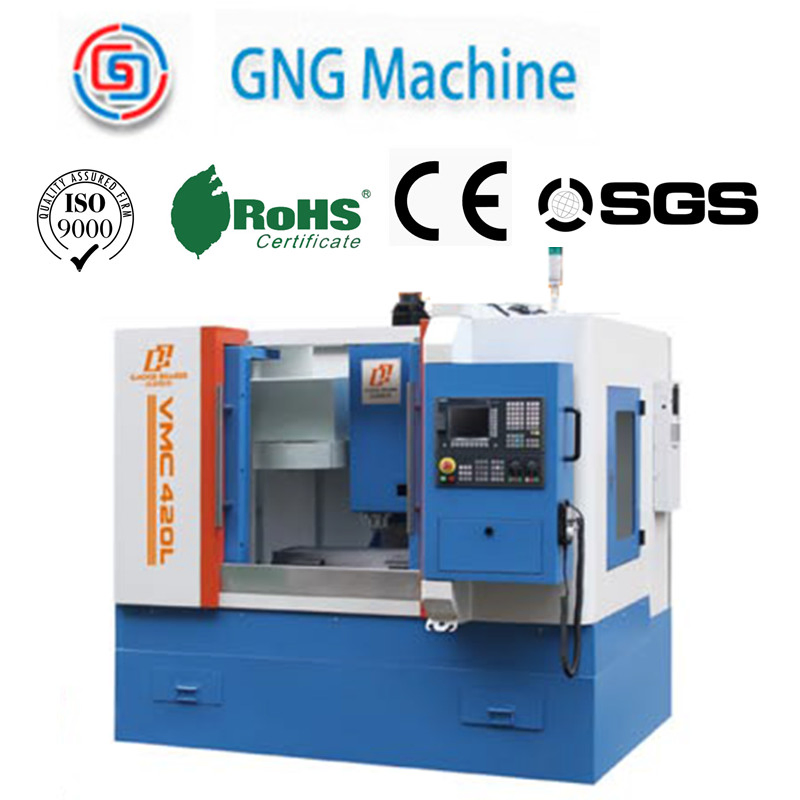

CNC Vertical Drilling&Milling Machine Vmc420L
Min. Order Quantity: 1 Set/SetsSupply Ability: 100 Set/Sets per MonthPort: Qingdao/ShanghaiPayment Terms: T/TQuick DetailsCondition: New Place of Origin: Shandong, China (Mainland) Brand Name: GNG Model Number: VMC420L Type: Vertical CNC or Not: CNC Voltage: 380V Power(W): 2200W Dimension(L*W*H): 19......
Send Inquiry
Product Description
Min. Order Quantity: 1 Set/Sets
Supply Ability: 100 Set/Sets per Month
Port: Qingdao/Shanghai
Payment Terms: T/T
Quick Details
Condition: New Place of Origin: Shandong, China (Mainland) Brand Name: GNG Model Number: VMC420L Type: Vertical CNC or Not: CNC Voltage: 380V Power(W): 2200W Dimension(L*W*H): 1900X1400X2100 Weight: 1300kgs Certification: CE Warranty: 1year After-sales Service Provided: No overseas service provided
Packaging & Delivery
Packaging Details: Steel bottom plywood case
Delivery Detail: Complete machine 60days. Frame 45days
Specifications
CNC vertical machine center
Able to mill steel, copper, aluminum, wood and plastic
Taiwan spindle, Taiwan linear guideways
CNC vertical machine center VMC420L
Table size LxW: 800X260
T slot QTY/width/center distance: 5-16-50
Maxload(KG): 150
X travel (mm): 420
Y travel (mm): 270
Z travel (mm): 410
Spindle nose to table(mm): 70-480
Spindle center to column(mm): 315
Spindle taper: BT30
Max spindle speed(rpm): 6000 or 8000
Main motor: 2.2KW
X torque(N. M): 4
Y torque(N. M): 5
Z torque(N. M): 6
Max. Install size XY: Square 110X110 diameter 95
Max install size Z: Square 130X130 diameter 110
Rapid moving speed(m/min): 10
Cuttingg speed(mm/min): 1-4000
Ball screw(diameter mm/pitch) XY: 20/5
Ball screw(diameter mm/pitch)Z: 25/5
Linear guide way width (mm) XY: 20
Linear guide way width (mm)Z: 25
Positioning accuracy (mm): 0.016
Repeatability accuracy(mm): 0.008
Funnel type (optional) BT30: 10 or 8
Tool change time (s): 8
Air pressure MPa: 0.6
Frame machine weight: 800Kg
Complete machine weight: 1300Kg
Frame machine overall size: 830X1000X1800mm
Complete machine overall size: 1900X1400X2100
VMC420L mini machine center:
Able to mill steel, copper, aluminum, wood and plastic
Taiwan spindle, Taiwan linear guideways
Complete machine: Standard with external handwheel, tri-colour light, lubrecation, coolant system.
Complete machine standard with RS232 interface

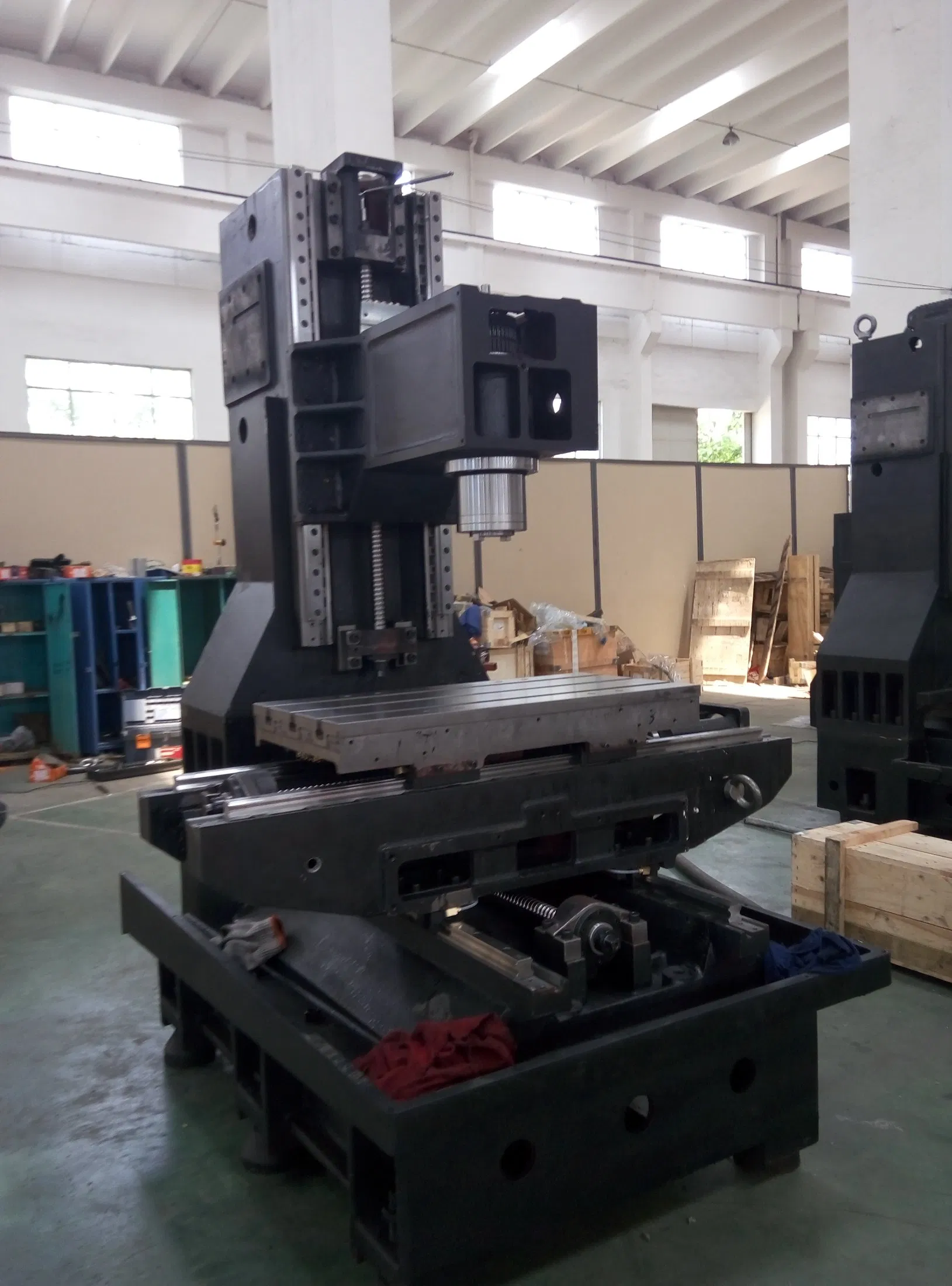

Frame is with lubrecation, without controller, without any electrial parts
Tool:
Suggest max tools length(BT30): 200mm
Suggest max tools weight(BT30): 5KG
Suggest max tools diameter(BT30): 16mm
ATC(automatic tool changer):
Standard: Funnel type tool changer (BT30, 8 or 10 tools)
Optional: Manipulator tool changer (different price)
Controller:
Standard: GSK218M or KND1000M2 controller(with regid tappering function)
Optional: Siemens 802C control panel with servo motor and servo driver made in China.
Motor:
When machine is with ATC. Spindle motor is servo motor. 2.2KW, torque 14NM
When machine is without ATC. Spindle motor is frequency motor, 2.2KW, torque 14.5NM
X, Y, Z axes are all servo motors
Accessories:
Complete machine is with standard accessories: 1PC tool holder, 1PC pull stud, 1set collects, 1PC spanner, 1PC direct screw driver, 1PC Philips screwdriver
Optional accessories: 1.4th axis. 2. Rotary table(price sepreated)
Power:
Please inform power voltage and current. If transfomer is needed. Price would be different.
FAQ:
Question 1: what is your target market?
A1: we are now focusing on Europe and North America.
Question 2: what is the biggest advantage over competitors?
A2: we are one of the most powerful suppliers of vibration Multi Tool saw blades in China. We have our own brand, and we can also customize the brand according to the needs of customers.
Question 3: what about payment and delivery time?
A3: delivery time: within 30 days after receiving the advance payment.
Terms of payment: 50% t / T in advance, 50% against copy of B / L (or other)
Question 4: can I have some samples?
A4: Yes, we are honored to provide you with samples for quality inspection.
Q5: how is your factory doing in quality control?
A5: quality first. From the beginning to the end of production, we always attach great importance to quality control. Every product must be carefully inspected before packing and shipment.
Why choose us?
1. GNG has a strong sales team and rich export experience.
2. The brand of GNG has a long history and its products are rich but not monotonous.
3. The products from GNG have long service life, stable quality and stable beating.
4. High temperature Tools pay more attention to production details, and the packaging is firm and exquisite.
5. GNG supports non-standard customization.
6. GNG has its own strong R & D team and strong innovation ability.
7. Our sales response is accurate, timely, professional and long-term after-sales service.
