Product Description

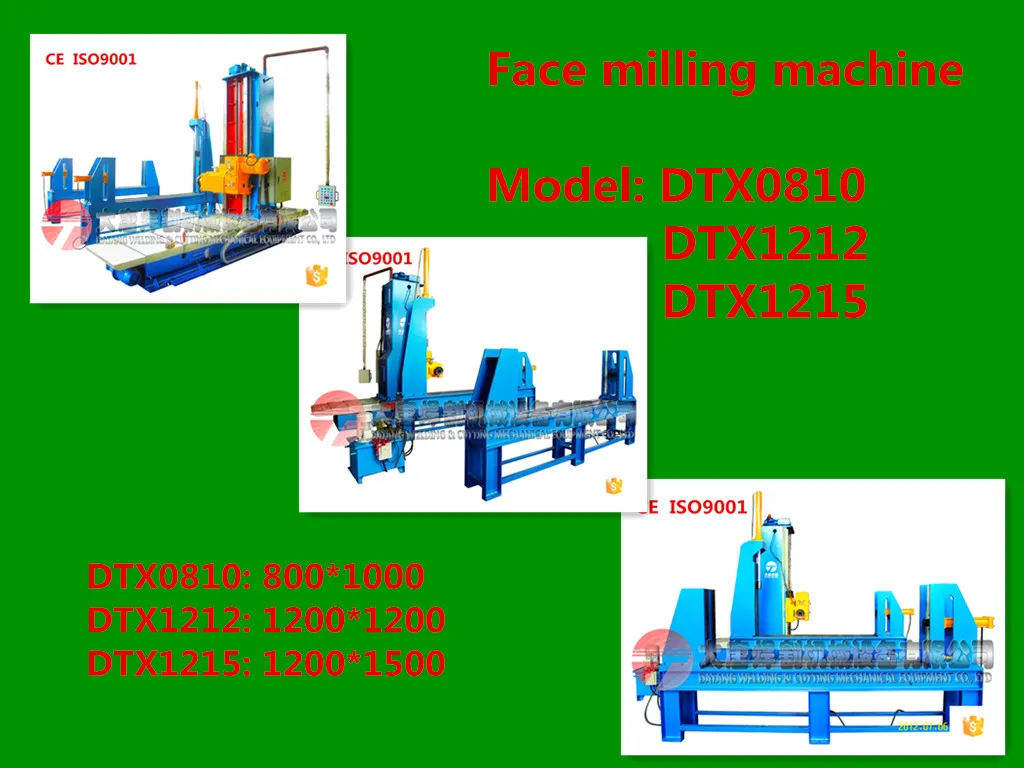

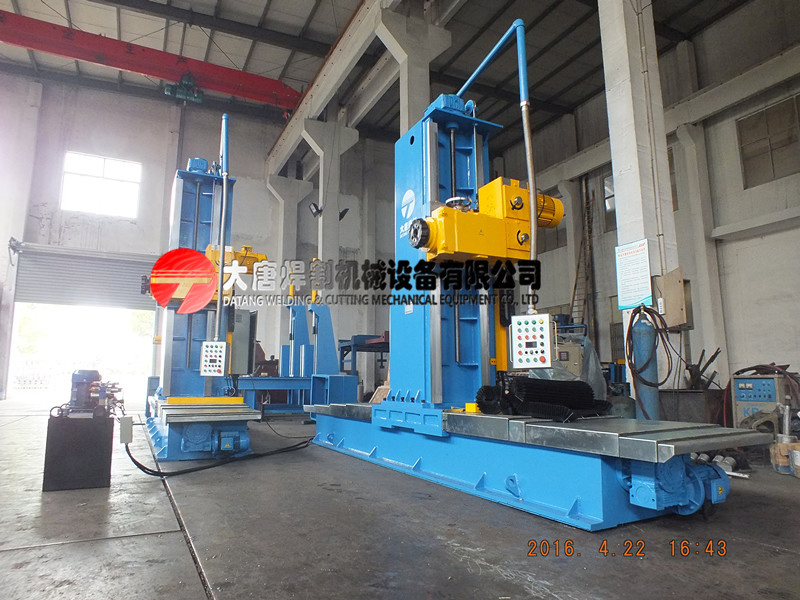

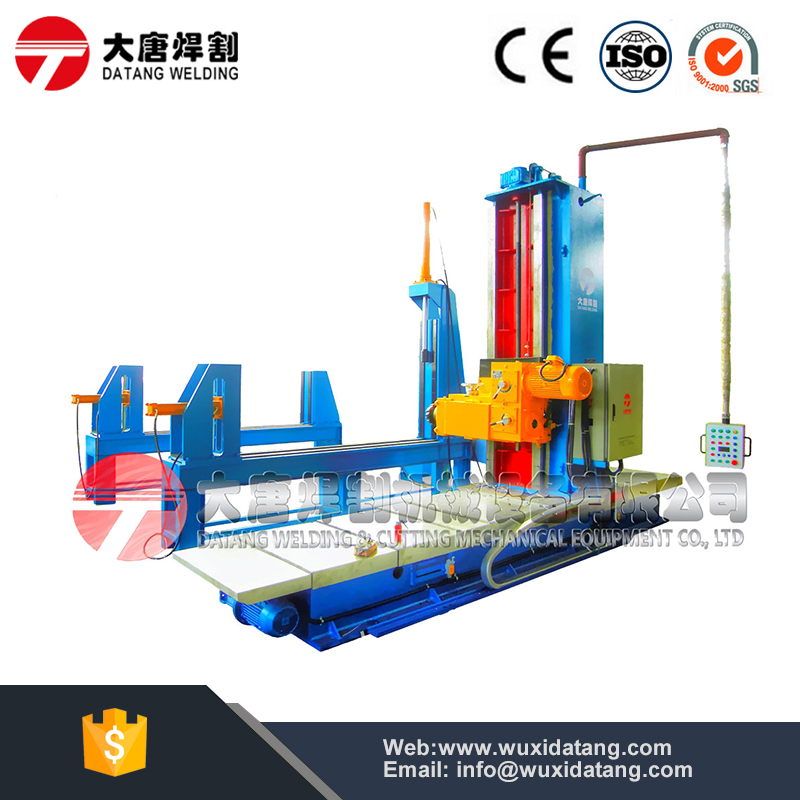

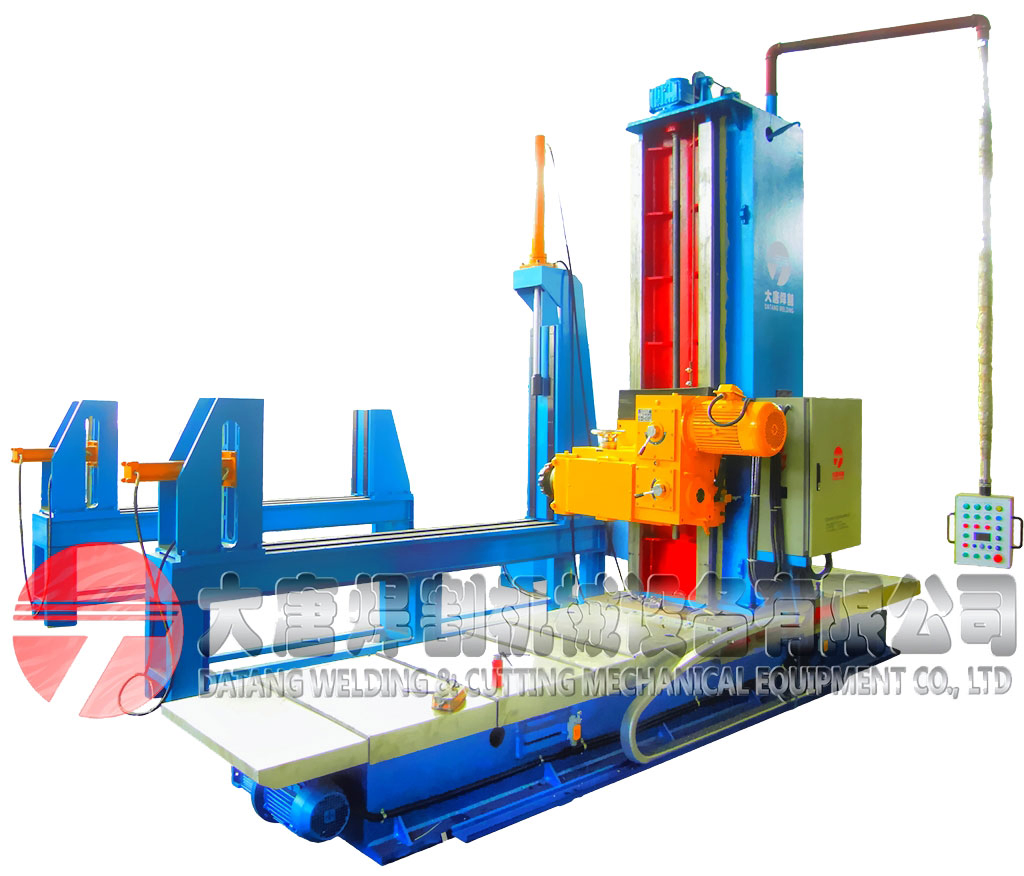

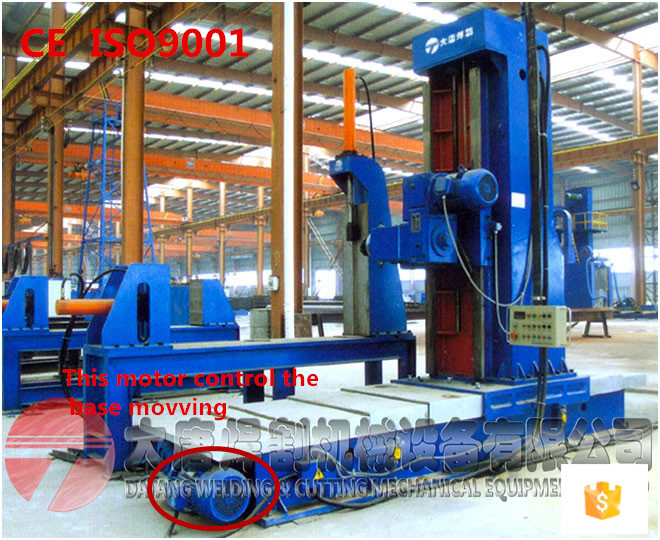

The face milling machine
This machine consists of milling and cutting head, elevator column, work table, lathe bed, mechanical feeding system, electrical control system, rail protection device, tools etc.
This face milling machine is used to mill the end face of Box-beam and H-beam, and the degree of milling head can be adjusted manually in vertical direction to bevel the end face. The hydraulic support rack for choice can fix the beam and is open top, which is easy for hoisting.
More pictures

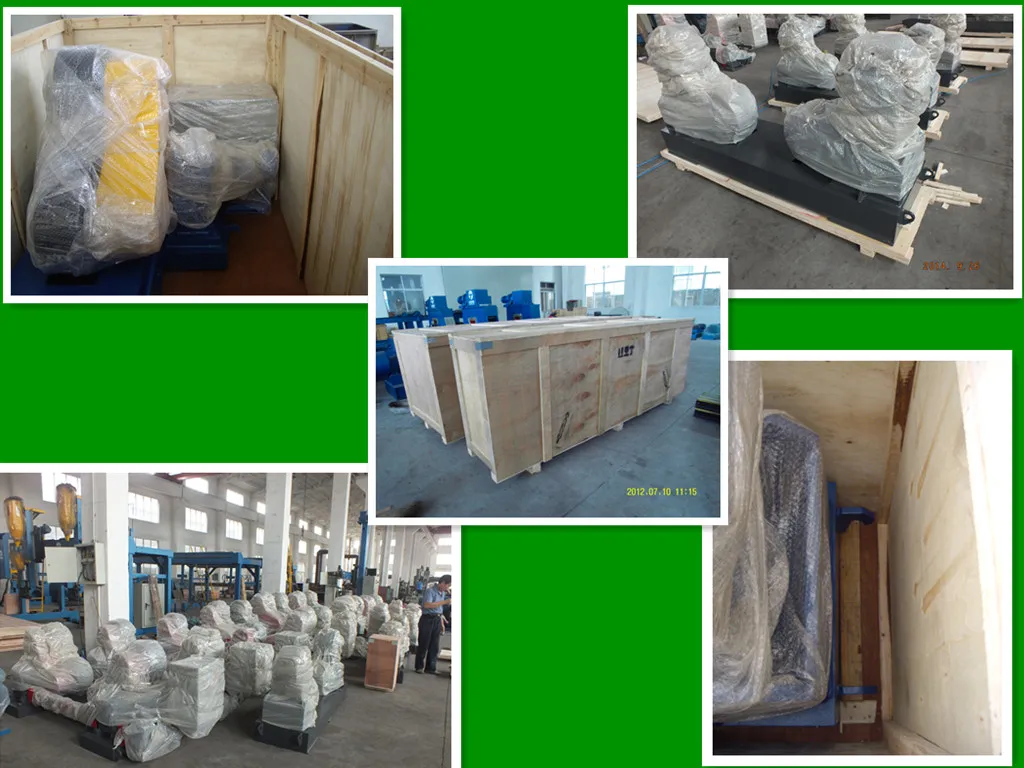

Package&Shipping
Clients visiting
This machine consists of milling and cutting head, elevator column, work table, lathe bed, mechanical feeding system, electrical control system, rail protection device, tools etc.
This face milling machine is used to mill the end face of Box-beam and H-beam, and the degree of milling head can be adjusted manually in vertical direction to bevel the end face. The hydraulic support rack for choice can fix the beam and is open top, which is easy for hoisting.
| Model | DTX 0810 | DTX 0812 | DTX 1212 | DTX 1215 | DTX 1520 | DTX 2020 | DTX 2025 | DTX 2040 | DTX 3060 | ||
| Machining range of face(mm) | 800× 1000 | 800× 1200 | 1200× 1200 | 1200× 1500 | 1500× 2000 | 2000× 2000 | 2000× 2500 | 2000× 4000 | 3000× 6000 | ||
| Level the milling speed(mm/min) | 50-440 | 50-500 | |||||||||
| Vertical milling speed(mm/min) | 22-550 | 22-550 | 22-600 | 22-600 | 22-600 | 22-600 | 22-600 | 22-600 | 22-600 | ||
| Horizontal motor (kw) | 3 | 3 | 4 | 4 | 4 | 4 | 4 | 4 | 7.5 | ||
| Vertical motor (kw) | 1.5 | 2.2 | |||||||||
| Milling angle(°deg) | 0-45 | ||||||||||
| Milling Head Specifications | TX25A | TX32A | TX40A | TX50A | |||||||
| Milling head power (kw) | 4 | 5.5 | 7.5 | 11 | |||||||
| Cutter rotational speed (rpm) | 125-1420 | 125-1440 | 1440 | 1460 | |||||||
| Applicable cutter diameter(mm) | 100~160 | 125~250 | 160~320 | 200~400 | |||||||
| Gross Weight (t) | 4 | 4.1 | 5.5 | 5.8 | 7.6 | 8.3 | 8.5 | 9 | 15.5 | ||
