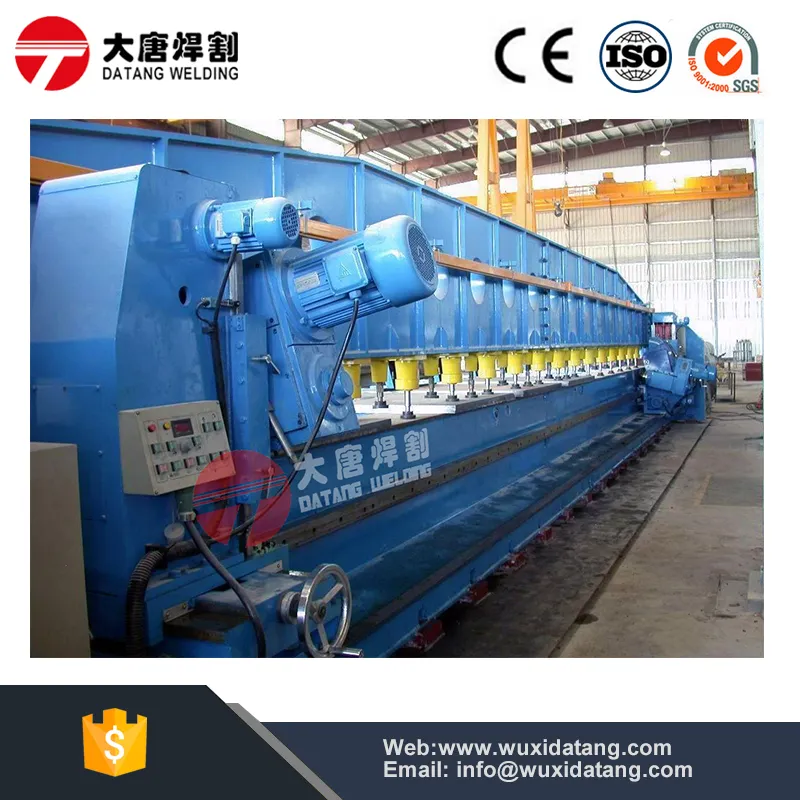

Datang Welding High Quality Datang Edge Milling Machine
Milling MachineThe face milling machine consists of milling and cutting head, elevator column, work table, lathe bed, mechanical feeding system, electrical control system, rail protection device, tools etc.This face milling machine is used to mill the end face of Box-beam and H-beam, and the degree ......
Send Inquiry
Product Description
Milling Machine
The face milling machine consists of milling and cutting head, elevator column, work table, lathe bed, mechanical feeding system, electrical control system, rail protection device, tools etc.
This face milling machine is used to mill the end face of Box-beam and H-beam, and the degree of milling head can be adjusted manually in vertical direction to bevel the end face. The hydraulic support rack for choice can fix the beam and is open top, which is easy for hoisting.
The face milling machine consists of milling and cutting head, elevator column, work table, lathe bed, mechanical feeding system, electrical control system, rail protection device, tools etc.
This face milling machine is used to mill the end face of Box-beam and H-beam, and the degree of milling head can be adjusted manually in vertical direction to bevel the end face. The hydraulic support rack for choice can fix the beam and is open top, which is easy for hoisting.
| Model | DXBJ-6 | DXBJ-9 | DXBJ-12 |
| Milling angle | 0-45° | ||
| Milling plate thickness | 6-50 | ||
| Milling depth for one time | 12 | ||
| Transverse milling speed | 0.3/0.5 | ||
| Milling free speed | 5 | ||
| Main shaft rotation speed | 125-800 | ||
| Hydraulic system pressure | ≤3.5 | ≤3.5 | ≤3.5 |
| Support platform cyclinder capacity(Piece) | 8 | 11 | 15 |
| Support platform to the ground distance | 900 | ||
| Feeding motor power | 1.1/0.85 | ||
| Milling motor power | 3 | ||
| Oil pump motor power | 5.5 | 5.5 | 5.5 |
| Dimension(a×b×c) | 7724×2600×2050 | 10724×2600×2200 | 13724×2600×2300 |
