Drilling Milling Machine Zx6350 Knee-Type Milling and Drilling Machine
Drilling MIlling Machine ZX6350 Knee-type Milling and drilling machine1.Product descriptionThe drilling and milling machine is a small and medium-sized general-purpose metal cutting machine that can be used for both horizontal and vertical milling. It is suitable for drilling, expanding, reaming, bo......
Send Inquiry
Product Description

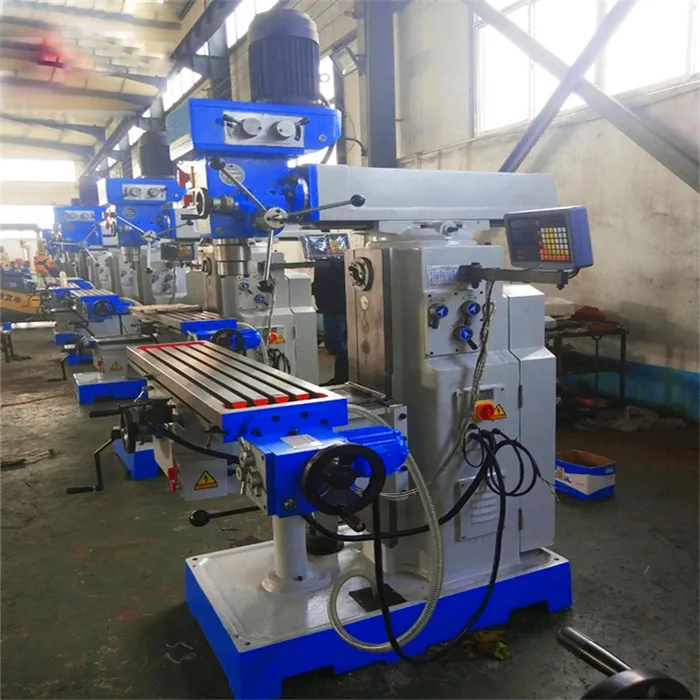

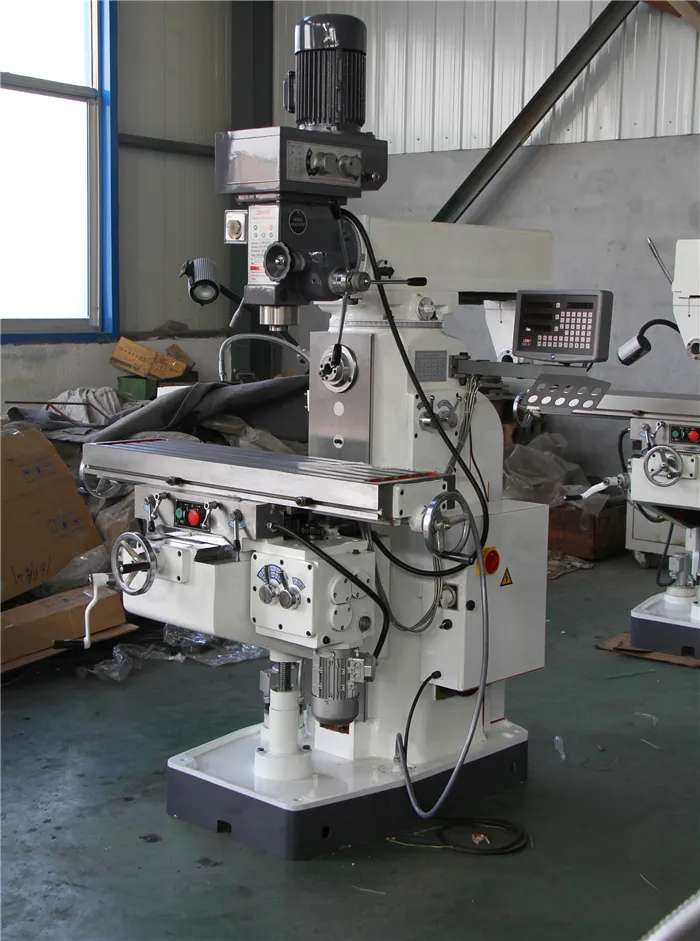

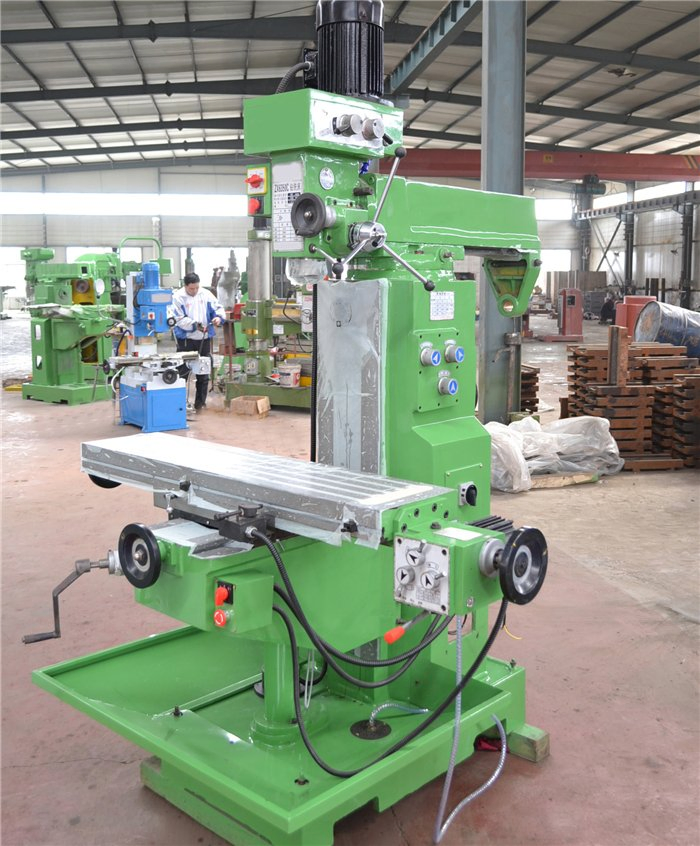

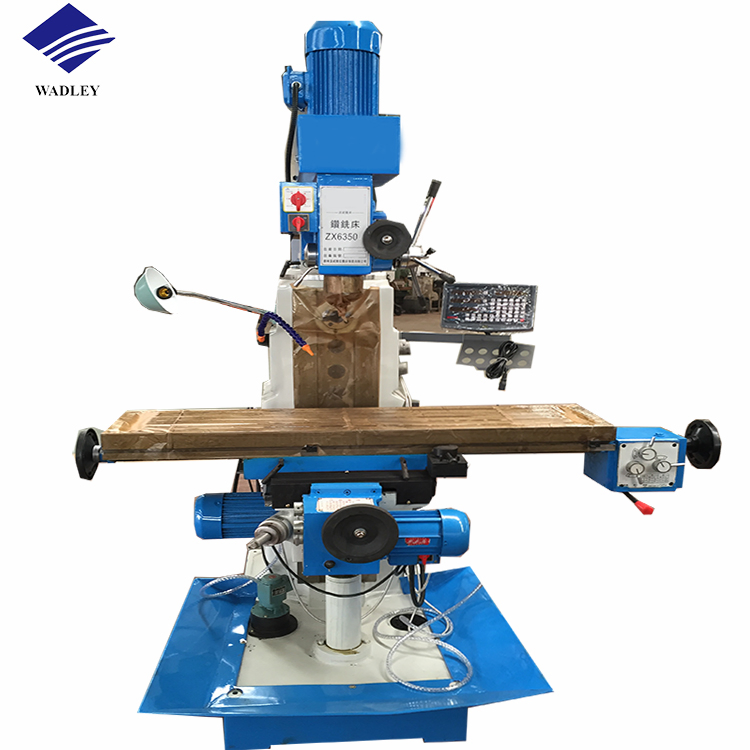

Drilling MIlling Machine ZX6350 Knee-type Milling and drilling machine
1.Product description
The drilling and milling machine is a small and medium-sized general-purpose metal cutting machine that can be used for both horizontal and vertical milling. It is suitable for drilling, expanding, reaming, boring and hole machining; for example, wafer milling machines, angle milling cutters, forming milling cutters and end milling cutters, which can be used to mill planes, bevels, vertical faces and grooves. It can be used as a multi-directional milling operation after the attachment of the vertical milling head.

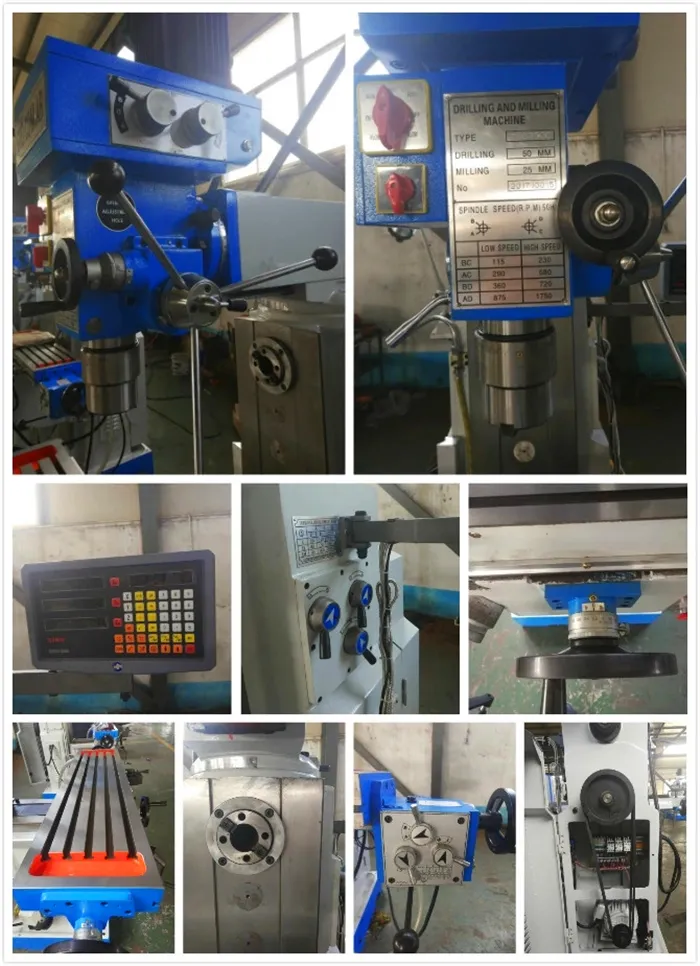

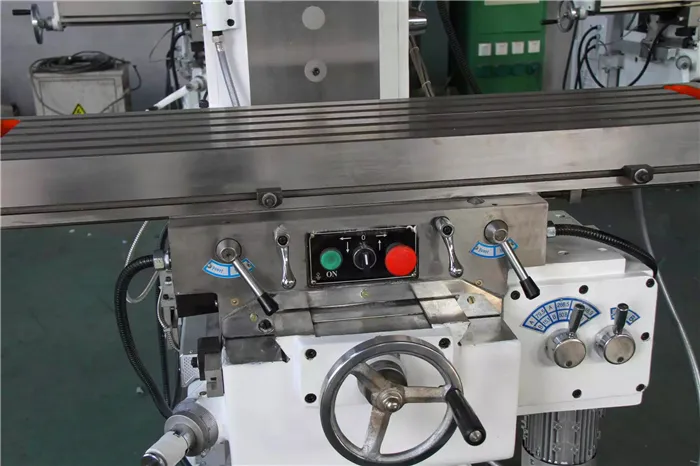

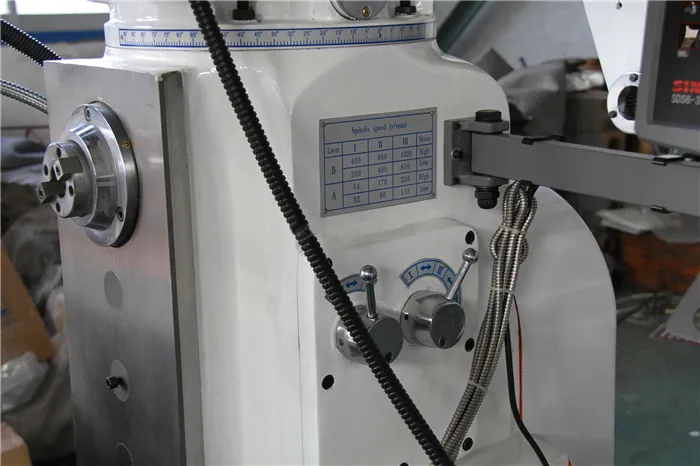

2.Machine details
3.Product feature
a. Gear transmission for vertical/hozizontal milling head
b. ZX6350C :X axis auto feed,Y/Z axis manual feed
c. Headstock swivel +/-45°
d. Guide way with sparking quenching

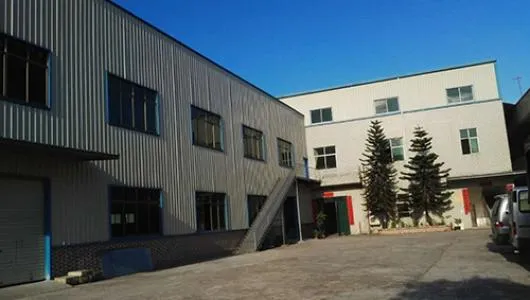

4.Company information
Henan Wadley Machinery With long time exporting machines experience, we can not only supplying our customers stable quality products ,but also more excellent service.we supply all kinds of Machine tool to international market, like Lathe machine, CNC Lathe Machine, Milling Machine, CNC Milling Machine, CNC Machining Center, Grinding Machine, Hydraulic Press, Bending Machine, Drilling Machine, Press brake, Shearing Machine, and Machine tool accessories. We have our own engineer who has more than years of working experience and is professionally trained. Our trained engineers can help customers on behalf of company not only inspect goods before shipping but also track all links of production process.
5.Packing & Shipping
6.FAQ
a:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
b: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
c. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
d: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
e: What's the MOQ?
A: 1 set .
We want to know:
a.What's your Industrial Voltage?
b.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
c.If need CIF Price, please kindly tell us the port of destination.
1.Product description
The drilling and milling machine is a small and medium-sized general-purpose metal cutting machine that can be used for both horizontal and vertical milling. It is suitable for drilling, expanding, reaming, boring and hole machining; for example, wafer milling machines, angle milling cutters, forming milling cutters and end milling cutters, which can be used to mill planes, bevels, vertical faces and grooves. It can be used as a multi-directional milling operation after the attachment of the vertical milling head.
| Specifications | Units | ZX6350A |
| Table size | mm | 1250X320 |
| T Slot number/width/pitch | mm | 3/14/70 |
| Longitudinal travel | mm | 600 |
| Cross travel | mm | 300 |
| Vertical travel | mm | 300 |
| Beam travel | mm | 300 |
| Vertical spindle axis to column surface | mm | 200-500 |
| Vertical spindle nose to table surface | mm | 90-390 |
| Horizontal spindle axis to table surface | mm | 0-300 |
| Horizontal spindle axis to beam surface | mm | 175 |
| Vertical spindle speeds | R/min | 115-1750 8 steps |
| Horizontal milling spindle speeds | R/min | 40-1300 12 steps |
| Vertical spindle taper | MT4 | |
| Horizontal spindle taper | MT4 | |
| Vertical spindle travel | mm | 120 |
| Main motor power | kw | 0.85/1.5(V),2.2(H) |
| Vertical milling bead swivel angle | ° | ±45 |
| Table X/Y axis auto feed speed | Mm/min | 22-555(8 steps)(rapid:840) |
| Table Z axis auto feed speed | Mm/min | 560 |
| X/Y axis feed motor | w | 750 |
| Z axis feed motor | w | 750 |
| Overall dimensions | mm | 1680x1550x2100 |
| Net weight | Kg | 1450 |

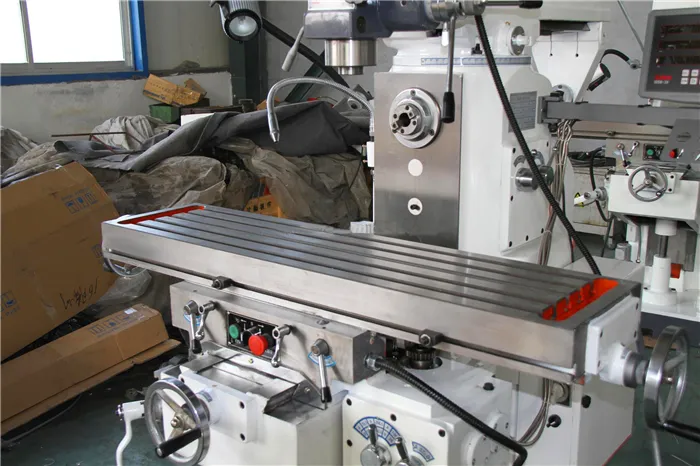

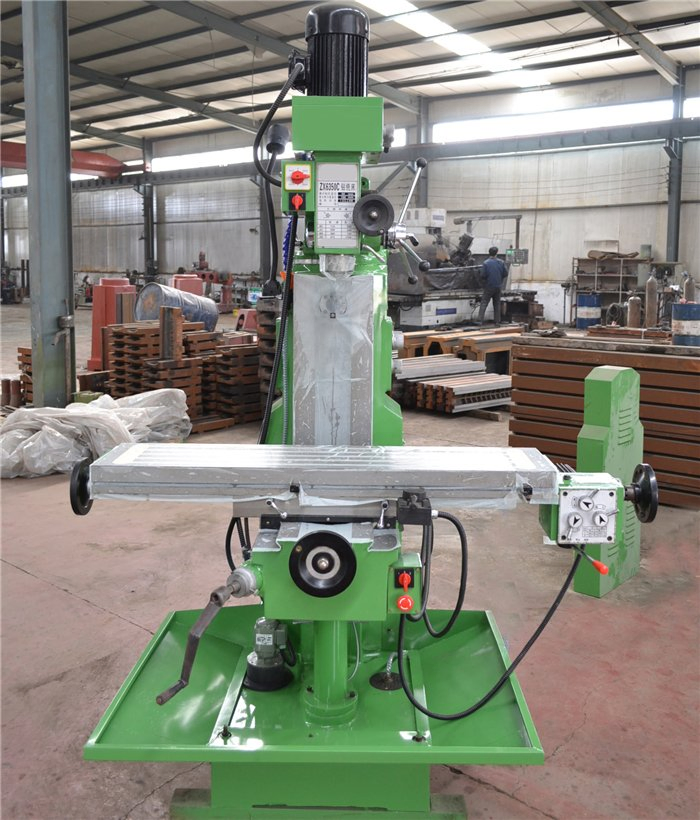

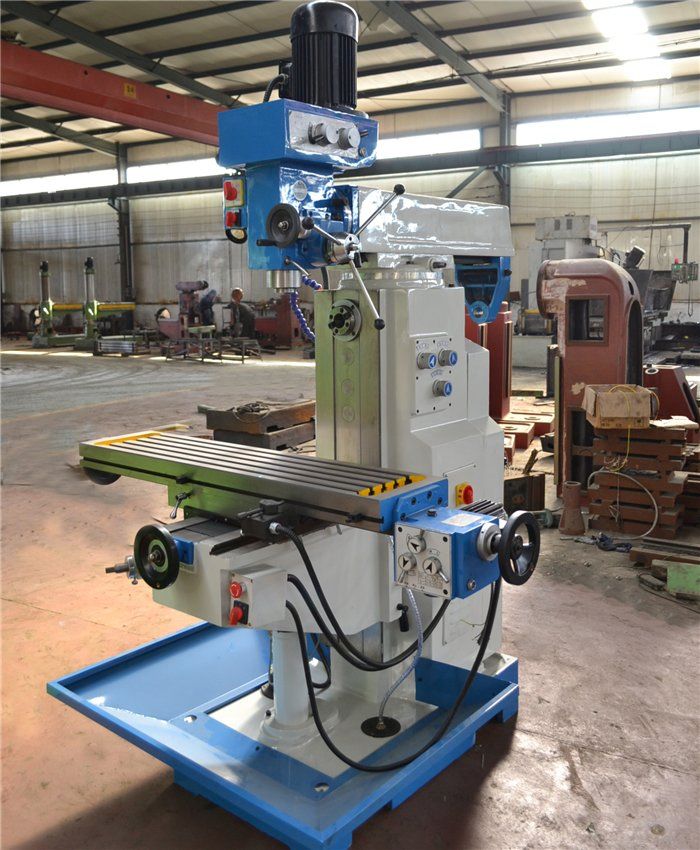

2.Machine details
3.Product feature
a. Gear transmission for vertical/hozizontal milling head
b. ZX6350C :X axis auto feed,Y/Z axis manual feed
c. Headstock swivel +/-45°
d. Guide way with sparking quenching
4.Company information
Henan Wadley Machinery With long time exporting machines experience, we can not only supplying our customers stable quality products ,but also more excellent service.we supply all kinds of Machine tool to international market, like Lathe machine, CNC Lathe Machine, Milling Machine, CNC Milling Machine, CNC Machining Center, Grinding Machine, Hydraulic Press, Bending Machine, Drilling Machine, Press brake, Shearing Machine, and Machine tool accessories. We have our own engineer who has more than years of working experience and is professionally trained. Our trained engineers can help customers on behalf of company not only inspect goods before shipping but also track all links of production process.
5.Packing & Shipping
6.FAQ
a:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
b: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
c. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
d: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
e: What's the MOQ?
A: 1 set .
We want to know:
a.What's your Industrial Voltage?
b.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
c.If need CIF Price, please kindly tell us the port of destination.
