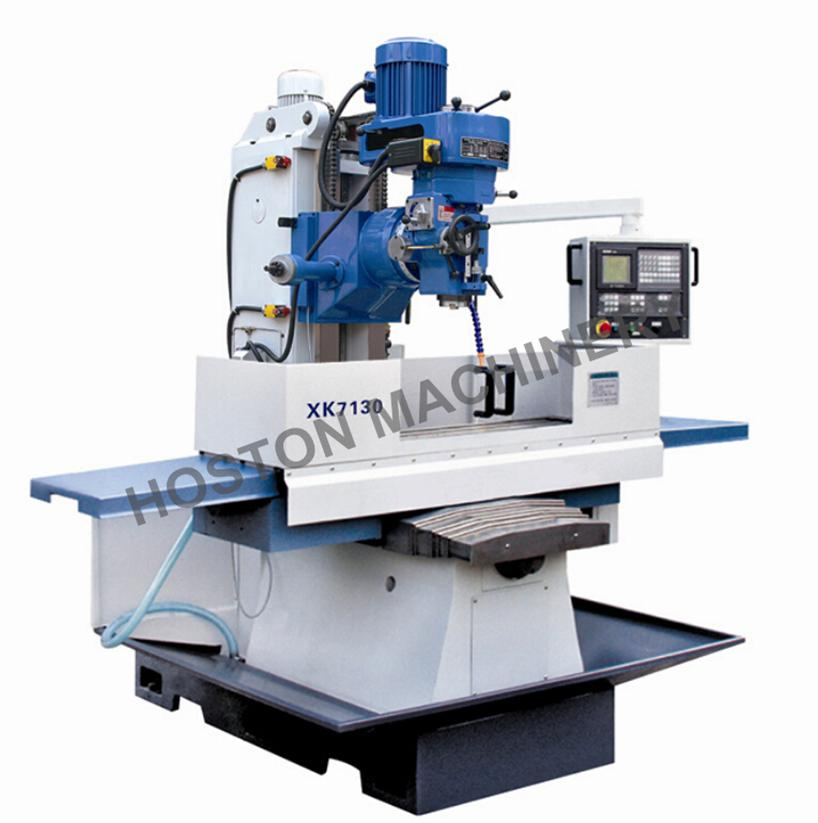

Economical CNC Milling Machine with CE Approved (XK7130)
CNC Bed Type Milling Machine (XK7130)Δ We also have many other modelsIf you have interest in our milling machine, please let me know: 1. What is the table size2. What is the table travel(X/Y/Z)3&a......
Send Inquiry
Product Description
CNC Bed Type Milling Machine (XK7130)
Δ We also have many other models
If you have interest in our milling machine, please let me know:
1. What is the table size
2. What is the table travel(X/Y/Z)
3. If you need CNC, what control system do you want? We usually have FANUC, SIEMENS, GSK, KND etc.
Please feel free to contact me, I will recommend and quote you suitable machine model.
Δ Features:
This machine is the CNC bed milling machine, have stronger bearing capacity, three direction guide for quenching hardened rail, guide rail, large span, wide reasonable, compact structure, spindle for variable frequency motor through the synchronous belt drive. Milling, drilling, chambering and reaming and other functions, can realize the plate, plate and shell, mold and other complex, high precision parts processing, suitable for many varieties, small parts in the plane, slant, trench, hole and other process, is the mechanical, electronics, instruments, meters, mould, automobile and other industries ideal processing equipment.
Δ Standard Accessories
Drawbar
Cutting arbor
Mill chuck
Drill chuck
Drill joint-bar
Δ Technical Parameters
Δ We also have many other models
If you have interest in our milling machine, please let me know:
1. What is the table size
2. What is the table travel(X/Y/Z)
3. If you need CNC, what control system do you want? We usually have FANUC, SIEMENS, GSK, KND etc.
Please feel free to contact me, I will recommend and quote you suitable machine model.
Δ Features:
This machine is the CNC bed milling machine, have stronger bearing capacity, three direction guide for quenching hardened rail, guide rail, large span, wide reasonable, compact structure, spindle for variable frequency motor through the synchronous belt drive. Milling, drilling, chambering and reaming and other functions, can realize the plate, plate and shell, mold and other complex, high precision parts processing, suitable for many varieties, small parts in the plane, slant, trench, hole and other process, is the mechanical, electronics, instruments, meters, mould, automobile and other industries ideal processing equipment.
Δ Standard Accessories
Drawbar
Cutting arbor
Mill chuck
Drill chuck
Drill joint-bar
Δ Technical Parameters
| Specification | Unit | XK7130 |
| Table size | mm | 1370X300 |
| T-slots (No./width/pitch) | mm | 3X14X80 |
| Longitudinal travel | mm | 770 |
| Cross travel | mm | 490 |
| Vertical travel | mm | 440 |
| Distance between spindle and table surface | mm | 155-595 |
| Table rapid feed speed(X) | mm/min | 4000 |
| Table rapid feed speed(Y) | mm/min | 4000 |
| Rapid feed speed(Z) | mm/min | 3000 |
| Spindle hole taper | --- | ISO40 |
| Stroke of spindle quill | mm | 127 |
| Automatic spindle feed | mm/rev | 0.04/0.08/0.15 |
| Spindle speed range | r/min | 43-3225(variable) |
| r/min | 65-4660 (16steps) | |
| Main motor power | HP | 5 |
| Torque of X/Y/Z axis AC servo motor | N.m | 10/10/10 |
| Overall size | mm | 1820X1380X2140 |
| Net weight | kg | 2300 |
