Factory Sales Dx2021 Face Milling Machine
Factory Sales Dx2020 Face Milling Machine The face milling machine consists of milling and cutting head,elevator column,work table,lathe bed,mechanical feeding system,electrical control system,rail protection device,tools,etc.This machine is used yo mill the end face of Box-beam and H-beam,and the d......
Send Inquiry
Product Description

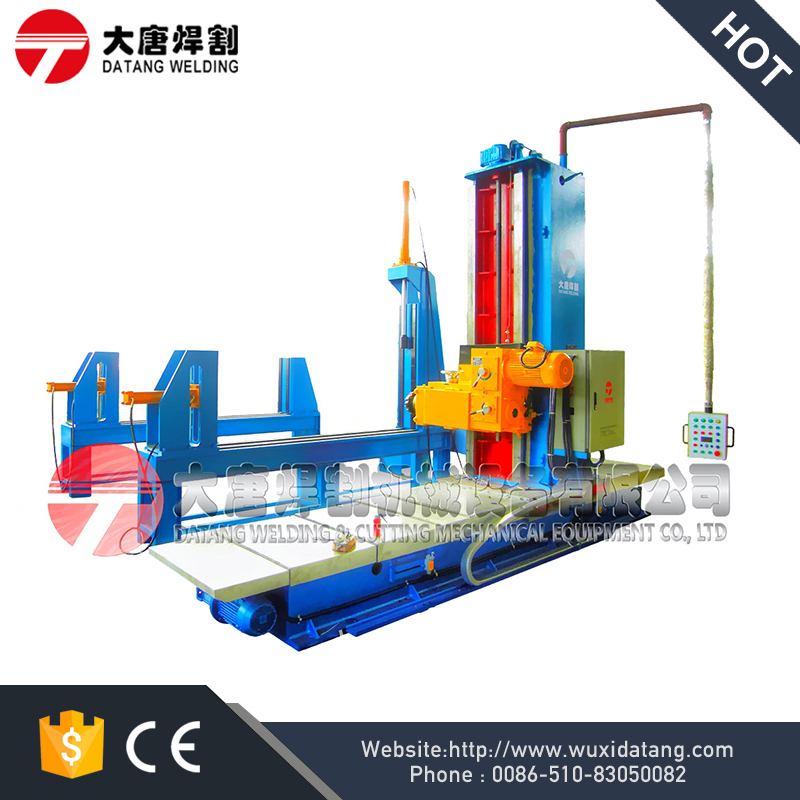

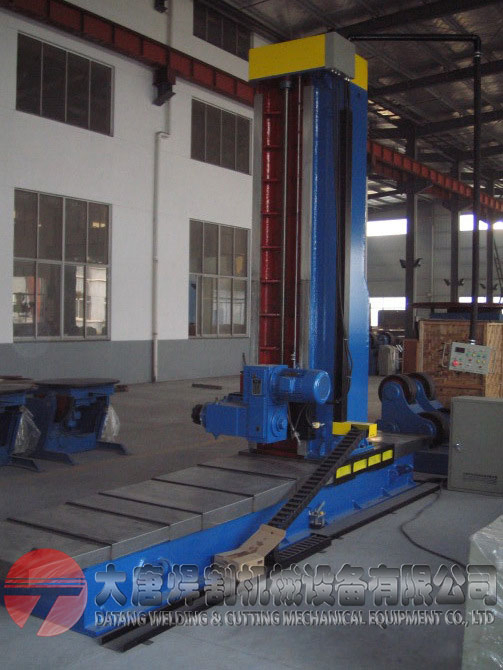

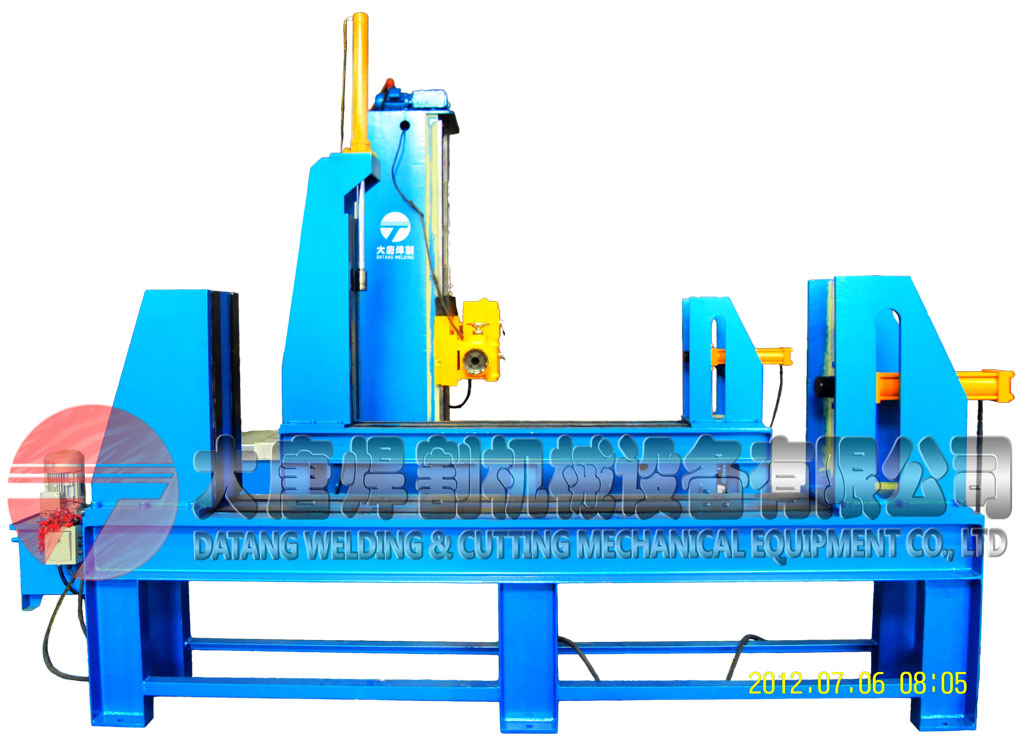

Factory Sales Dx2020 Face Milling Machine
The face milling machine consists of milling and cutting head,elevator column,work table,lathe bed,mechanical feeding system,electrical control system,rail protection device,tools,etc.
This machine is used yo mill the end face of Box-beam and H-beam,and the degree of milling head can be adjusted manually in vertical direction to bevel the end face.The hydraulic support rack for choice can fix the beam and is open top,which is easy for hoisting.
Main technical parameter
Our services:
1,Customer first
2,Sincere cooperation
3,Mutually beneficial
4,Joint development
FAQ
Customer: Can your machine or other products be customized?
we: Yes,we are an professional manufacturer who specializes in welding equipment about 15 years old,we have a strong design team ,so any conventional products can be customized
Customer: What about the transportion?
we: Usually we take seaway ,cause its more convenient and cheaper for big machine,of course ,if it is allowed ,we also can take train ,its according to real condition.
Customer: What about the after-sale service?
we: We provide 12 months quality warranty after dispatch, and some easy abrasion spares of equipment for free. We also provide a long-term free technical advisory services and technical consults service. We can also provide installation and training for value.
Customer: When we receive your machine ,is there any other Accessories we will get?
We: Yes,some easy abrasion spare parts will be provided free in case when some small problems happen
The face milling machine consists of milling and cutting head,elevator column,work table,lathe bed,mechanical feeding system,electrical control system,rail protection device,tools,etc.
This machine is used yo mill the end face of Box-beam and H-beam,and the degree of milling head can be adjusted manually in vertical direction to bevel the end face.The hydraulic support rack for choice can fix the beam and is open top,which is easy for hoisting.
Main technical parameter
| Model | DX-0810 | DX-0812 | DX-1212 | DX-1215 | DX-1520 | DX-2020 | DX-2025 | DX-2040 | DX-3060 |
End-face Machining rage(mm) | 800*1000 | 800*1000 | 1200*1200 | 1200*1500 | 1500*2000 | 2000*2000 | 2000*2500 | 2000*4000 | 3000*6000 |
Horizontal milling speed(mm/min) | 50-440 | 50-440 | 50-500 | ||||||
Vertical milling speed (mm/min) | 22-550 | 22-550 | 22-600 | ||||||
Milling angle(°) | 0-45 | ||||||||
Milling head specifications | TX25A | TX32A | TX40A | TX50A | |||||
cutter rotational speed(rpm) | 125-1420 | 125-1440 | 1440 | 1460 | |||||
Applicable cutter diameter(mm) | 100-160 | 125-250 | 160-320 | 200-400 | |||||
Our services:
1,Customer first
2,Sincere cooperation
3,Mutually beneficial
4,Joint development
FAQ
Customer: Can your machine or other products be customized?
we: Yes,we are an professional manufacturer who specializes in welding equipment about 15 years old,we have a strong design team ,so any conventional products can be customized
Customer: What about the transportion?
we: Usually we take seaway ,cause its more convenient and cheaper for big machine,of course ,if it is allowed ,we also can take train ,its according to real condition.
Customer: What about the after-sale service?
we: We provide 12 months quality warranty after dispatch, and some easy abrasion spares of equipment for free. We also provide a long-term free technical advisory services and technical consults service. We can also provide installation and training for value.
Customer: When we receive your machine ,is there any other Accessories we will get?
We: Yes,some easy abrasion spare parts will be provided free in case when some small problems happen
