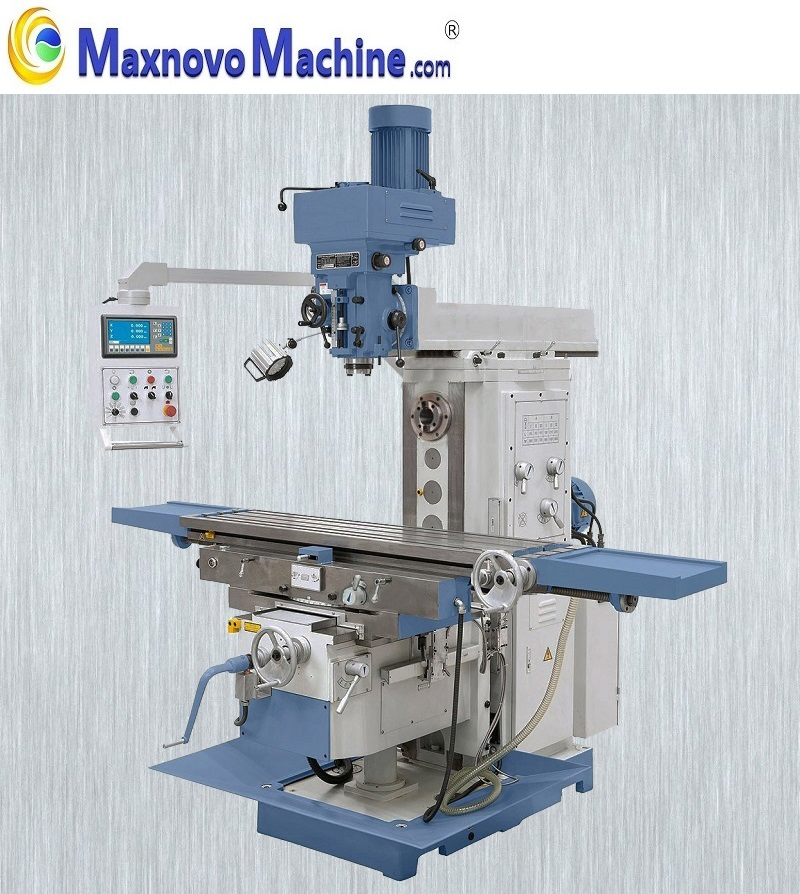

Gear Drive Universal Turret Milling Machine (MM-VHF320S)
MM-VHF320S / Universal Milling Machine / Milling Machine / Turret Milling Machine / RAM Milling Machine / Drilling Milling Machine / Bed-type Milling Machine / Conventional Milling Machine / Vertical Milling Machine / Multi-purpose Milling Machine / Tool Milling Machine / Toolroom Milling Machine
This kind of MM-VHF320S is the solidly constructed universal Turret Milling Machine featuring moveable arm, big clamping area, vertical and horizontal machining capacity which is been made in ISO9001 factory from MAXNOVO MACHINE with CE Safety Certification. The big dimensioned guiding in all axis guarantees absolute precision and stability. Especial feature of this turret milling machine is the rapid feed and table feed driven by Servo Motor.
High Precision Multi-functional Universal Turret Milling Machine with Servo Motor Drive for Professional Use
Main Feature :
Convincing Arguments : Quality, Efficiency and Price
Technical Data :
We are Recognized OEM / ODM manufacturer cooperation with world Famous Germany Machinery Companies for more than 25 years, As a result, Our Team has Prodessional Experience and Innovation Technology to support customers in worldwide. If you want to buy Machine Tools, Welcome to visit our company website to send your enquiry to us, Our team is willing to cooperate with you together.
FAQ
1.Question : Are you a factory or trading company ?
Answer: We are an SGS recognized OEM/ODM manufacturer factory with export license. We have an outstanding and experienced team made up of "A" player who have a passion for doing something great to create more value for customers world-wide.
2. Question : Why choose cooperate with us ?
Answer : -- Right people, Right product, Right price ;
-- Company-wide customer awareness ;
-- Reliable Quality and All components from world leading suppliers ;
-- Cost-effective export infrastructure and total supply chain management ;
3. Question : Where is your factory located ? How can I visit there ?
Answer: With an ISO90001 certified factory located in Yangzhou city , Jiangsu Province , P.R. China . It takes about 2 hours from SHANGHAI by train. It is very pleasure for clients to visit us.
4. Question : Can you do OEM ?
Answer : Yes, we have the ability to do OEM / ODM to meet clients' requirements.
5. Question : How can I get some product samples ?
Answer : We are honored to offer you good product samples. New clients are expected to pay for the product sample cost and the international transportation cost. Product Sample cost would be deducted from the customers' next mass production purchase order in future.
6. Question : How does your factory do regarding quality control ?
Answer : Assuring Quality is our dignity and quality control engineers specially be responsible for quality checking in each process such as Incoming Quality Control , In Process Quality Control , Outgoing Quality Control , Environment Control, Product Traceability System , Internal Audits & Calibration, Equipment Control & Maintenance , Control of Non-Conforming Materials and etc.
7. Question : What is the average delivery time ?
Answer : Most of the time, it would be around 1 week since after confirm receiving customers' contract money. For mass production purchase order at big quantity, the delivery time could be discussed with each other case by case.
MM-VHF320S / Universal Milling Machine / Milling Machine / Turret Milling Machine / RAM Milling Machine / Drilling Milling Machine / Bed-type Milling Machine / Conventional Milling Machine / Vertical Milling Machine / Multi-purpose Milling Machine / Tool Milling Machine / Toolroom Milling Machine
This kind of MM-VHF320S is the solidly constructed universal Turret Milling Machine featuring moveable arm, big clamping area, vertical and horizontal machining capacity which is been made in ISO9001 factory from MAXNOVO MACHINE with CE Safety Certification. The big dimensioned guiding in all axis guarantees absolute precision and stability. Especial feature of this turret milling machine is the rapid feed and table feed driven by Servo Motor.
High Precision Multi-functional Universal Turret Milling Machine with Servo Motor Drive for Professional Use
Main Feature :
Convincing Arguments : Quality, Efficiency and Price
- Servo Motor Drive in complete three axes
- Large cross table at 1370 X 320 mm with T-slots treated surface
- Horizontal and Vertical Multi-functional Milling Capacity
- Hardened and polished guide-ways guarantee top accuracy
- Complete with rapid feed in X-axis , Y-axis and Z-axis to reduce downtime
- User-friendly arranged switches on swiveling control panel
- High versatility due to horizontal spindle
- Finely graduated feeds in all three axes driven by Servo Motor
- Machine body in heavy construction for vibration-free working
- Optimal adjustments spindle speed and feed allow economic machining various materials
- Heavy, solid design using premium cast meehanite
- Solid cross table, generously dimensioned with precision surface finish
- High versatility due to horizontal spindle and vertical spindle
- Right-hand / Left-hand rotation for thread tapping
- Wide range of applications in general machine engineering and manufacturing
- Rapid Feeds in all three axes guarantee quick adjustment
- Milling head swivel 45 degree from left to right direction
- Automatic table feed in all three axis (X/Y/Z-axis) comes standard
- Ergonomically mounted switches on swiveling control panel
- Machine body in heavy cast iron construction for vibration-free working
- Tilt-able cross table is optional
- 3-axis Digital Position Indicator is optional
- Certificate of Original (CO, FORM A, FORM E, FORM F )
Technical Data :
| Product Name : | High Precision Turret Milling Machine with Servo Motor |
| Product Item : | MM-VHF 320S |
| Table Size : | 1370 X 320 mm |
| Max. Load Capacity of Table : | 300 KGS |
| T-slot Size : | 3 Pieces X 14 mm (Width) X 80 mm (Spacing) |
| Horizontal Spindle | |
| Spindle Taper (Horizontal) : | ISO 40 |
| Spindle Speed (Horizontal) : | 35 - 1500 RPM (12 steps) |
| Max. Travel of RAM: | 450 mm |
| Vertical Milling Head | |
| Spindle Taper (Vertical) : | ISO 40 |
| Spindle Speed (Vertical) : | 65 - 4660 RPM (16 steps) |
| Milling Head Swivel Range : | -45 to +45 degree |
| Distance from Vertical Spindle to Table : | 160 - 560 mm |
| Distance from Horizontal Spindle to Table : | 75 - 475 mm |
| Distance from Horizontal Spindle to Arm : | 200 mm |
| Throat : | 178 - 868 mm |
| Travels | |
| Max. Travel Longitudinal (X): | 1000 mm |
| Max. Travel Cross (Y) : | 380 mm |
| Max. Travel Vertical (Z) : | 400 mm |
| Feed Speed Longitudinal (X) : | 30 - 830 mm/min (8 steps) |
| Feed Speed Cross (Y) : | 30 - 830 mm/min (8 steps) |
| Feed Speed Vertical (Z): | 23 - 625 mm/min (8 steps) |
| Rapid Feed X-axis / Y-axis / Z-axis : | 1335 / 1335 / 1000 mm /min |
| Drive Capacity | |
| Motor Rating Horizontal Spindle : | 3000 W |
| Motor Rating Vertical Spindle : | 3700 W |
| Motor Rating X-axis Feed : | 10 Nm (Servo Motor) |
| Motor Rating Y-axis Feed : | 10 Nm (Servo Motor) |
| Motor Rating Z-axis Feed : | 10 Nm (Servo Motor) |
| Coolant Pump Motor : | 90W |
| Gross Weight : | 2060 KGS |
| Packing Size : | 2280 X 2060 X 2250 mm |
| Standard Accessory : | Milling Chuck, Chip Tray, Coolant System, Machine Light, Tools and Toolbox |
We are Recognized OEM / ODM manufacturer cooperation with world Famous Germany Machinery Companies for more than 25 years, As a result, Our Team has Prodessional Experience and Innovation Technology to support customers in worldwide. If you want to buy Machine Tools, Welcome to visit our company website to send your enquiry to us, Our team is willing to cooperate with you together.
FAQ
1.Question : Are you a factory or trading company ?
Answer: We are an SGS recognized OEM/ODM manufacturer factory with export license. We have an outstanding and experienced team made up of "A" player who have a passion for doing something great to create more value for customers world-wide.
2. Question : Why choose cooperate with us ?
Answer : -- Right people, Right product, Right price ;
-- Company-wide customer awareness ;
-- Reliable Quality and All components from world leading suppliers ;
-- Cost-effective export infrastructure and total supply chain management ;
3. Question : Where is your factory located ? How can I visit there ?
Answer: With an ISO90001 certified factory located in Yangzhou city , Jiangsu Province , P.R. China . It takes about 2 hours from SHANGHAI by train. It is very pleasure for clients to visit us.
4. Question : Can you do OEM ?
Answer : Yes, we have the ability to do OEM / ODM to meet clients' requirements.
5. Question : How can I get some product samples ?
Answer : We are honored to offer you good product samples. New clients are expected to pay for the product sample cost and the international transportation cost. Product Sample cost would be deducted from the customers' next mass production purchase order in future.
6. Question : How does your factory do regarding quality control ?
Answer : Assuring Quality is our dignity and quality control engineers specially be responsible for quality checking in each process such as Incoming Quality Control , In Process Quality Control , Outgoing Quality Control , Environment Control, Product Traceability System , Internal Audits & Calibration, Equipment Control & Maintenance , Control of Non-Conforming Materials and etc.
7. Question : What is the average delivery time ?
Answer : Most of the time, it would be around 1 week since after confirm receiving customers' contract money. For mass production purchase order at big quantity, the delivery time could be discussed with each other case by case.
