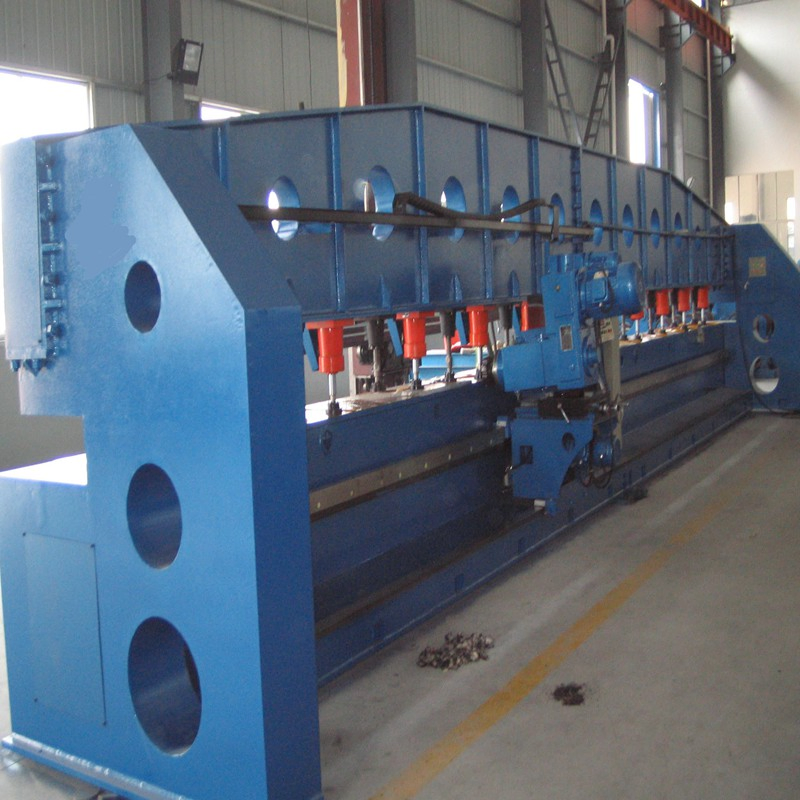

High Efficiency Edge Milling Machine CNC Xbj-6 Edge Milling Machine
Steel Plate Milling MachineI.Product IntroductionThis series machine is a kind of advanced and high efficient milling equipment to prepare the groove of plate before welding instead of planing. Compared with planer, it has the advantages of saving power, low investment and high accuracy of surface f......
Send Inquiry
Product Description

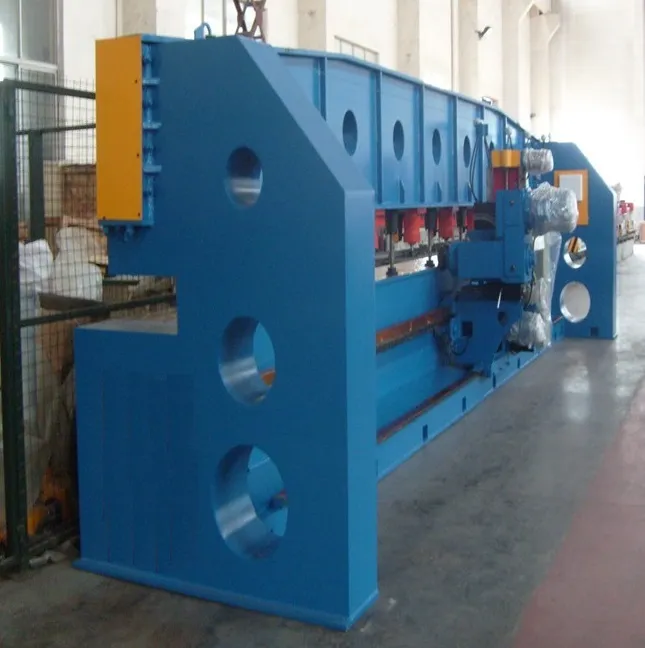

Steel Plate Milling Machine
I.Product Introduction
This series machine is a kind of advanced and high efficient milling equipment to prepare the groove of plate before welding instead of planing. Compared with planer, it has the advantages of saving power, low investment and high accuracy of surface finish. It is widely used in the industries as pressure vessel, boiler, ship-building, power plant, petrochemical and machinery, etc.Compared to the edge milling machine series and the traditional edge milling machine and guide rail installation form is detachable and by heat treatment,bed structure more reasonable,milling head is more stable and reliable operation,the feed and return system is completely independent,return fast speed,high efficiency,cutter convenient angle adjustment,custom knife disc and standard cutter interchangeable is renewal product of traditional milling machine.There are single milling head and double milling head; and the milling head can be standard facer or molding facer for your options.
II.Product Parameters
*We reserve the right to alter specifications without prior notice.
III.Product Main features
The standard models of our fixed upper press-beam edge milling machines have the following features:

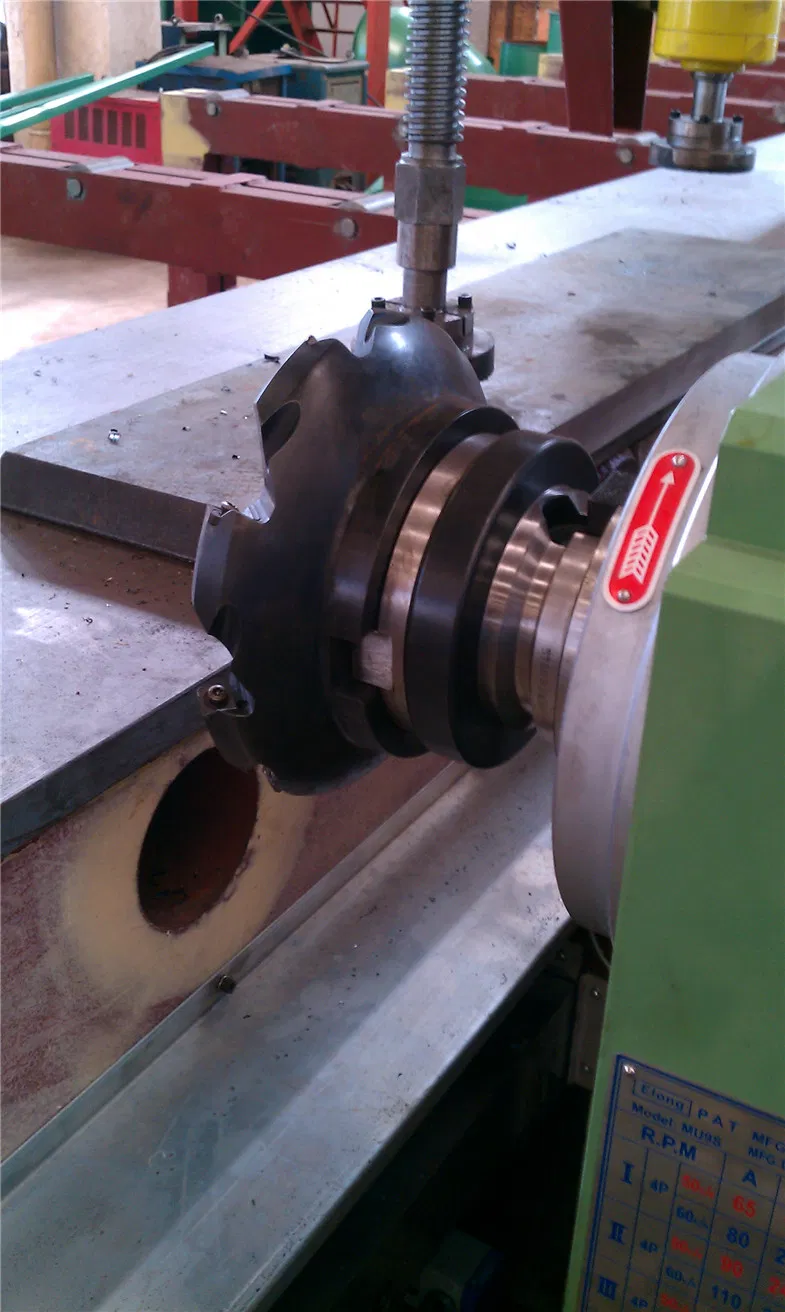

*The lower feeding speed is adjusted by inverter, meeting the requirements of any speed milling and fast feedback. The upper milling unit has function of motorized elevating, manual forwarding milling facer, manual adjusting the milling head angle; the milling facer can adjusting any position for the work piece milling, so that it can milling the straight side and 0-45° beveling (adjusted by manual).
*The principal axis is with great rigidity, great milling characteristics. The gear is quenched and milled treatment, with high precision, low transmission noise, whose speed is adjusted by joystick.
*Rail section is fixed on the lather; Rail is planed into shape with quality mild steel, and then ground finely and surface quenched which ensuring rail precision and abrasion-proof performance.
*In order to positioning the work piece correctly, the lather rail side has the stop rack unit, which can be pulled out manual and retracted into the lather body after the work piece clamping.
*It has the automatic hydraulic press jack and manual screw jack at the down position and press the work piece reliable, which can avoid the milling shaking and decrease the noise.
*There's one set of work piece feeding rack at feeding side of machine.
*The up and down rail adopt 2-stage protection, the upper rail has whole rail protect cover.
*Robust all steel fabrication with stable structure and good rigidity, and no deformation after long time using;
*Heat treatment to main welding parts after welding; sand blasting treatment to main welding parts before painting;
*All motion parts have lubrication system;
*Main electric elements are ABB/Siemens brands;
*Standard color.
IV.Packing&shipping
We will provide professional export packaging and choose the appropriate mode of transportation, or we can follow the requirements of customers.
V.After sale service
Professional technical support and product quality assurance.
VI.Company production
Wincoo Engineering Co., Ltd (WINCOO) is engaged in bringing the most suitable solutions/equipments for client, fabricators, EPC/C companies on pipe fabrication, tank construction, pipeline construction,industrial production lines, clean energy project and other industrial field.
VII.Our advantages
*We have ability of providing workable solutions to support clients to be awarded with shorter project execution time, fewer man-hour cost and higher efficiency construction/fabrication method and better quality during phase of project bidding.
*Based client's facility/site space availability, we are able to study/design and present matched configurations on project schedule, quality, cost and productivity to guarantee production pace is accordance with project requirement.
*To support project execution, we are always ready to work as fireman to give prompt supply on project materials from different consumables, tools, equipments/machines to special merchandise. With flexibility, we are also glad to perform as procurement agent in China to seek required supply resources.

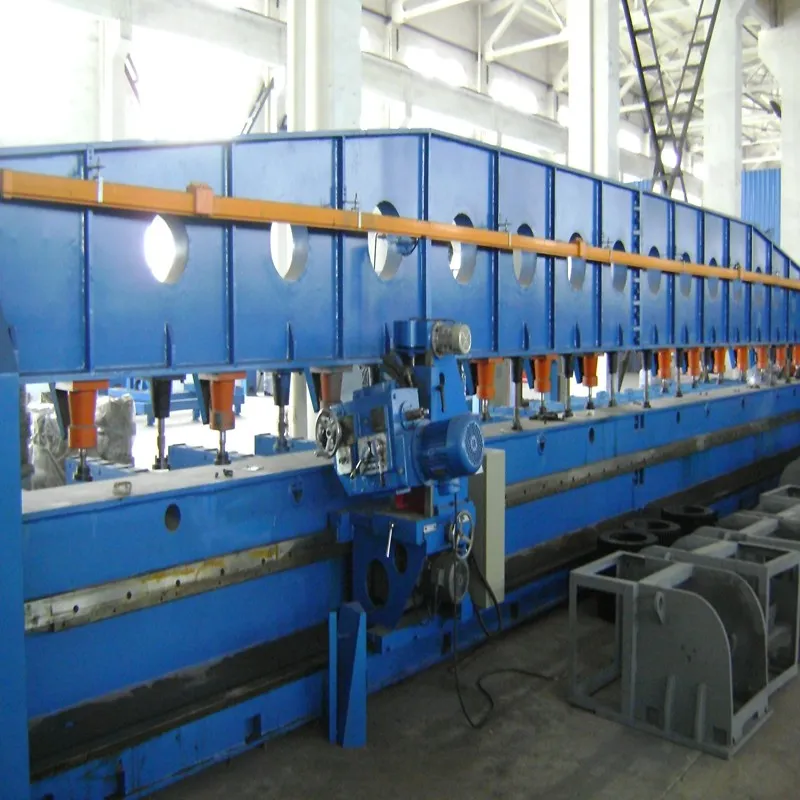

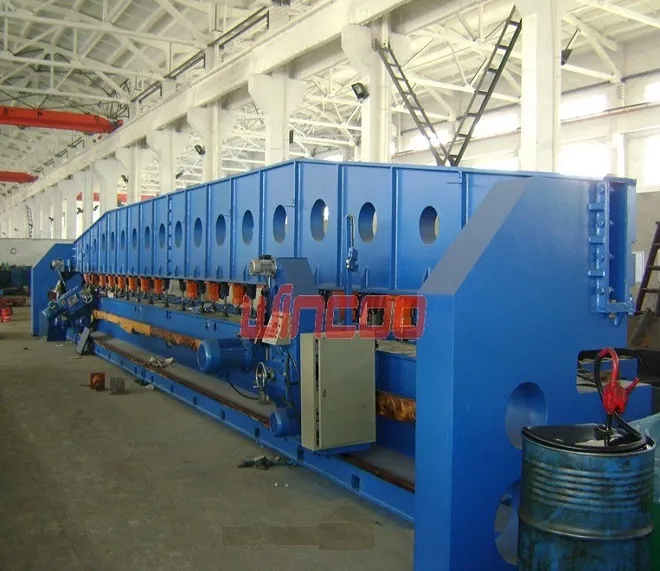

VIII.Product photos
I.Product Introduction
This series machine is a kind of advanced and high efficient milling equipment to prepare the groove of plate before welding instead of planing. Compared with planer, it has the advantages of saving power, low investment and high accuracy of surface finish. It is widely used in the industries as pressure vessel, boiler, ship-building, power plant, petrochemical and machinery, etc.Compared to the edge milling machine series and the traditional edge milling machine and guide rail installation form is detachable and by heat treatment,bed structure more reasonable,milling head is more stable and reliable operation,the feed and return system is completely independent,return fast speed,high efficiency,cutter convenient angle adjustment,custom knife disc and standard cutter interchangeable is renewal product of traditional milling machine.There are single milling head and double milling head; and the milling head can be standard facer or molding facer for your options.
II.Product Parameters
| Model | XBJ6 | XBJ9 | XBJ12 | XBJ15 | XBJ18 |
| Suitable plate length m | 6 | 9 | 12 | 15 | 18 |
| Distance between hold-down and bed mm | 80 | ||||
| Plate thickness mm | 6-50 | ||||
| Milling angle ° | 0°-45° (can be altered) | ||||
| Milling head model | TX32A or TX40A | ||||
| Power and revolution of milling head | 5.5kW, 1440rpm or 7.5kW, 1440rpm | ||||
| Spindle revolution | 125-630 | ||||
| Milling speed m/min | 0.13-1 | ||||
| Fast forward and return speed m/min | 3.5 | ||||
| Hydraulic pressure Mpa | <=3.5 | ||||
| Power supply | AC380V, 50HZ, 3P or tailor made | ||||
| Above are our standard models and parameters, and it can be designed and manufactured on request. | |||||
III.Product Main features
The standard models of our fixed upper press-beam edge milling machines have the following features:

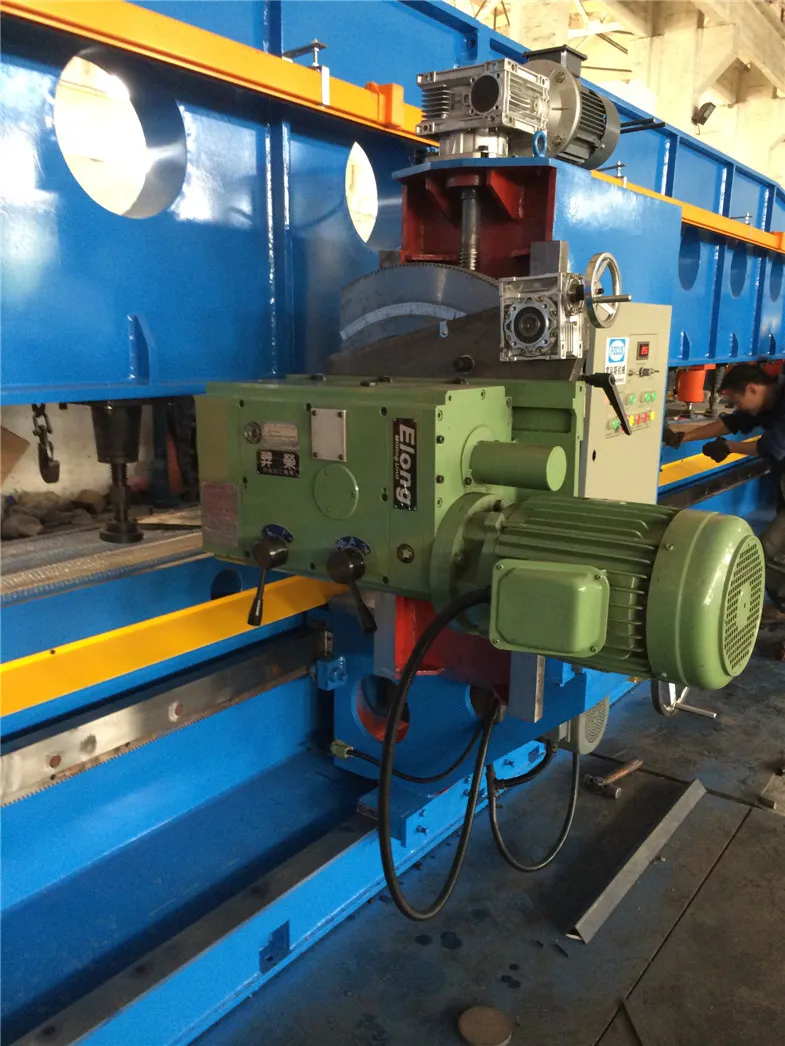

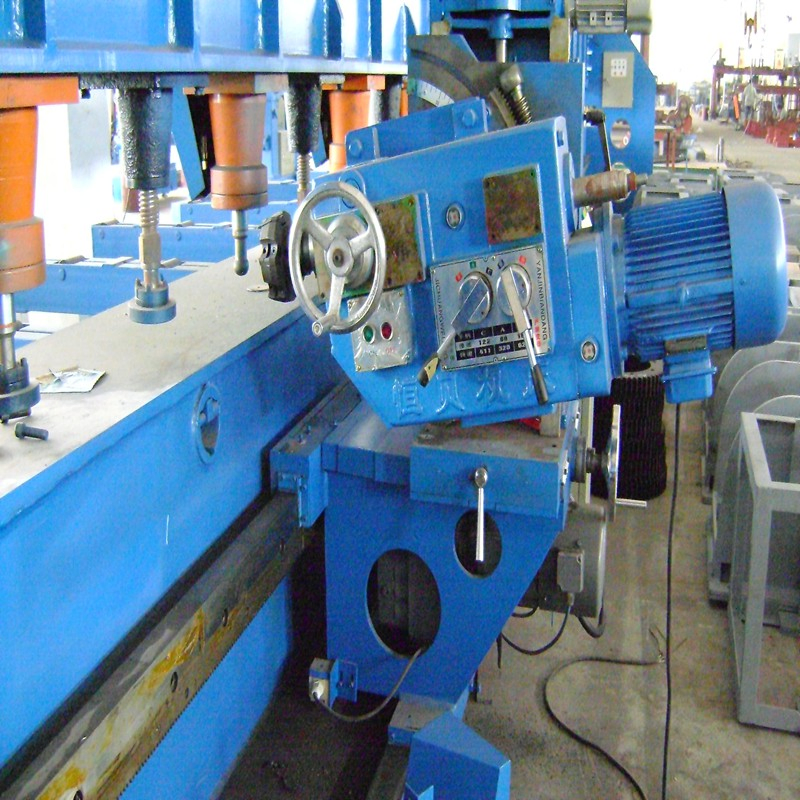

*The lower feeding speed is adjusted by inverter, meeting the requirements of any speed milling and fast feedback. The upper milling unit has function of motorized elevating, manual forwarding milling facer, manual adjusting the milling head angle; the milling facer can adjusting any position for the work piece milling, so that it can milling the straight side and 0-45° beveling (adjusted by manual).
*The principal axis is with great rigidity, great milling characteristics. The gear is quenched and milled treatment, with high precision, low transmission noise, whose speed is adjusted by joystick.
*Rail section is fixed on the lather; Rail is planed into shape with quality mild steel, and then ground finely and surface quenched which ensuring rail precision and abrasion-proof performance.
*In order to positioning the work piece correctly, the lather rail side has the stop rack unit, which can be pulled out manual and retracted into the lather body after the work piece clamping.

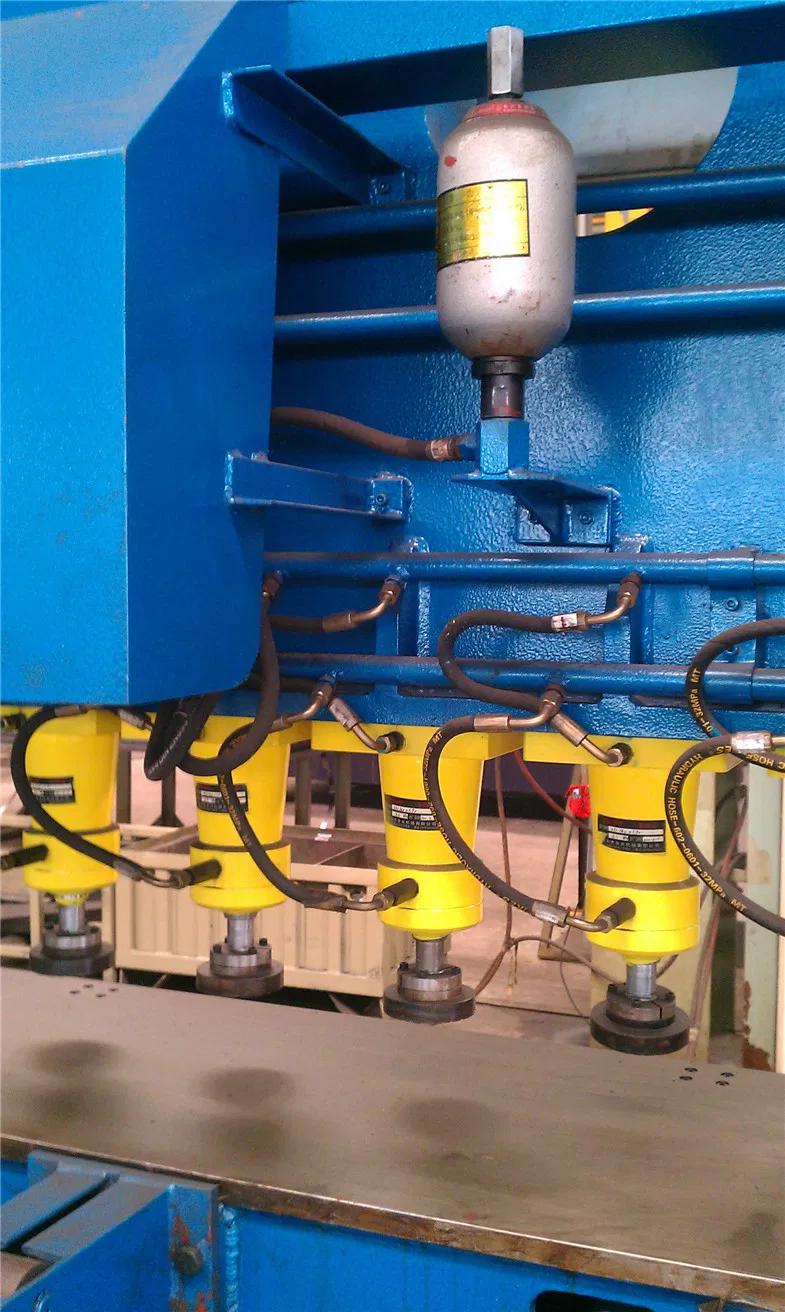

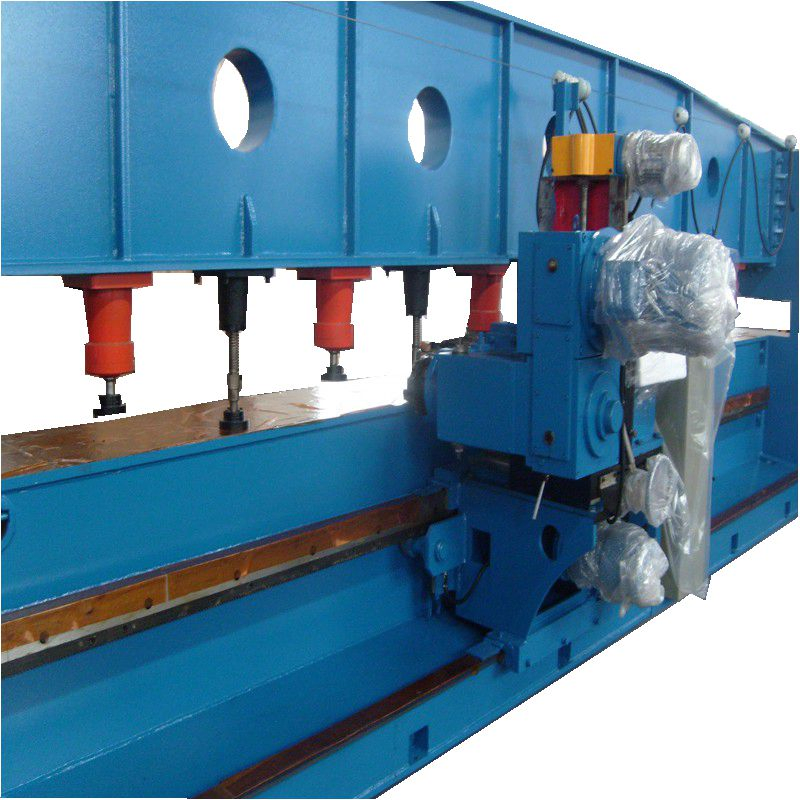

*It has the automatic hydraulic press jack and manual screw jack at the down position and press the work piece reliable, which can avoid the milling shaking and decrease the noise.
*There's one set of work piece feeding rack at feeding side of machine.
*The up and down rail adopt 2-stage protection, the upper rail has whole rail protect cover.
*Robust all steel fabrication with stable structure and good rigidity, and no deformation after long time using;
*Heat treatment to main welding parts after welding; sand blasting treatment to main welding parts before painting;
*All motion parts have lubrication system;
*Main electric elements are ABB/Siemens brands;
*Standard color.
IV.Packing&shipping
We will provide professional export packaging and choose the appropriate mode of transportation, or we can follow the requirements of customers.
V.After sale service
Professional technical support and product quality assurance.
VI.Company production
Wincoo Engineering Co., Ltd (WINCOO) is engaged in bringing the most suitable solutions/equipments for client, fabricators, EPC/C companies on pipe fabrication, tank construction, pipeline construction,industrial production lines, clean energy project and other industrial field.
VII.Our advantages
*We have ability of providing workable solutions to support clients to be awarded with shorter project execution time, fewer man-hour cost and higher efficiency construction/fabrication method and better quality during phase of project bidding.
*Based client's facility/site space availability, we are able to study/design and present matched configurations on project schedule, quality, cost and productivity to guarantee production pace is accordance with project requirement.
*To support project execution, we are always ready to work as fireman to give prompt supply on project materials from different consumables, tools, equipments/machines to special merchandise. With flexibility, we are also glad to perform as procurement agent in China to seek required supply resources.
