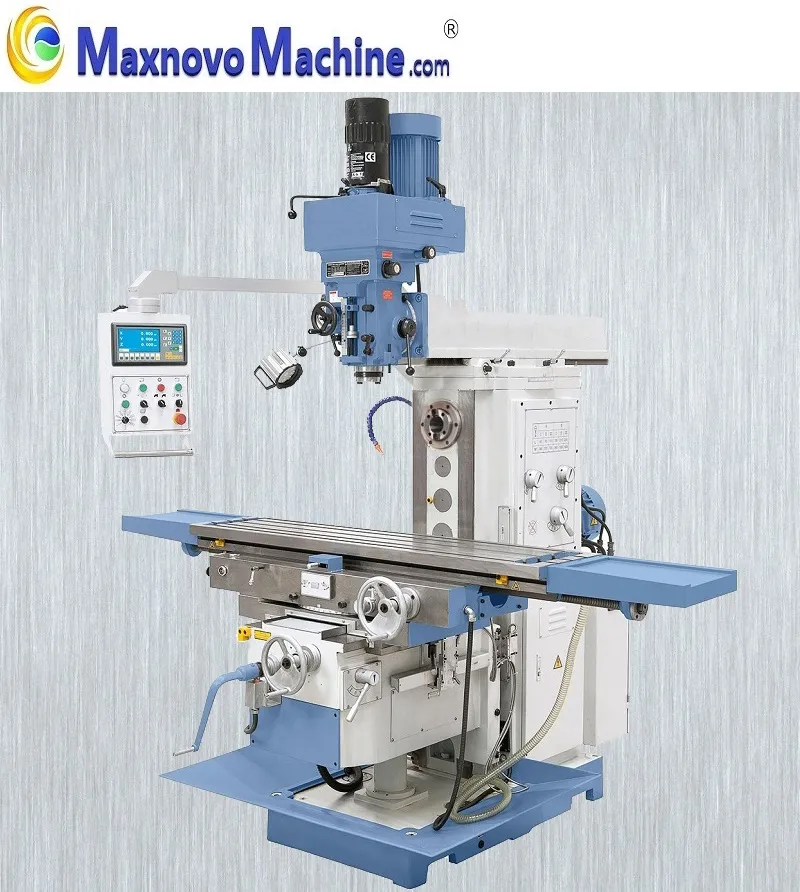

High Precision Universal Turret Milling Machine with Advanced Servo Motor (mm-VHF350S)
MM-VHF350S / Universal Milling Machine / Milling Machine / Turret Milling Machine / RAM Milling Machine / Drilling Milling Machine / Bed-type Milling Machine / Conventional Milling Machine / Vertical Milling Machine / Multi-purpose Milling Machine / Tool Milling Machine / Toolroom Milling MachineHig......
Send Inquiry
Product Description
MM-VHF350S / Universal Milling Machine / Milling Machine / Turret Milling Machine / RAM Milling Machine / Drilling Milling Machine / Bed-type Milling Machine / Conventional Milling Machine / Vertical Milling Machine / Multi-purpose Milling Machine / Tool Milling Machine / Toolroom Milling Machine
High Precision Universal Turret Milling Machine with Advanced Servo Motor (MM-VHF350S)
This kind of MM-VHF350S is solidly high precision universal Turret Milling Machine featuring moveable arm, Servo-Motor Drive for all axes, Vertical and Horizontal milling machining operations which is been made in ISO9001 factory from MAXNOVO MACHINE with CE Safety Certification. The big dimensioned guiding in all axis guarantees absolute precision and wide spectrum of applications.
High Precision Turret Milling Machine with Advanced Servo Motor Drive, Versatile in both Vertical and Horizontal Machining Operations
Main Feature :
Convincing Arguments : Quality, Efficiency and Price
Technical Data :
We are Recognized OEM / ODM manufacturer cooperation with world Famous Germany Machinery Companies for more than 25 years, As a result, Our Team has Prodessional Experience and Innovation Technology to support customers in worldwide. If you want to buy Machine Tools, Welcome to visit our company website to send your enquiry to us, Our team is willing to cooperate with you together.
FAQ
1.Question : Are you a factory or trading company ?
Answer: We are an SGS recognized OEM/ODM manufacturer factory with export license. We have an outstanding and experienced team made up of "A" player who have a passion for doing something great to create more value for customers world-wide.
2. Question : Why choose cooperate with us ?
Answer : -- Right people, Right product, Right price ;
-- Company-wide customer awareness ;
-- Reliable Quality and All components from world leading suppliers ;
-- Cost-effective export infrastructure and total supply chain management ;
3. Question : Where is your factory located ? How can I visit there ?
Answer: With an ISO90001 certified factory located in Yangzhou city , Jiangsu Province , P.R. China . It takes about 2 hours from SHANGHAI by train. It is very pleasure for clients to visit us.
4. Question : Can you do OEM ?
Answer : Yes, we have the ability to do OEM / ODM to meet clients' requirements.
5 Question : How can I get some product samples ?
Answer : We are honored to offer you good product samples. New clients are expected to pay for the product sample cost and the international transportation cost. Product Sample cost would be deducted from the customers' next mass production purchase order in future.
6. Question : How does your factory do regarding quality control ?
Answer : Assuring Quality is our dignity and quality control engineers specially be responsible for quality checking in each process such as Incoming Quality Control , In Process Quality Control , Outgoing Quality Control , Environment Control, Product Traceability System , Internal Audits & Calibration, Equipment Control & Maintenance , Control of Non-Conforming Materials and etc.
7. Question : What is the average delivery time ?
Answer : Most of the time, it would be around 1 week since after confirm receiving customers' contract money. For mass production purchase order at big quantity, the delivery time could be discussed with each other case by case.
High Precision Universal Turret Milling Machine with Advanced Servo Motor (MM-VHF350S)
This kind of MM-VHF350S is solidly high precision universal Turret Milling Machine featuring moveable arm, Servo-Motor Drive for all axes, Vertical and Horizontal milling machining operations which is been made in ISO9001 factory from MAXNOVO MACHINE with CE Safety Certification. The big dimensioned guiding in all axis guarantees absolute precision and wide spectrum of applications.
High Precision Turret Milling Machine with Advanced Servo Motor Drive, Versatile in both Vertical and Horizontal Machining Operations
Main Feature :
Convincing Arguments : Quality, Efficiency and Price
- Large Cross Table at 1325 X 360 mm with T-slots treated Surface
- Advanced Servo-Motor Drive in complete three axes (X/Y/Z-axes)
- Versatile for Horizontal and Vertical Multi-functional Milling Capacity
- High Versatility due to Horizontal Spindle and Vertical Spindle
- Extremely rigid machine bed made of high-strength HT-200 cast-iron with heavy ribbing
- Quiet, precision-made headstock gears with hardened and ground gears
- Horizontal and Vertical Multi-functional Milling Capacity
- Hardened and polished guide-ways guarantee top accuracy
- Complete with rapid feed in X-axis , Y-axis and Z-axis to reduce downtime
- User-friendly arranged switches on swiveling control panel
- High versatility due to horizontal spindle
- Vertical and Horizontal spindle each have their separate drive
- Finely graduated feeds in all three axes driven by Servo Motor
- Machine body in heavy construction for vibration-free working
- Optimal adjustments spindle speed and feed allow economic machining various materials
- Solid cross table, generously dimensioned with precision surface finish
- High versatility due to horizontal spindle and vertical spindle
- Right-hand / Left-hand rotation for thread tapping
- Wide range of applications in general machine engineering and manufacturing
- Rapid Feeds in all three axes guarantee quick adjustment
- Milling head swivel 45 degree from left to right direction
- Automatic table feed in all three axis (X/Y/Z-axis) comes standard
- Ergonomically mounted switches on swiveling control panel
- Machine body in heavy cast iron construction for vibration-free working
- Working Table can Tilt-able is optional special spare part
- 3-axis Digital Position Indicator is optional special spare part
- Certificate of Original (CO, FORM A, FORM E, FORM F )
Technical Data :
| Product Name : | High Precision Turret Milling Machine with Servo Motor |
| Product Item : | MM-VHF350S |
| Table Size : | 1325 X 360 mm |
| Max. Load Capacity of Table : | 350 KGS |
| T-slot Size : | 3 Pieces X 14 mm (Width) X 80 mm (Spacing) |
| Horizontal Spindle | |
| Spindle Taper (Horizontal) : | ISO 50 |
| Spindle Speed (Horizontal) : | 60 - 1800 RPM (12 steps) |
| Max. Travel of RAM: | 550 mm |
| Vertical Milling Head | |
| Spindle Taper (Vertical) : | ISO 40 |
| Spindle Speed (Vertical) : | 65 - 4660 RPM (16 steps) |
| Spindle Sleeve Stroke : | 127 mm |
| Milling Head Swivel Range : | -90 to +90 degree |
| Distance from Vertical Spindle to Table : | 200 - 650 mm |
| Distance from Horizontal Spindle to Table : | 20 - 470 mm |
| Distance from Horizontal Spindle to Arm : | 245 mm |
| Travels | |
| Max. Travel Longitudinal (X): | 1100 mm |
| Max. Travel Cross (Y) : | 320 mm |
| Max. Travel Vertical (Z) : | 450 mm |
| Feed Speed Longitudinal (X) : | 30 - 750 mm/min (8 steps) |
| Feed Speed Cross (Y) : | 20 - 500 mm/min (8 steps) |
| Feed Speed Vertical (Z): | 15 - 375 mm/min (8 steps) |
| Rapid Feed X-axis / Y-axis / Z-axis : | 1200 / 800 / 600 mm /min |
| Drive Capacity | |
| Motor Rating Horizontal Spindle : | 5500 W |
| Motor Rating Vertical Spindle : | 3700 W |
| Motor Rating X-axis Feed : | 10 Nm (Servo Motor) |
| Motor Rating Y-axis Feed : | 10 Nm (Servo Motor) |
| Motor Rating Z-axis Feed : | 10 Nm (Servo Motor) |
| Coolant Pump Motor : | 90W |
| Gross Weight : | 2850 KGS |
| Packing Size : | 2580 X 2150 X 2230 mm |
| Standard Accessory : | Servo-Motor, Milling Chuck, Chip Tray, Coolant System, Machine Light, Tools and Toolbox |
We are Recognized OEM / ODM manufacturer cooperation with world Famous Germany Machinery Companies for more than 25 years, As a result, Our Team has Prodessional Experience and Innovation Technology to support customers in worldwide. If you want to buy Machine Tools, Welcome to visit our company website to send your enquiry to us, Our team is willing to cooperate with you together.
FAQ
1.Question : Are you a factory or trading company ?
Answer: We are an SGS recognized OEM/ODM manufacturer factory with export license. We have an outstanding and experienced team made up of "A" player who have a passion for doing something great to create more value for customers world-wide.
2. Question : Why choose cooperate with us ?
Answer : -- Right people, Right product, Right price ;
-- Company-wide customer awareness ;
-- Reliable Quality and All components from world leading suppliers ;
-- Cost-effective export infrastructure and total supply chain management ;
3. Question : Where is your factory located ? How can I visit there ?
Answer: With an ISO90001 certified factory located in Yangzhou city , Jiangsu Province , P.R. China . It takes about 2 hours from SHANGHAI by train. It is very pleasure for clients to visit us.
4. Question : Can you do OEM ?
Answer : Yes, we have the ability to do OEM / ODM to meet clients' requirements.
5 Question : How can I get some product samples ?
Answer : We are honored to offer you good product samples. New clients are expected to pay for the product sample cost and the international transportation cost. Product Sample cost would be deducted from the customers' next mass production purchase order in future.
6. Question : How does your factory do regarding quality control ?
Answer : Assuring Quality is our dignity and quality control engineers specially be responsible for quality checking in each process such as Incoming Quality Control , In Process Quality Control , Outgoing Quality Control , Environment Control, Product Traceability System , Internal Audits & Calibration, Equipment Control & Maintenance , Control of Non-Conforming Materials and etc.
7. Question : What is the average delivery time ?
Answer : Most of the time, it would be around 1 week since after confirm receiving customers' contract money. For mass production purchase order at big quantity, the delivery time could be discussed with each other case by case.
