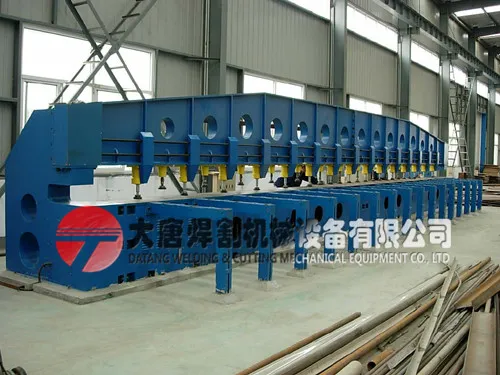

High Quality Dxbj-12 Edge Milling Machine
DXBJ-6 EDGE Milling machineCompare with the traditional edge milling machine, this series Edge Milling Machine has the assembable and dissambable track with heat-treatment, the lathe has the reasonalbe structure, the milling head running is steady and reliable, the feeding system and backing system ......
Send Inquiry
Product Description

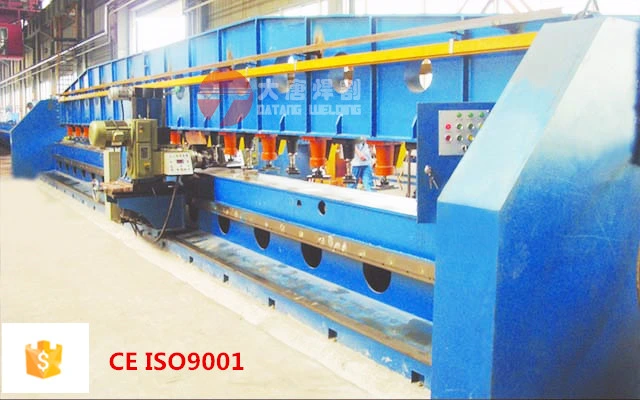

DXBJ-6 EDGE Milling machine
Compare with the traditional edge milling machine, this series Edge Milling Machine has the assembable and dissambable track with heat-treatment, the lathe has the reasonalbe structure, the milling head running is steady and reliable, the feeding system and backing system is identified full, free speed is fast and effeciency is high, the milling head angle adjusting is easy, the tailor made milling facer and standard milling facer is changeable, which is the new generation product of the traditional milling machine.
The face milling machine consists of milling and cutting head, elevator column, work table, lathe bed, mechanical feeding system, electrical control system, rail protection device, tools etc.
This face milling machine is used to mill the end face of Box-beam and H-beam, and the degree of milling head can be adjusted manually in vertical direction to bevel the end face. The hydraulic support rack for choice can fix the beam and is open top, which is easy for hoisting.
Basic Information
Product/Service (We Sell): Welding Positioner,Welding Rotator,Welding Manipulator,CNC Cutting Machine,H-Beam Straightening Machine
Brands: WUXI DATANG
Number of Employees: 51 - 100 People
Trade & Market
Main Markets: South Asia
Southern Europe
Northern Europe
Central America
Western Europe
Eastern Asia
Mid East
Oceania
Africa
Southeast Asia
Eastern Europe
South America
North America
Total Annual Sales Volume: US$2.5 Million - US$5 Million
Export Percentage: 81% - 90%
Factory Information
Factory Size (Sq.meters): 3,000-5,000 square meters
Factory Location: Yangyang Road, Yangshi Town, Huishan District, Wuxi City, China
Number of Production Lines: Above 10
Number of R&D Staff: Less than 5 People
Number of QC Staff: Less than 5 People
Management Certification: ISO9001
Contract Manufacturing: OEM Service Offered Design Service Offered Buyer Label Offered
Our policy
1Customer First
2sincere cooperation
3Mutually beneficial
4Joint development
Compare with the traditional edge milling machine, this series Edge Milling Machine has the assembable and dissambable track with heat-treatment, the lathe has the reasonalbe structure, the milling head running is steady and reliable, the feeding system and backing system is identified full, free speed is fast and effeciency is high, the milling head angle adjusting is easy, the tailor made milling facer and standard milling facer is changeable, which is the new generation product of the traditional milling machine.
The face milling machine consists of milling and cutting head, elevator column, work table, lathe bed, mechanical feeding system, electrical control system, rail protection device, tools etc.
This face milling machine is used to mill the end face of Box-beam and H-beam, and the degree of milling head can be adjusted manually in vertical direction to bevel the end face. The hydraulic support rack for choice can fix the beam and is open top, which is easy for hoisting.
| Model | DXBJ-6 | DXBJ-9 | DXBJ-12 |
| Milling angle | 0-45° | ||
| Milling plate thickness | 6-50 | ||
| Milling depth for one time | 12 | ||
| Transverse milling speed | 0.3/0.5 | ||
| Milling free speed | 5 | ||
| Main shaft rotation speed | 125-800 | ||
| Hydraulic system pressure | ≤3.5 | ≤3.5 | ≤3.5 |
| Support platform cyclinder capacity(Piece) | 8 | 11 | 15 |
| Support platform to the ground distance | 900 | ||
| Feeding motor power | 1.1/0.85 | ||
| Milling motor power | 3 | ||
| Oil pump motor power | 5.5 | 5.5 | 5.5 |
| Dimension(a×b×c) | 7724×2600×2050 | 10724×2600×2200 | 13724×2600×2300 |
Packaging Details: | welding manipulator 1.Outside package:standard export wooden cases 2.Inner package:Stretch film about 14 workdays payment |
|---|---|
| Delivery Detail: | 30 days |
