High Speed Precision Plano /Planer/Gantry Milling Machine-Vertical Moving Type Milling Machine General Plano Milling Machine-Best Offer for Planer Mill Center
CNC Precision Vertical Milling Machine VM-1830NCS -spindle driving by powerful Gear Box type GOODA CNC planer millinh machine VM-1830NCS is top 1 configuration surface machine. The integrated high rigidity T-shaped bed, double- column structure and crosswise overhangless structure ensure high straig......
Send Inquiry
Product Description

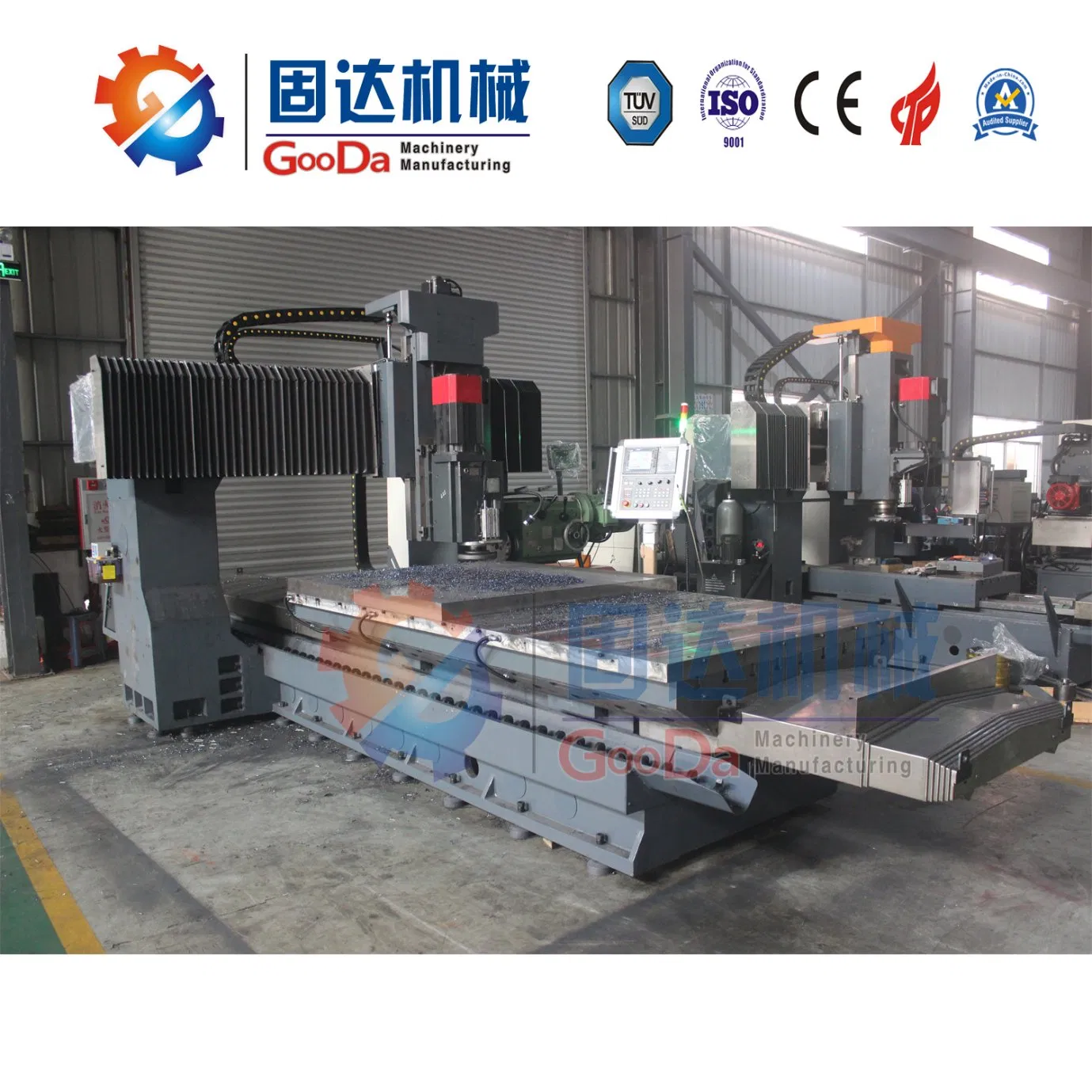

CNC Precision Vertical Milling Machine VM-1830NCS -spindle driving by powerful Gear Box type
GOODA CNC planer millinh machine VM-1830NCS is top 1 configuration surface machine. The integrated high rigidity T-shaped bed, double- column structure and crosswise overhangless structure ensure high straightness accuracy and and excellent workability.
Productivity Features
GOODA CNC planer millinh machine VM-1830NCS is top 1 configuration surface machine. The integrated high rigidity T-shaped bed, double- column structure and crosswise overhangless structure ensure high straightness accuracy and and excellent workability.
Features and applications:
- Automatically measure, automatically processing and excellent surface performance.
- Maintain high accuracy for dimension, squareness and parallelism.
- One loading and one setting needed only is helpful to shorten the preparation time.

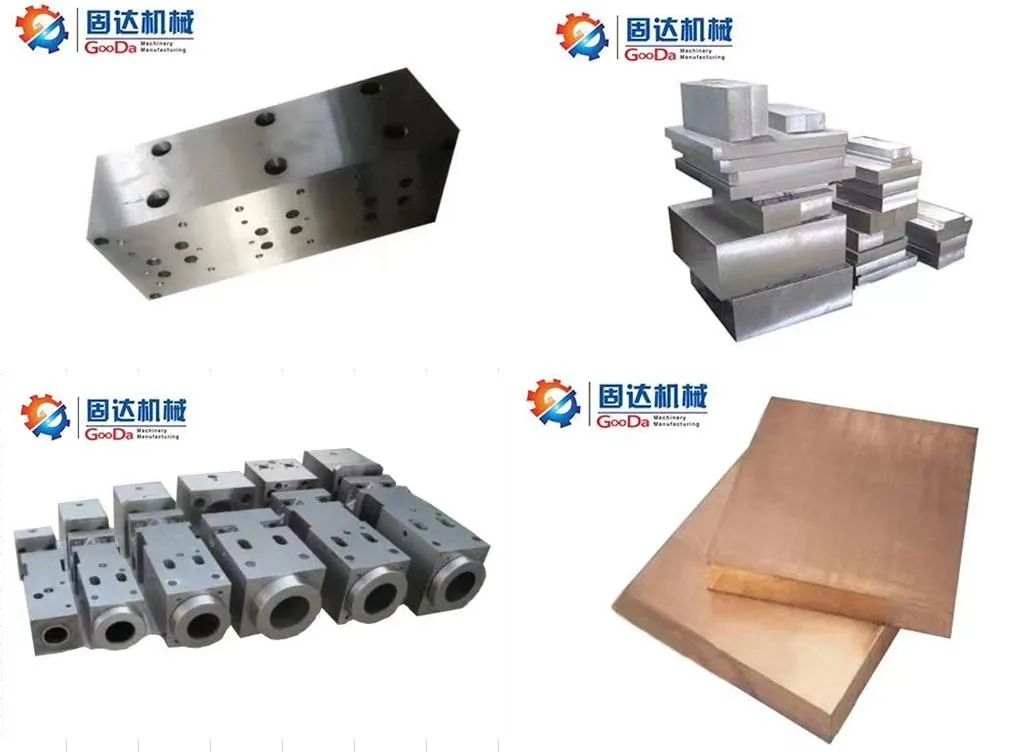

- Mainly used for pre-squared steel plate and non-ferrous metal materials for flat surface.
- Machine bed base with chip removal groove.
Productivity Features
| VM-1830NCS Specifications | |||
| No. | Item | Description | Specification |
| 1 | Model | GOODA CNC vertical milling machine | VM-1830NCS |
| 2 | Net width | Net width of inside | 1800 |
3 | Cutting capacity | Max. machining length mm | 3000 |
| Max. machining width mm | 1800 | ||
| Max. processing height mm | 600 | ||
4 | Worktable | Worktable size mm | 3000*1800 |
| Max loading weight kg | 12000 | ||
5 | The milling head assembly | Spindle power kw | 15/22/30/37 |
| Spindle taper | BT50(7:24) | ||
| Speed of mainshaft C/S | 50-500 | ||
6 | Travelling speed | X axis moving speed mm/min | 0-8000 |
| Y axis moving speed mm/min | 0-8000 | ||
| Z axis moving speed mm/min | 0-8000 | ||
7 | Motor power | X,Y,Z axis motor kw | 5.5,3,3 |
| Chip-removal motor kw | 1/2 | ||
| 8 | Dimension & weight | Machine height mm | 3600 |
| Machine area mm | 7800*3700 | ||
| Machine weight kg | 21000 | ||
Productivity configuration
| Sort | Name | Quantity | Origin | Remark |
| Machinery | Worktable ball screw | 3 | Taiwan HIWIN | steady transmission, High accuracy, wear-proof |
| Guide rail | 3 | High frequency hardened rail of Quenching | Good bearing, Heavy cutting | |
| Main Spindle (Horizontal) | 2 | Taiwan POSA | Low noise, high strength, Taiwan famous brand | |
| Flexible stainless steel plate shield of worktable | 2 | Domestic | High strength, Strong durability, dust-proof, Protect the guide rail and ball screw. | |
| Base casting | 1 | HT150 | Good stability, excellent wear-ability | |
| Automatic lubricating machine | 3 | Domestic | Electronic-self-lubrication, Quantitative oil supply to the each part | |
| Oil line | 3 | Domestic | Copper tube | |
| Bearing | Germany FAG | World famous brand, High accuracy, High quality | ||
| Electrical appliances | CNC system | 1 | Japan FANUC | Top brand of CNC |
| Servo motor | 3 | Japan FANUC | Top brand of CNC | |
| High precision rotary table | 1 | Taiwan Central Star | Taiwan famous brand, High accuracy | |
| Spindle motor | 2 | CTB | Multitronic, Meet the requirements of different processing speed | |
| AC contactor | Taiwan TECO | Famous brand, steady property | ||
| Relay | Japan OMRON |
Product Description

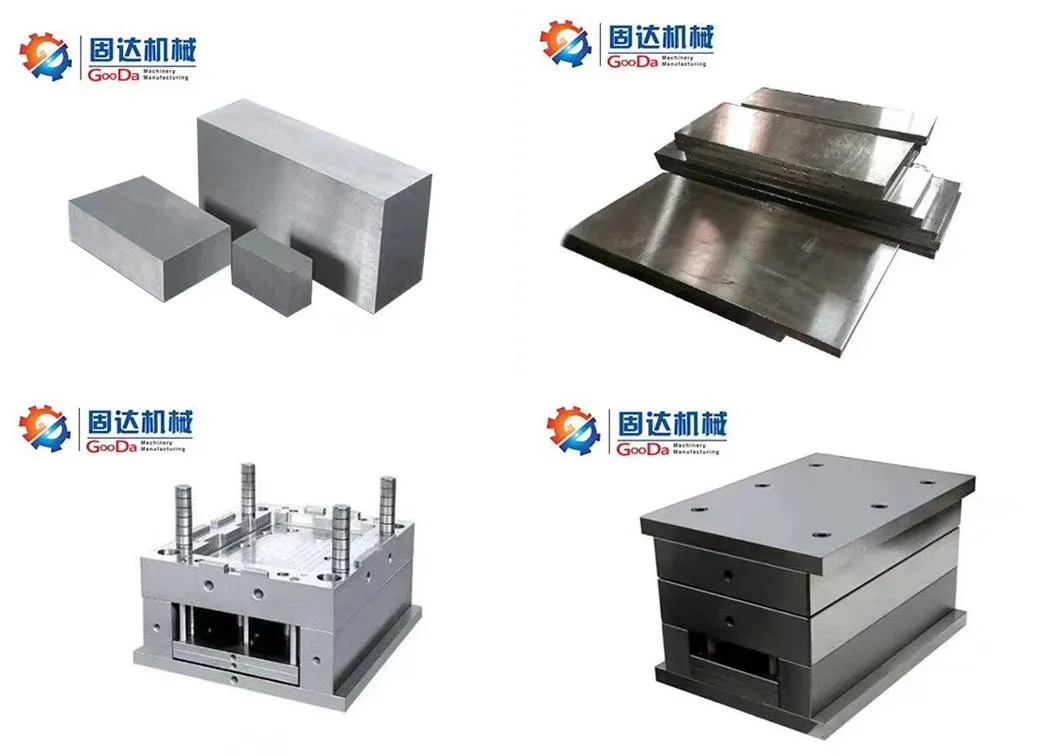

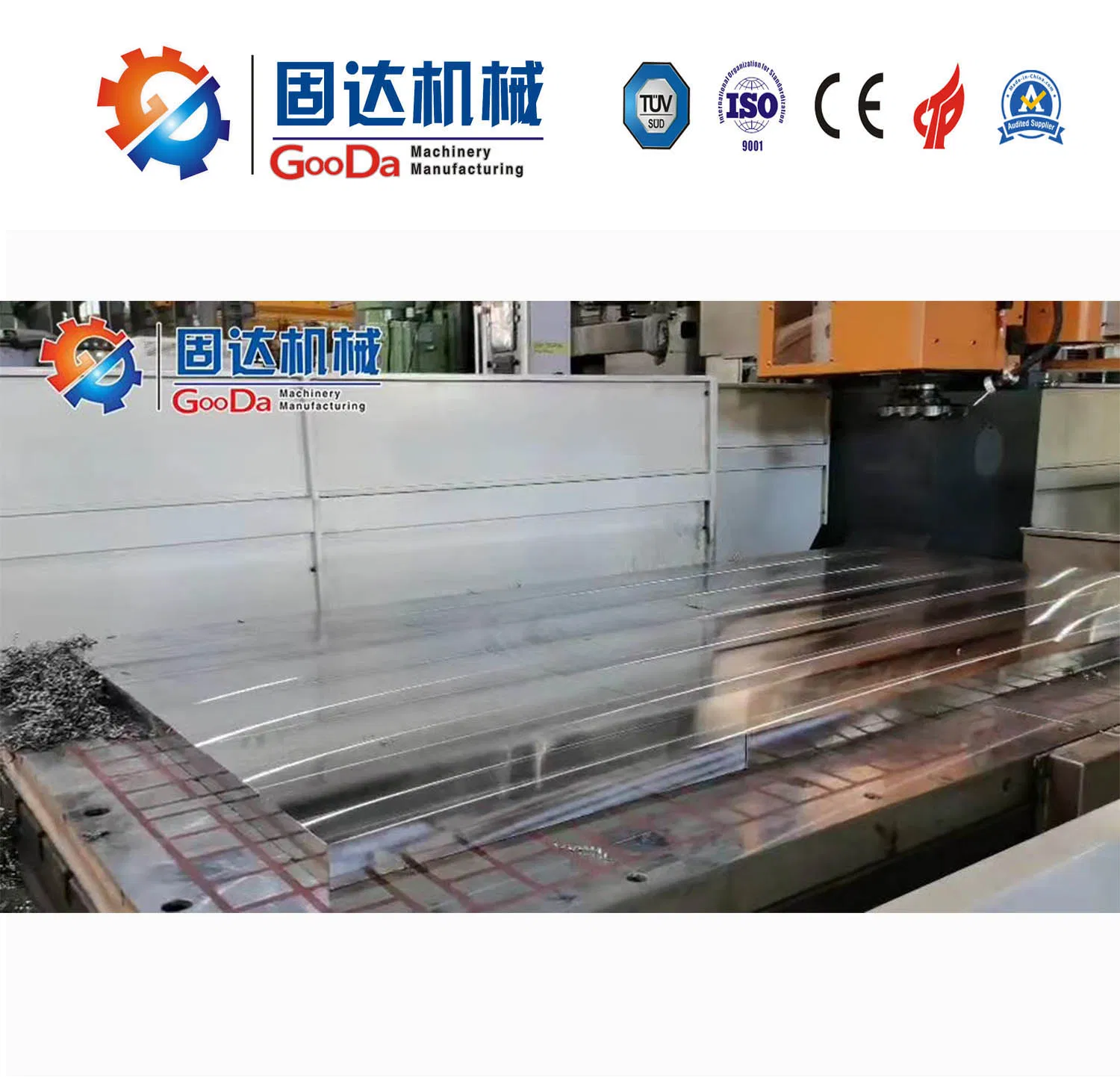

The best choice of surface milling machine for 1800x3000mm square plates.
CNC Precision Vertical Milling Machine VM-1830NC
Spindle driving spindle driving by Gear box type/Belt type
Cutting capacity(W*L*H): 1800*3000*600mm
Cutter OD.: 250mm
Side milling max size: 290*1800*2700 mm
Cutter OD.: 300mm
Milling accuracy:Flat and parallel tolerance≤0.03mm/1000mm
Machine base with rigid, one piece iron construction.
According to following standards:
* TUV ISO 9001 certificate
* TUV certificate
* SGS certificate
* CE certificate
* More than 39 patents certificate
* National High-tech Enterprises certificate
Productivity benefits
GooDa CNC milling machines offer the following benefits:
1.has obtained dozens of patent technology and software copyright, and has successively passed the ISO 9001 quality management system certification and CE product safety certification of the European Union TUV certification, national high-tech enterprise evaluation and other honors.
2. After sale service, deliver high reliability with an emphasis on efficient maintenance service all the time. Maintain part-to-part consistency. we will help you at once when there is a problem. Besides, we will check machine regularly.
3. Machines come wired for USA electricity or your local electricity.
4. We supply expert installation and training.
5.Save you time and money and increase your productivity by high speed milling.
6. Maximize tool life assuring your production will pay dividends for many years.
6. Maximize tool life assuring your production will pay dividends for many years.
Don't worry and trust us, we will all here serve you.
FAQ
Q: Are you a manufacturer or Trading Company?

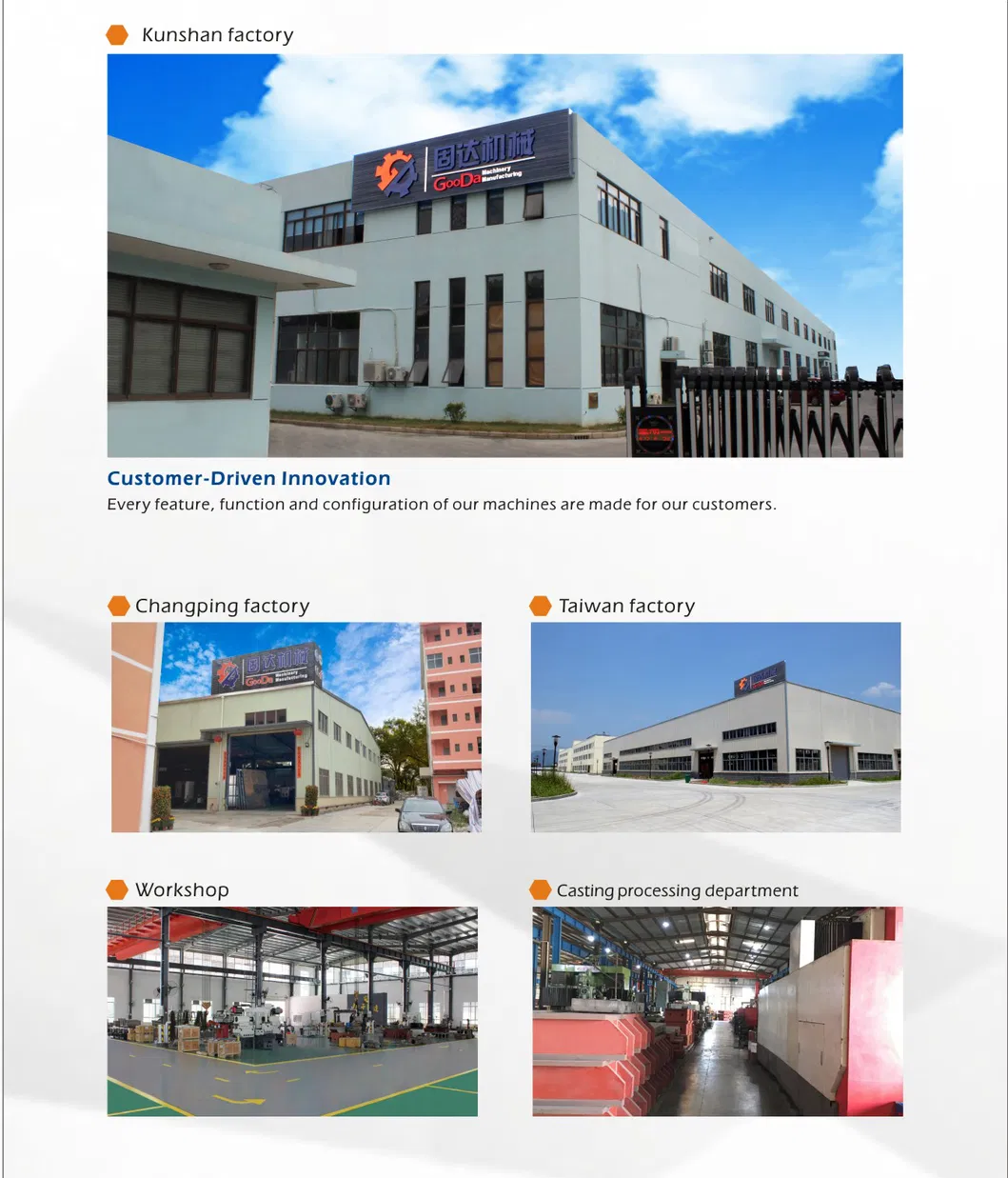

A: We are a innovative interprise with rich import & export experience and 10 professional production line.Warmly welcome you to visit our factory.
Q: How is the delivery?
A:For standard configuration, it's usually 45 days after down payment.
Q: Have you sold any machines in my country?
A: With the company development, Gooda plays an important role in the China machine industry and export our machine to all over the world (The United States/ Korea / Canada/Thailand/ India / Southeast Asia etc.). and now, we have agents in South Korea/India/Thailand/ Vietnam, please feel free to contact us to get more detail.
Q: Can you support OEM Service?
A: Yes, according to customers' requirement, we would like to make the building plan to meet customers meet.
Q.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself.
.Q:How is the after-sales service?
A: Our products has one year warranty, and a strong team of engineers to support after-sales service. If there is any issue for the machine, please contact us immediately and we will give you solution way soon. Service first!
