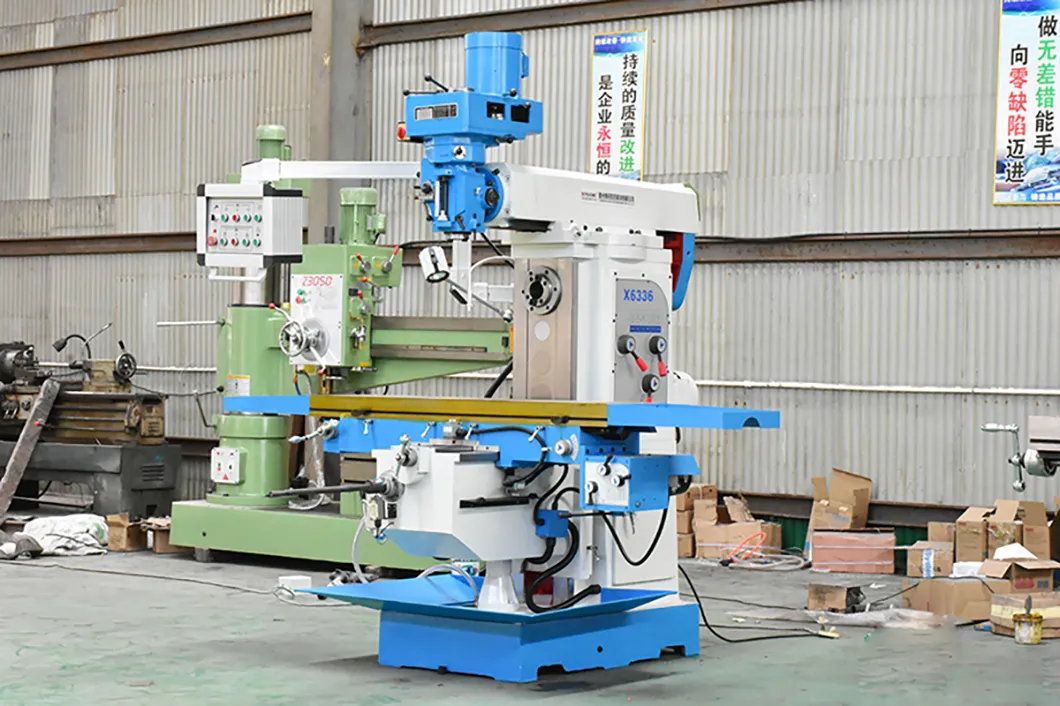

Hot Selling X6336 Cylinder Head Milling Machine Factory
Hot Selling X6336 Cylinder Head Milling Machine FactoryProduct DescriptionThe product is easy to operate and reliable. Available for all kinds of cylindrical milling cutter, milling cutter, angle cutter, milling cutter and face Various plane, inclined plane, groove, etc.. If the use of appropriate m......
Send Inquiry
Product Description
The product is easy to operate and reliable. Available for all kinds of cylindrical milling cutter, milling cutter, angle cutter, milling cutter and face Various plane, inclined plane, groove, etc.. If the use of appropriate milling machine accessories, can be processed gear, cam, arc groove
And other special shaped parts, such as the spiral surface, the configuration of universal milling head, round table, the worktable size of the machine can be further expanded,Large machine tool use range, according to user needs can be configured to display device.

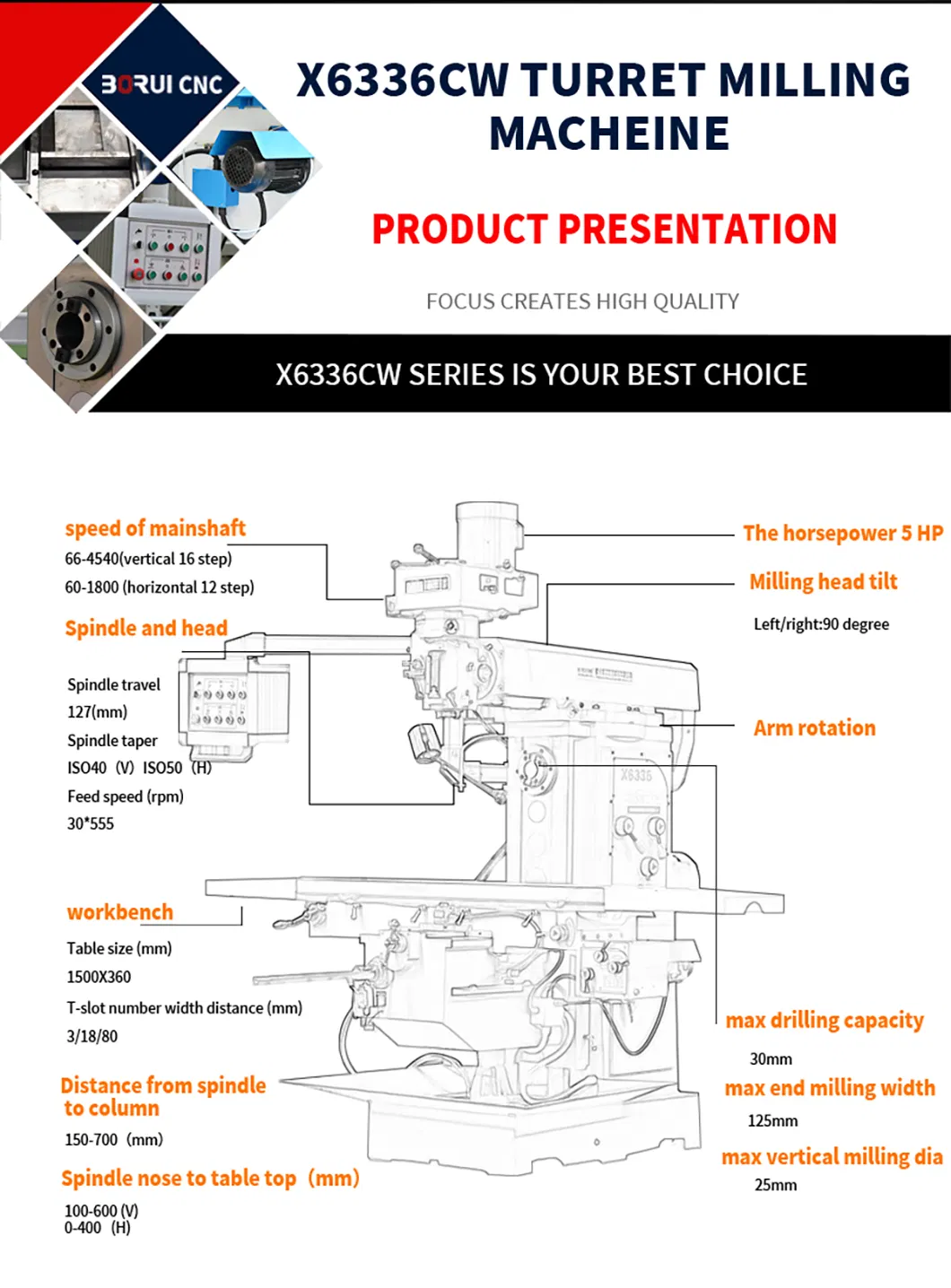

The main specification :
| SPECIFICATIONS OF TURRET RADIAL HEAD MILLING MACHINE X6336 | |
| SPECIFICATIONS | X6336 |
| Spindle taper | ISO40(V) ISO50(H) |
| Diameter of quill | 120mm |
| Distance from spindle to table | 135-535mm |
| Distance between spindle axis and boom | 230mm |
| Distance from spindle to column | 200-700mm |
| Spindle speeds | 80-7200r.p.m (V) 60-1800r.p.m(H) |
| Spindle travel | 145mm |
| Feeding of quill | (3step)0.04 0.08 0.15 |
| Max.drilling capacity of auto-feeding | Ø10mm |
| Head movement | ±45° |
| Table size | 1250×360mm |
| Table travel | 1000/320/400mm |
| Feeding range of longitudinal.cross travel | 22-555mm/min(8steps) |
| X,Y-axis rapid feed speed | 1080mm/min |
| Z-axis Rapid feed speed | 590mm/min |
| Z-axis motor power | 1.1kw |
| Max.weight of worktable | 400kg |
| T-slot Number/Width/Distance | 3/18/80mm |
| Milling head moving(Vertical) | 7.5HP(V) 4kw(H) |
| Cross slide way | 90W(25L) |
| X,Y axis driving motor | 750W |
| Overall dimension | 2220×1790×2360mm |
| Packing size | 1800×1900×2250mm |
| N.W/G.W. | 2450/2650kg |
Standard Accessories
1. Work lamp
2. Machine Vice
3. Milling Chuck
4. Draw bar
5. Tool & toolbox
6. Reduction sleeve
Optional Accessories
3-axis Digital Reading
Dividing Head
Rotary Table
Clamping Kits

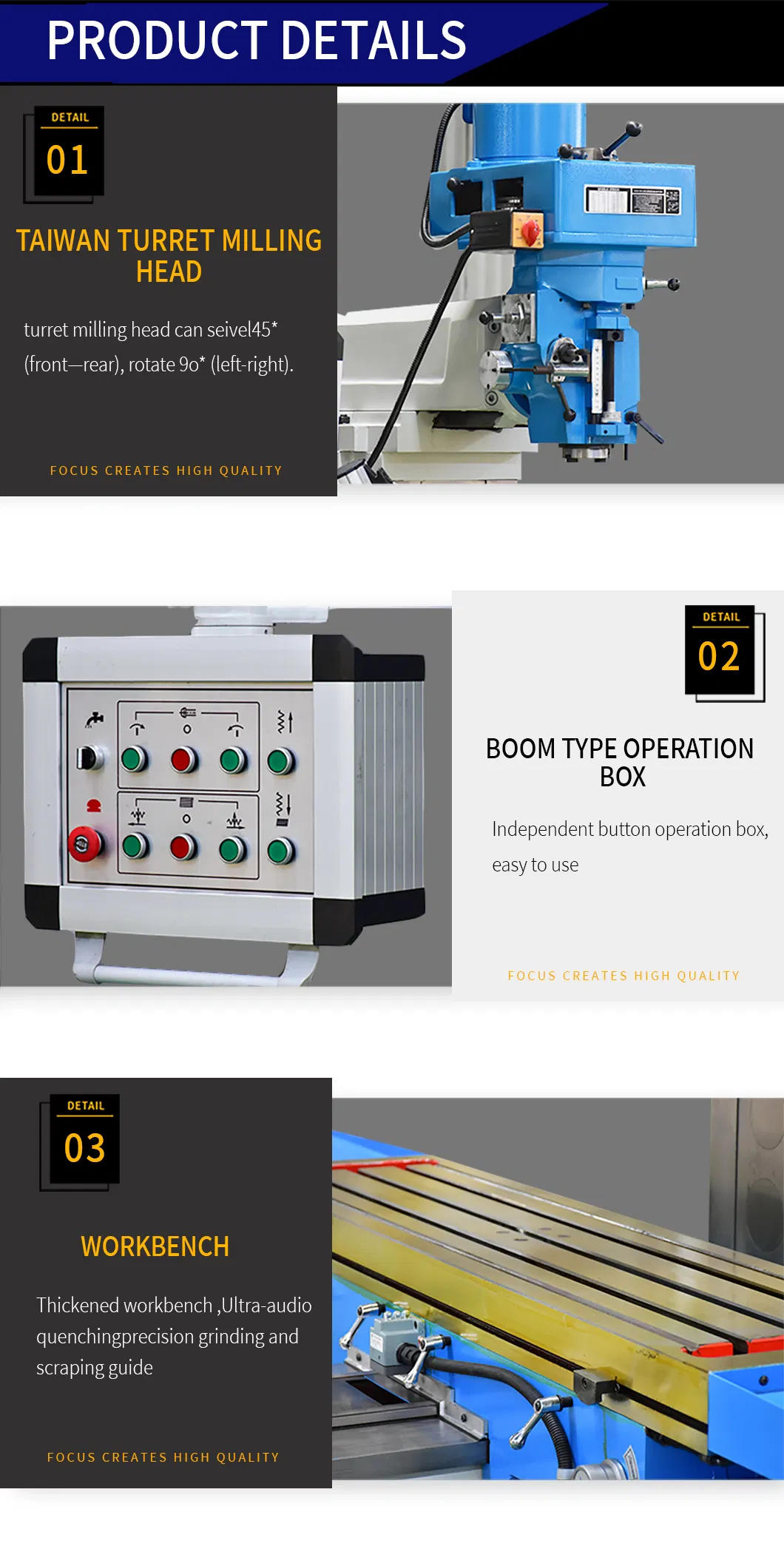

The Turret Milling Machine advantage :

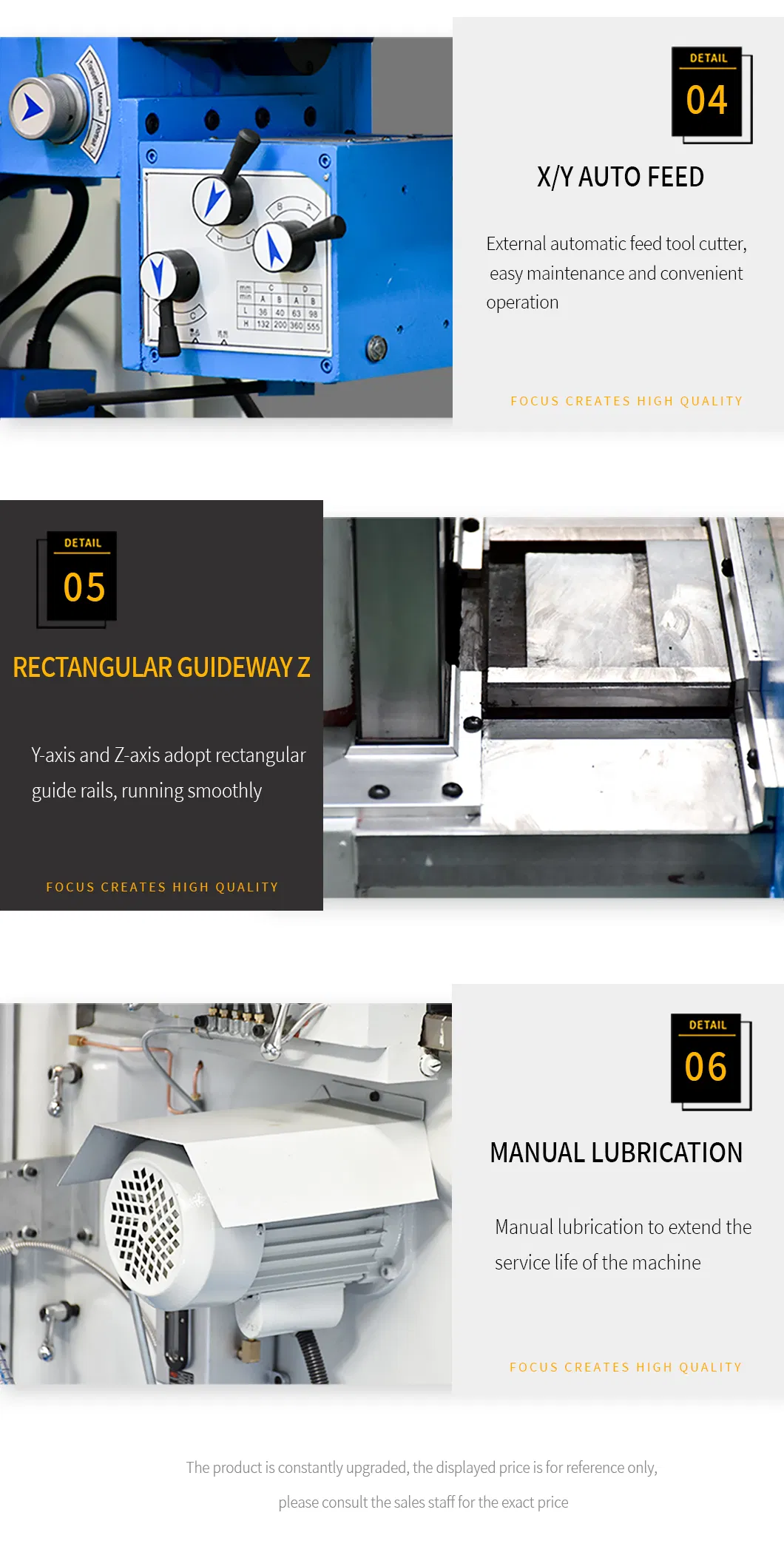

1.The milling machine Auto feed on two axis,motorized lift on Z axis
2.Hardening treatment,rectangular guide way
3.High speed turret milling head, high precision
4.The Universal milling machine structure of rectangular guide rail, the milling machine itself is more stable, more accurate.
Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
